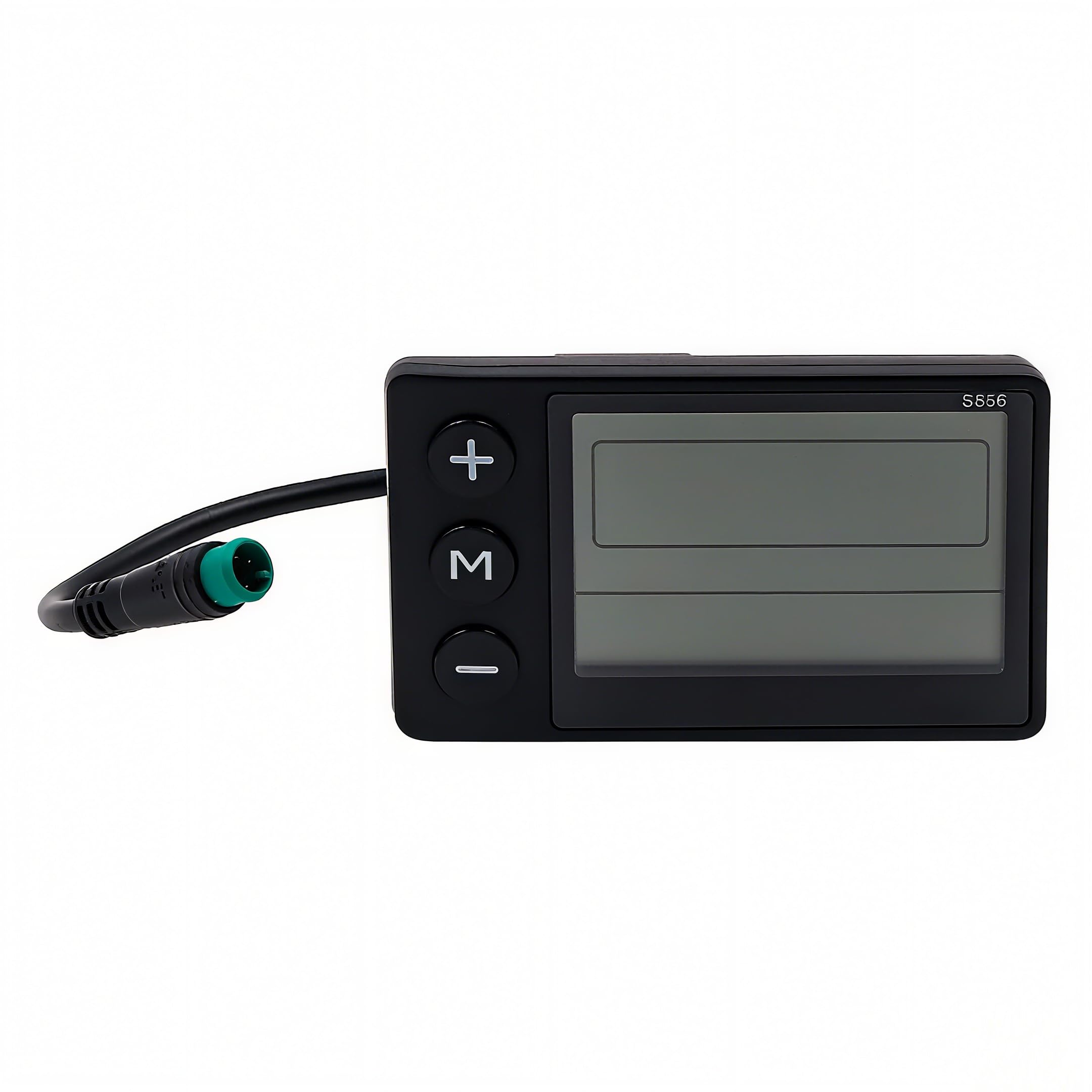

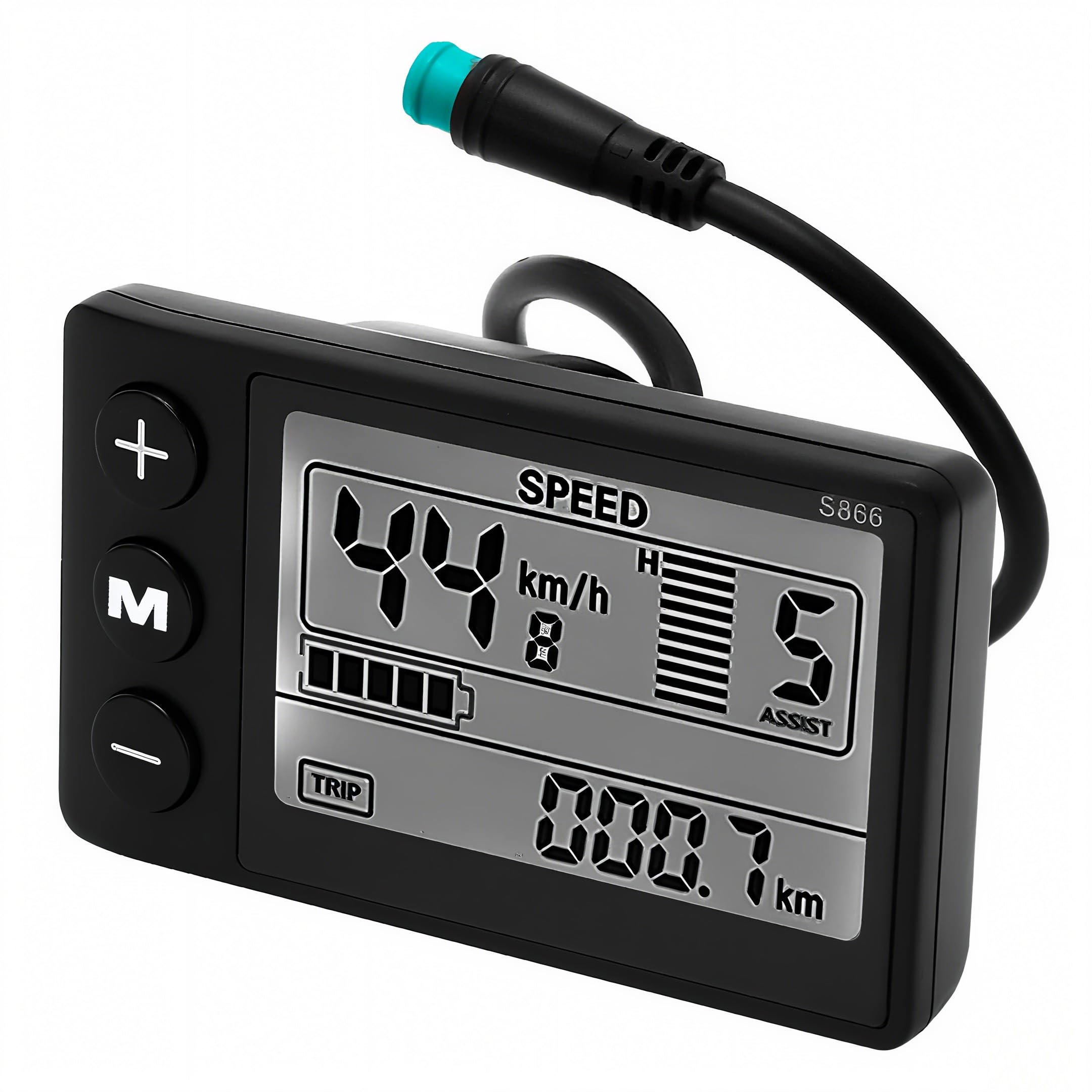

Hsthe Sea E-Bike LCD Display 24V 36V 48V IP65 Waterproof Large Screen(Note: must be used with a controller with communication protocol No.2, otherwise it is not compatible)

• Made of high quality ABS material, which is light weight, waterproof and durable for a long life.
• The backlight allows you to see the screen clearly even in the dark environment, and the key operation is fast and convenient.
• EASY TO OPERATE,Quickly and effortlessly installs and removes the meter panel without any tools for your every need.

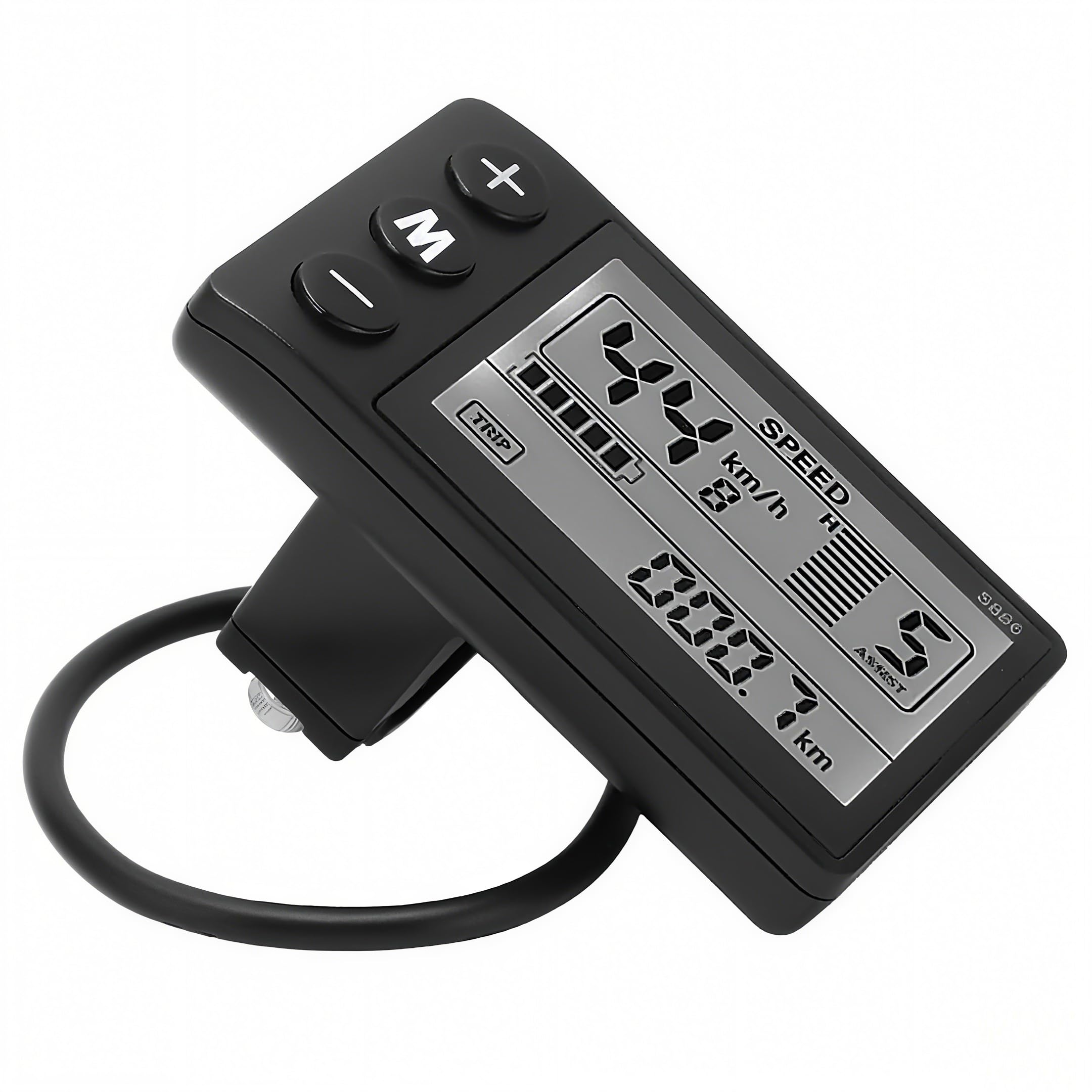

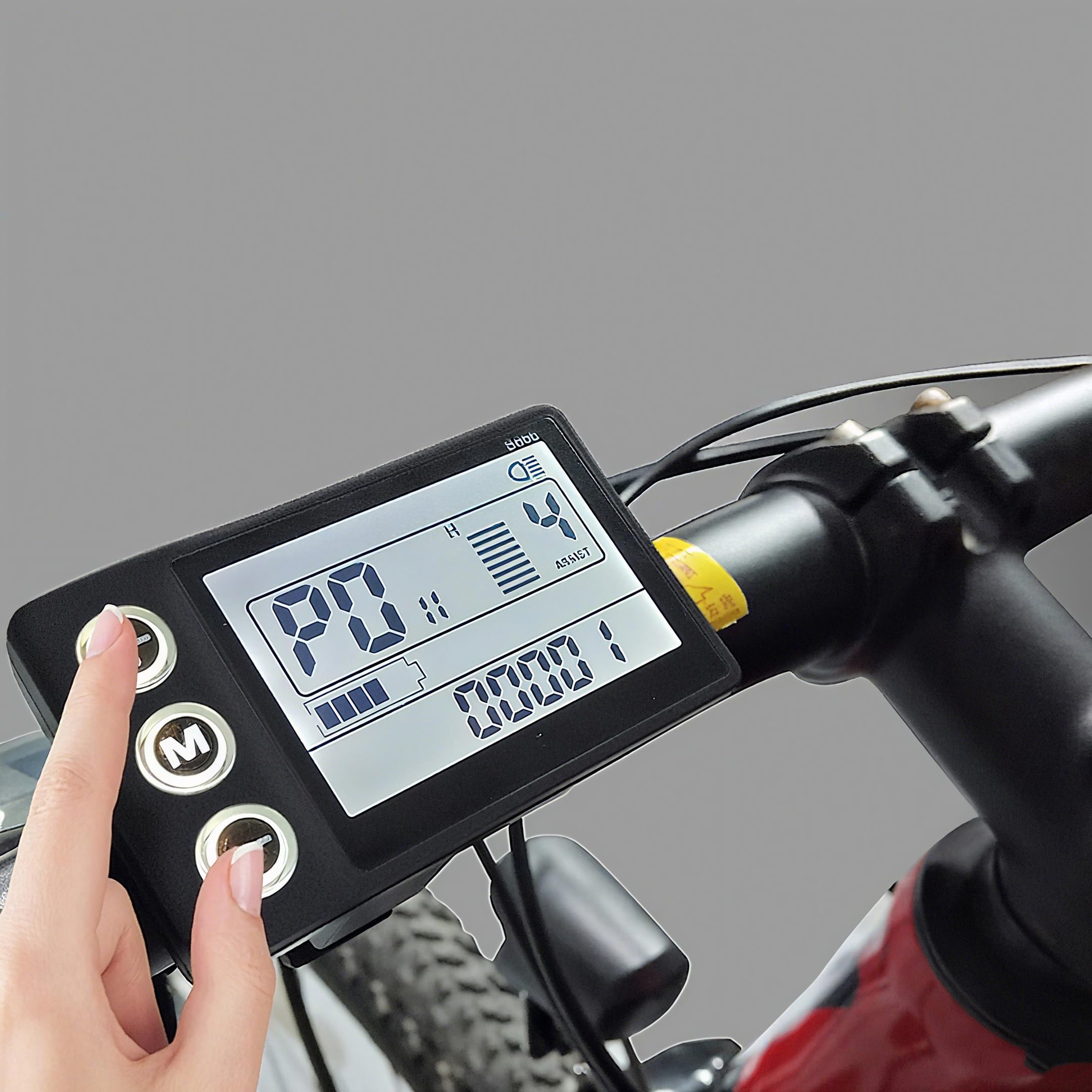

• Easy to install and use, comes with LCD screen display bracket, suitable for 22.2mm/0.9in handlebars.
• LCD display makes it easier for you to view the data on the panel, and the status is displayed on the large screen more intuitively.
• Please note: Before purchasing, please confirm that your original instrument model is S866; in addition, the communication protocol of this instrument is No. 2 communication protocol, and it must be used with a controller with No. 2 communication protocol. If you are not sure whether your instrument model or controller is No. 2 communication protocol, please contact us.

Specification: S866 Type: S866 LCD Monitor Model: S866 Voltage: 24V 36V 48V Setting and adjusting on the screen via P03 Colour: Black Material: Plastic + Acrylic Working temperature: -20 ~ 45 ℃ Handle size Handle size: Φ22.2mm. Cable length: 180±5 mm (SM connector) Connector type: SM 5-pin connector (LCD cable) + SM 2-pin connector (lamp cable) Communication protocol: UART NO.2 (Note: This product is based on communication protocol No.2 and must be used with a controller with communication protocol No.2, otherwise it is not compatible) Display functions: speed display, battery display, fault display, total odometer reading, single odometer reading Package Includes: E-bike LCD display X1
