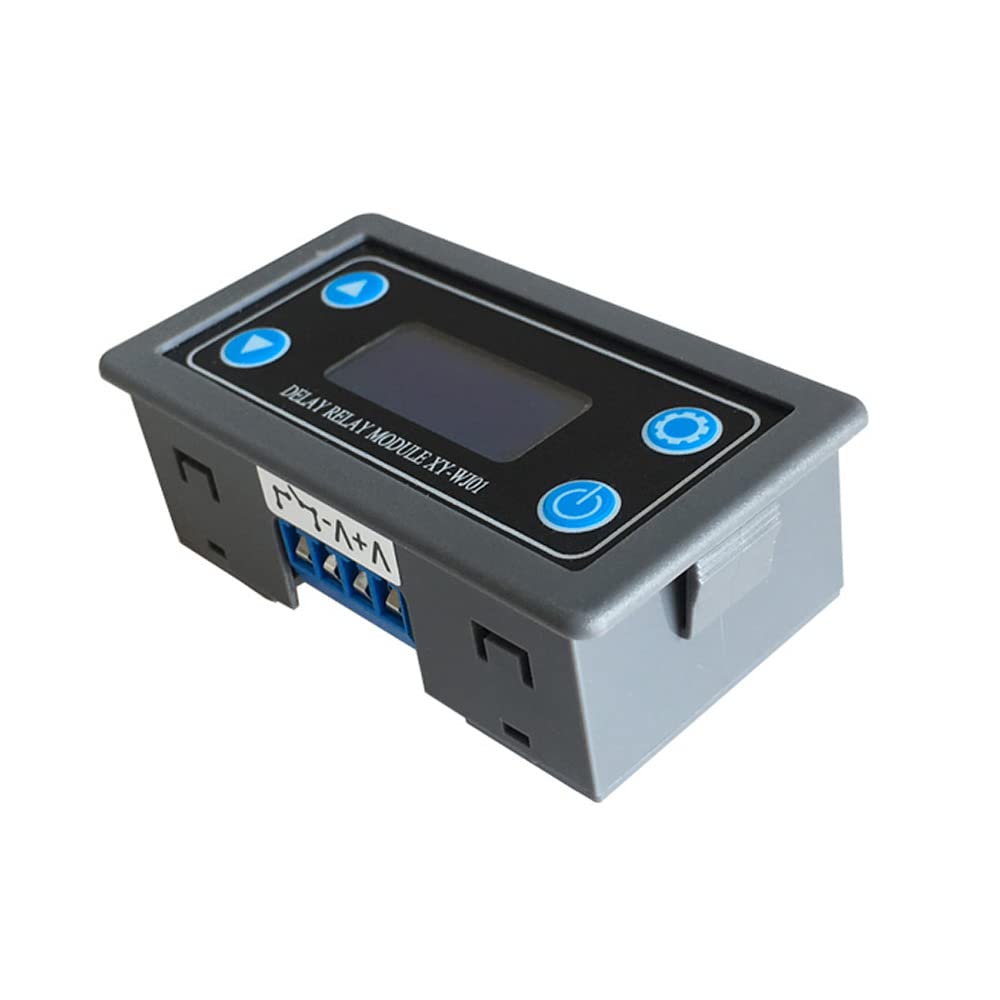

Hsthe Sea Delay Relay Module 12V 24V 0.01s-9999min Digital Timer Cycle Delay Switch Module with LCD Display Switch Button
About this item

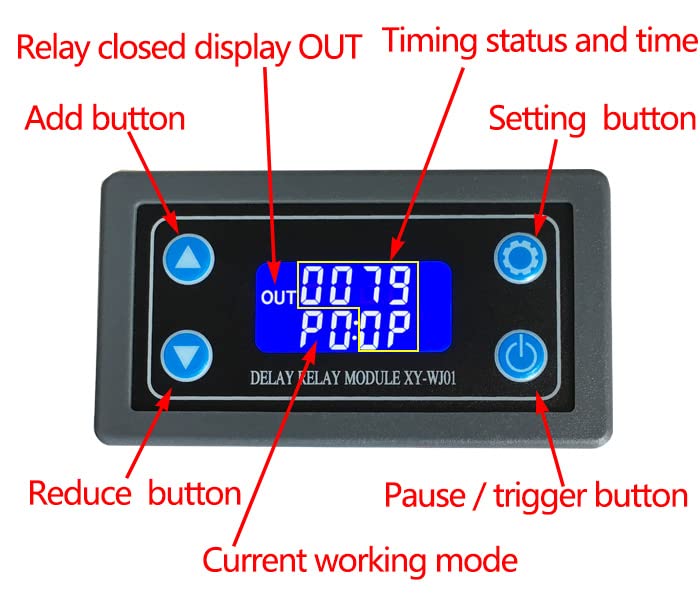

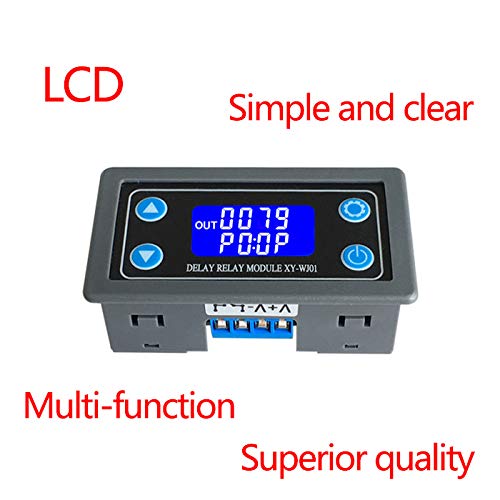

- with LCD display, the current mode and parameters at a glance, very clear, simple and practical.

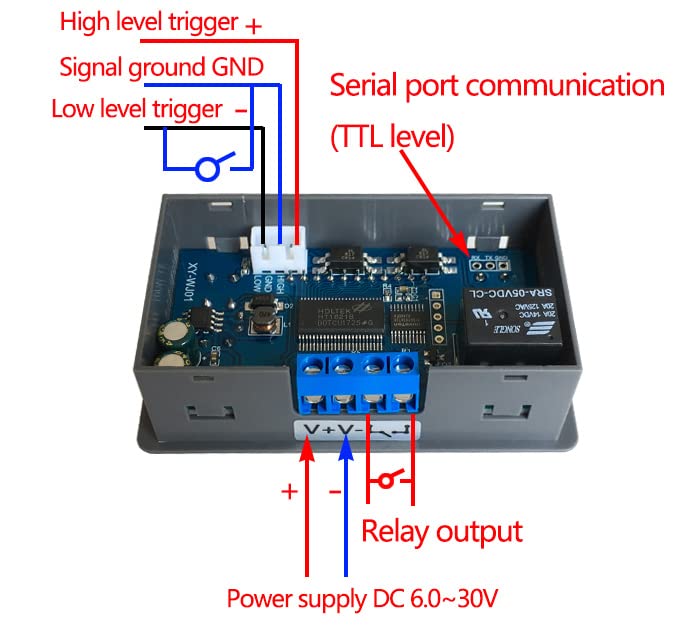

- support key trigger control, high and low level trigger, switch control, suitable for most occasions.

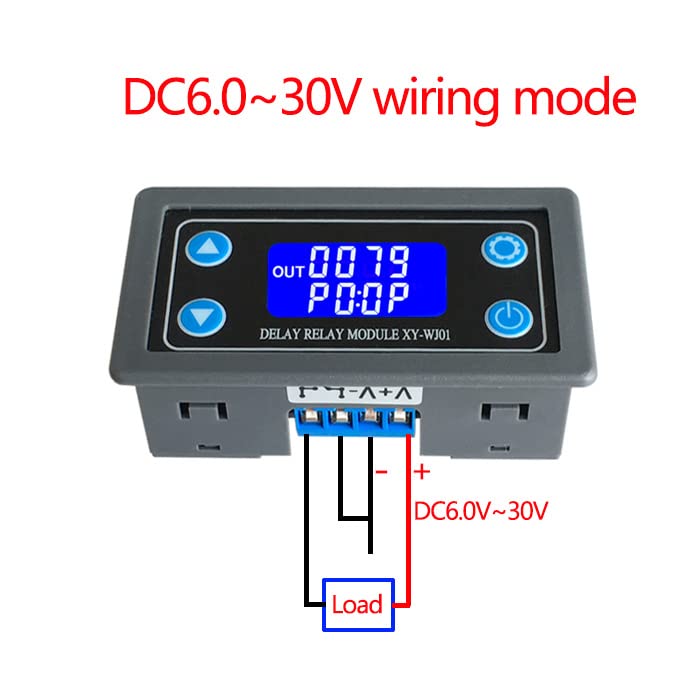

- wide voltage power supply (6~30V), very convenient to use.
- with one key pause function, with reverse connection protection, reverse connection does not burn
- add a sleep mode, after enabling, about 5 minutes without any operation, automatically turn off the LCD backlight; any key to wake up.
Product description

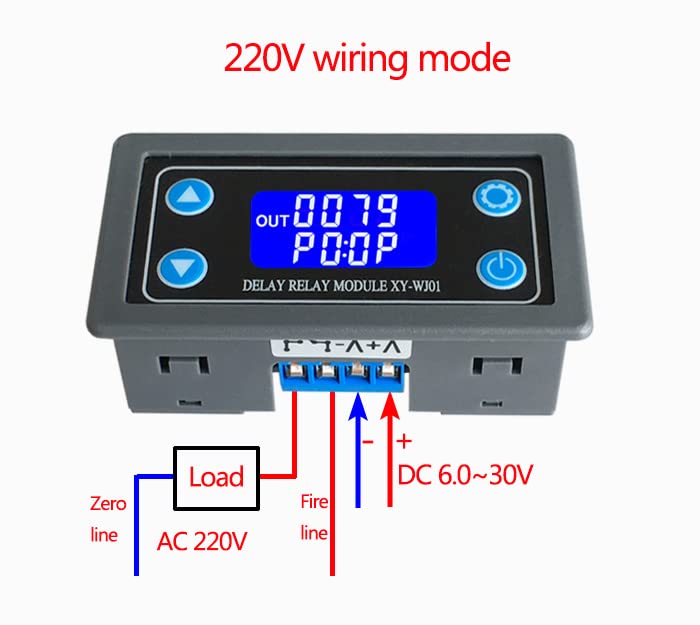

Product Description: The possibility of setting different OP, CL and LOP parameters, which are independent of each other and saved separately All set parameters are automatically saved by power-down. Specification: Operating voltage: 6--30V power supply Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switching control (passive switch). Output capacity: can control DC 30v within 10A or AC 220v within 5A Static current: 15mA Operating current: 50mA Service life: more than 100,000 times; working temperature: -40-85โ With optocoupler isolation, enhanced anti-interference capability, industrial-grade circuit board, set parameters are always remembered after power failure. Timing range. 0.01 seconds (minimum) ~ 9999 minutes (maximum) continuously adjustable Package including: 1 x Timer Relay
