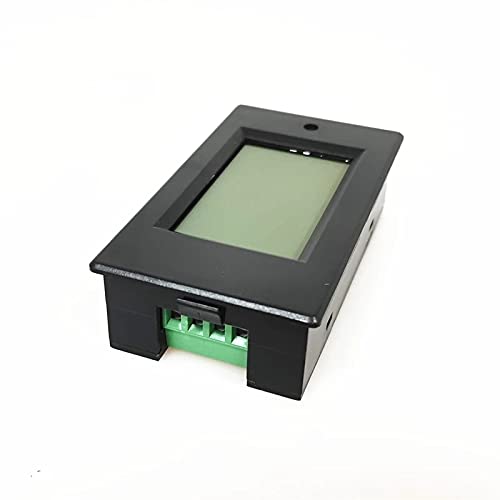

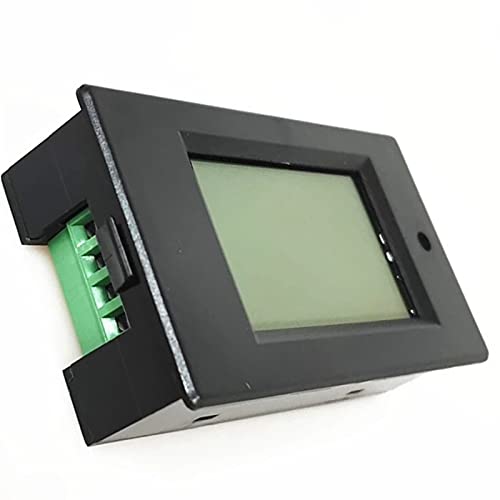

Hopbucan AC 80-260V 100A PZEM-061 LCD Display Digital Current Voltage Ammeter Voltmeter with Current Transformer CT

• Working voltage: 80 ~ 260VAC
• Rated power: 100A/22000W
• voltage: 80 ~ 260VAC
• Operating frequency: 45-65Hz
• Measurement accuracy: 1.0 grade

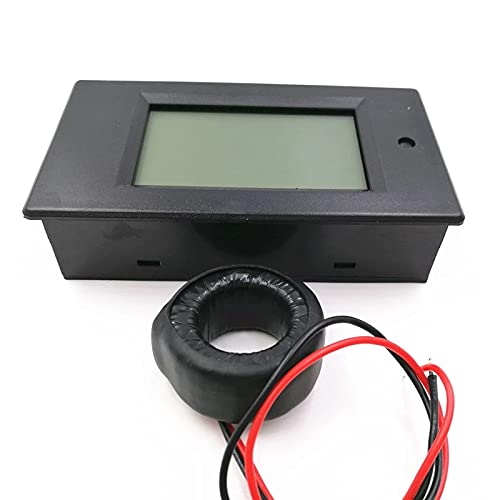

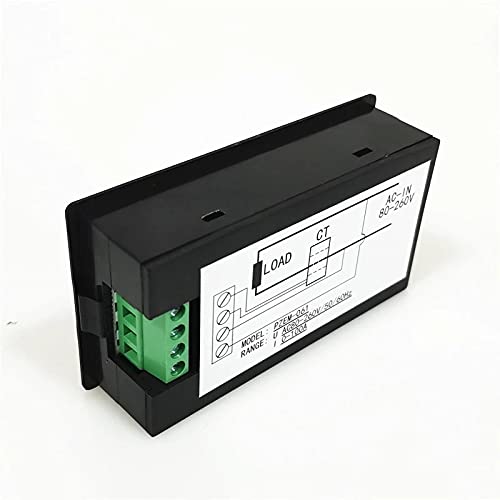

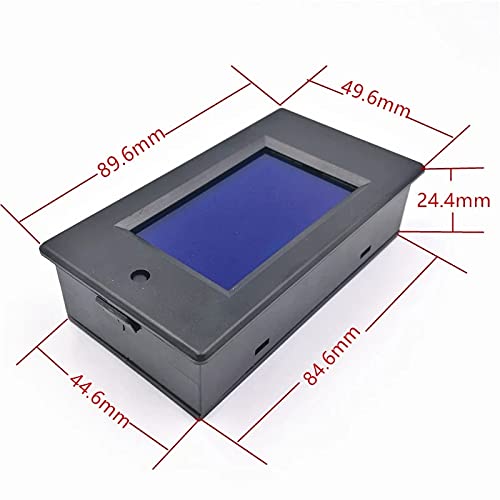

Hopbucan Function: Electrical parameter measurement function (voltage, current, active power, ) Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). Power alarm threshold preset function (can set power alarm threshold). The reset function of key. Store data when power off. -screen LCD (display voltage, current, active power, at the same time) Backlight function. Display format: Power: range: 0~22kW Within 1kW, the display format is 0.0~999.9W; Within 1kW~10kW, the display format is 1000~9999W; 10kW and above, the display format is 0.1~22.0kW. : range: 0~9999kWh Within 10KWh, the display format is 0~9999Wh; 10kWh and above, the display format is 10~9999kWh. Voltage: range: 80~260V Display format: 80~260V Current: range: 0~100A Display format: 0.00~99.99A Precautions: This module is suitable for indoor, please do not use outdoor. Applied load should not exceed the rated power. Wiring order can't be wrong. It can't be used in some circuit such as inverter or silicon controlled. Colour: black Material: composite materials Size: 9x5 (mm) Package Contents: 1 * PZEM-061 AC Voltmeter Ammeter 1 * Coil CT Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
