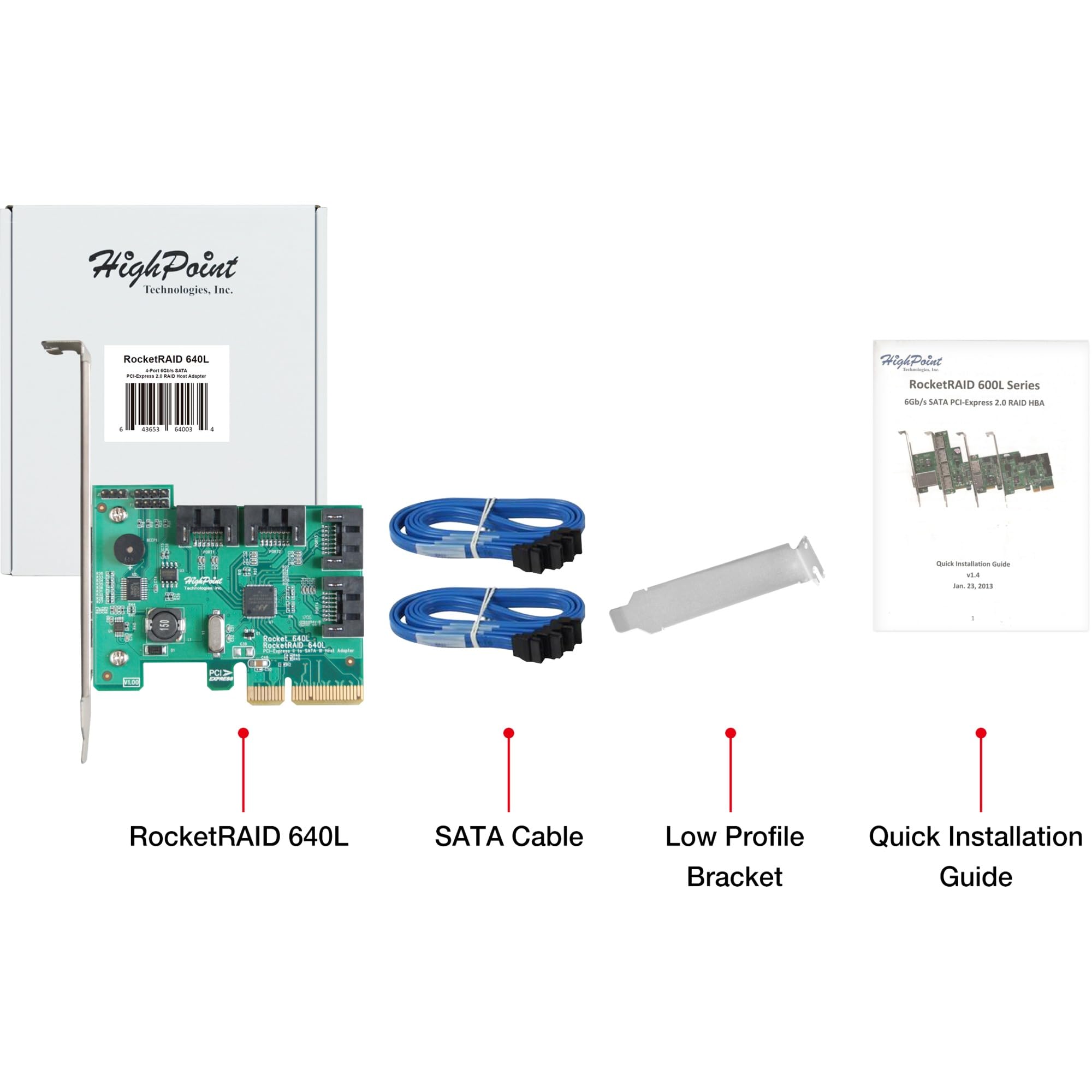

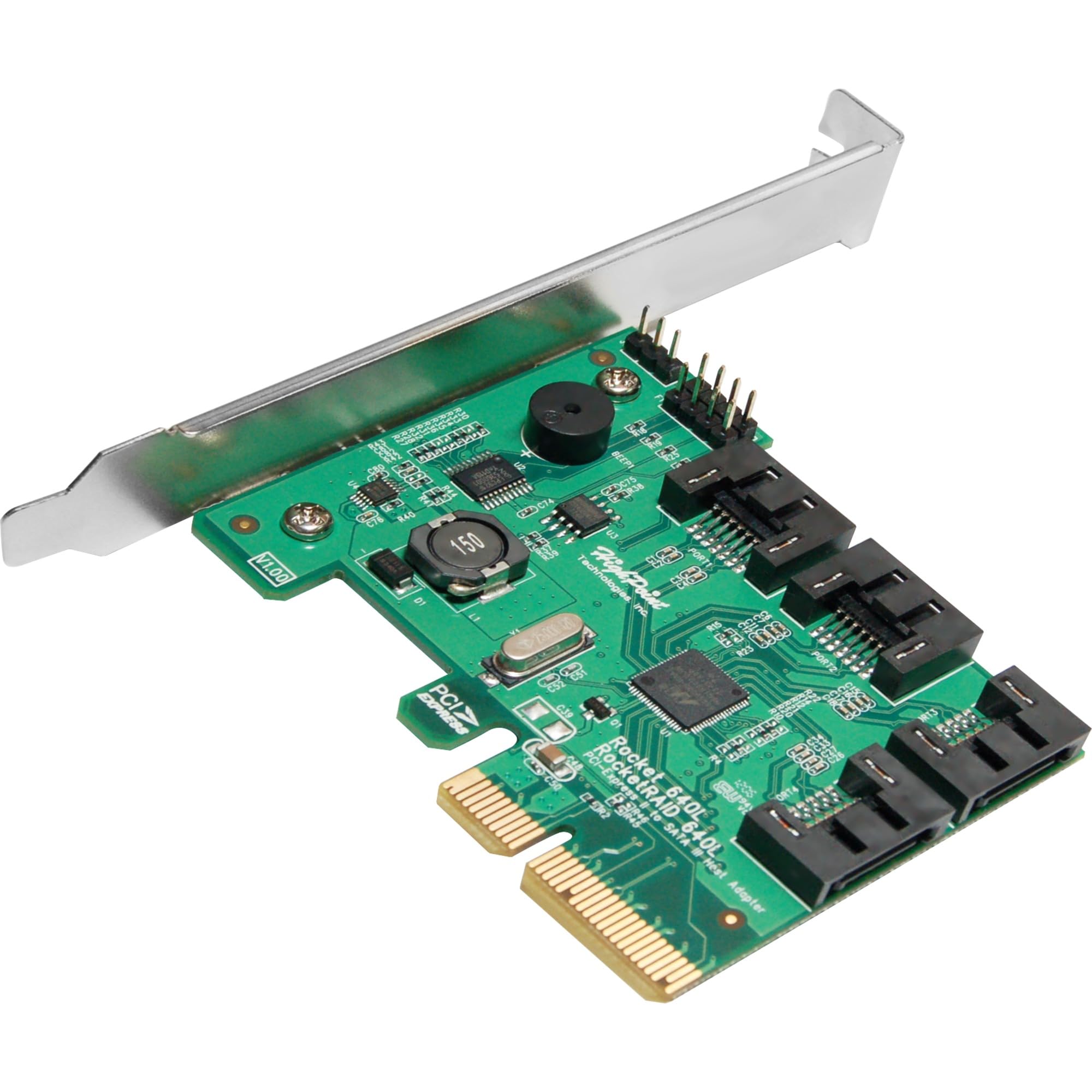

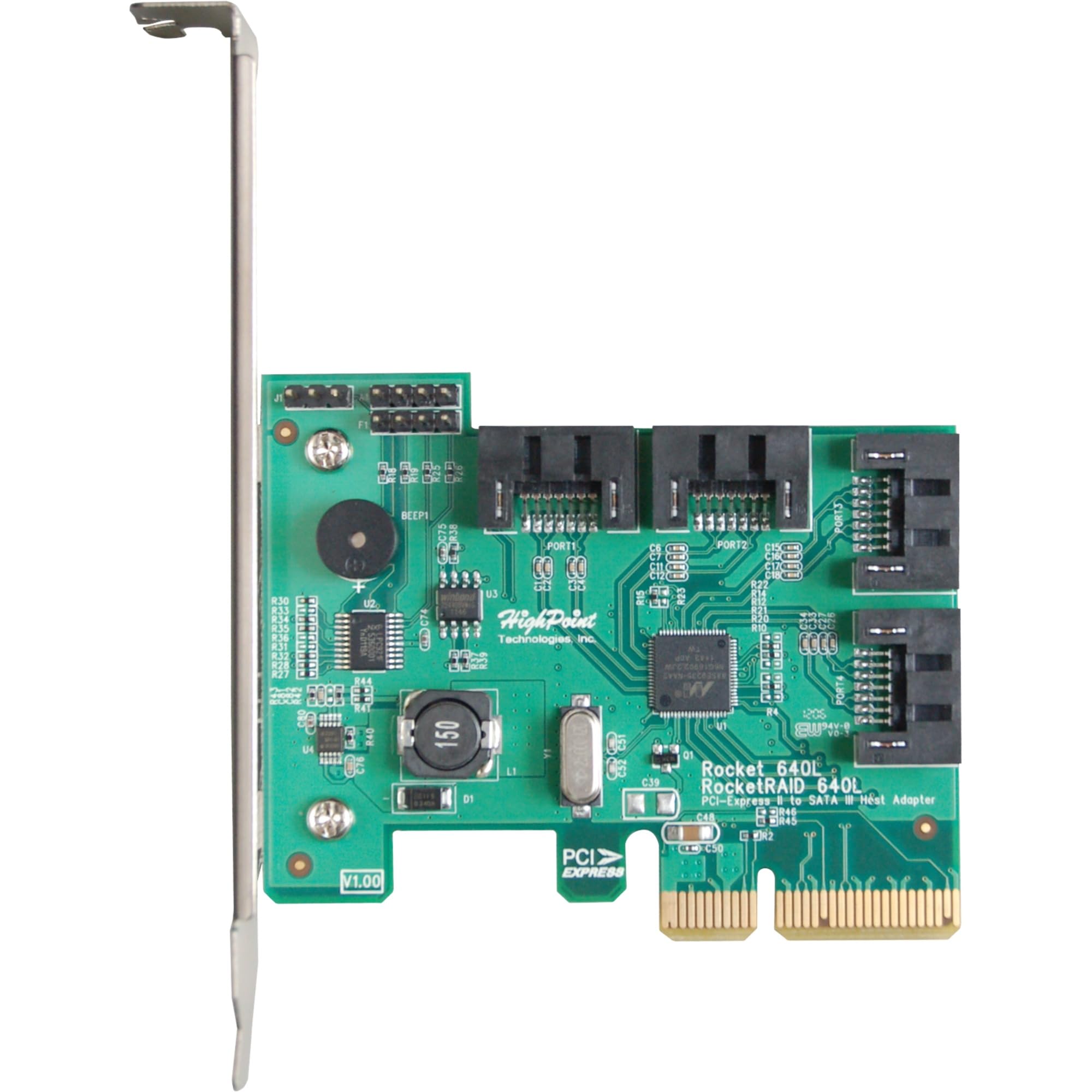

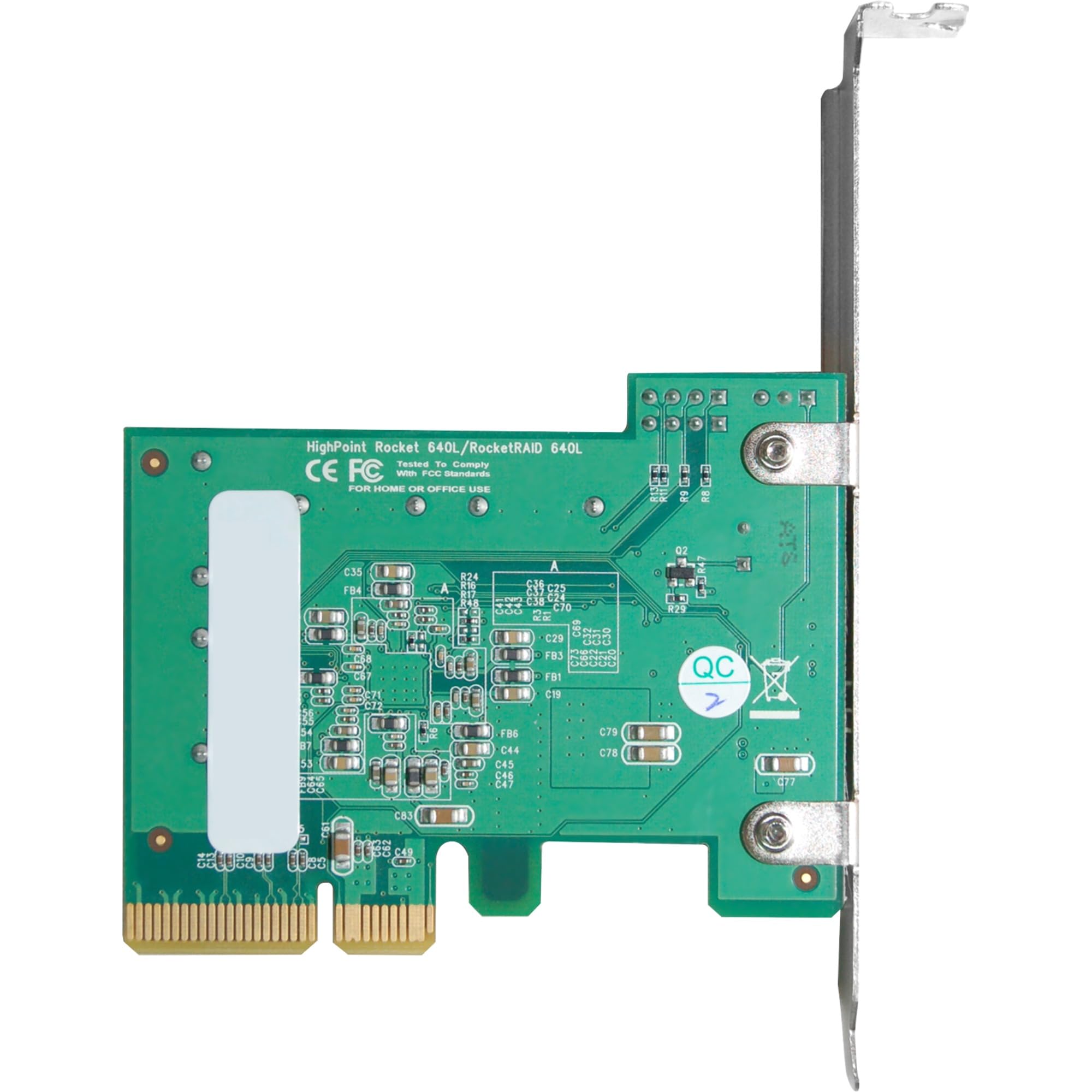

HighPoint RocketRAID 640L Internal 4-Port PCI-Express 2.0 x4 SATA 3 6Gpbs Controller Card

• PCI-Express 2.0 Host Interface
• 4 SATA Ports
• HighPoint Hardware Assisted RAID (0, 1, 5, 10 & JBOD)
• Port Multiplier Compatible: supports up to 20 HDD/SSD with port-multiplier capable enclosures
• Driver support for Microsoft Windows 8, 7, 2008, Vista, and Linux distributions

HighPoint RocketRAID 600L – 2nd Generation SATA 6Gb/s PCI-E 2.0 RAID HBA’s HighPoint’s RocketRAID 600L Series HBA’s are the Industry’s most affordable, high-performance, SATA 6Gb/s RAID HBA’s, and are ideal for desktop PC’s and workstations. These Second Generation SATA 6Gb/s host controllers utilize the PCI-Express 2.0 host bus interface, HighPoint's Industry-proven RAID engine, and support a wide-range of single-disk and RAID configurations including 0, 1, 5, 10 and JBOD. RocketRAID 600L HBA’s are fully backwards compatible with SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with major PC operating systems including Windows 8. Each RocketRAID 600L Series HBA’s directly supports up to 4 SATA devices, and up to 20 when used in conjunction with port multiplier storage devices.For maximum performance, attach SATA hard drives and SSD’s directly to the RocketRAID 600’s SATA and eSATA ports. To maximize storage capacity, use the RocketRAID 600 with port multiplier storage chassis and external disk enclosures.
