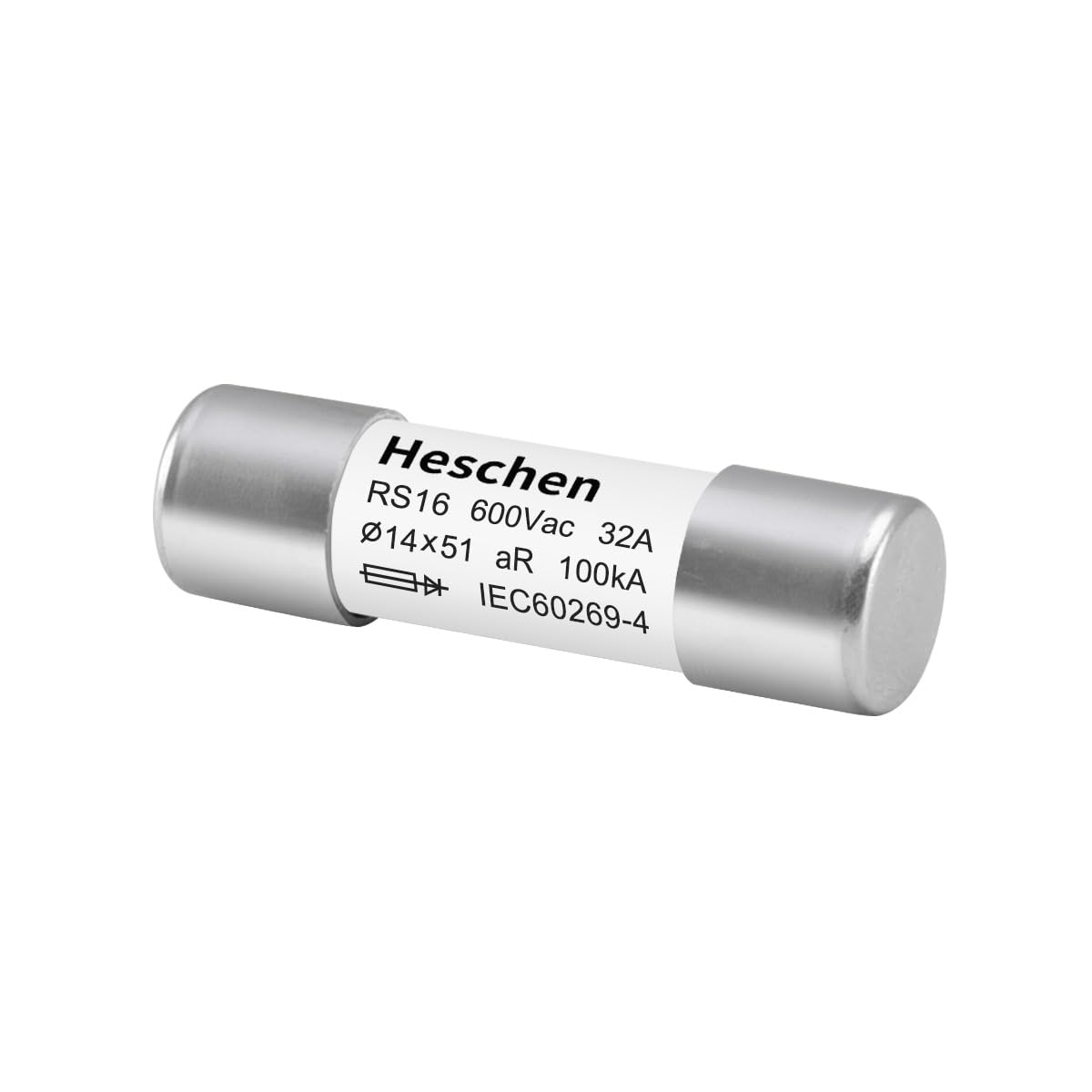

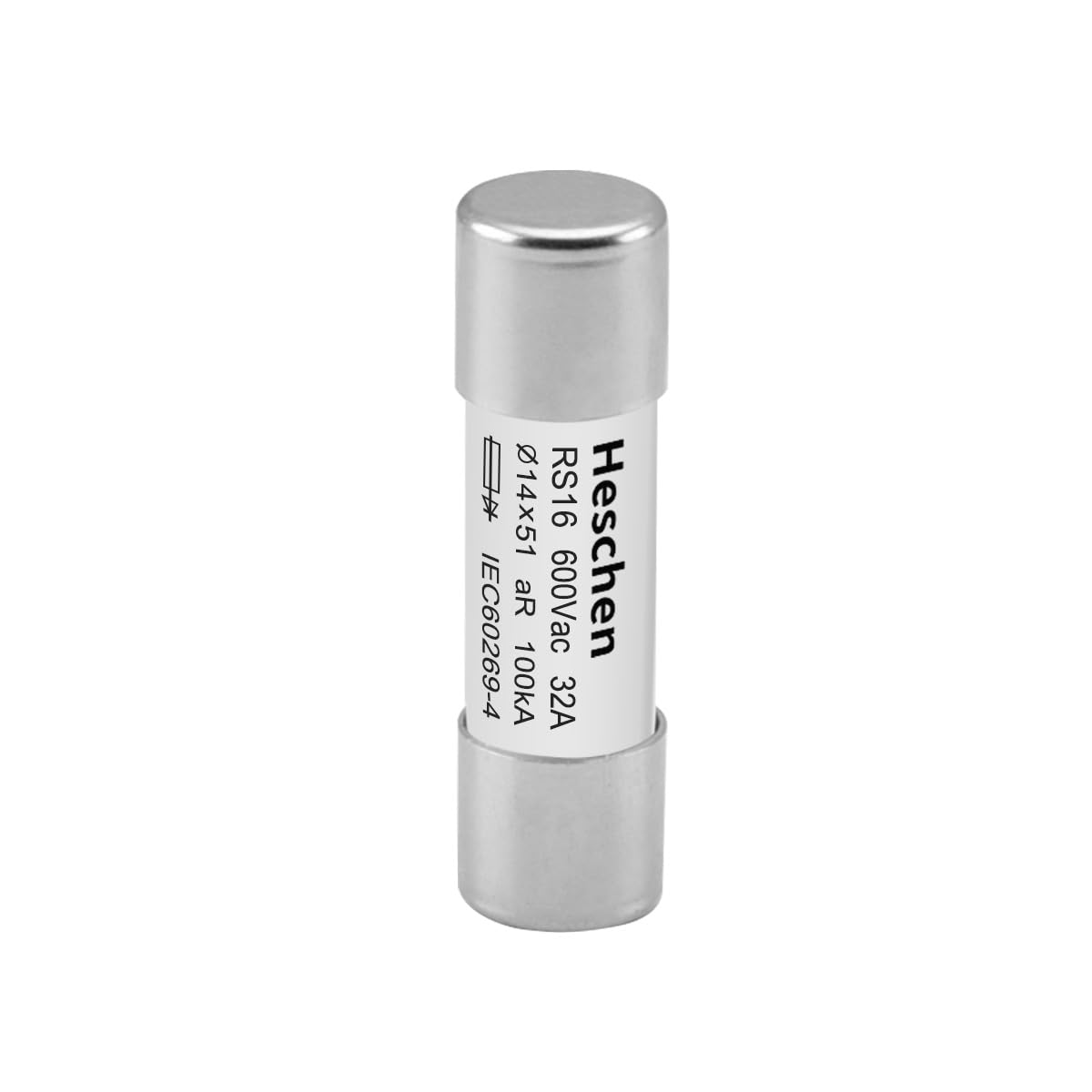

Heschen Cylindrical Ceramic Tube Fuse Link, RS16, aR Type, 14 * 51mm, 32A 600VAC 100kA, 5PCS

• Rating: 32A 600VAC; aR Type
• Breaking Capacity: 100kA

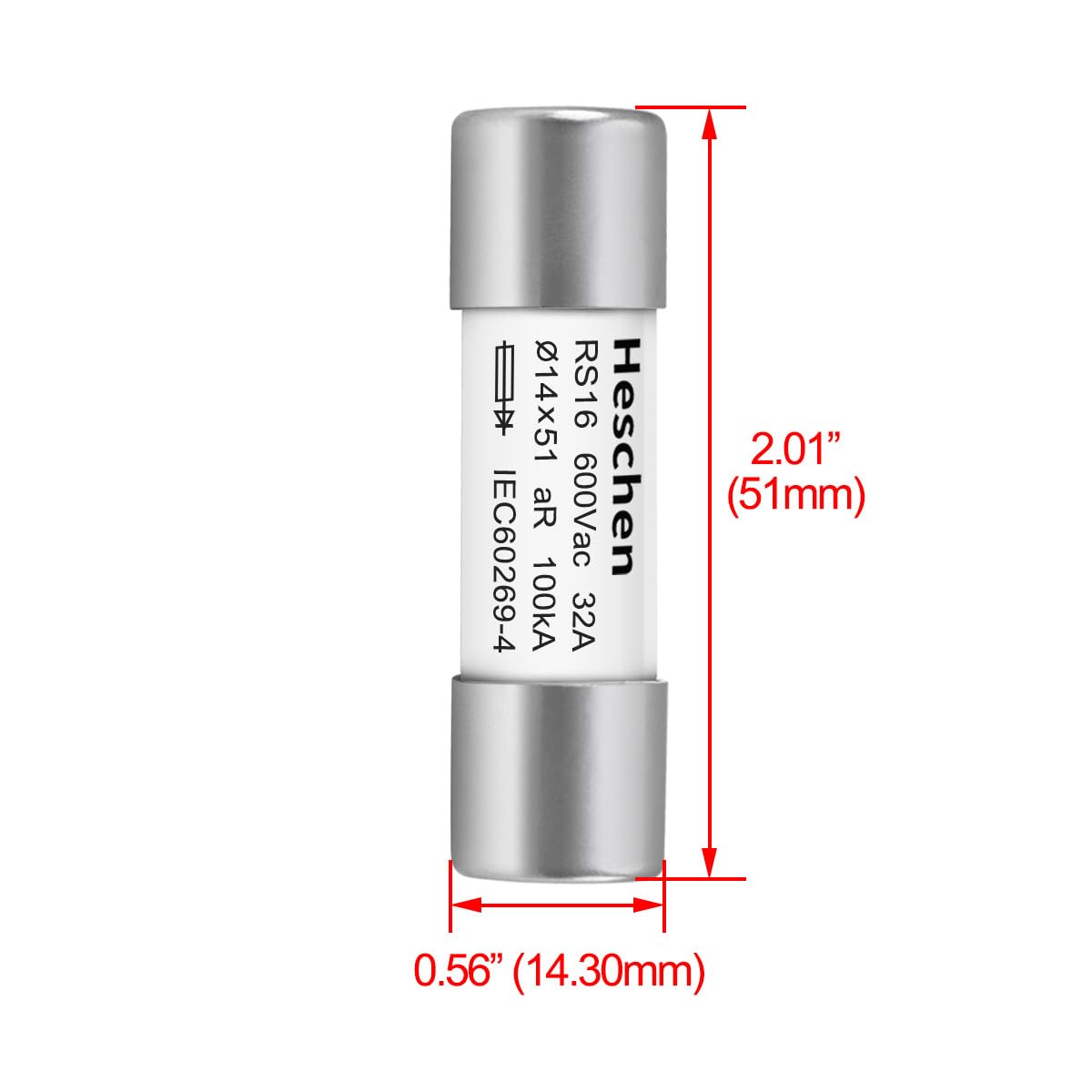

• Size: 14×51mm / 0.55"X2.0"
• Standard: IEC60269-4

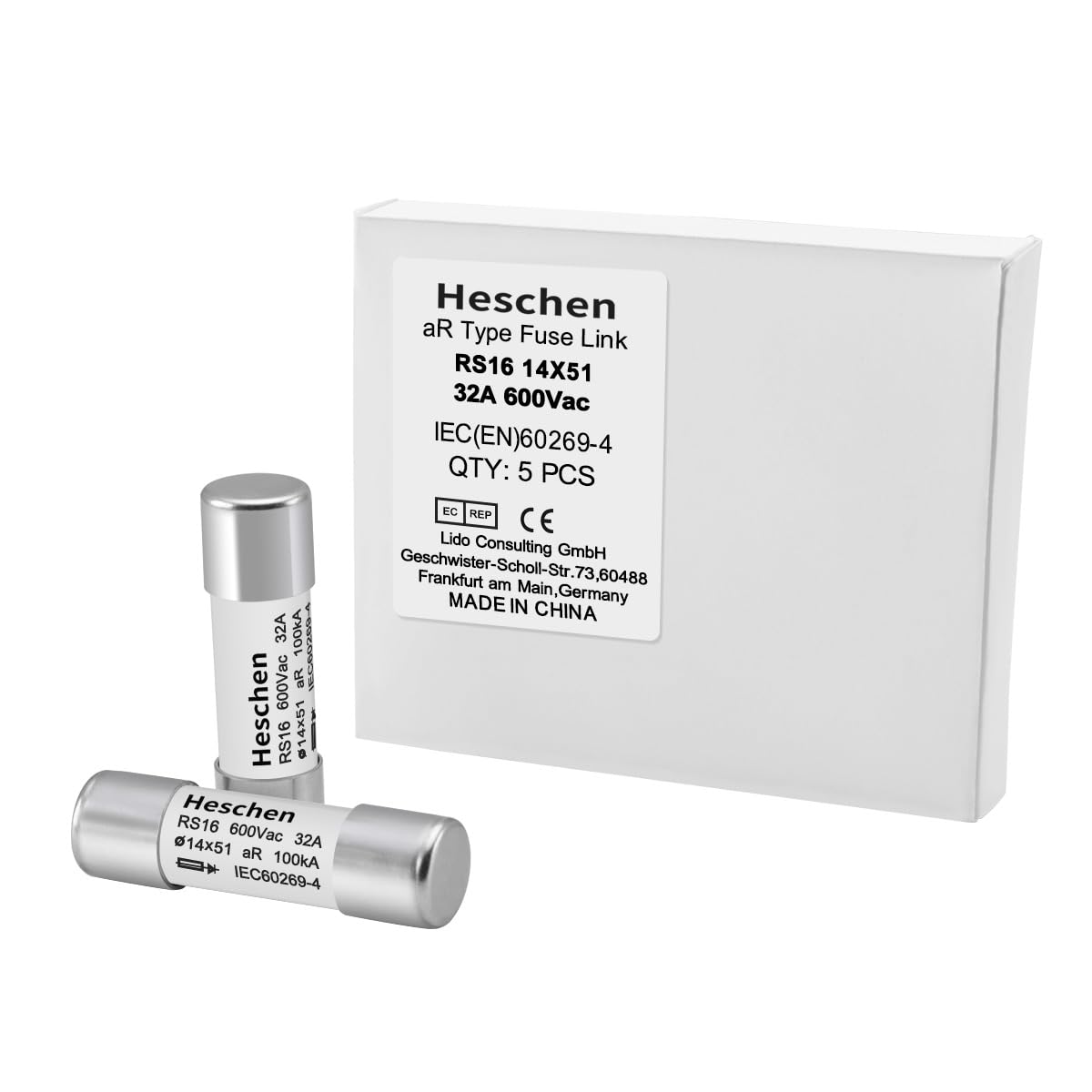

• Package Content : 5 PCS

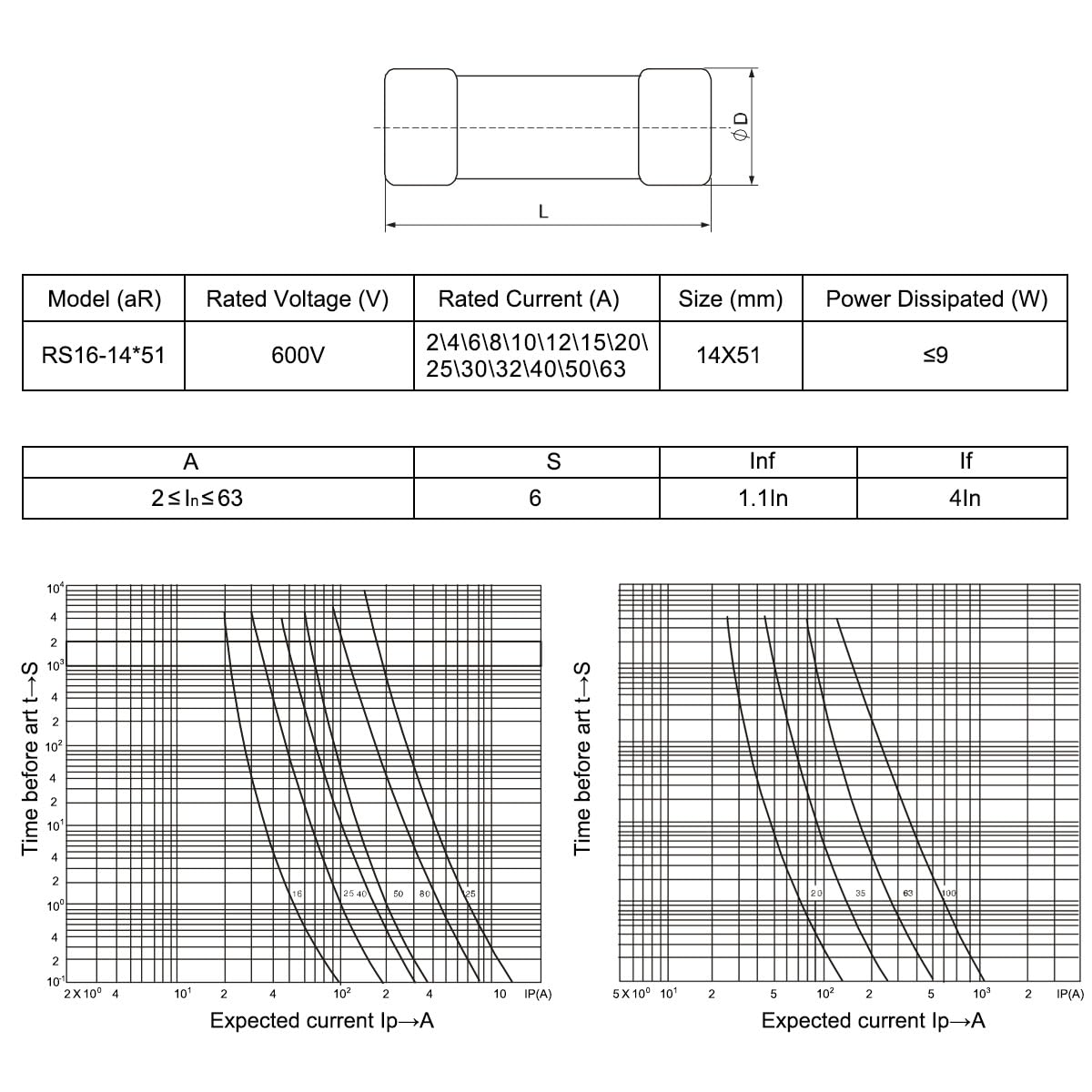

This series of fuses is suitable for rated AC voltage up to 600V, rated current up to 63A, mainly used as semiconductor equipment short-circuit protection (aR). The rated segmentation capacity of this series of fuses is up to 100KA. This series of fuses comply with the international electrotechnical commission standard IEC60269-1 and IEC60269-4. The variable section melt made of silver sheet is encapsulated in a melt tube made of high-strength porcelain or epoxy glass cloth tube, which is filled with chemically treated high-purity quartz sand as the arc extinguishing medium, and the two ends of the melt are firmly connected with the end cap by spot welding. The upper ambient temperature does not exceed 40℃,the lower limit does not exceed -5℃. The altitude of the installation site does not exceed 2000m.
