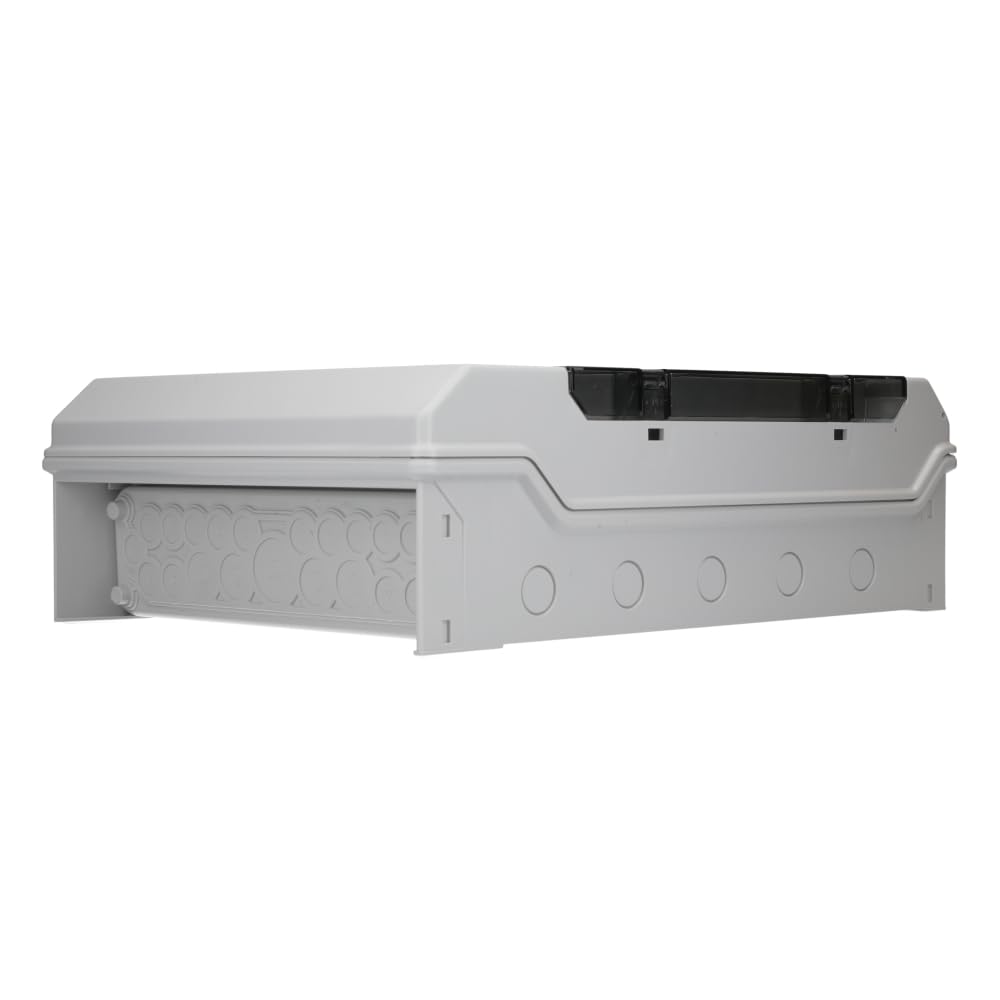

Hensel KV 9224 KV 9224 Machine Casing IP 65

• Built-in elastic sealing membrane
• With transparent door
• FIXCONNECT clip technology
• With hole for feeding in cables

Installation Small distribution board in accordance with IEC 60439 3 and din 43871 For Installing equipment Classic snap on case for up to 63 A, Complies with DIN 43880, protective insulation (protection class II). PE/N terminals in Fixcon Mini Connect clamp technology with plug-in terminal of 1.5 mm² up to 4 mm² for solid and flexible copper conductor, pull start ironing clip of 1.5 mm² up to 25 mm² with wire protection and protection against Selbstloc core for solid, Mehrdrähtige and flexible copper conductor. Suitable for indoor and sheltered outdoor installation accordance with standards: DIN VDE 0100 Part 737. For ambient temperature up to + 40 °C and minimal – 5 °C, with relative air humidity 50% at 40 °C or 100% at 25 °C./Material Temperature Resistance from – 25 ° CC to + 70 °C Brennverha behaviour in accordance with VDE 0471, part 2 – Glühdraht testing 750 °C, UL subject 94 V – 2 rated voltage: AC 400 V. Rated Current of N RAIL: L = 80 A. Material: Thermoplastic, halogen and silicone free. Colour: Grey, RAL 7035 with a transparent door across all ranges. Manufacturer: Hensel KV. Schutza
