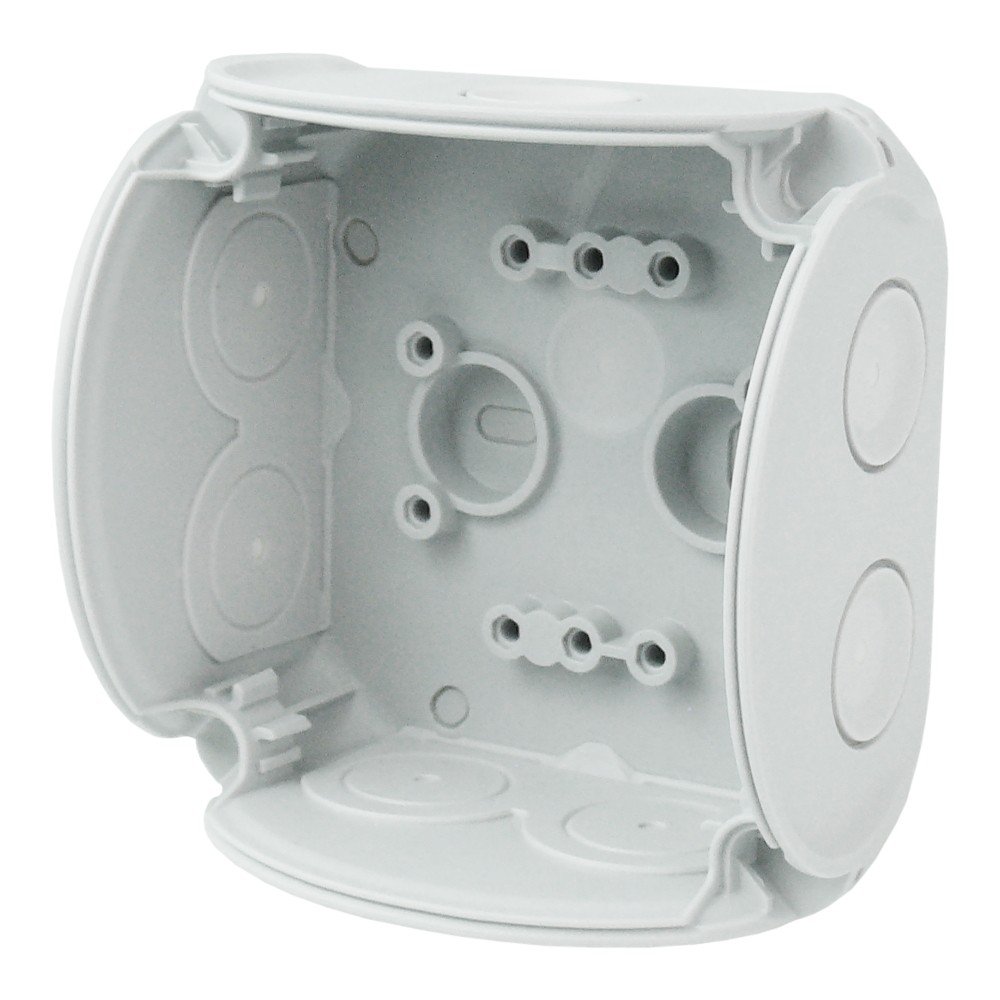

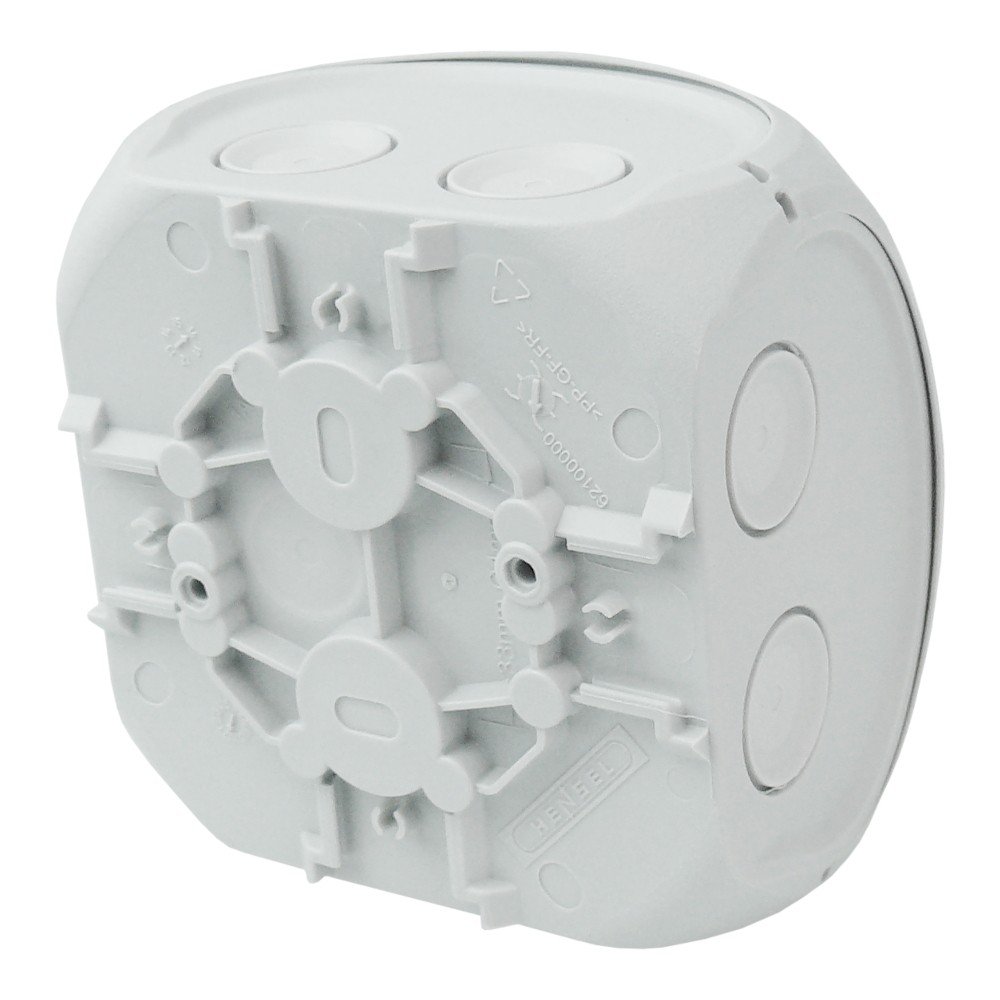

Hensel Cable Junction Box DK 0200 GZ without Clamp IP66 Junction Box Sanitary Room, Empty Housing, 5327, Grey

• Hensel Cable Junction Box DK 0200 GZ without Clamp IP66 Junction Box, Connection Box, Sanitary Room, Empty Housing 5327.

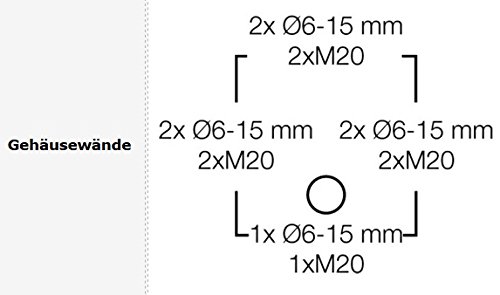

• Usage: Suitable for indoor use and protected outdoor installation according to DIN VDE 0100 Part 737. Assembly: Surface-mounted. Type of opening in the housing: elastic sealing membranes; number of elastic sealing membranes: 7. Sealing area elastic sealing membranes: Diameter 6.0 - 15.0 mm. Number of cable entry points in the base: 1. Sealing area of a cable entry in the base: Diameter: 6.0 - 13.0 mm;, colour: grey, RAL 7035.
• Material: PP (polypropylene). Protection type: IP66. Protection degree against mechanical stress: IK07 (2 joules). Ambient temperature: -25°C to +40°C.
• Fire protection for internal error: Requirements for electrical devices from equipment standards and laws. Minimum requirements; glow wire test according to IEC 60695-2-11, 650°C for housing and cable entries, 850°C for live parts; burning behaviour: Glow wire test IEC 60695-2-11:750°C UL Subject 94: V-2. Flame-retardant, self-extinguishing.

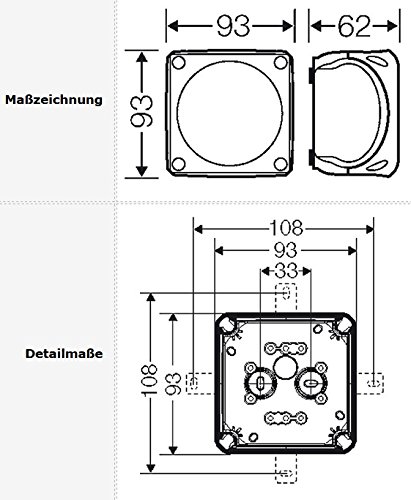

• Installation dimensions: Installation width: 74 mm, installation height: 74 mm max. Installation depth: 47 cm, weight: approx. 0.128 kg.
