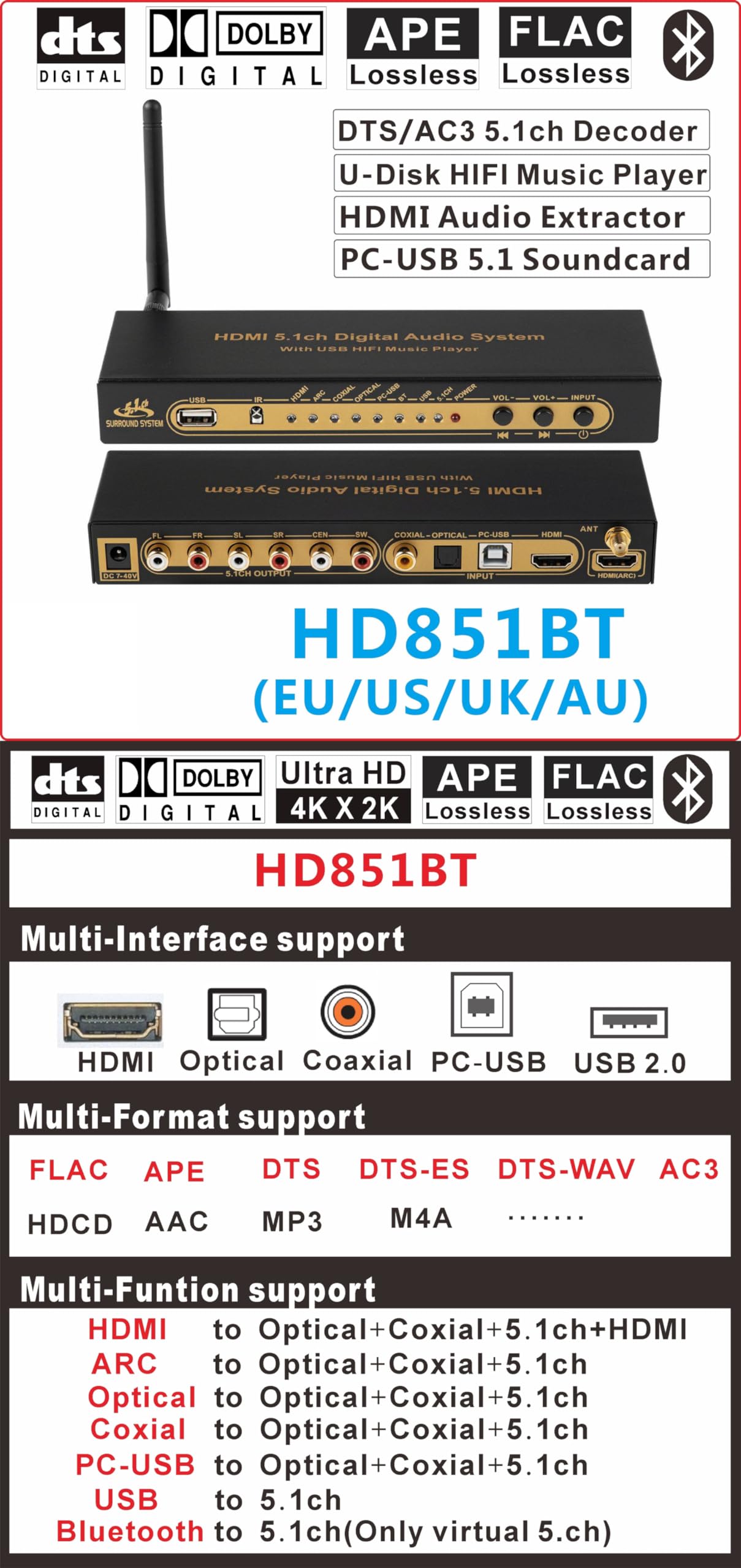

HDMI Audio Converter Decoder DAC DTS AC3 FLAC PCUSB APE 4K*2K Extractor Converter Splitter Digital SPDIF ARC

• 1, support HDMI+ coaxial + optical fiber +PC-USB+USB playback + Bluetooth 5.0 input interface. Support HDMI(ARC)+5.1ch output interface.
• 2, support HDMI 2.0b version (maximum resolution support 4K@60hz), compatible with HDMI 1.4 version. support HDCP 2.3 version, compatible with HDCP2.2, HDCP 1.4 version, support 3D and HDR.

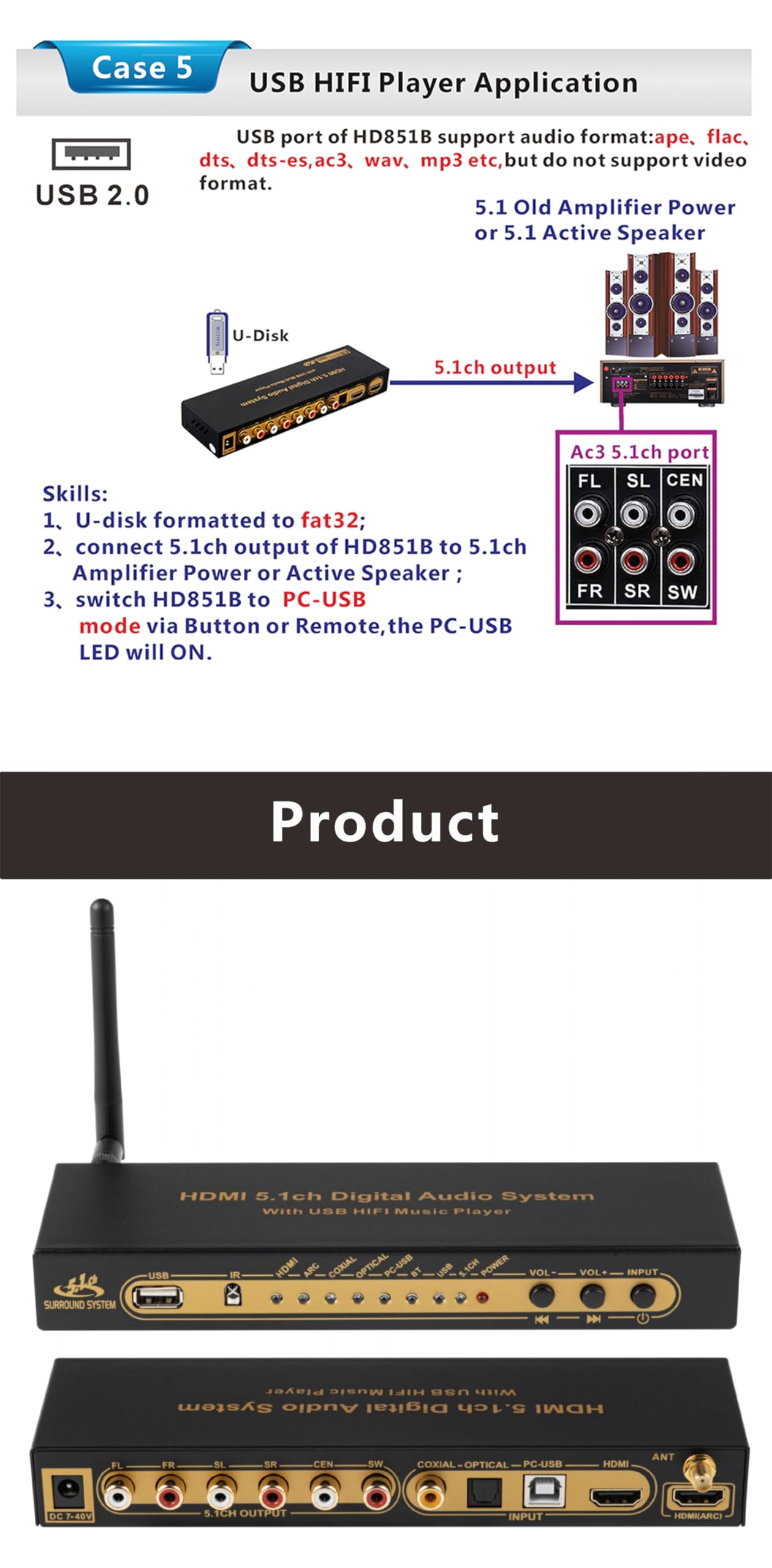

• 3, USB playback support DTS, DTS-ES, DTS-WAV, AC3, FLAC, APE and so on.computer USB sound card support WinXP/Win7/Win8/Win10 and other system source code input.

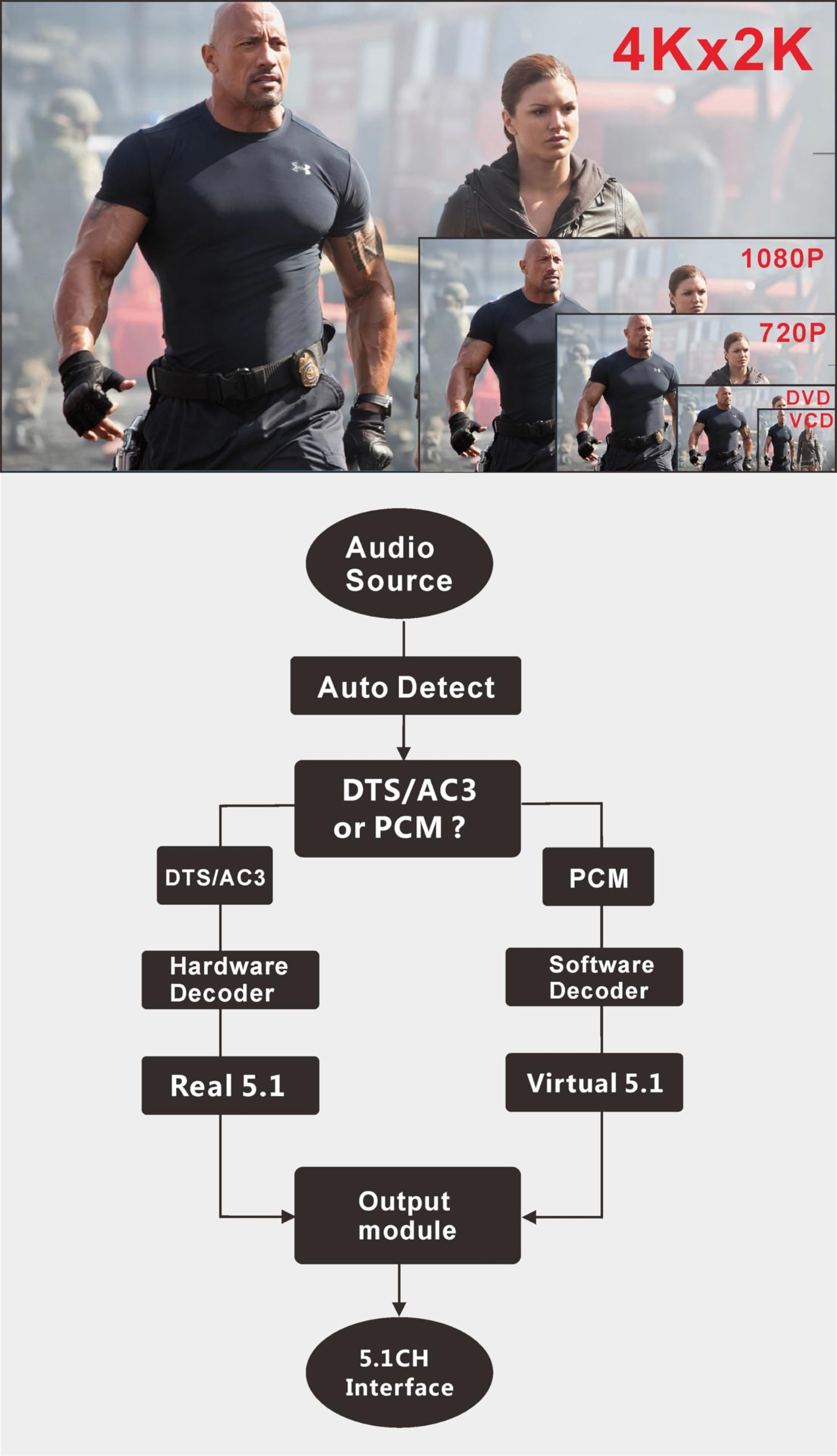

• 4, if the sound source is 5.1 format, hard decoding (true 5.1), if the sound source is 2.0, soft decoding (virtual 5.1). Bluetooth support version 5.0, support SBC/ACC protocol, support 20 meters transmission distance.

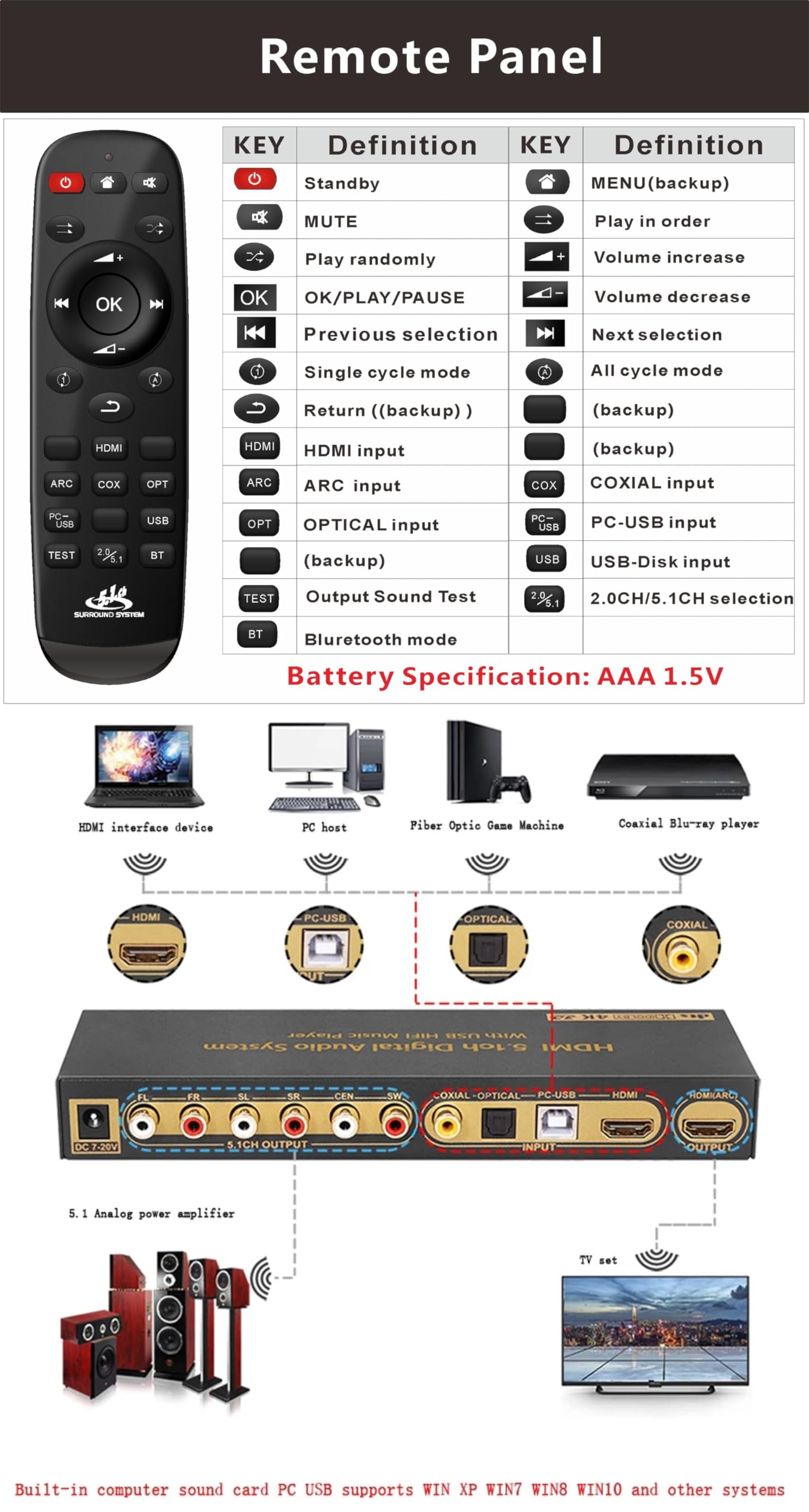

• 5, Support 2.0 and 5.1 channel two output, 2.0 output mode when FL/FR. support remote control or panel key switch input source, display the corresponding channel name.support channel selection power off memory and USB playback track power off memory function.

Description: HDMI Supported Versions:HDMI 2.0b& HDCP2.3 HDMI resolution support:4Kx2K@60fs, 1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs HDMI Maximum Data Rate:6 Gbps HDMI Input/Output TDMS signal: 5~1.5Volts p-p(TTL) HDMI I/O DDC signal: Volts p-p (TTL) HDMl input/output cable length: 20m AWG26 HDMl standard cable Support audio format: D.TS, DTS-ES, AC3, FLAC, APE, DTS-WAV, HDCD, AAC, WMV, MP3, M4A, etc. DSP sampling rate sampling frequency: 2.4bit/192KHz Digital input level:1~1V p-p5.1 Analogue Output(1kHz@0dB):2 VRMS Signal-to-Noise Ratio@0dB(CCIR/ARM):290dB Distortion:0.03% Frequency Response:20Hz~20KHz Bluetooth reception distance:≤15m Infrared receiving distance:10m Power adapter specification:AC 100V-240V 50/60Hz,DC 12V/1A 12, USB playback support last/next/single cycle/all cycle operation 13, the use of DC 12V/1A external power adapter power supply, wide voltage DC(7-24V) power supply Product type: Audio decoder. Applicable products: computer audio, etc Size: 21 * 7 * 3cm Material: Metal Track: 5.1 Resolution: 4k*2k Package Includes: 1set*Audio decoder
