Revision door inspection flap magnetic tileable: 300 x 300 mm.

• Revision door inspection flap magnetic tileable: 300 x 300 mm.
• 300x300mm.
• Brand: Havos
• Inspection door inspection flap, magnetically tiled: 300 x 300 mm.

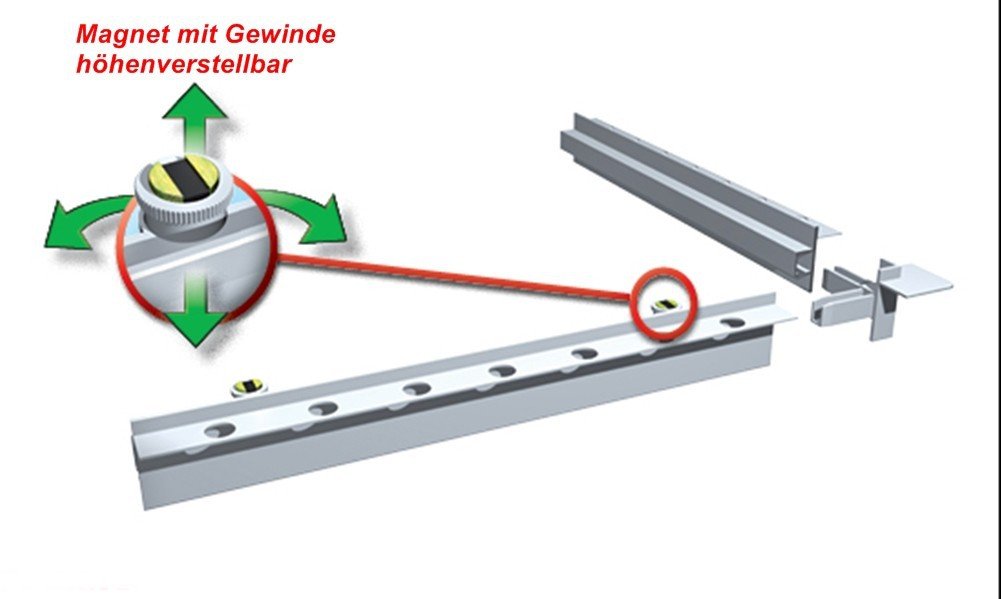

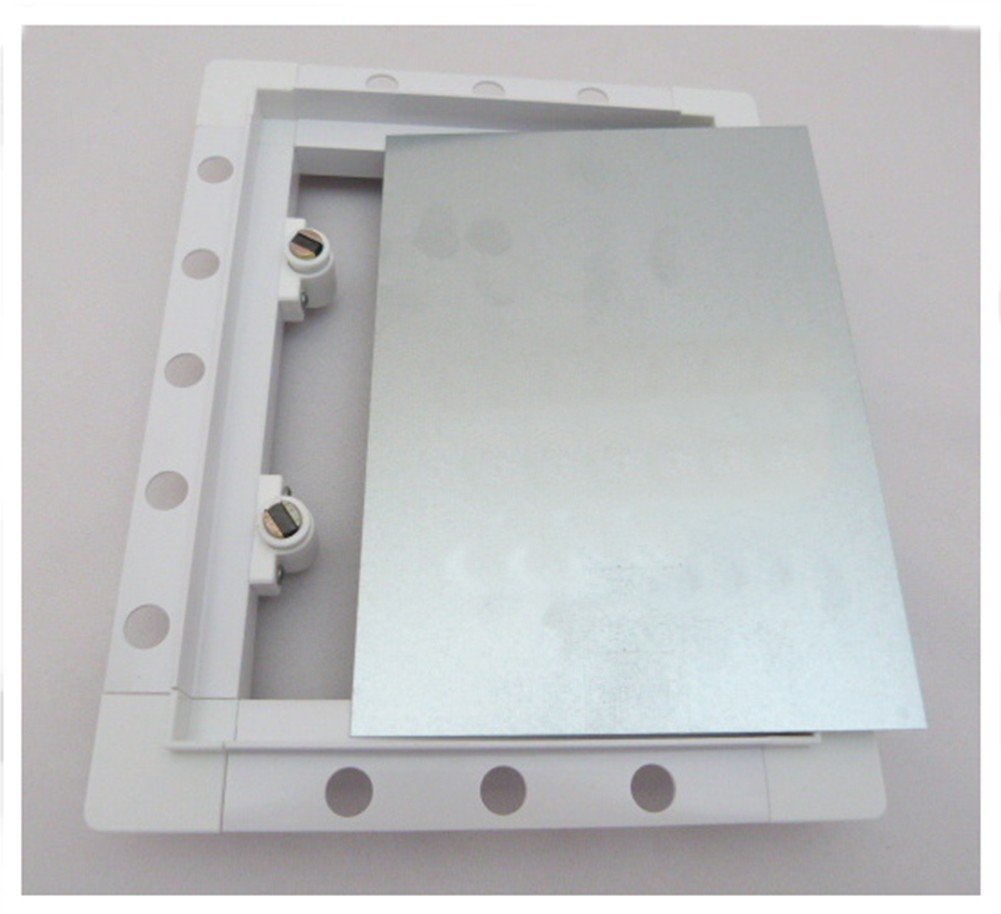

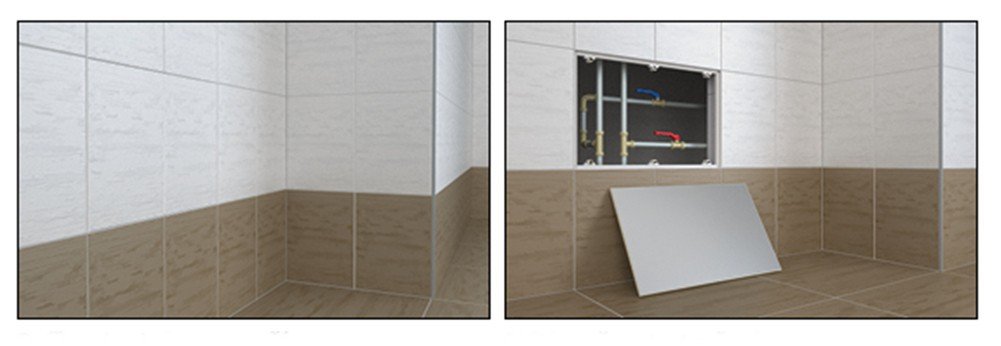

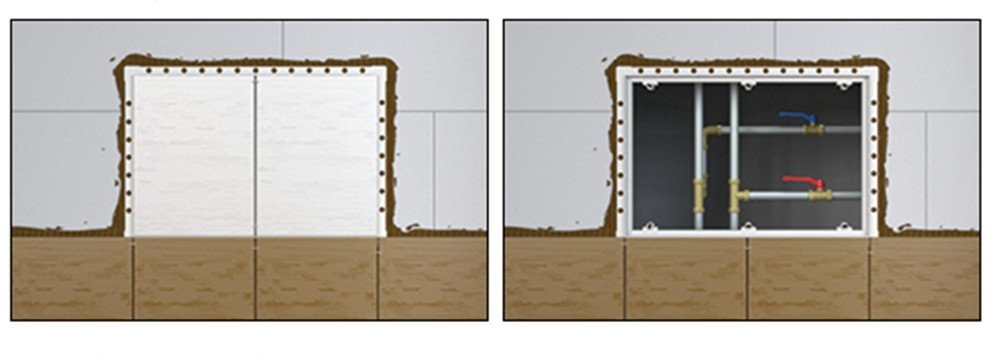

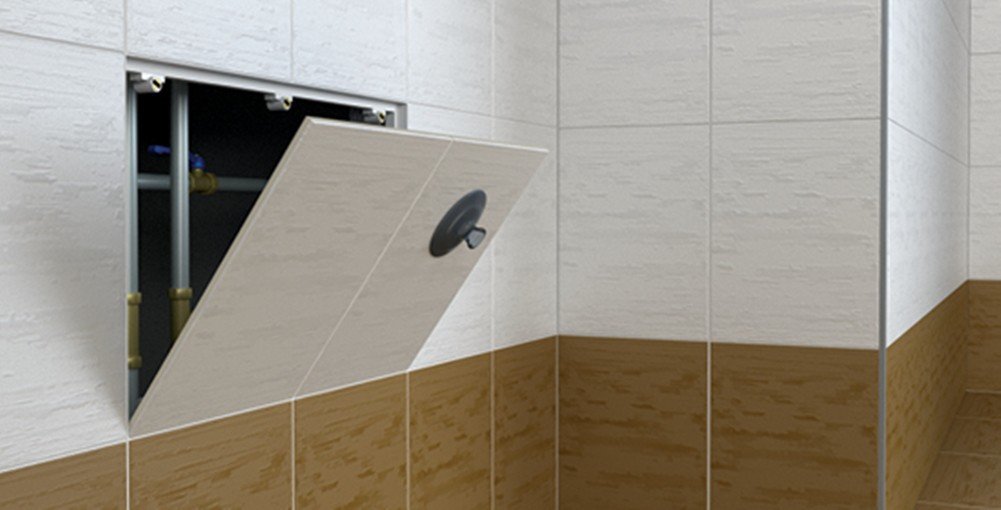

Revision door inspection flap magnetic tileable: 300 x 300 mm, for invisible inspection openings. The inspection door consists of a UV-stable, dismountable PVC frame, the carrier plate made of galvanised sheet steel and thread-adjustable anisotropic ferrite magnets. The frame can be used for all tile thicknesses. Manufactured in accordance with DIN-1.4301. Quick and easy installation. Door leaf is completely removable by means of a suction cup and does not interfere with your work. Due to the size division, there is no decor interruption in the tiles. The door does not need to be unfolded, the PVC frame replaces the joint. -Made in the EU. Installation instructions (English language not guaranteed): 1.Stick the tiles with silicone on the support plate made of galvanised sheet metal. 2.Insert the door into the frame and check its tightness and squareness. 3.Then open the door and install the frame. 4.The frame is adjustable, you can change the dimension with a tolerance of ±5 mm. 5.Align the door by adjusting magnets with screw connection.
