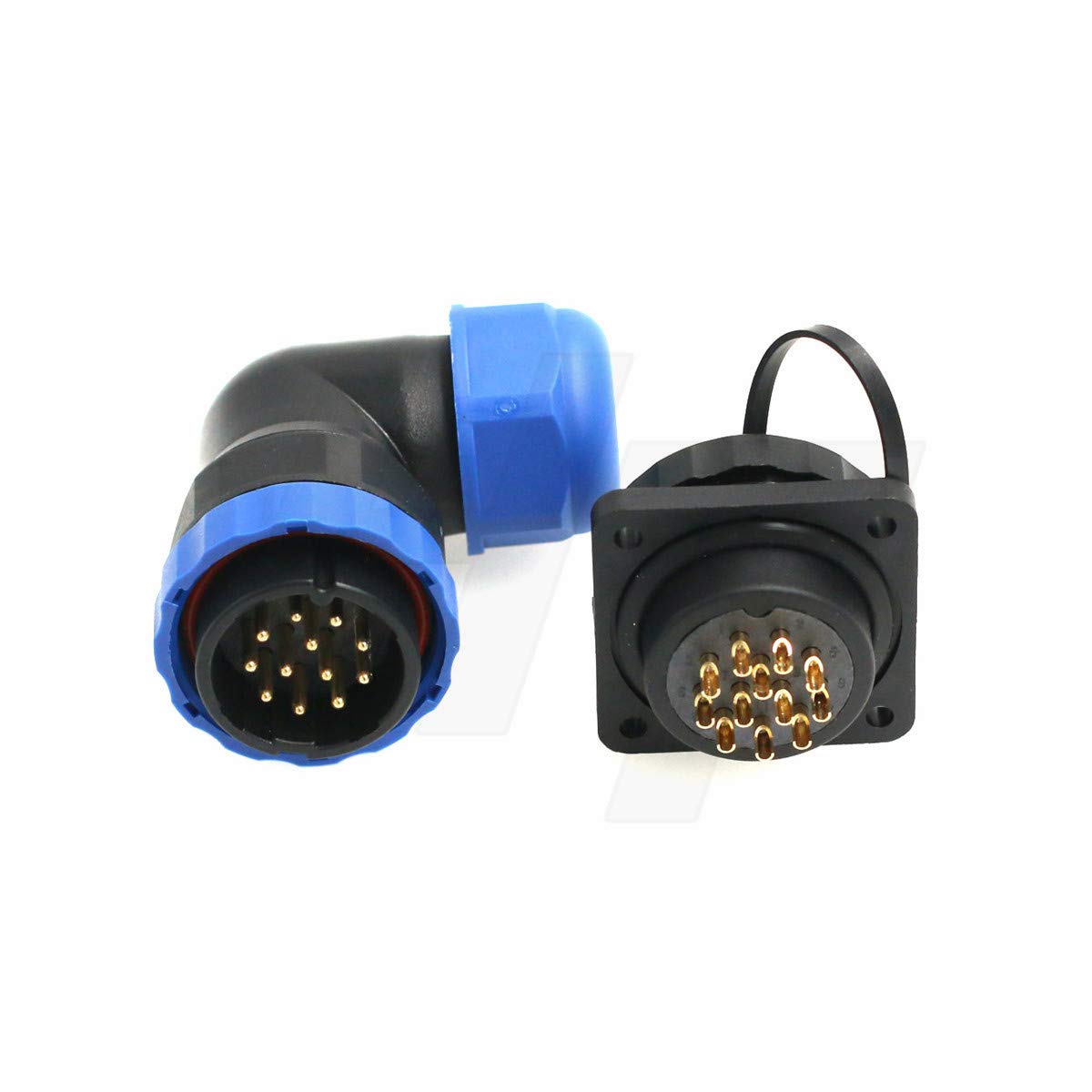

HangTon HE29 12 Pin Connector Right Angle Cable Plug 4-Screw Panel Socket, Circular Male Female Waterproof IP68 380V 10A

• HE29 12 pin right angle 90-degree waterproof power connector, including male cable plug and panel mount female socket with dust-proof cap, any direction elbow
• Plastic shell, waterproof IP68, dust-proof, threaded coupling, circular, quick disconnect, solder termination connection, M28 thread panel cutout, right-angle cable wire plug and panel socket connector
• Cable outer diameter range: 12-15mm, Wire Size: 1.5mm² or 14AWG max, Contact Diameter: Φ1.8mm. Rated Voltage/Current : AC 380V/10A, Resistance: 2mΩ
• For indoor and outdoor watertight power electrical use. Power connector for portable power station, solar generator, machines, automotive, LED, marine boat equipment, lighting system, indoor outdoor electrical equipment
• Protected against solids and liquids, provide a secure and reliable connection in the harsh environment. Explosion-proof, deformation-proof, corrosion resistant

Features: In the harsh environment can provide a safe and reliable connection. HE29(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power. Specifications: HE29: Model: 2-26 Pin Material: Plastic IP Rating: IP68 Panel Cutout Diameter: 29mm Cable Outer Diameter Range:12-15mm Coupling Type: Threaded Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -40~+100℃ Humidity: +40℃ 95±3% Vibrator: 10~500Hz, acceleration 100m/s² Shock: 40~80times/min, acceleration 250m/s² Package Includes: 1 x Angled Cable Plug with Male Pins 1 x 4-Screws Panel Mount Socket 1 x Waterproof / Dustproof Cap
