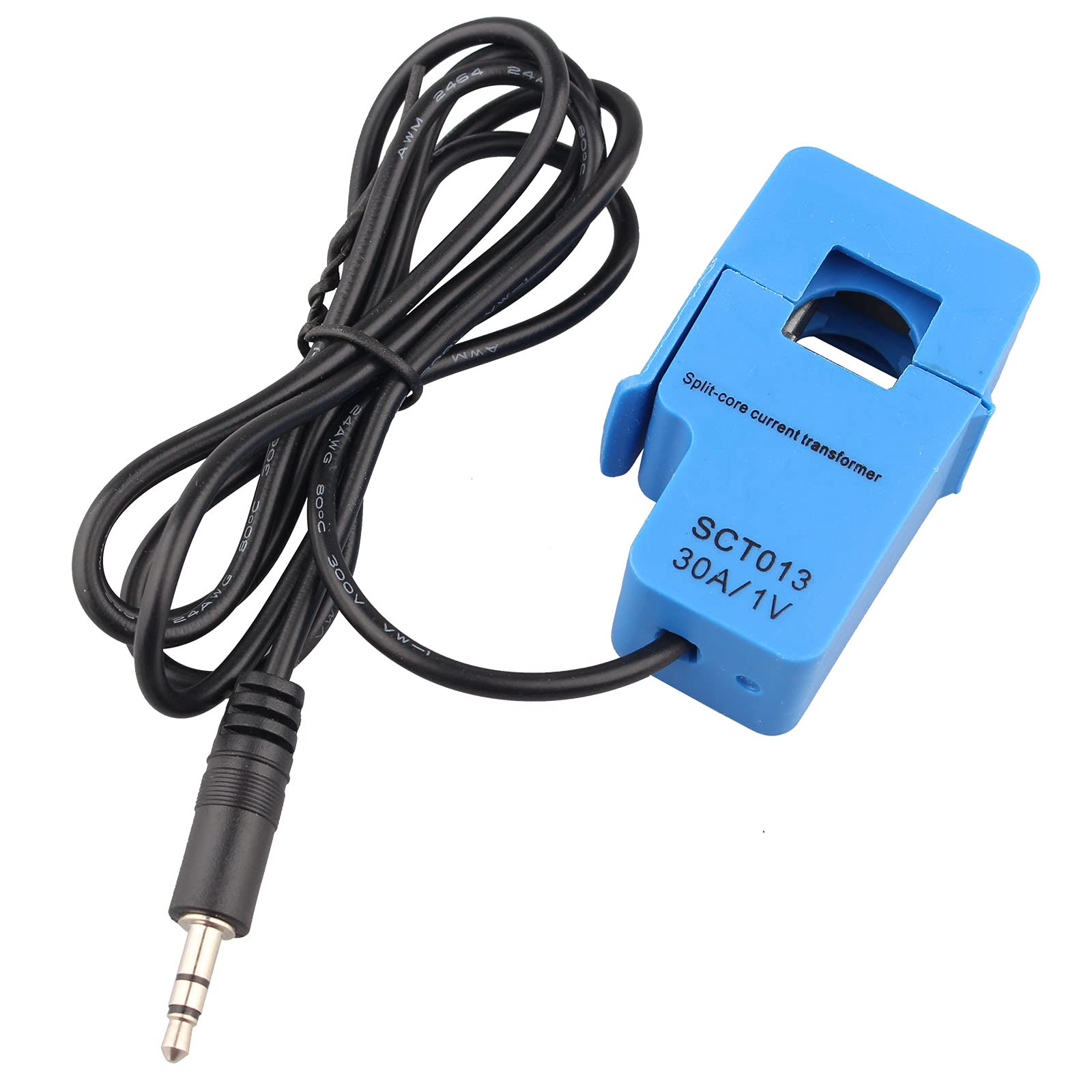

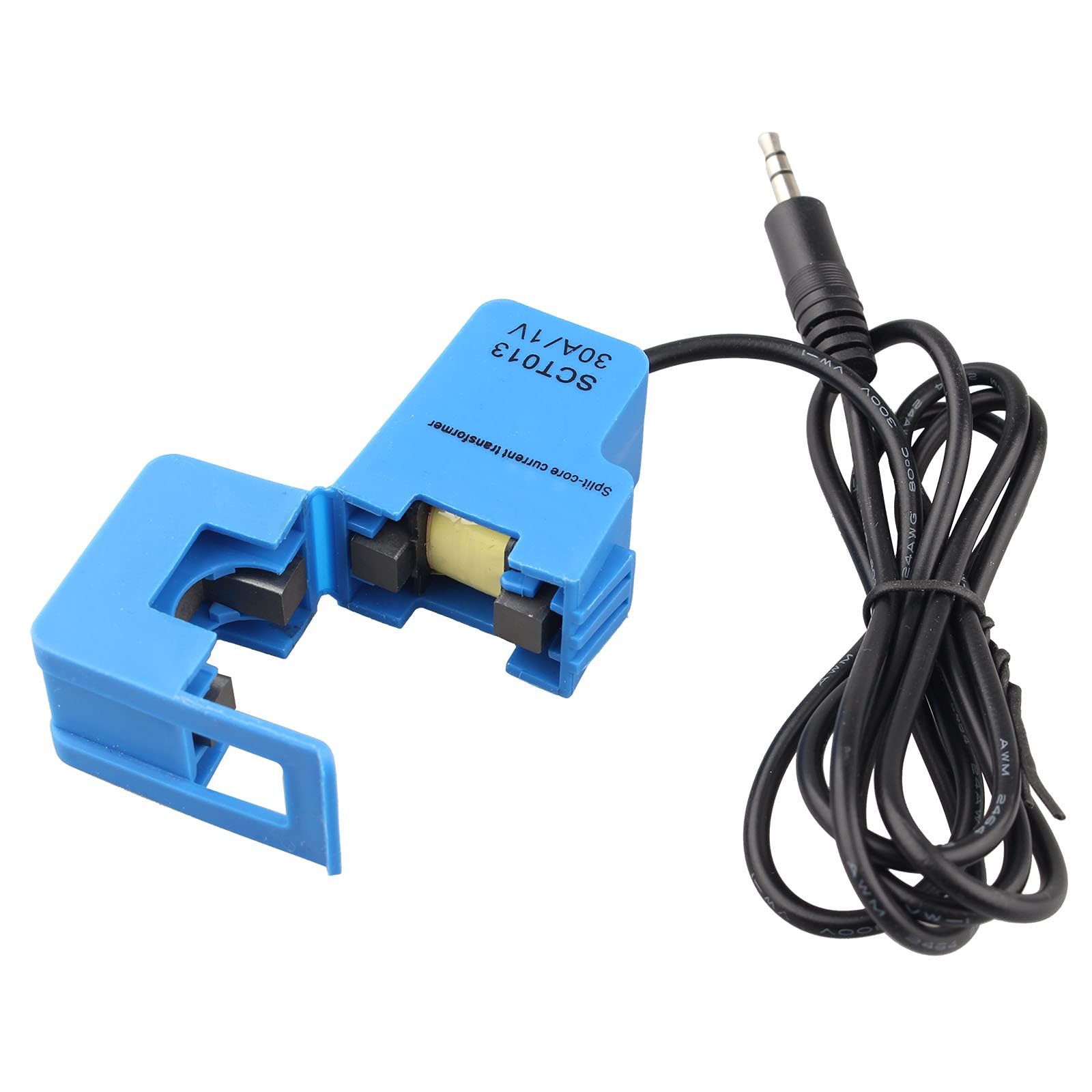

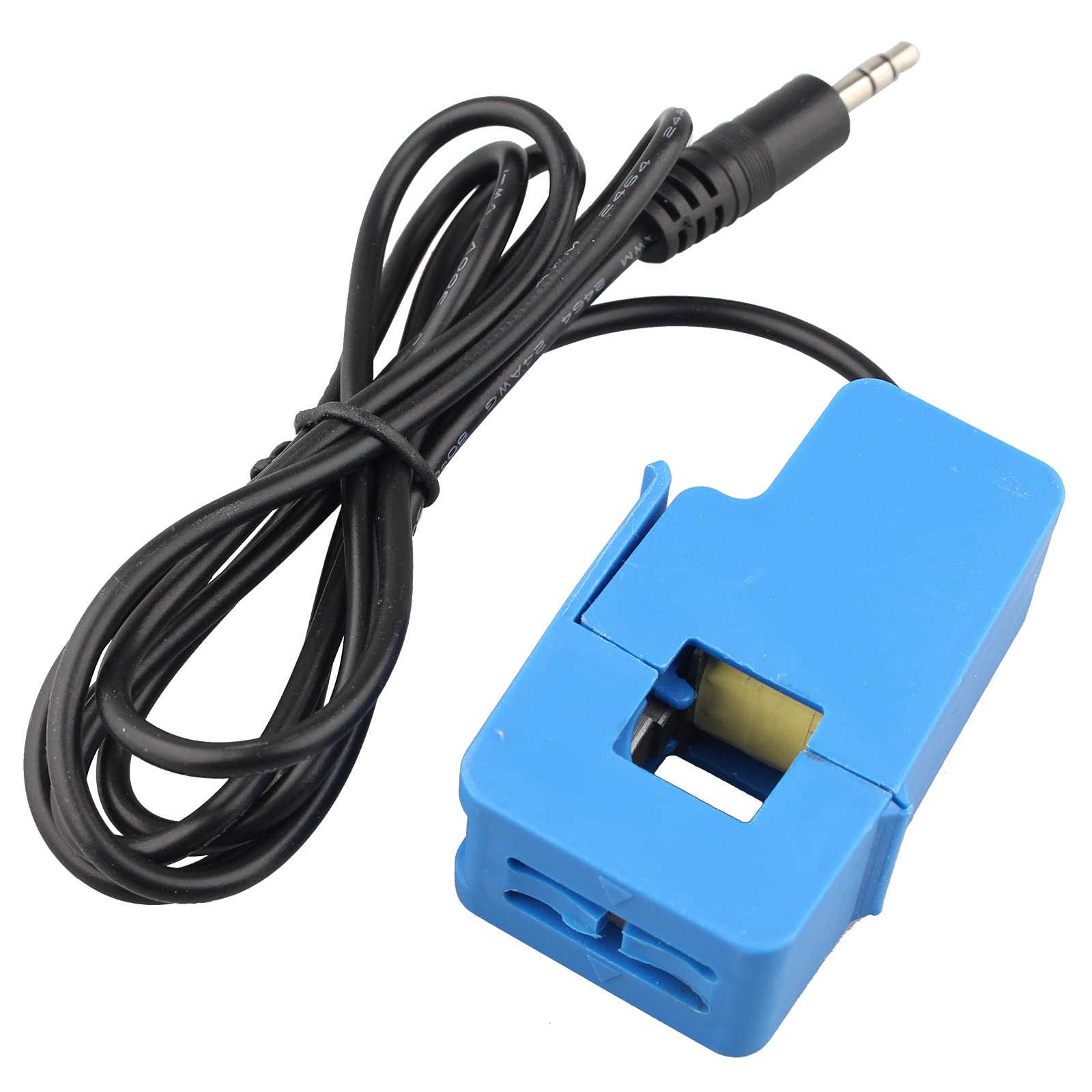

HALJIA SCT-013-000 Non-Invasive AC Current Sensor Split Core Transformer 30A 1V for Arduino Project, SCT013-000 Non-invasive Split Core Current Transformer Sensor (30A 1V)

• Product Name : Non-invasive AC Current Sensor; Model : SCT-013-000 30A 1V
• Frequency: 50HZ-150KHZ; Working temperature: -25℃～+70℃
• Mechanical strength: opening and closing times, no less than 1000 times (20 C).
• Safety indicators:Dielectric Strength(between shell and output) 1000V AC/1min, Fire resistance property: In accordance with UL94-VO.
• Applications: for AC motors, lighting equipment, air compressors and other current measurement, monitoring and protection.

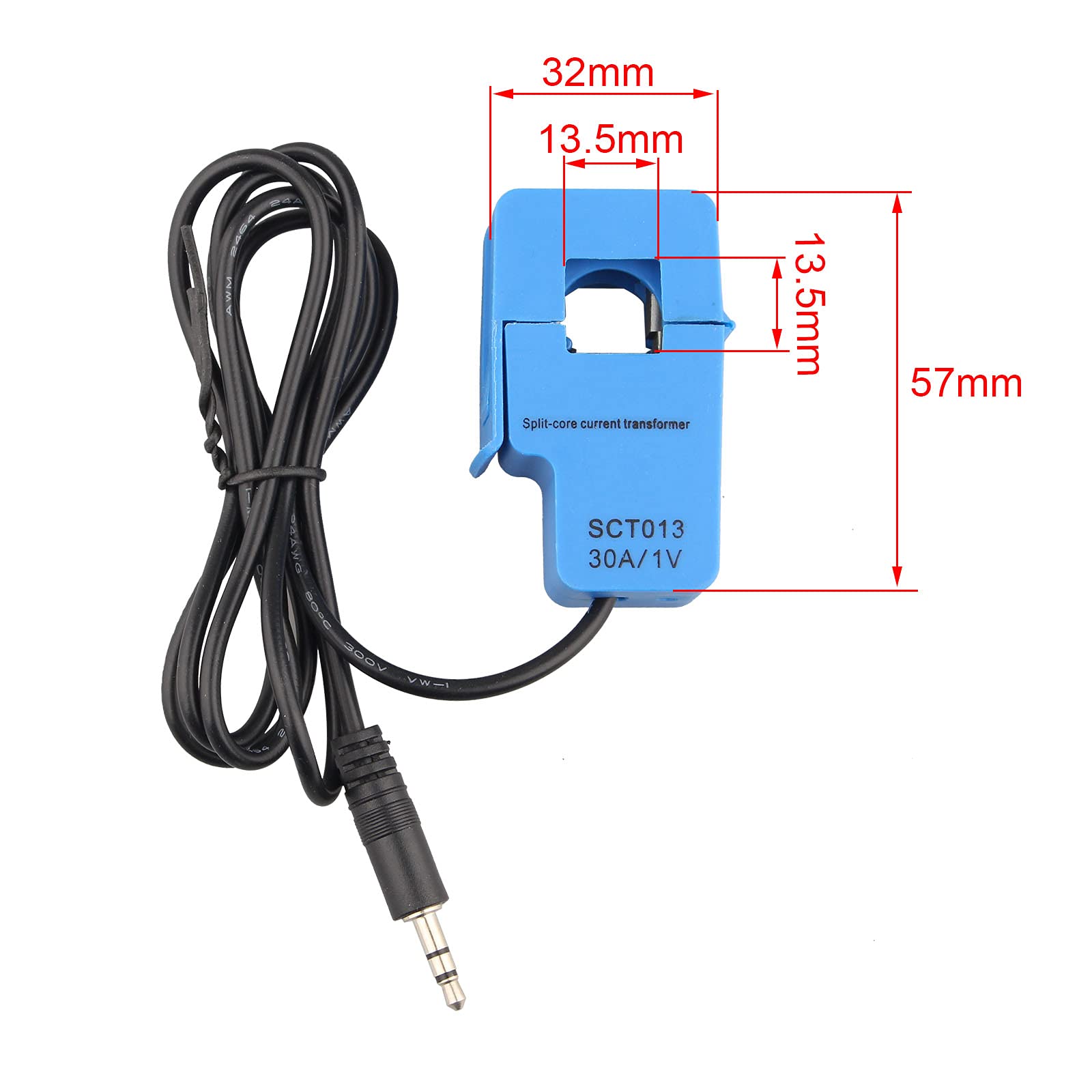

Features: Split core current transformer are sensors that are used for measuring alternating current. It can be widely used for AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection. This item is manufactured with premium material for durable and long-lasting use. It's easy to use with long service life. This Split core current transformer is particularly suitable for DIY use. Specification: Product Name : Non-invasive AC Current Sensor Model : SCT-013-000 30A 1V Material: Ferrite. Frequency: 50HZ-150KHZ Non-linearity 3%(10%-120% rated input current). 1m leading wire,Φ3.5 3 core plug standard output. Two form of output current, voltage (voltage output built-in the sampling resistor). Operating Temperature: -25 C ~ +70 C. Mechanical strength: opening and closing times, no less than 1000 times (20 C). Safety indicators: Dielectric strength 6000V AC/1min. Fire resistance property: In accordance with UL94-VO Applications: for AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection Open Size:approx. 13.5 mm x 13.5 mm Shell Size:approx. 57mm × 32 mm Leading Wire in Length:approx. 1m Output Plug : 3.5mm Weight: 60.4g Packing List: 1x 30A Split Core Current Transformer
