HALJIA 5PCS AM312 IR Human Sensor Mini Pyroelectric PIR Sensor Module Manual Motion Infrared Automatic Detector HC-SR312 Miniature Human Induction Sensor Module DC 2.7 to 12V

• AM312 human body induction module is a digital intelligent automatic control product based on passive human body infrared technology. It has high sensitivity and strong reliability, and is widely used in various automatic induction electrical equipment.
• Working Voltage: DC 2. 7V-12V; Max. Static current: ＜0.1mA
• Stronger anti-interference, internal digital signal processing, direct high and low level output.
• Repeatable trigger mode: that is, after the sensor outputs a high level, during the delay period, if a human body moves in its sensing range, its output will remain at a high level until the person leaves after a delay before it becomes low level.
• The sensing module automatically delays a delay period after detecting each activity of the human body, and takes the time of the last activity as the starting point of the delay time.

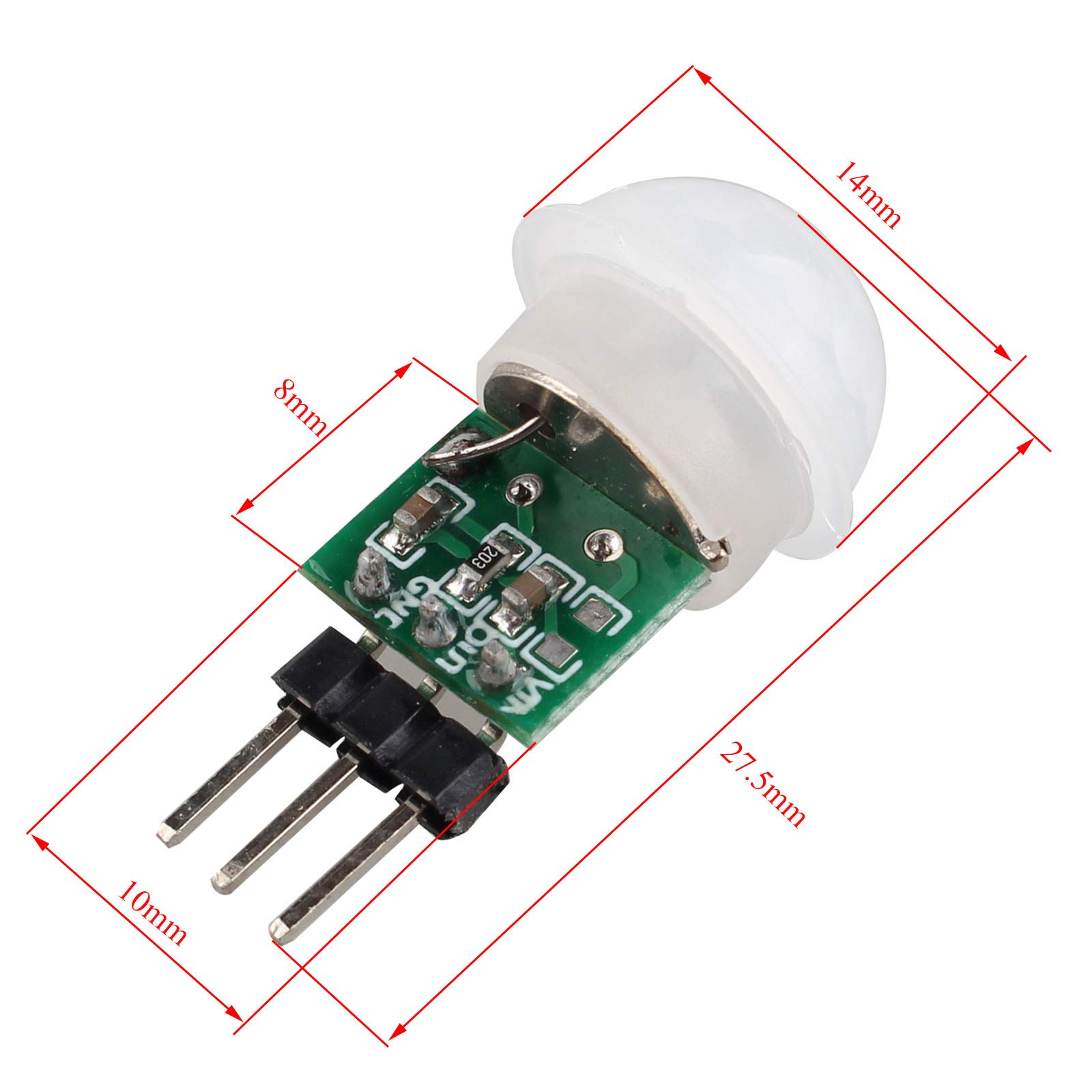

AM312 human body induction module: It is a digital intelligent automatic control product based on passive human body infrared technology. It has high sensitivity and strong reliability, and is widely used in various automatic induction electrical equipment. Technical Parameter: 1. Working voltage: DC 2.7-12V; 2. Static power consumption: <0.1mA; 3. Delay time: 2 seconds; 4. Block time: 2 seconds; 5. Trigger mode: repeatable; 6. Sensing range: ≤100 degree cone angle, 3-5 meters; (depending on the specific lens) 7. Working temperature: -20-+60℃ 8. Module lens: small lens 9. PCB size: 10 × 8 mm 10. Module size: 27.5 × 14 mm 11. Weight：1.8g Features: 1. Enhanced anti-interference, internal digital signal processing, direct high and low level output. 2. Repeatable trigger mode: that is, after the sensor outputs a high level, during the delay period, if a human body moves in its sensing range, its output will remain at a high level until the person leaves after a delay before it becomes low level. (The sensing module automatically delays a delay period after detecting each activity of the human body, and takes the time of the last activity as the starting point of the delay time.) 3. Widely applications: Security Products, the human body sensors toys, the human body sensor lighting, industrial automation and control, etc. Packing List: 5 × AM312 IR Human Sensor Sensor Module
