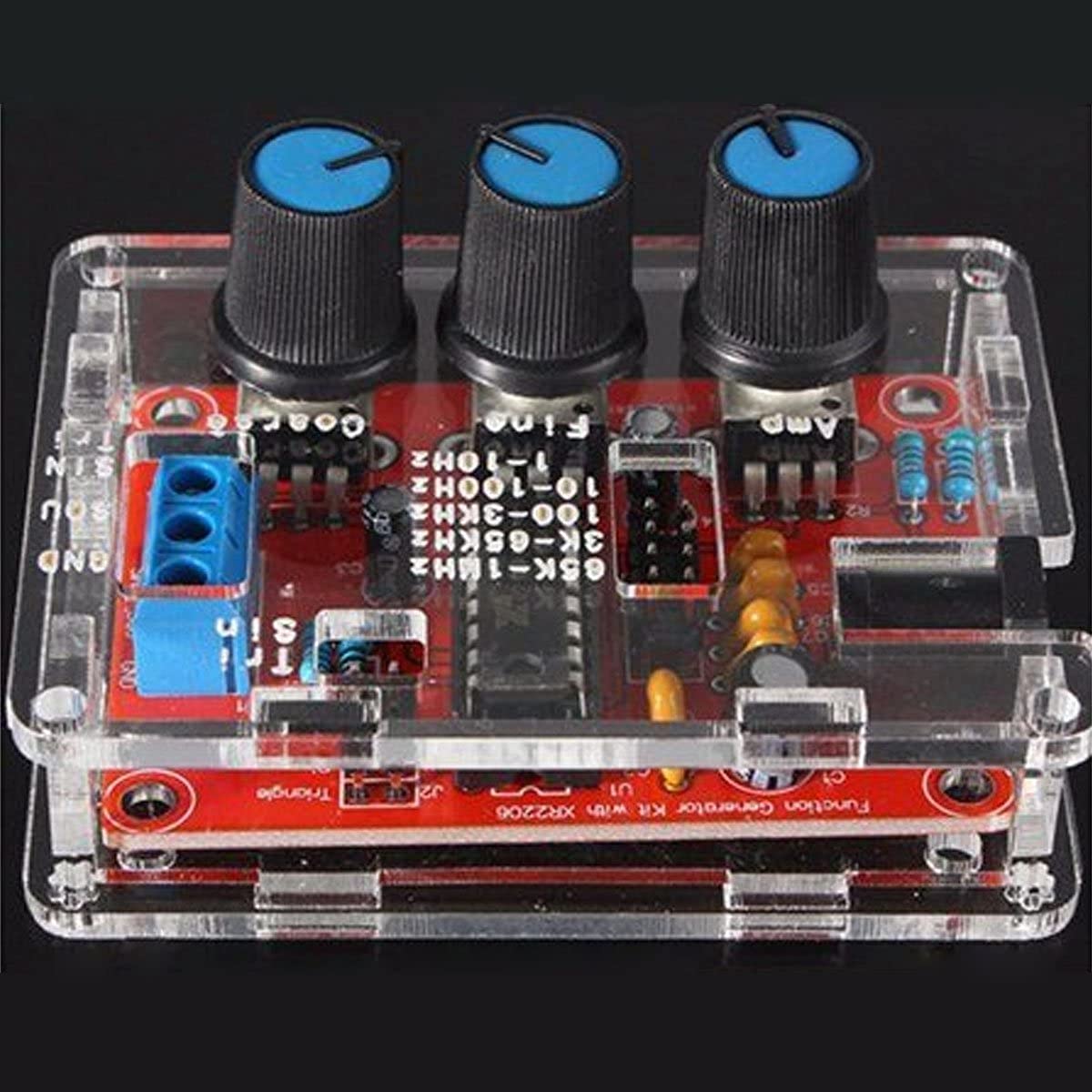

HALJIA 2PCS XR2206 High Precision Function Signal Generator DIY Kit Sine Triangle Square Output 1Hz~1MHz Adjustable Frequency Amplitude
About this item
- High resolution, can generate sine/triangle/square waveforms.
- Frequency range: 1Hz-1MHz. Adjustable frequency and amplitude.
- Five-digit precision resolution. Frequency adjustment features coarse tuning and fine tuning.
- Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
- Small number of components, simple installation and debugging.
Product description

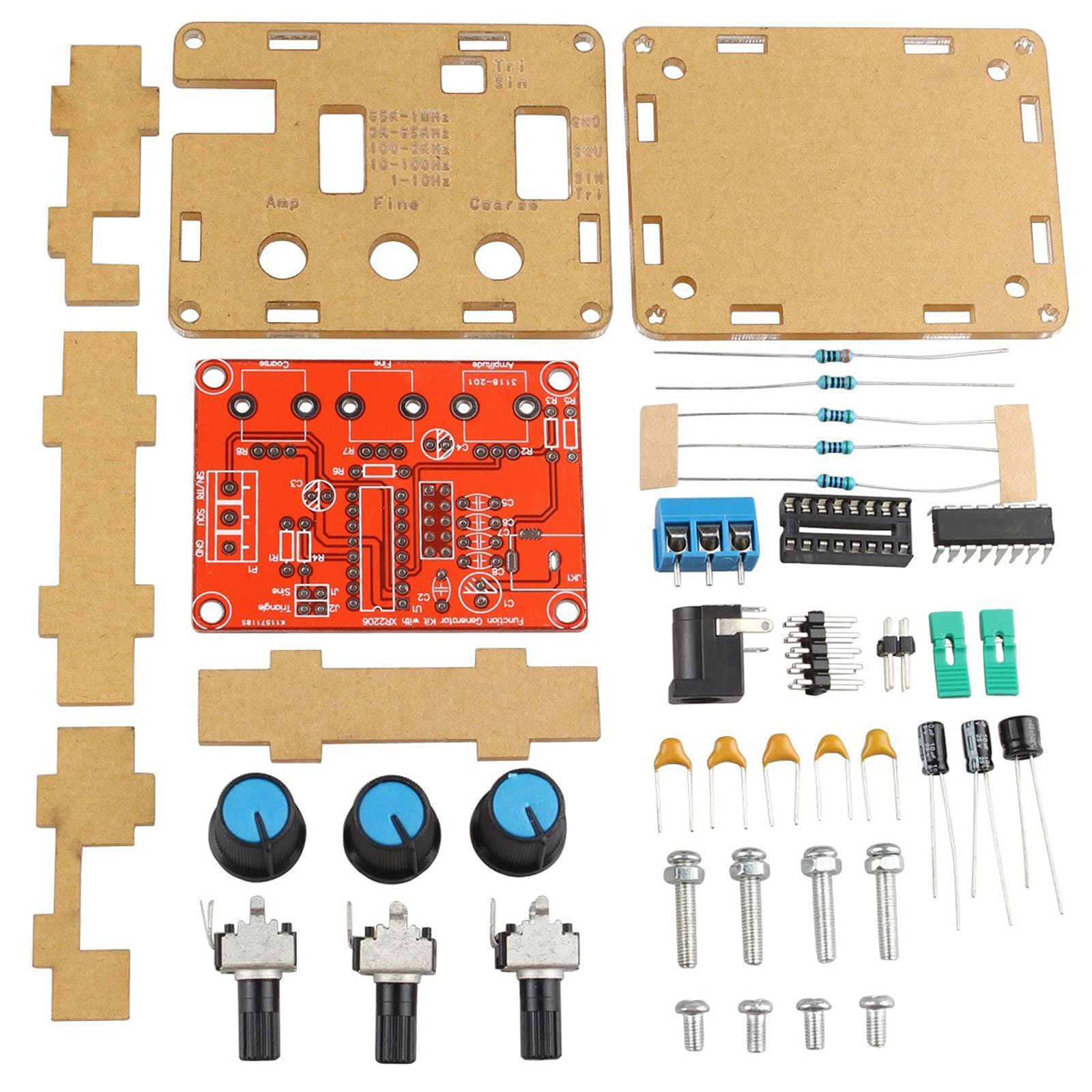

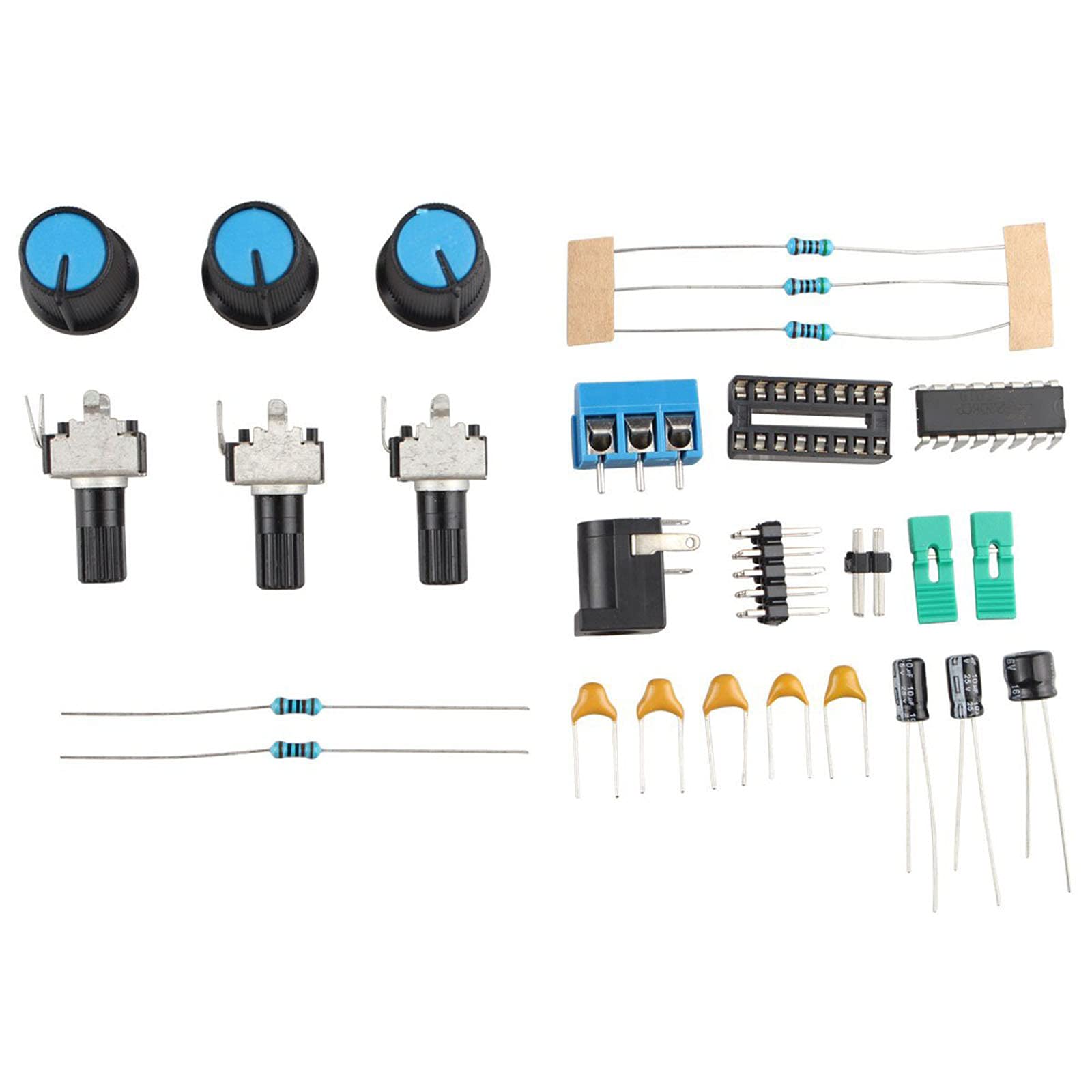

Features: High resolution, can generate sine/triangle/square waveforms. Frequency range: 1Hz-1MHz. Adjustable frequency and amplitude. Frequency adjustment features coarse tuning and fine tuning. Wide power supply range, use 9-12V external power or 9V battery(NOT Included). Simple components, easy for installation. Specifications: Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz-1MHz SINE WAVE: Amplitude: 0-3V at 9V DC Input Distortion: Less than 1% (at 1KHz) Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE: Amplitude: 8V (no load) at 9V DC Input Rise Time: Less than 50ns (at 1KHz) Fall Time: Less than 30ns (at 1KHz) Symmetry: Less than 5% (at 1KHz) TRIANGLE WAVE: Amplitude: 0-3V at 9V DC Input Linearity: Less than 1% (up to 100KHz) 10mA Kit Weight: 66.5 g Packing List: 2 x XR2206 Function Signal Generator Module Kit
Product details
