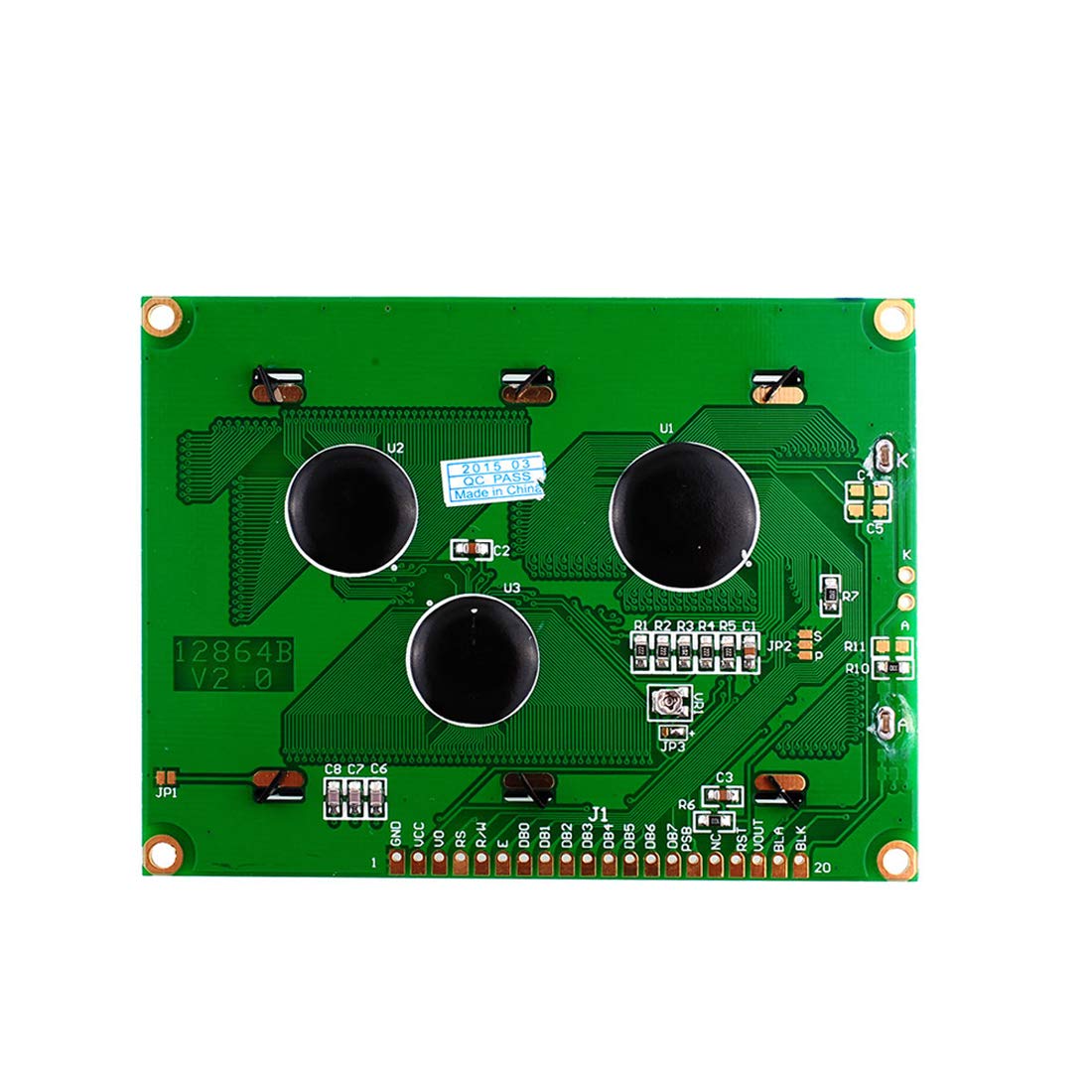

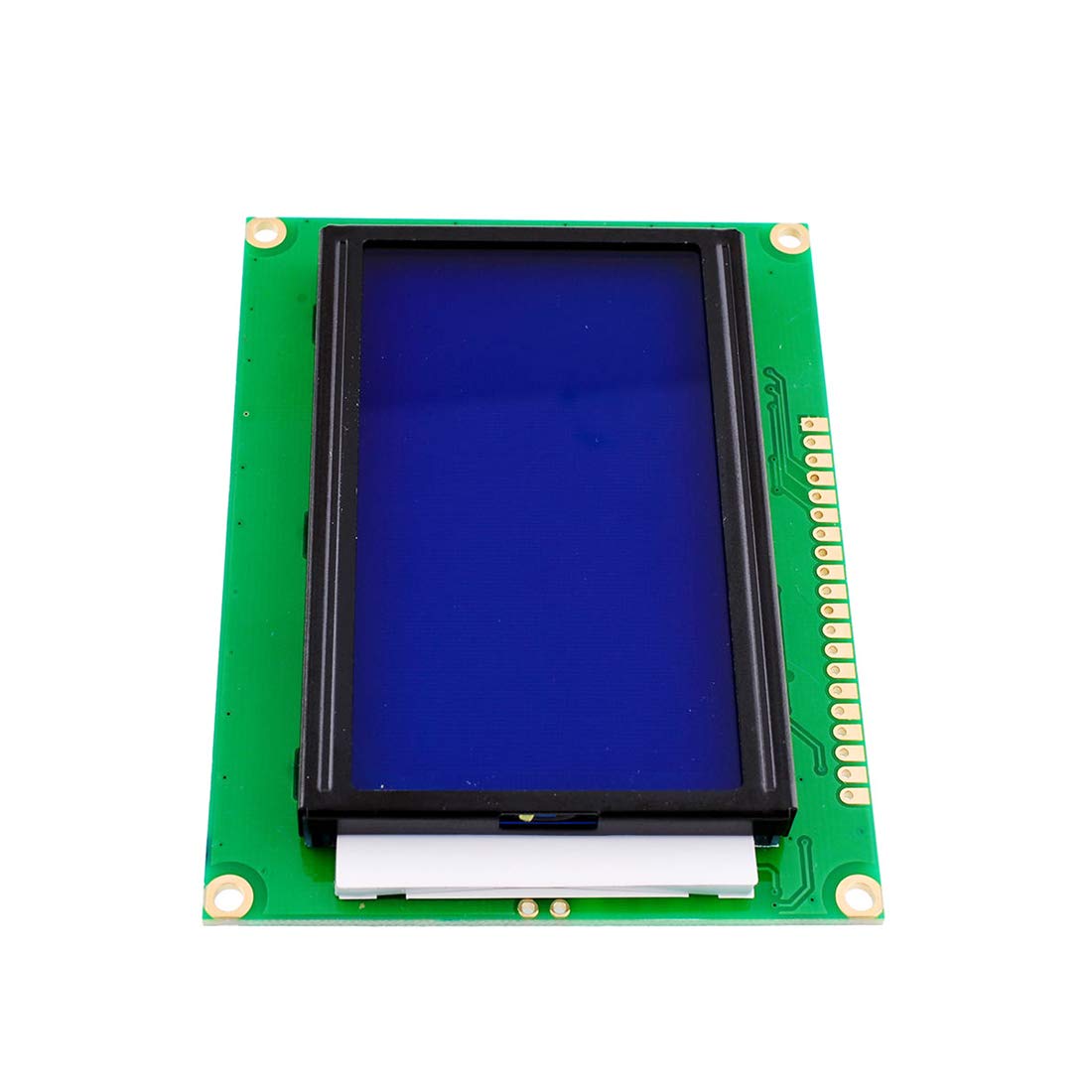

Hailege ST7920 128x64 12864 LCD Display Blue Backlight Parallel Serial for 5V

• ST7920 128x64 12864 LCD Display
• Blue Backlight Parallel Serial
• The pins are suited to standard sockets with a pin pitch of 2.54mm.

Features: 93 x 70 x 13mm (l x w x h) Blue background White foreground 128 x 64 Pixels Parallel or serial mode selectable 24 pin (2.54mm pitch) 5V DC Input M3 mounting holes (centres are 65/88mm apart) Designed to be compatible with standard 2.54mm sockets Description: This component is ideally suited to adding a screen to your project. This is the 12864B module which provides 128 x 64 white pixels on a blue background and is based on the ST7920 chipset. The onboard serial module uses the serial data and clock connections to obtain data to display on the screen. Microcontrollers such as the communicate using these serial connections by running a readily available library, please contact us if you require assistance finding obtaining the files. The pins are suited to standard sockets with a pin pitch of 2.54mm. Package included? 1* ST7920 128x64 12864 LCD Display Blue Backlight Parallel Serial for 5V
