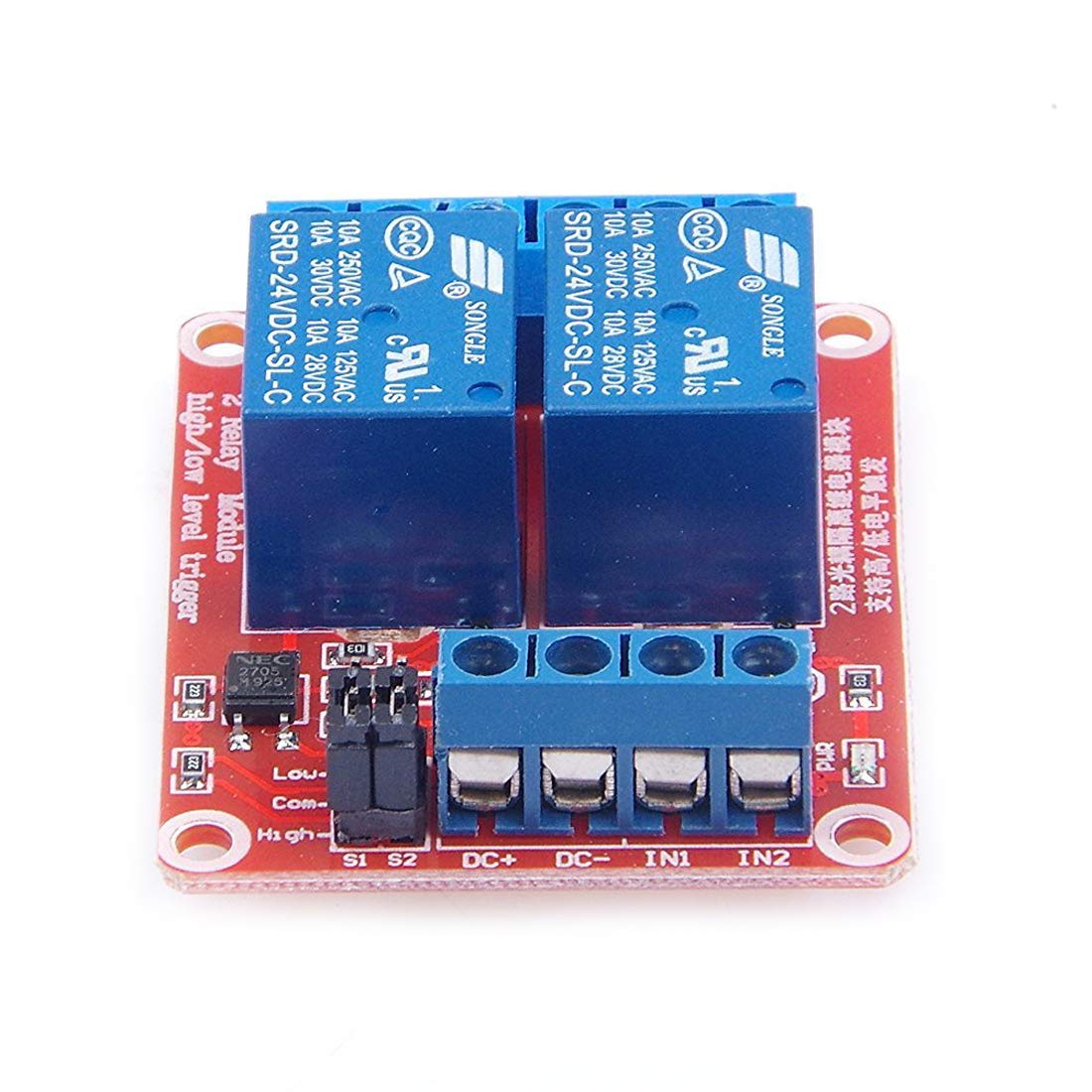

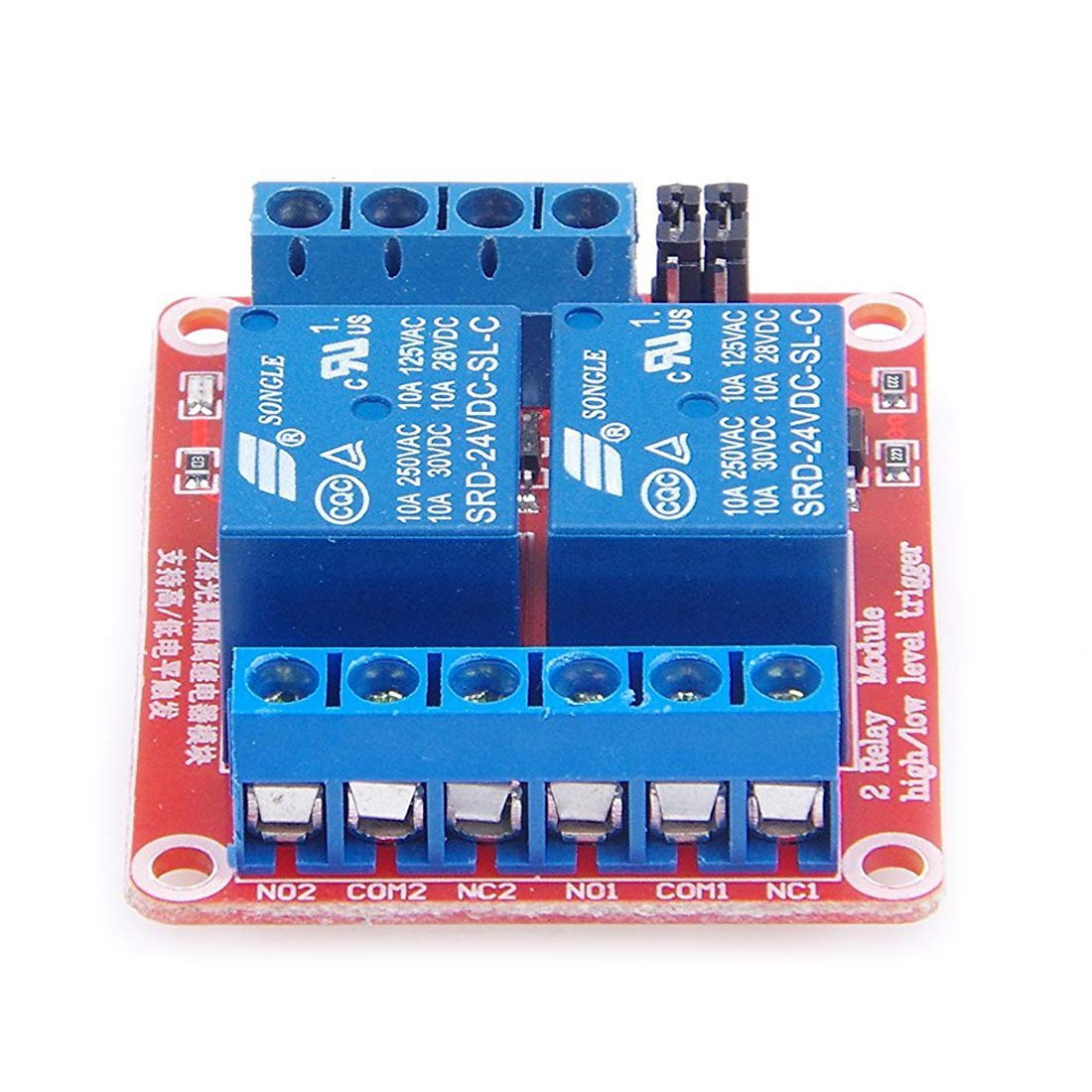

Hailege 2pcs DC 24V 2 Channel Relay Module with Isolated Optocoupler High and Low Level H/L Level Trigger Module Triggered by DC 24V

• DC 24V 2 Channel Relay Module Isolated Optocoupler High and Low Level Trigger
• SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
• User-friendly interface design, all interfaces are available through the wiring terminal direct connection leads, very convenient.
• MD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
• Authentic quality module 30A relay, normally open interfaces Maximum load: AC 250V / 30A, DC 30V / 30A;

Description: 1 .The module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A; 2.Using SMD OPTOCOUPLER isolation, driving ability, stable performance; trigger current 5mA; 3.The module voltage is 5V, 9,12 V, 24V are available ; 4.The module can be set to high or low triggered by jumper; 5 .Fault-tolerant design, even if the control line is broken, the relay will not operate; 6.The power indicator (green) , relay status indicator (red) 7 .Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient 8 .Module size : 50mm * 41mm * 18.5mm (L * W * H) 9 .Has four mounting bolts holes , hole 3.1mm, 44.5mm * 35.5mm pitch Interface : 1. DC +: positive power supply (voltage required by the relay , there 5V.9V.12V and 24V choice) 2. DC-: negative power connection 3. IN1: 1 channel signal to trigger the end , you can set a high or low level control relay 3. IN2: 2 -channel signal to trigger the end , you can set a high or low level control relay Outputs : 1. NO1: After a relay normally open interfaces , relay before floating, shorted pull with COM1 2. COM1: 1 relay common interface 3. NC1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant 4. NO2: 2 -way normally open relay interface, the relay before floating , pull back and COM2 short 5. COM2: 2 Common Interface relay 6. NC2: 2 -way normally closed relay interface relay short front and COM2 , pull vacant post High and low trigger selection: 1.S1 as a relay trigger selection of high and low ; 2.S2 high and low for the two -way relay trigger selection. Package Included: 2* DC 24V 2 Channel Relay Module With Isolated Optocoupler High and Low Level Trigger
