Hailege 1.8" inch ST7735R SPI 128 * 160 TFT LCD Display LCD Display Screen Module with PCB Adapter for 51

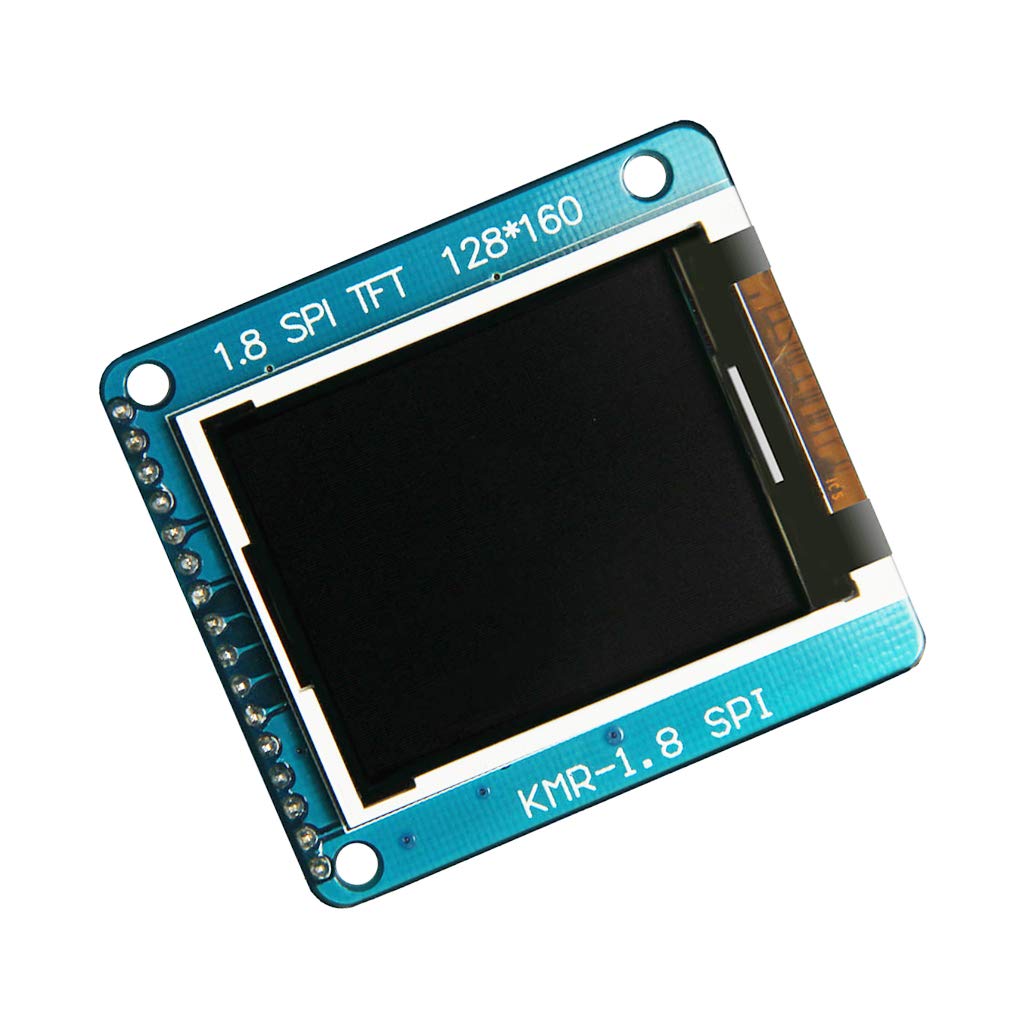

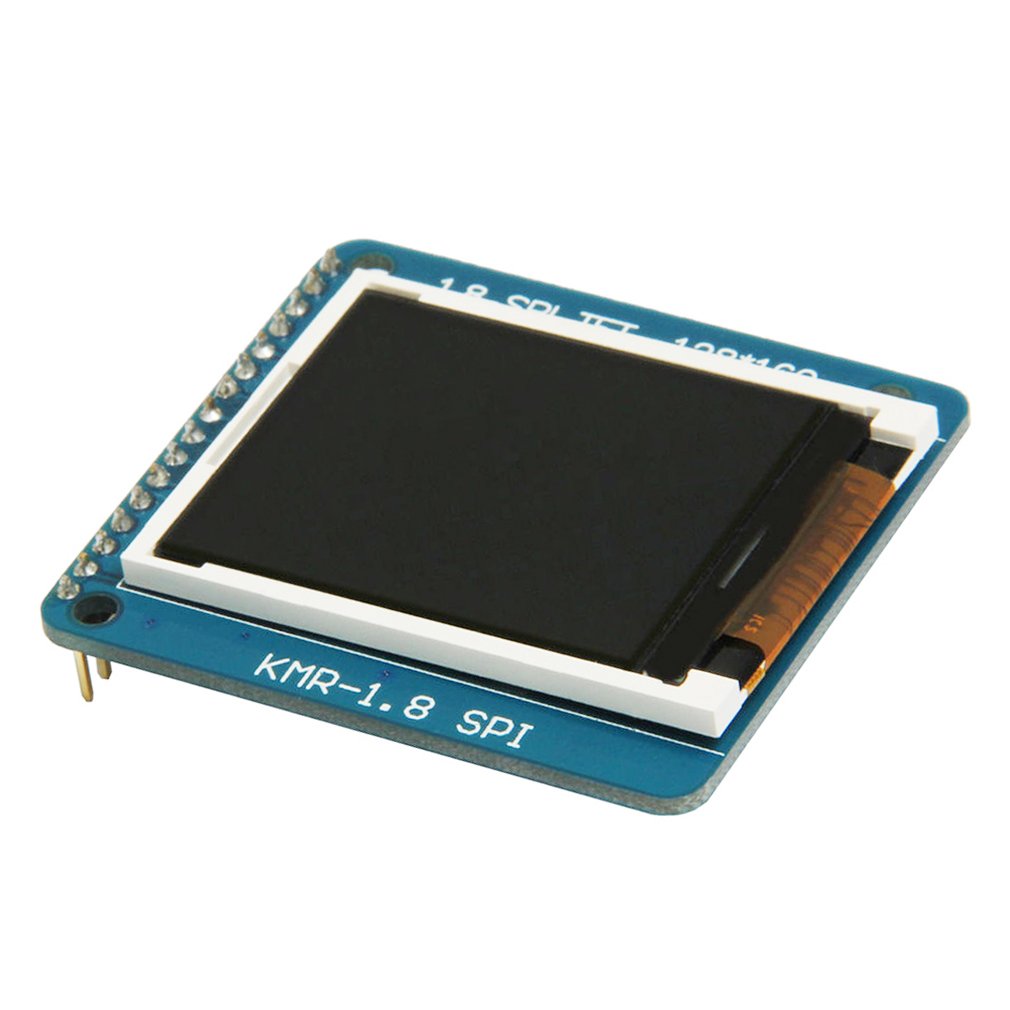

• 1.8" inch ST7735R SPI 128*160 TFT LCD Display
• Durable hard PCB board and metal, ideal for 1602 interface
• Welded by reflow soldering, no burrs, comfortable and safe

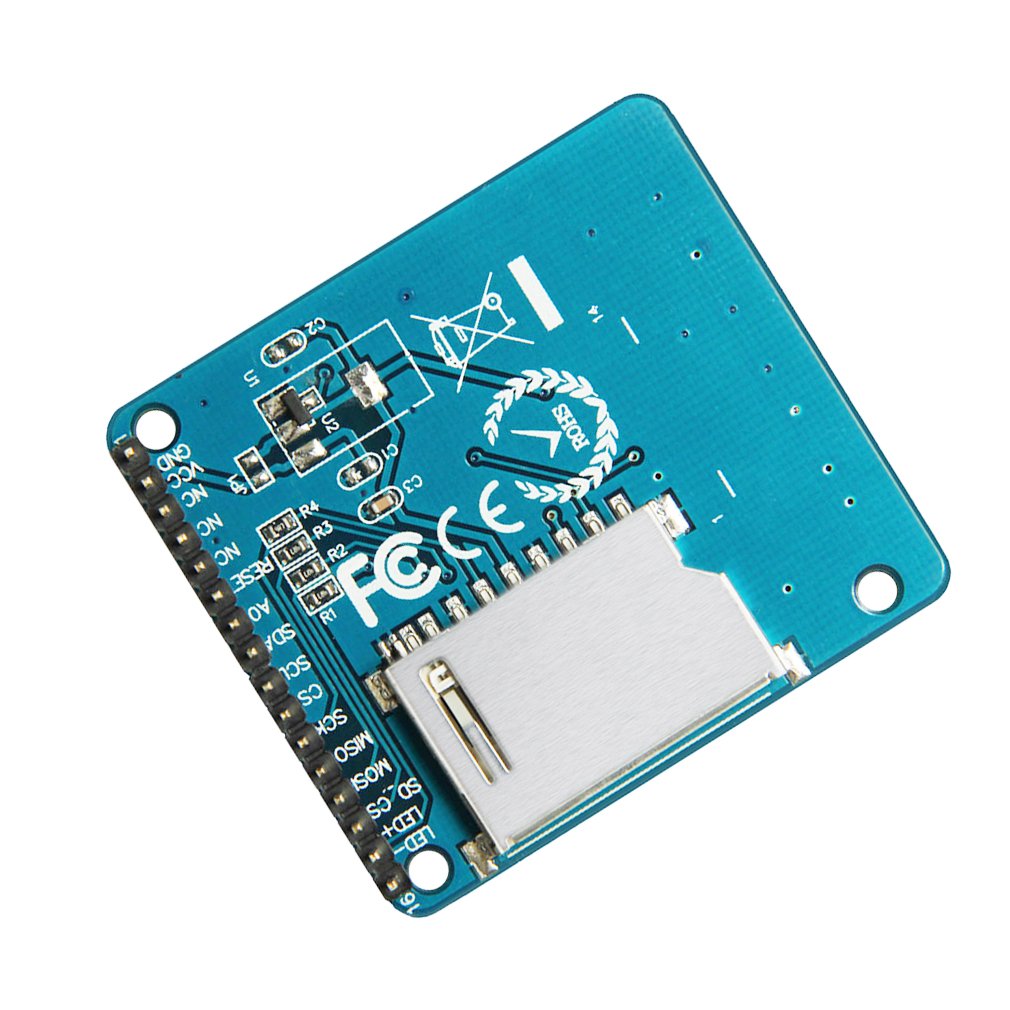

• Power supply IC and SD card slot, convenient to uses
• Transparent protective film covered on the display protect it from damage

Specification: Driver IC: ST7735R Resolution: 128 x 160 pixels Features: - Can help you to get rid of the serial monitor. - Some tests and provide UTFT library, AdaFruit Library and instruction on DropBox. - Tested with Latest 1.6.5. IO interface: 1. RESET --directly to the microcontroller IO 2. CS --directly to the microcontroller IO 3. A0 --IO control registers select 4. SDA --IO control data transmission 5. SCL --IO control SPI bus 6. BL--High Level 3.3V backlight on Package Included: 1 * 1.8" ST7735R SPI TFT LCD Display Module Note: Please contact us for documents and driver if you need. Please noted this LCD is 3.3V, which can not receive 5V signals from the , so please use a 1k series resistors between GPIO lines on a 5V and this LCD, power this LCD with 5V but drive it with 'level shifted resistor' GPIO lines. Besides, you could use mcifriend 2.8 inch TFT LCD library to get it to work, it will work fine with the Mega or Uno.
