H-Tronic WPS 1000 Water Level Sensor

• Free switching point w hlbar
• Range up to 20 m
• Robust sensor

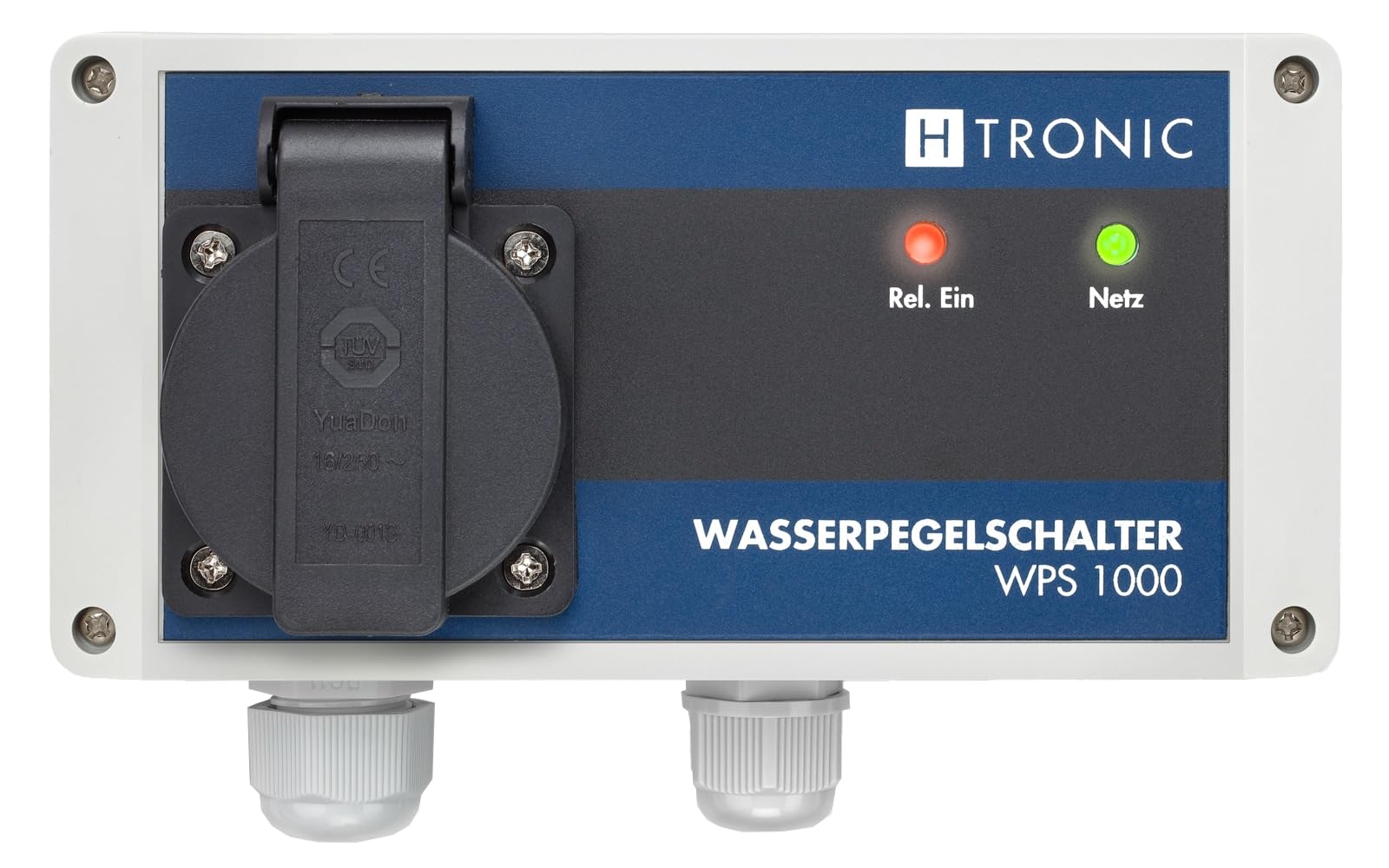

A pipe break, an open cellar window in heavy rain, or a defective seal - water can do a lot of damage in a short time! With little effort, this can be prevented. This water detector is a remedy When water penetrates or when the previously defined level level level is reached, a relay attracts and automatically switches warning devices, pumps, valves etc. on or off. Features: switching point freely selectable at any water level – remote measurement up to 20 m via two-core cable possible – no dangerous mains voltage on the sensor – operation-free and monitor-free operation – status LEDs – switching output can be used as a opener or contact; technical data: – operating voltage 230 V ~ – standby power consumption max. 1.5 W. Switching capacity max. 1000 W - trigger sensitivity <50 kΩ - switch-off delay approx. 20 seconds - protection class IP20 - length of sensor cable 2 m - dimensions (L x W x H): 160 x 60 x 80 mm. Box contents: control unit, sensor cable, water sensor, instructions (English language not *)
