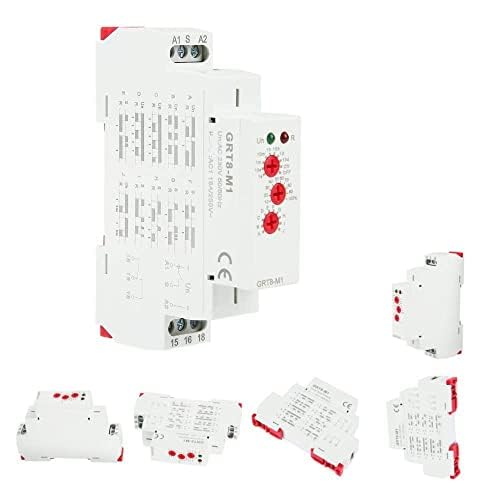

GRT8-M1 Multifunctional Power Off Delay Time Timer Relay with 10 Functions DIN Rail Mount AC for Industrial Equipment 220V DelayTime Relay

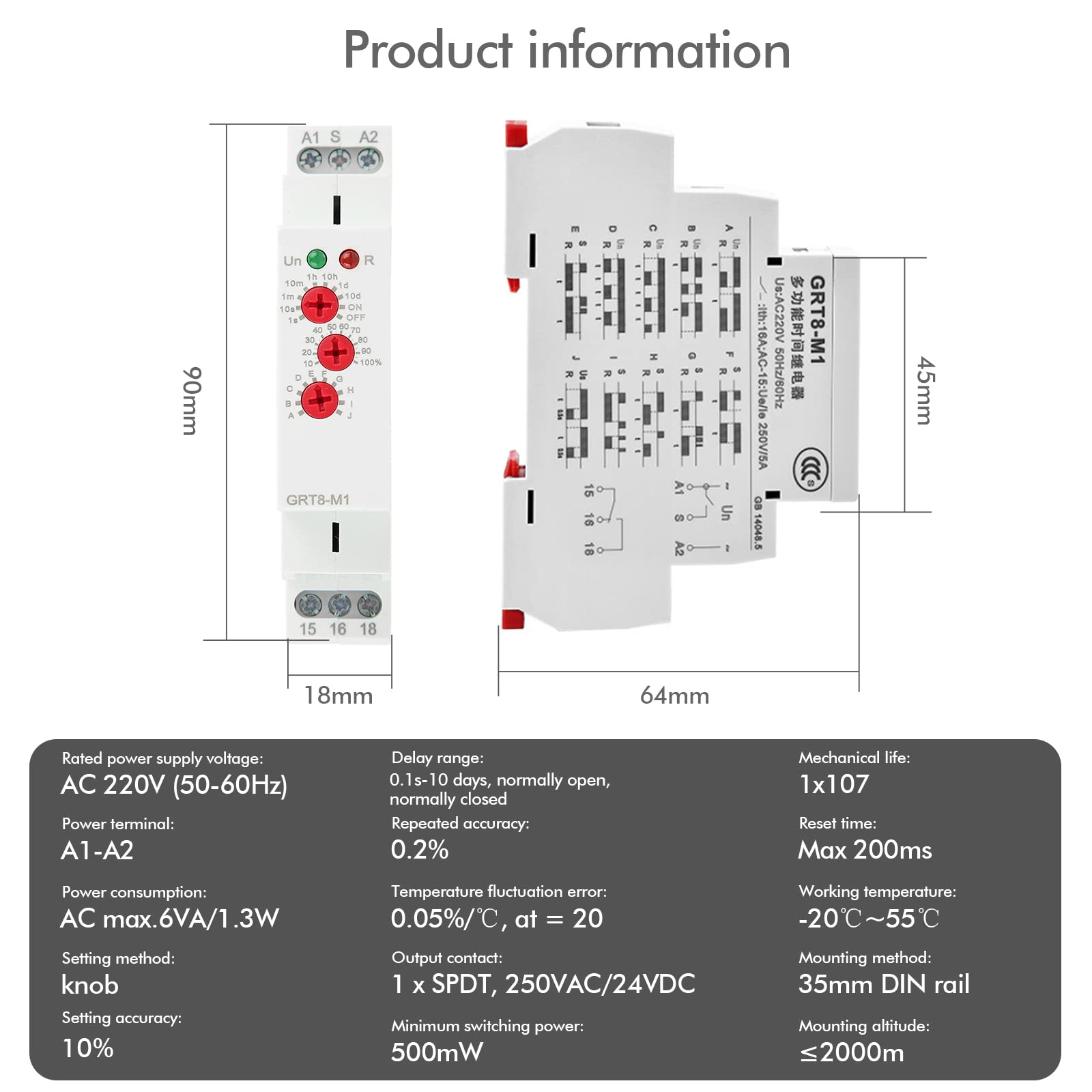

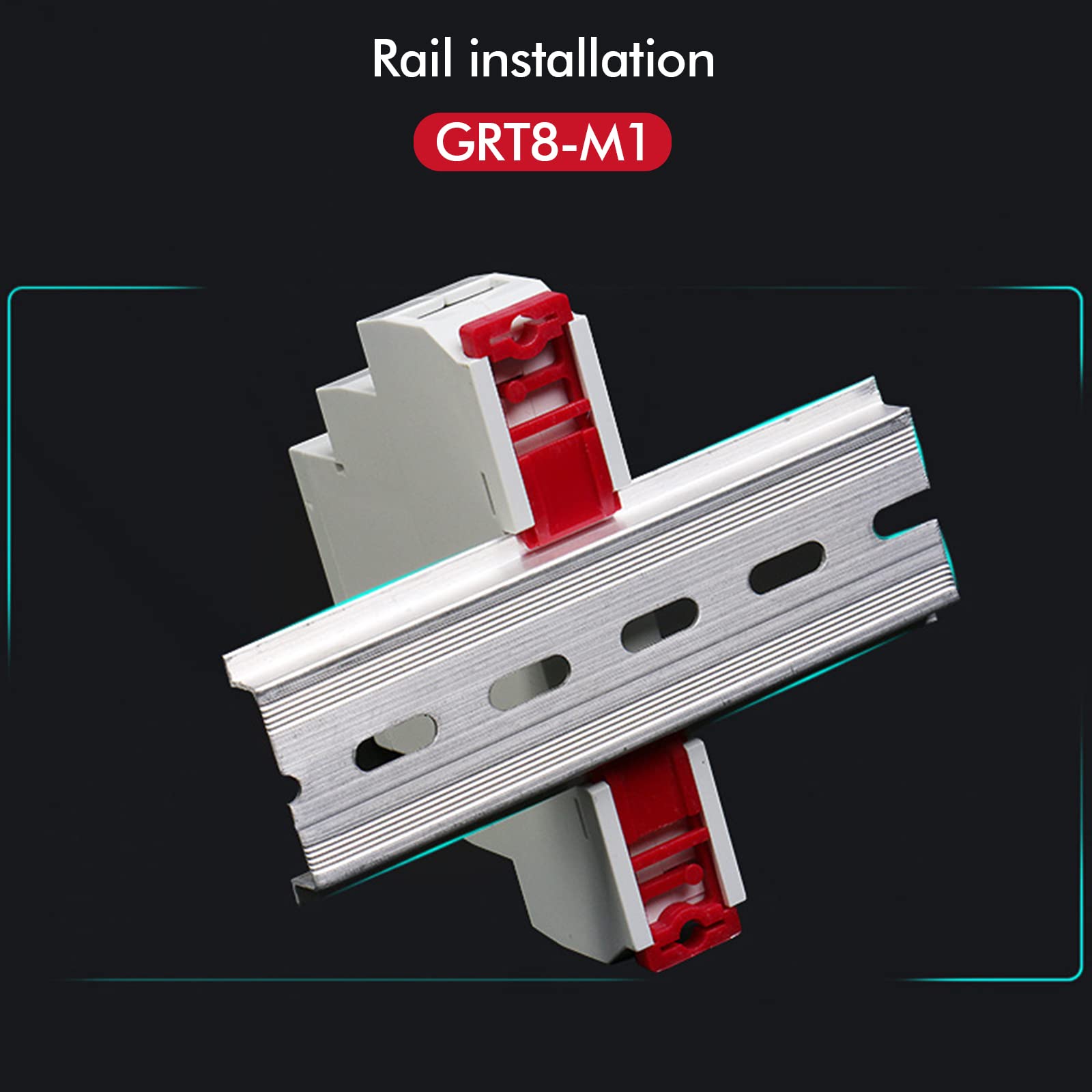

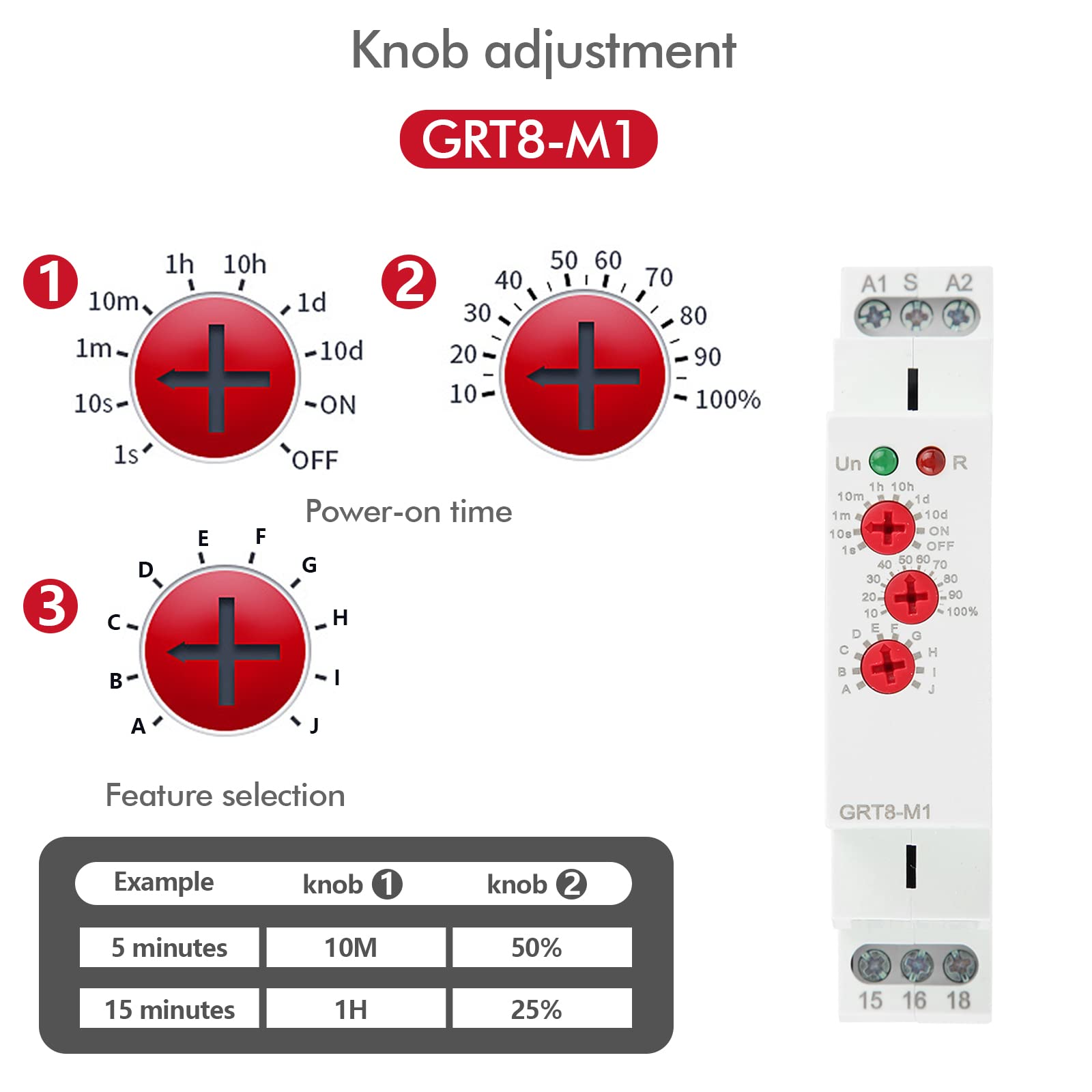

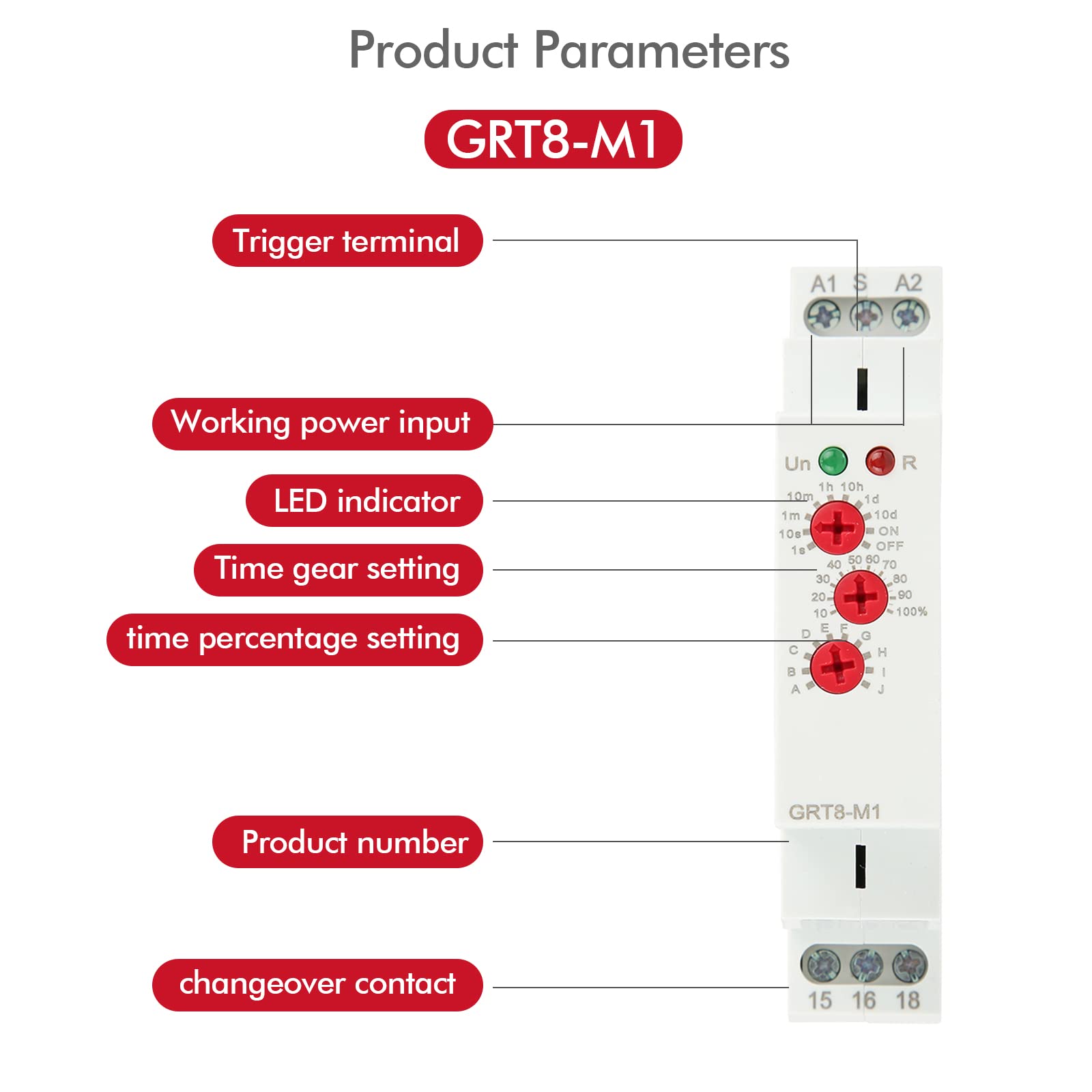

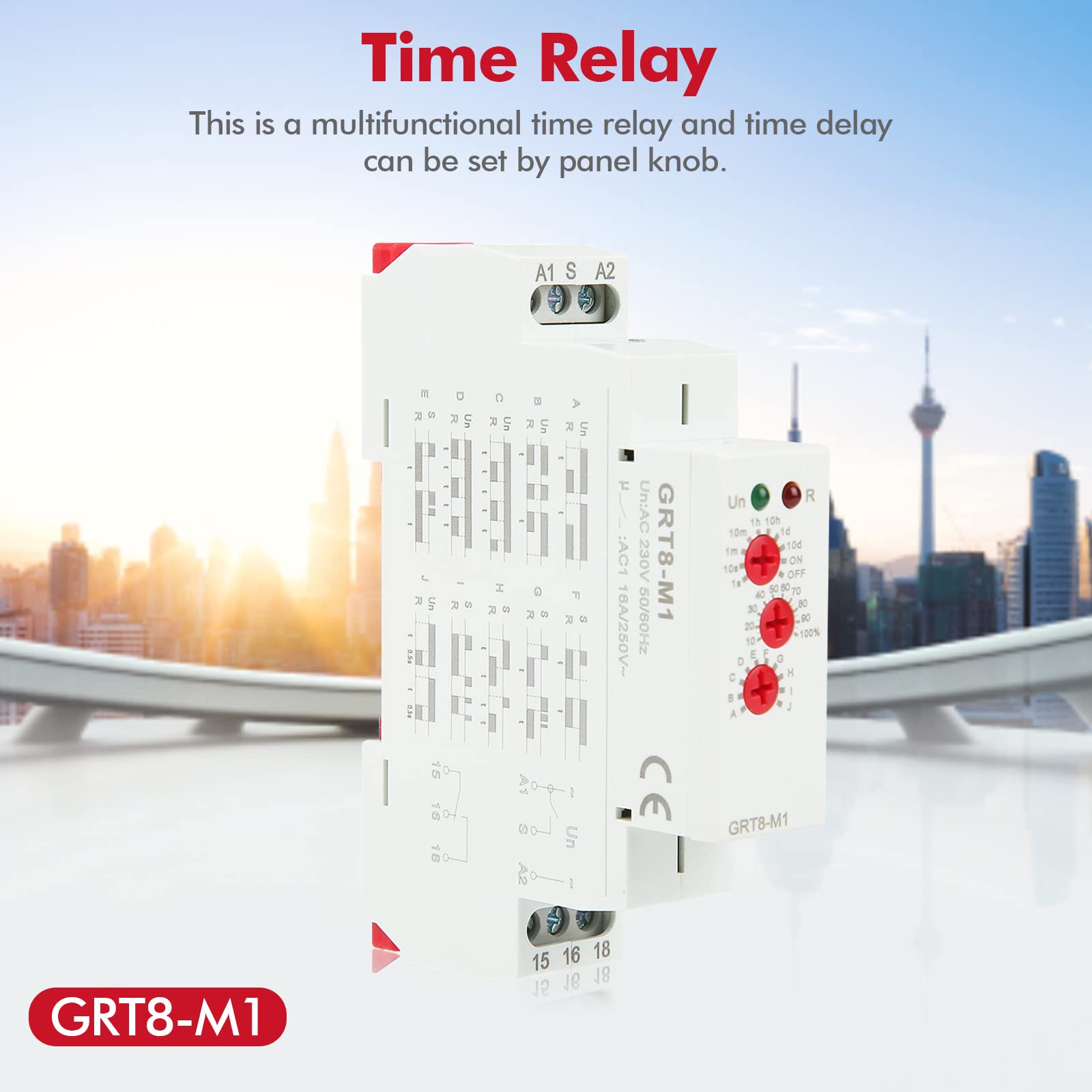

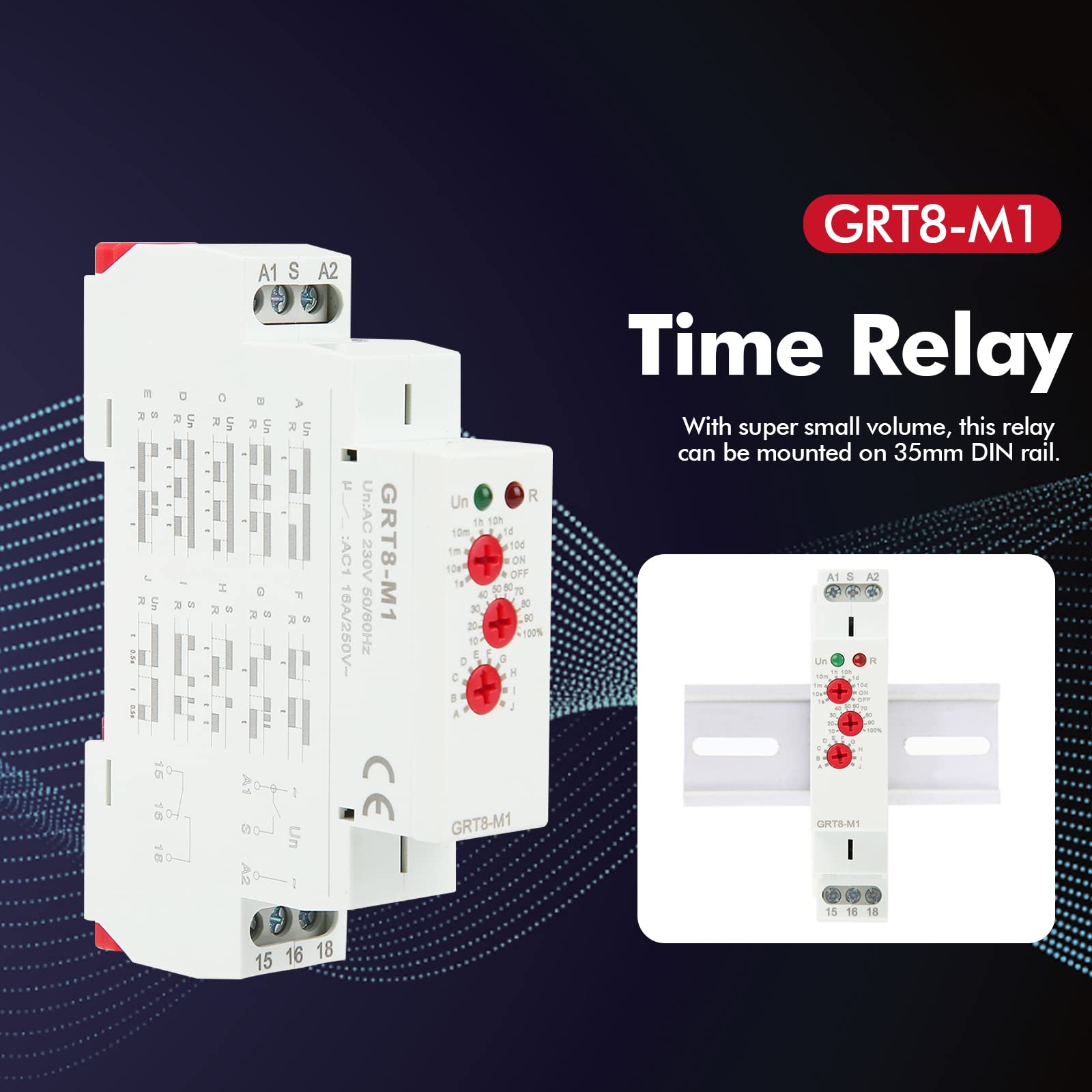

Features: 1.You can use multifunctional delay time relay by docking different ports, including 10 kinds of delay functions, including delay on, delay off, cycle delay, etc. 2.0.1s - 10days ultra-wide delay range. The working state of the relay is indicated by a brighter indicator light. Green LED power indication, red LED output relay indication. 3.Our delay time relay is a multifunctional time relay, and the delay time can be set through the panel knob. 4.The relay is super small and can be installed on a 35mm DIN rail. 5.This time relay can be used in industrial equipment, lighting control, heating element control, motor, fan control, etc. Specification: Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: Knob Setting accuracy: 10% Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20 Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: Red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 75g/2.6oz Package Included: 1 * Multifunctional Delay Time Relay
