Gravity: mmWave C4001 24GHz Human Presence Detection Sensor (12 Meters, I2C & UART)

• Human Detection: It can detect the presence of humans up to 8 meters and detect human motion up to 12 meters.
• Distance Detection: It can measure distances from 1.2m to 12m.
• Speed Detection: It can detect speeds from 0.1m/s to 3m/s.
• Strong anti-interference capability: It is not affected by factors such as snow, haze, temperature, humidity, dust, light, and noise.
• Compact size and easy integration.

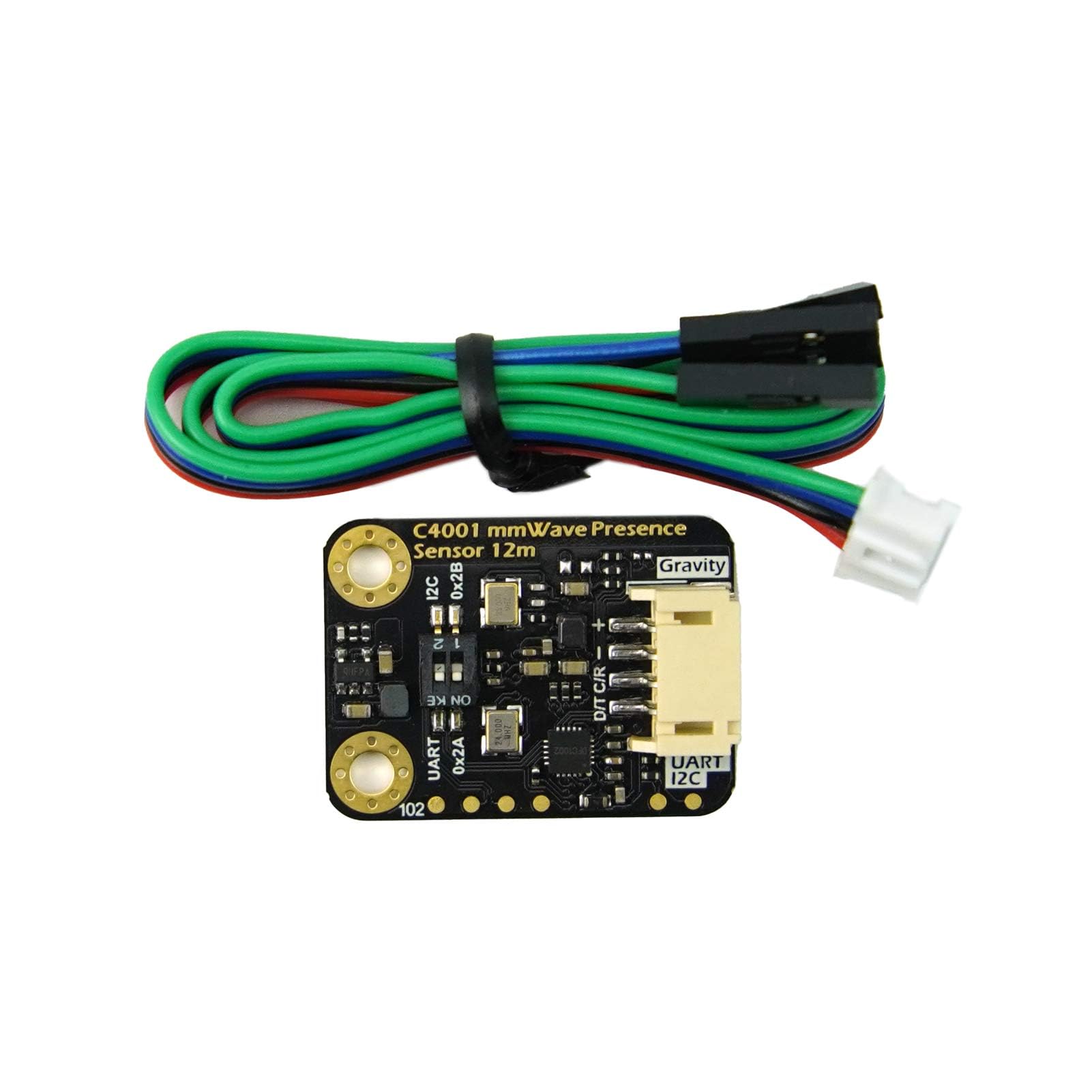

Introduction The Gravity: C4001 millimeter-wave presence sensor, operating at a wavelength signal of 24GHz, boasts a horizontal detection range of 100°, a presence detection range of 8 meters, and a motion detection and ranging range of 12 meters. It utilizes the Gravity interface (PH2.0) and supports I2C and UART communication methods, compatible with Arduino, Raspberry Pi, ESP32 / ESP8266 development boards. Perfect for human presence detection, environmental monitoring, and real-time monitoring projects. Specification Power Supply: 3.3V/5V Maximum Detection Range: 12m Beam Angle: 100*80° Modulation Mode: FMCW Operating Frequency: 24GHz Operating Temperature: -40~85℃ Baud Rate: 9600 Size: 22*30mm I2C Address: 0x2A/0x2B Shipping List Gravity: mmWave 24GHz Human Presence Detection Sensor (12 Meters, I2C & UART) x1 Gravity-4P I2C/UART Sensor Connector x1
