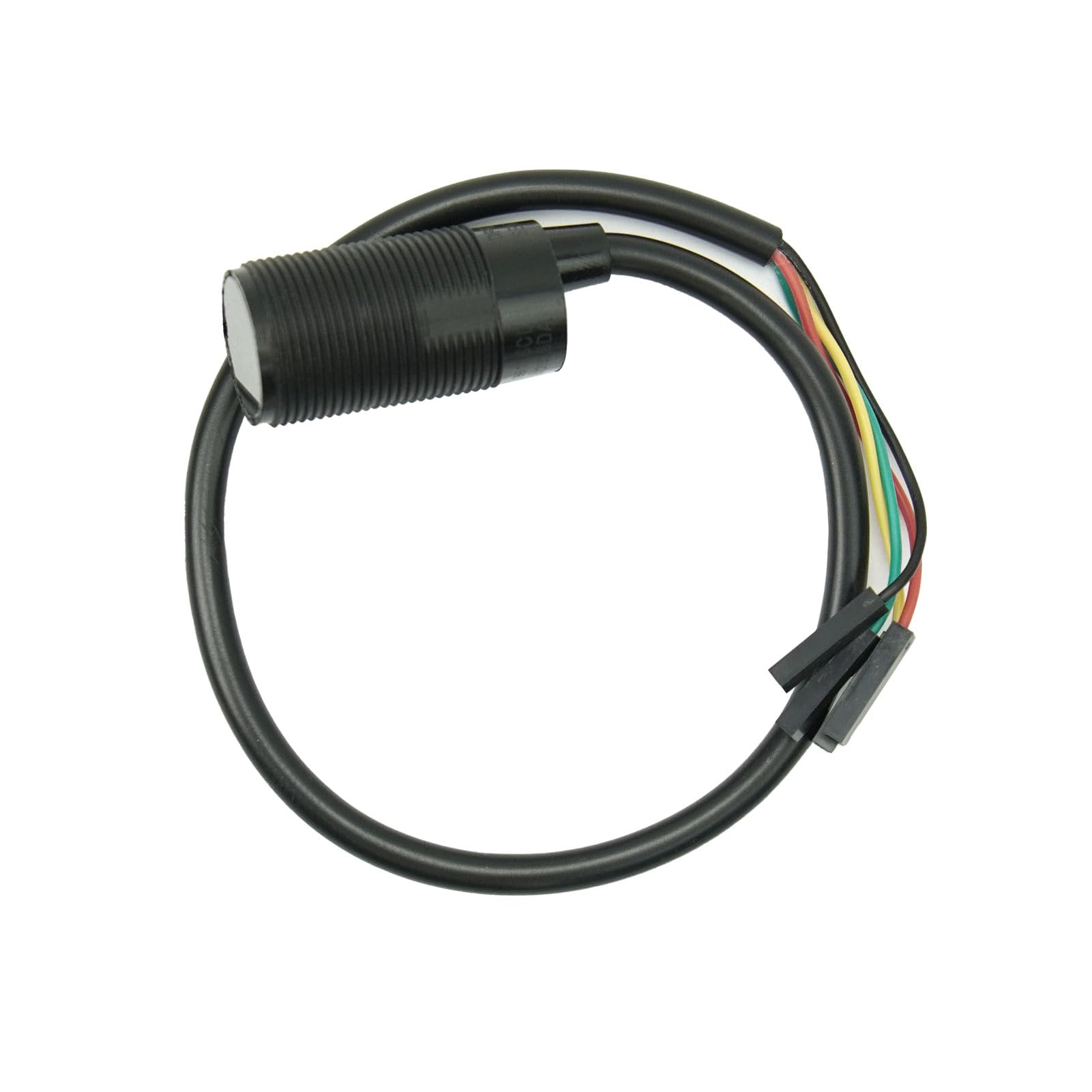

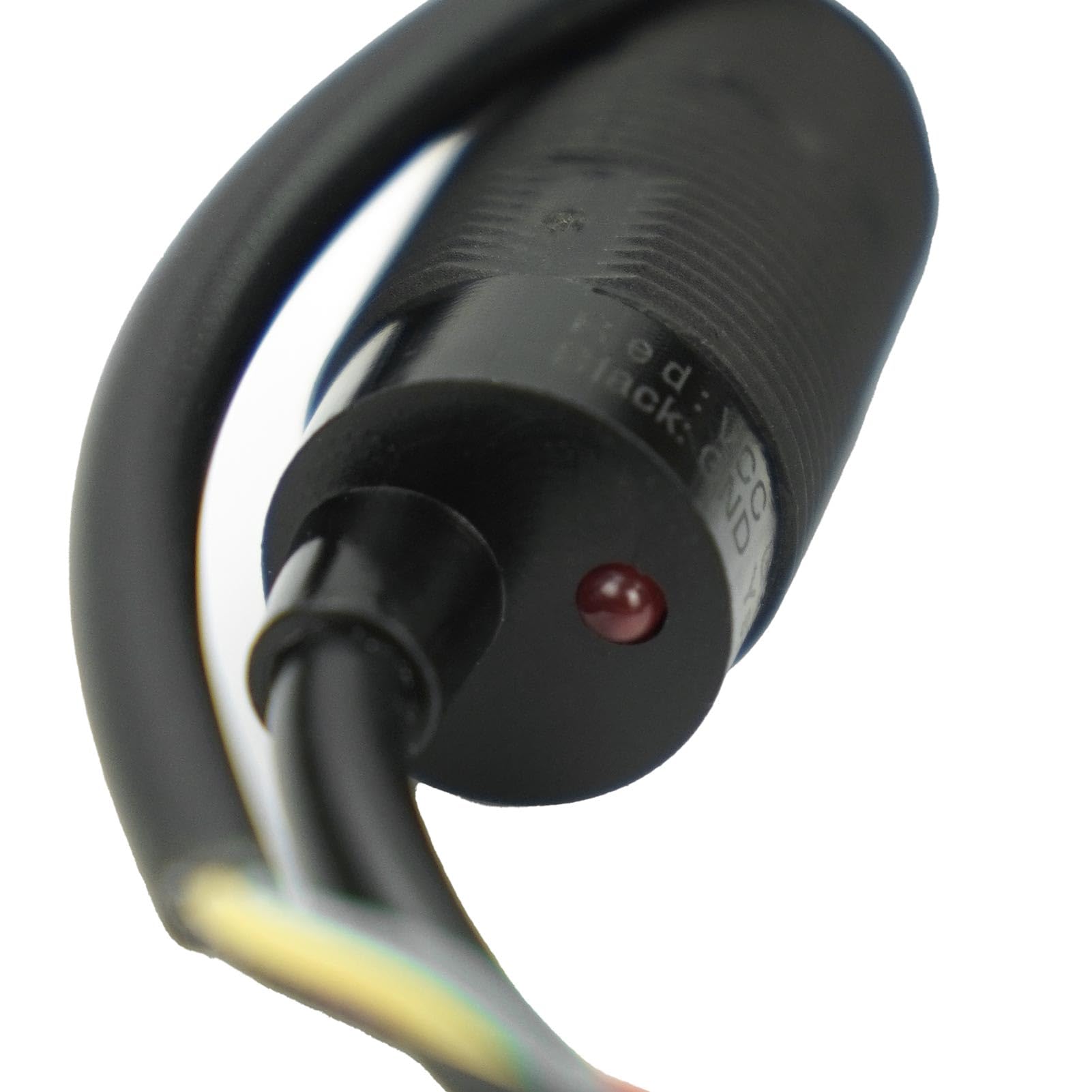

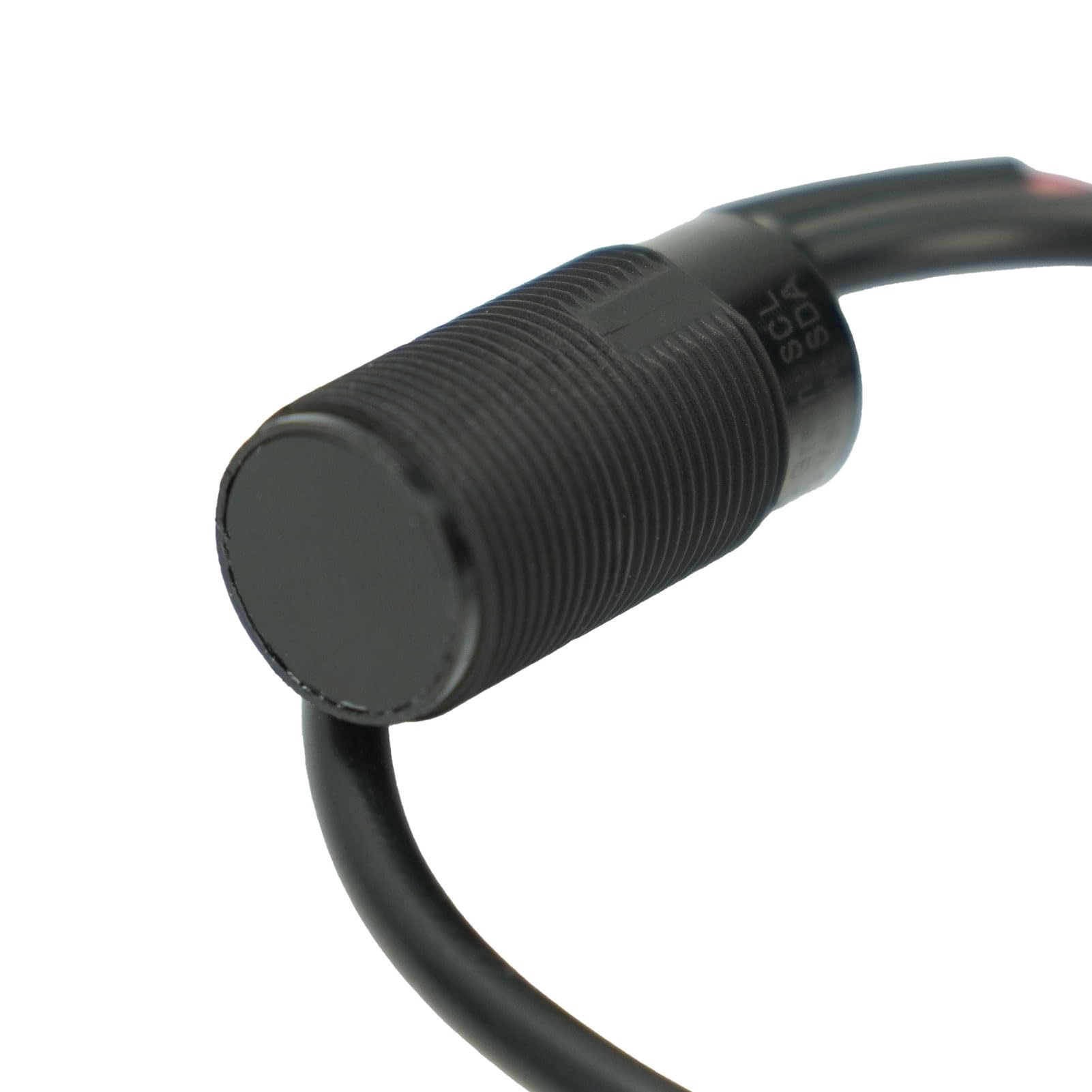

Gravity: IR Positioning Camera For Arduino

• Versatile Applications: Suitable for robot automatic tracking, infrared navigation, light barriers, flame sensing, and more.
• High Performance: Features high resolution, high sensitivity, high accuracy, compact size, and lightweight.
• Arduino Compatible: Fully compatible with Arduino using just four wires - two for power supply and two for I2C.
• Wide-angle Detection: Features a horizontal detection angle of 33 degrees and a vertical detection angle of 23 degrees, capable of real-time tracking of mobile infrared points.
• Shipping List: Positioning IR Camera x1

Gravity: IR Positioning Camera For Arduino INTRODUCTION This is a small form factor arduino IR camera capable of tracking up to four heat/IR sources, which allows track robot, find the directions of the objects. APPLICATIONS Tracking of robots with IR transmitters for navigation. Light barriers for determine the direction where the object is going to. Flame sensor, tracking of heat sources. SPECIFICATION Operating voltage: 3.3-5v Interface: I2C Detecting distance: 0~3m Horizontal detecting angle: 33 degrees Vertical detecting angel: 23 degrees Dimensions: 32mm x 16mm(1.26x0.63") Resolution is 128x96 pixel, with hardware image processing, which can track four objects (IR emitting or reflecting objects) SHIPPING LIST Positioning IR Camera x1
