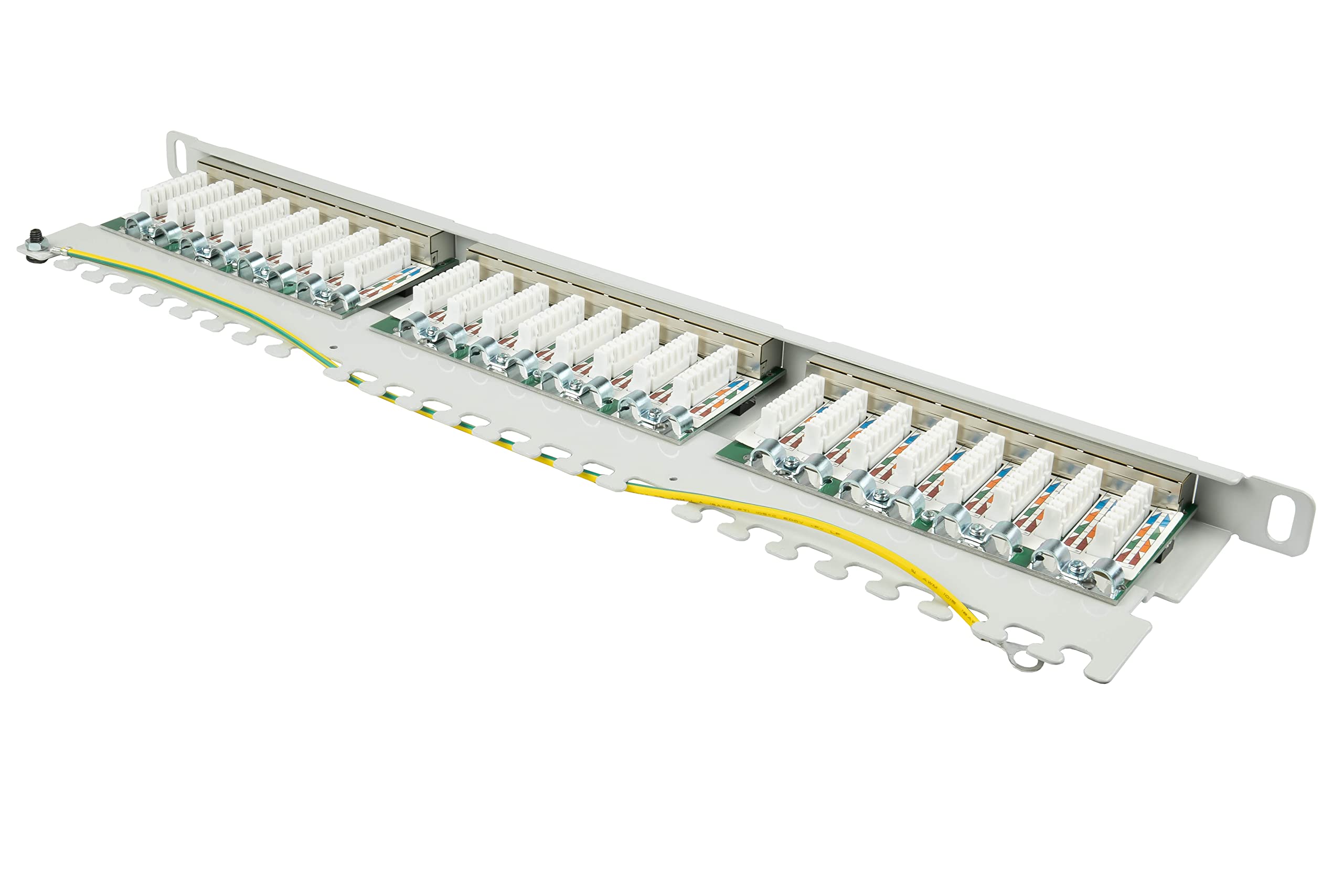

Good Connections® Patch Panel/Patch Panel - 19" - Server Mount/Rack Mount - CAT6, 500 MHz - GIGABIT Enabled - 24-Port - 0.5 U - STP Shielded - Tool-free Opening - Light Grey (RAL7035)

• Patch panel / patch panel / distribution panel - 19 inch / 19 inch version with 24 ports
• Cat. 6 / Category 6 - Suitable for 1 Gigabit/s Ethernet and for transmission frequencies up to 250 MHz
• Shielded (STP) + complete shielding of RJ45 sockets and LSA strips + central earth connection
• Cable installation via LSA strips (colour marking according to TIA 568 A/B) - for solid and stranded cables (22-26 AWG)
• Colour: Light Grey (RAL7035) / Dimensions (WxDxH): 482.6 x 100 x 22 mm

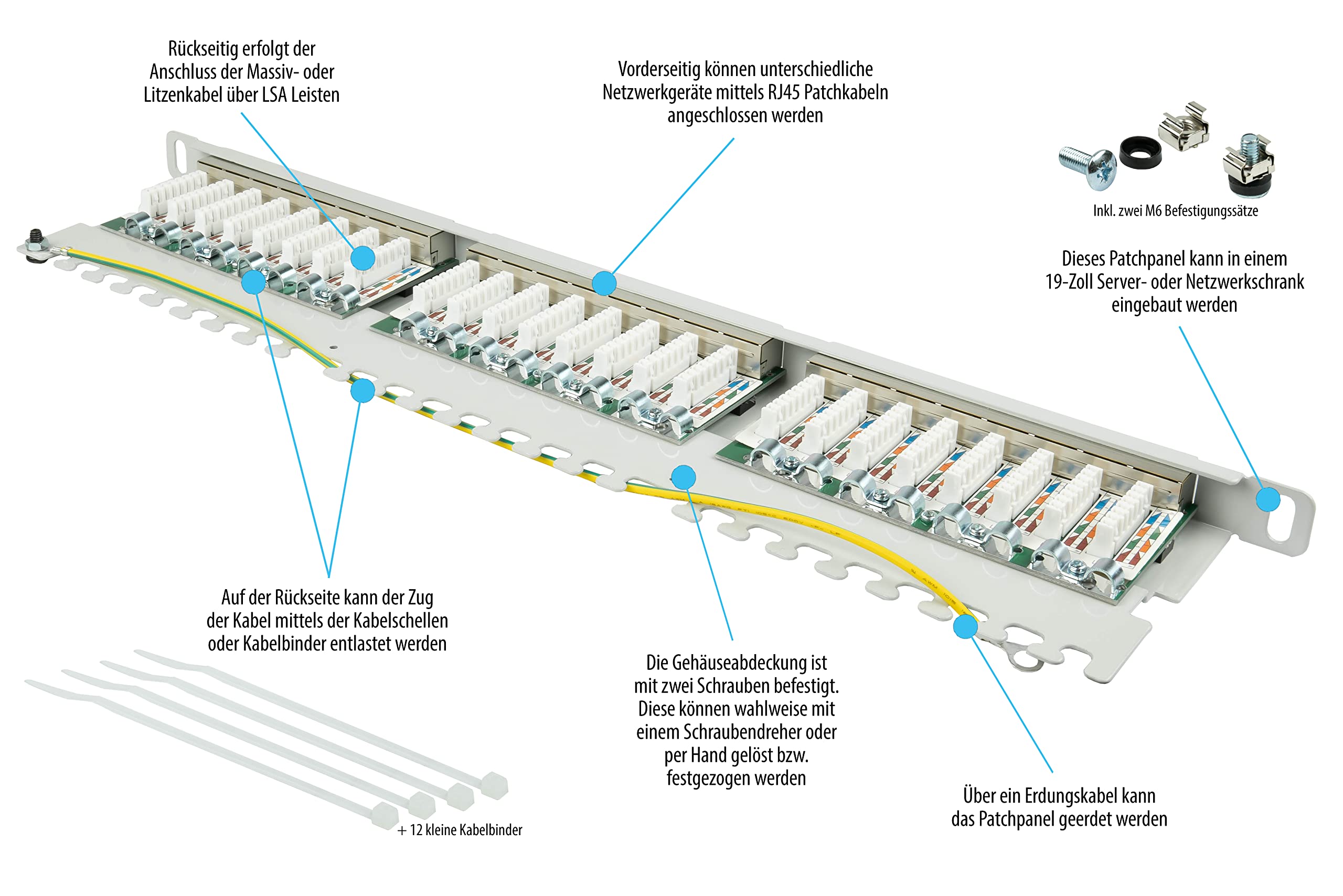

"The fully shielded Cat. 6 patch panel from Good Connections is made of sturdy 1.5 mm sheet steel and suitable for Ethernet networks up to 1 Gigabit/s. On the front, different network devices can be connected using RJ45 patch cables. On the back, the solid or stranded cables are connected via LSA strips. Tool-free opening and closing. The housing cover is attached with two screws. These can be loosened or tightened either with a screwdriver or by hand. Technical specification: - Cat. 6 ch ANSI/TIA/EIA 568 C.2 standard - S19 version with 24 ports - Suitable for 1 Gigabit/s Ethernet and for transmission frequencies up to 250 MHz - Complete shielding of RJ45 sockets and LSA strips - Terminal strips with colour marking according to TIA 568 A/B - Cable installation via LSA strips - For solid and strancable With cable diameters of 22-26 AWG - Cable attachment with strain relief - 1.5 mm sheet steel housing - Cable tie fixing option - Central ground connection - 0.5 height units [U] - Operating temperature range: -20 °C to +60 °C Colour: Light Grey (RAL7035) Dimensions (WxDxH): 482.6 x 10 0 x 22 Box contents: 1 x patch panel including grounding cable, 1 x illustrated instructions (English language not guaranteed), 12 x cable ties (small), 4 x cable ties (large)
