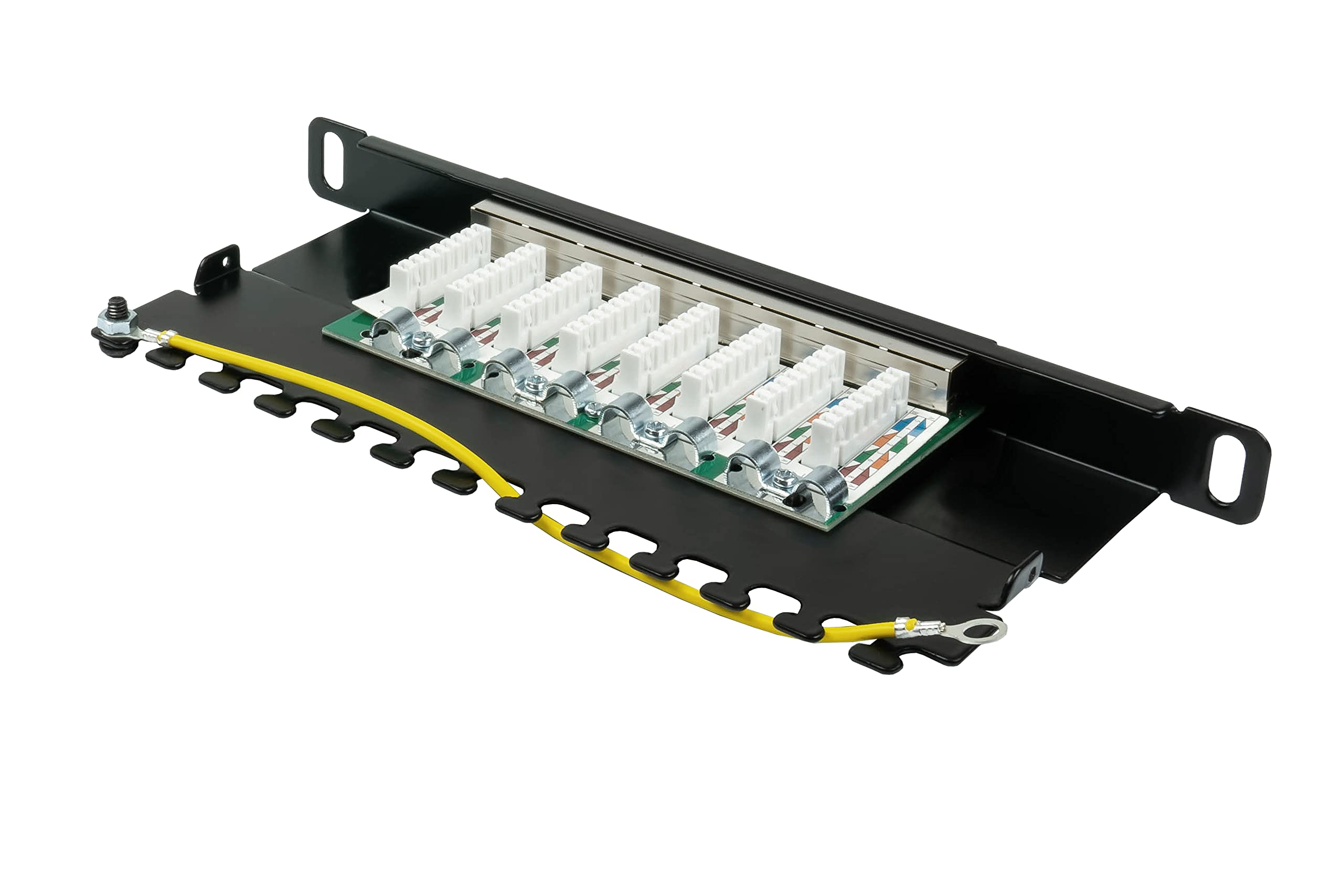

Good Connections® Patch Panel / Patch Panel - 10" - Server Mounting / Rack Mounting - Cat. 6, 250 MHz - GIGABIT Capable - 8 Port - 0.5 U - STP Shielded - Tool Opening - Deep Black (RAL9005)

• High-quality patch panel / patch panel / distribution panel - 10 inch / 10 inch design with 8 ports - open without tools
• Cat. 6 / Category 6 - Suitable for 1 GIGABIT/s Ethernet and for transmission frequencies up to 250 MHz
• Shielded (STP) + complete shielding of RJ45 sockets and LSA strips + central earth connection
• Cable installation via LSA strips (colour marking according to TIA 568 A/B) - for solid and stranded cables (22-26 AWG)
• Colour: Jet Black (RAL9005) / Dimensions (WxDxH): 254 x 100 x 22 mm

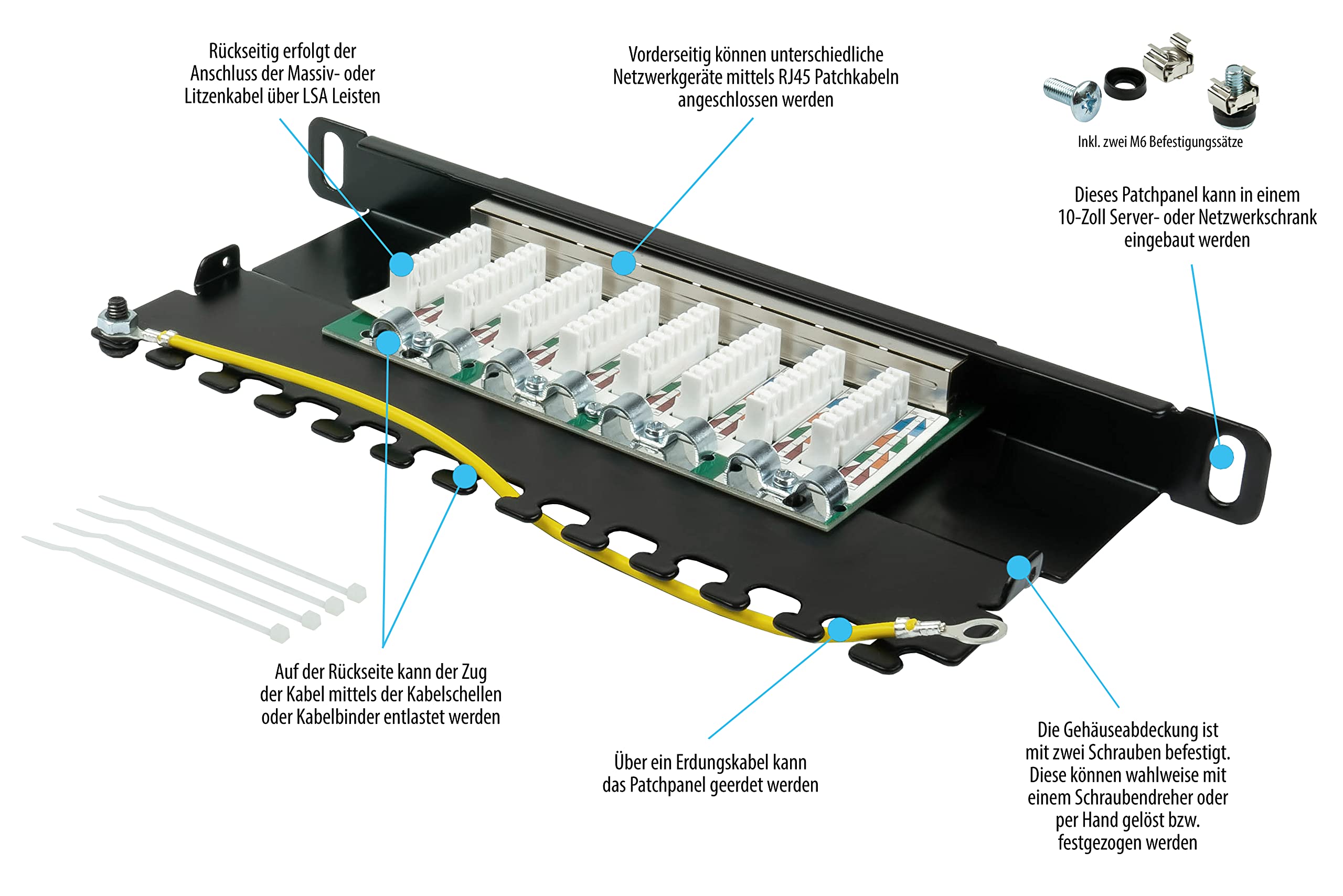

Patch panel 10" Cat. 6, 8-Port, 0.5U, STP Shielded, Tool-free Open, Jet Black (RAL9005), Good Connections The fully shielded Cat. 6 patch panel from Good Connections is made of sturdy 1.5 mm sheet steel and suitable for Ethernet networks up to 1 Gigabit/s. On the front, different network devices can be connected using RJ45 patch cables. On the back, the solid or stranded cables are connected via LSA strips. Tool-free opening and closing. The case cover is attached with two screws. These can be loosened or tightened either with a screwdriver or by hand. Technical specification: - Cat. 6 according to ANSI/TIA/EIA 568 C.2 standard. - 10 inch version with 8 ports. - Suitable for 1 Gigabit/s Ethernet and for transmission frequencies up to 250 MHz - Complete shielding of RJ45 sockets and LSA strips. - Terminal strips with colour coding in accordance with TIA 568 A/B - Cable installation via LSA strips. - For solid and stranded cables with cable diameters of 22-26 AWG - Cable attachment with strain relief. - Housing made of 1.5 mm sheet steel. - Fixing option for cable ties. - Central earth connection. - 0.5 height units [U] - Operating temperature range: -20°C to +60°C Colour: jet black (RAL9005). Dimensions (WxDxH): 254 x 100 x 22 mm Package includes: - 1 x patch panel including earth cable. - 1 x illustrated instructions (English language not guaranteed). - 4 x cable ties
