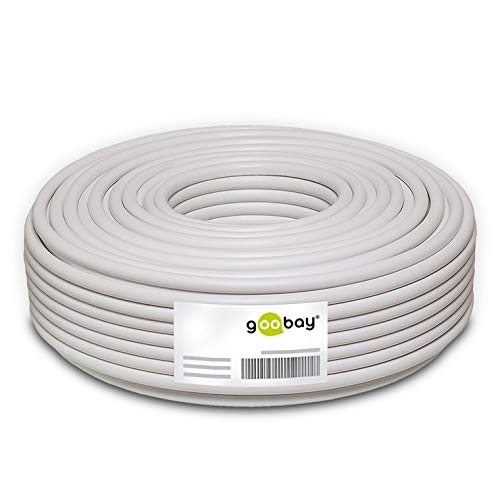

goobay 61126 - CAT 8.1 Installation Cable - CAT 8 Network Cable/LAN Cable - Installation High Speed 40 Gbits Data Cable with S/FTP PiMF Shielding / 25 m

• With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT-6A cable.

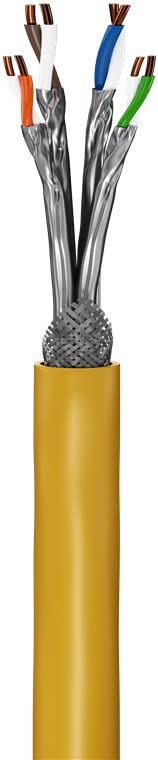

• S/FTP overall shielding: Aluminum foil shielding for single wire pairs (PiMF) and aluminum braid shielding for cable sheath.
• The low-smoke and halogen-free LSZH cable jacket is equipped with RJ45 connectors (8P8C) on both sides and 50 μm gold-plated contact surfaces and a latch protection.
• The LAN cable supports 25GBase-T and 40GBase-T Ethernet networks, making it 40 Gigabit capable and is backward compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T.
• The network cable complies with the Building Products Regulation (BauPVO/CPR) and the Dca fire protection class

Description GHMT-certified CAT 8.1 installation cable, S/FTP (PiMF), yellow. Only in combination with the GHMT-certified components listed below, the flawless functionality of this installation cable is guaranteed for CAT-8.1 cabling routes. The transmission properties were tested in the 2-Connector Channel over a predefined transmission distance of 24 m according to specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHz GHMT Type Approval Balanced cord: Wentronic GmbH CAT 8. patch cord part no. CAT 8.1 - 25 m S/FTP PiMF Yellow Certified Patch Cords: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114. 6111, 615, 61116, 61117 certified installation cable: 61126, 61127, 61128 certified keystone coupling: 61143 technical data cable specification CAT 8.1 shielding class S/FTP (PiMF) number of shields 2 x AWG 22/1 (solid) diameter cable sheath (approx. .) 8.3 mm metre scale yes inner conductor, wire diameter 0.6 mm, cable length 25 m, signal transmission max. Bandwidth 2000 MHz wave resistance 100 Ω
