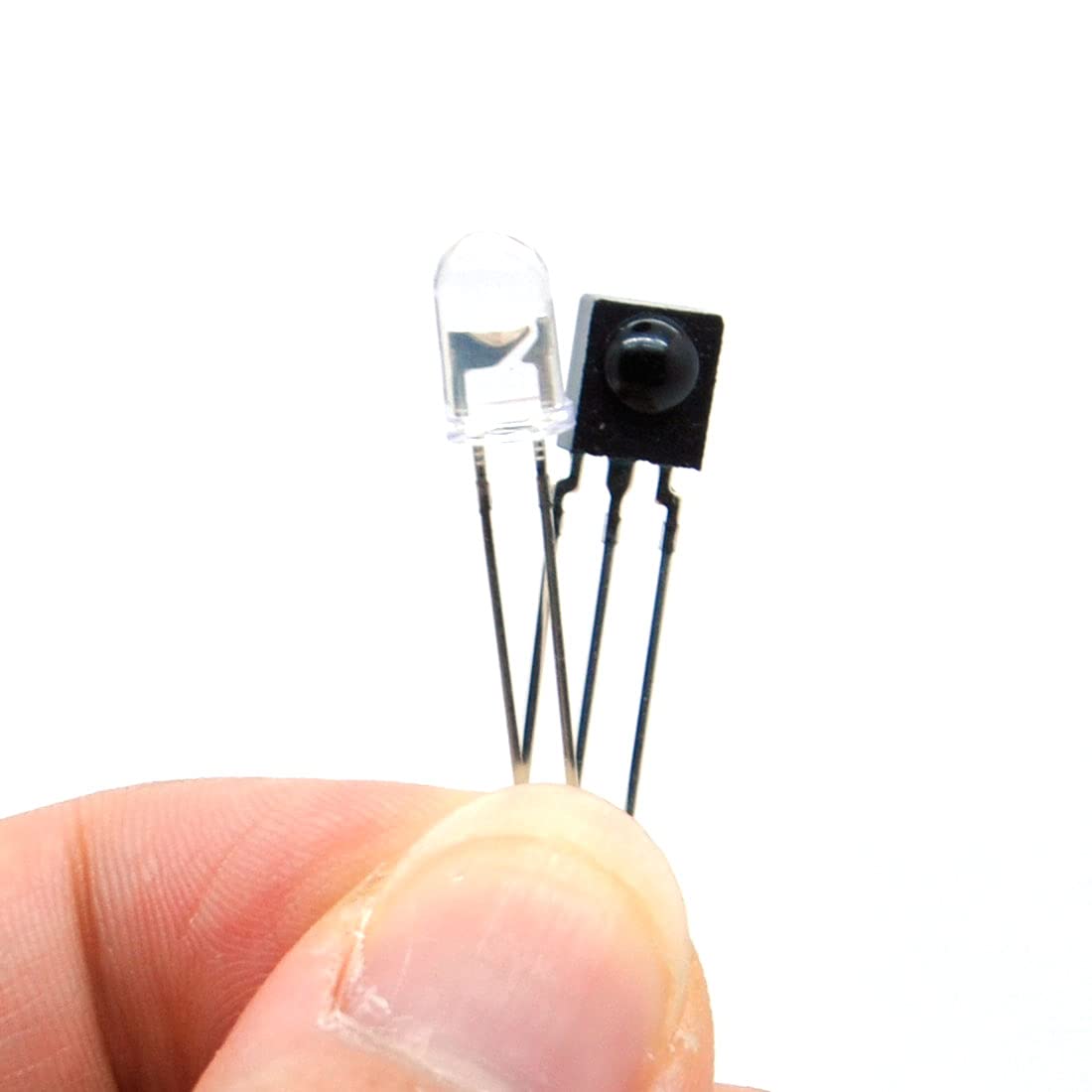

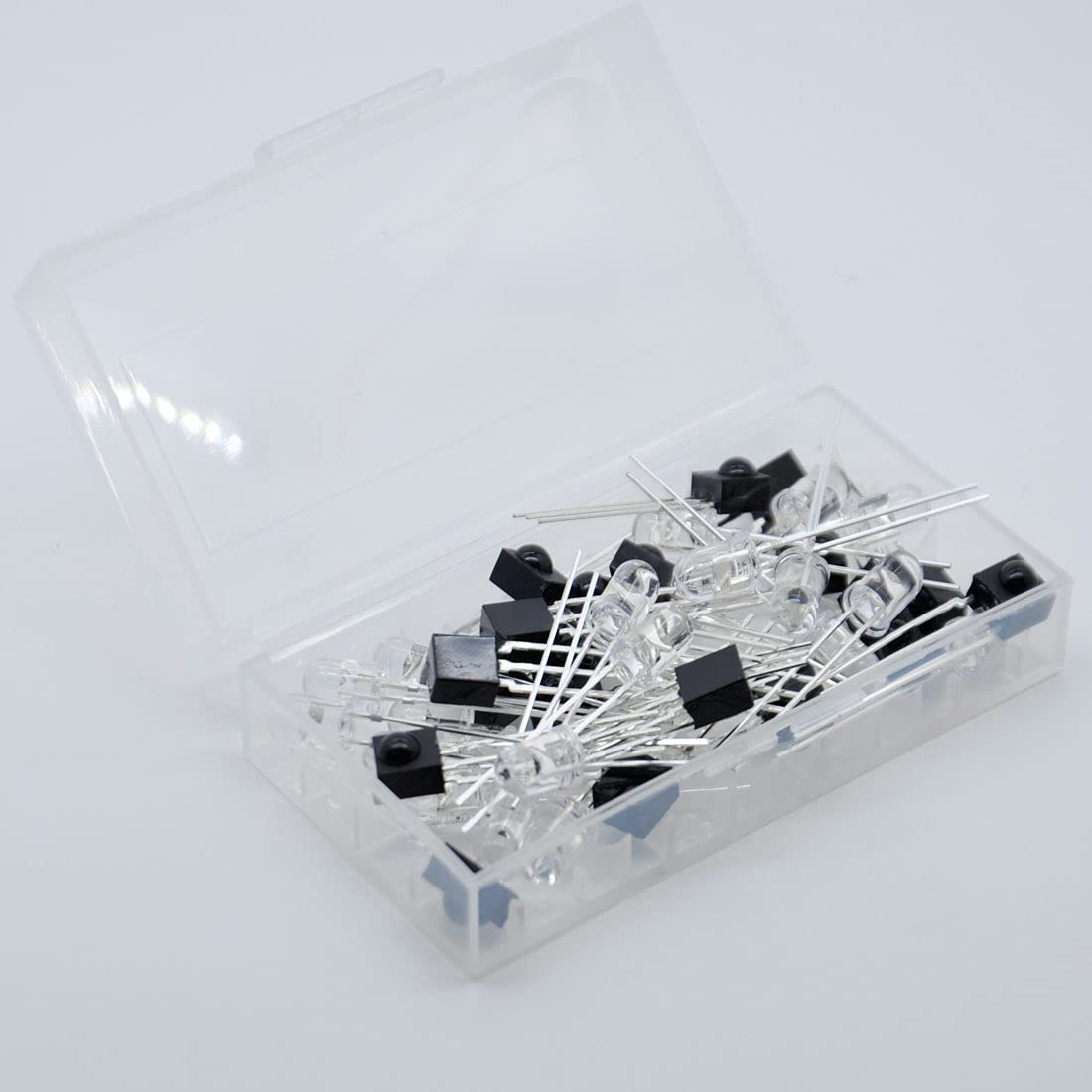

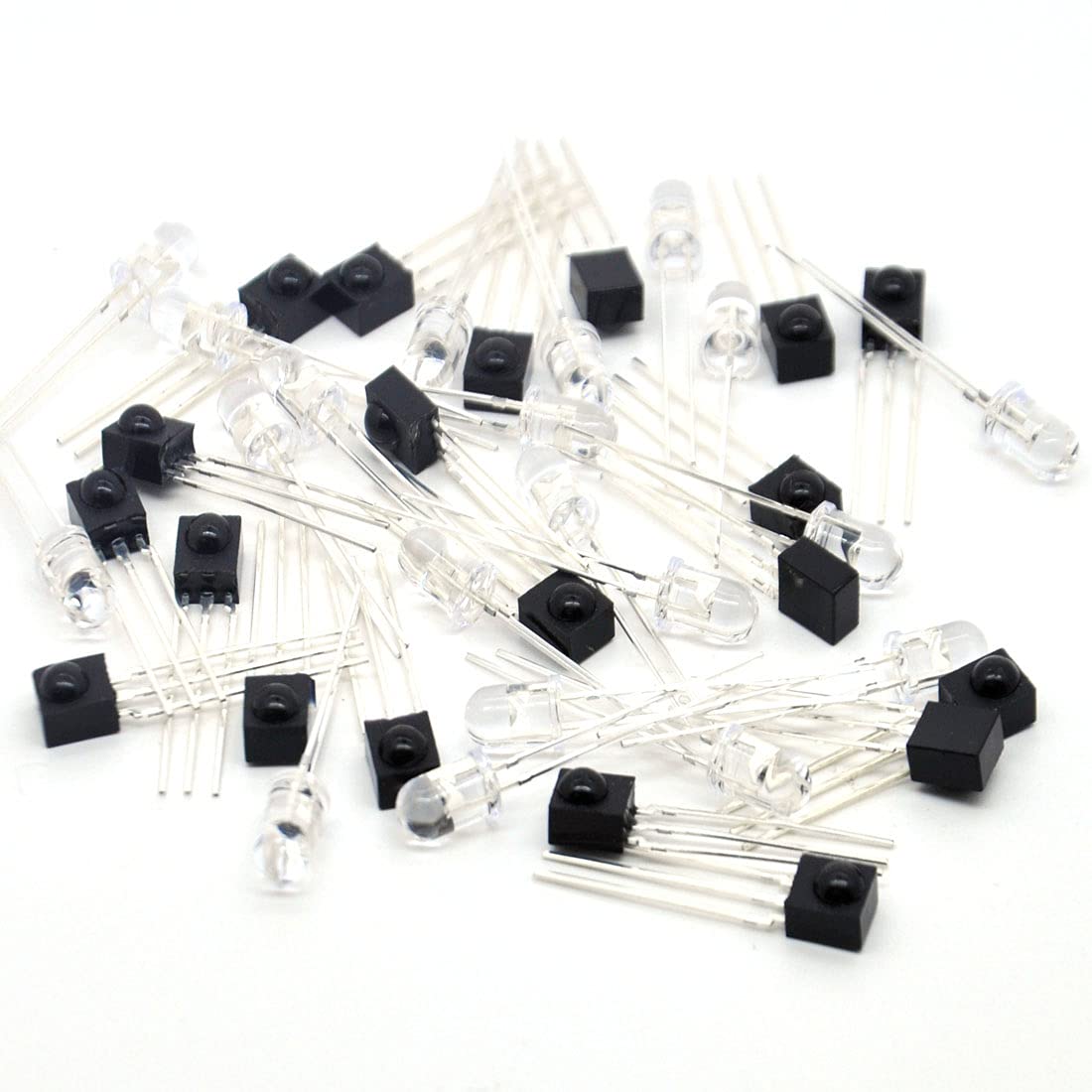

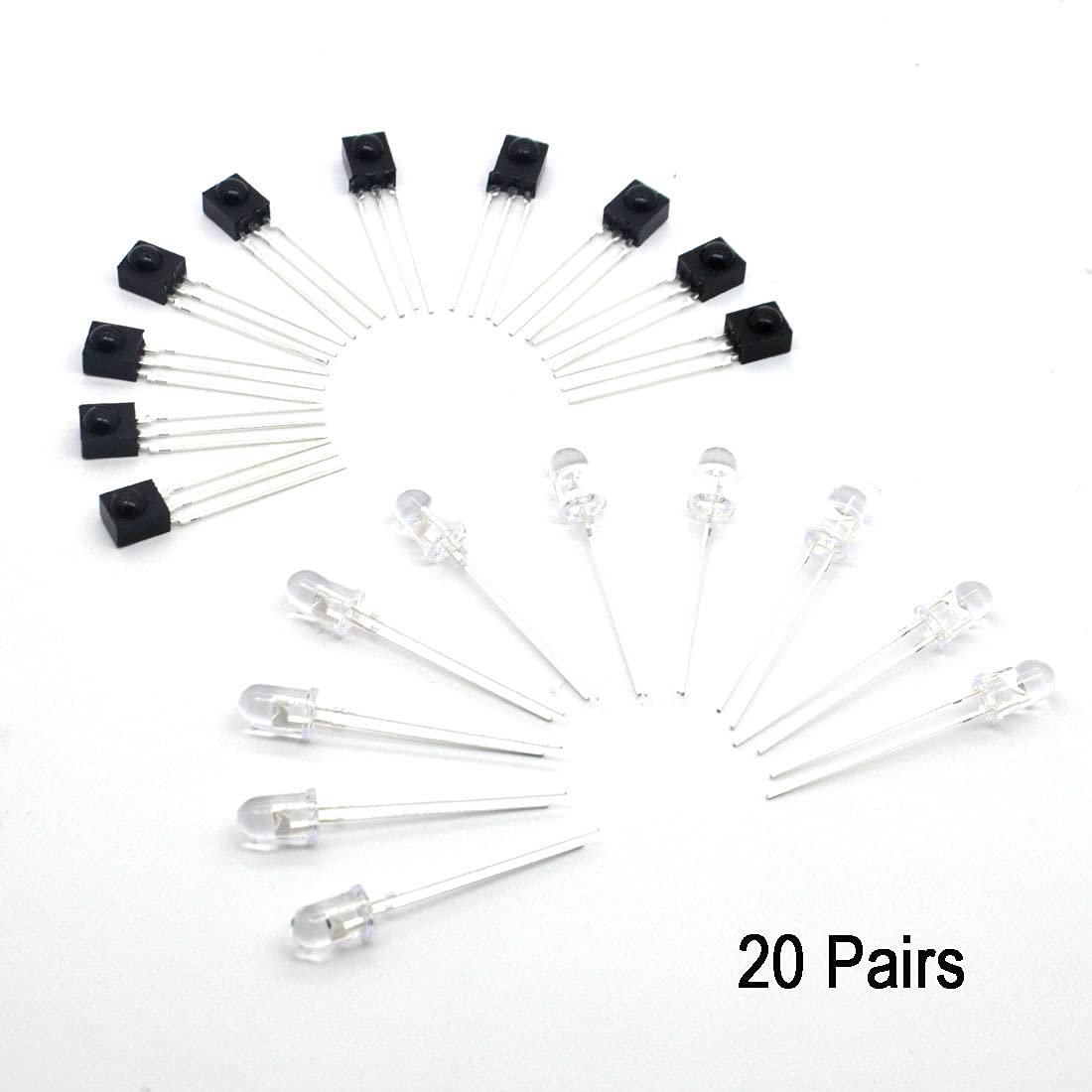

Gikfun 5mm 940nm LEDs Infrared Emitter IR Emission and IR Receiver Diode for Arduino (Pack of 40pcs) EK1964

• Suitable for infrared products such as electronic toy remote control, infrared camera, infrared temperature measurement, etc.

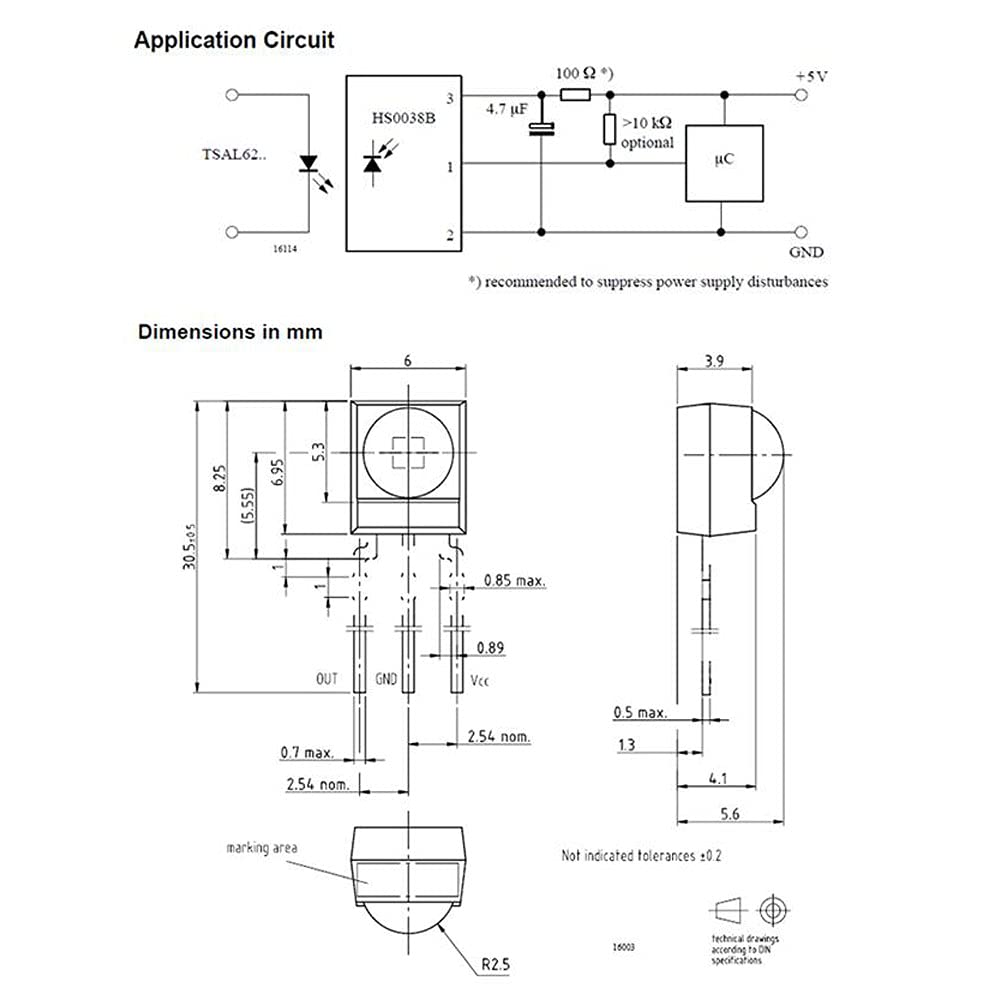

• The HS0038B - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter.
• The demodulated output signal can directly be decoded by a microprocessor. HS0038B is the standard IR remote control receiver series, supporting all major transmission codes.
• Internal filter for PCM frequency, TTL and CMOS compatibility
• Low power consumption, High immunity against ambient light

Diameter : 5MM, If＝20mA, Wave length:940nm Forward Voltage: 1.1-1.4V, Power: 0.15 W Receiving Angle: 40 degrees Voltage (VF) : 1.1-1.4 V (0.1 V each file) Receiving tube (limit parameters (Absolute Maximum Ratings) (Ta = 25 ). Storage temperature: - 25 ~ + 80 Transmitting and receiving distance: about 7 - 8 M. Maximum power: 70 mw; Maximum forward current: 30 ma; Maximum reverse voltage: 5 v; Maximum pulse current peak: 75 ma; Welding temperature/time: 240 / acuities 3 S Working environment: - 25 ~ + 85
