Genmitsu CNC Router Offline Control Module with LCD Touchscreen for PROVerXL 4030

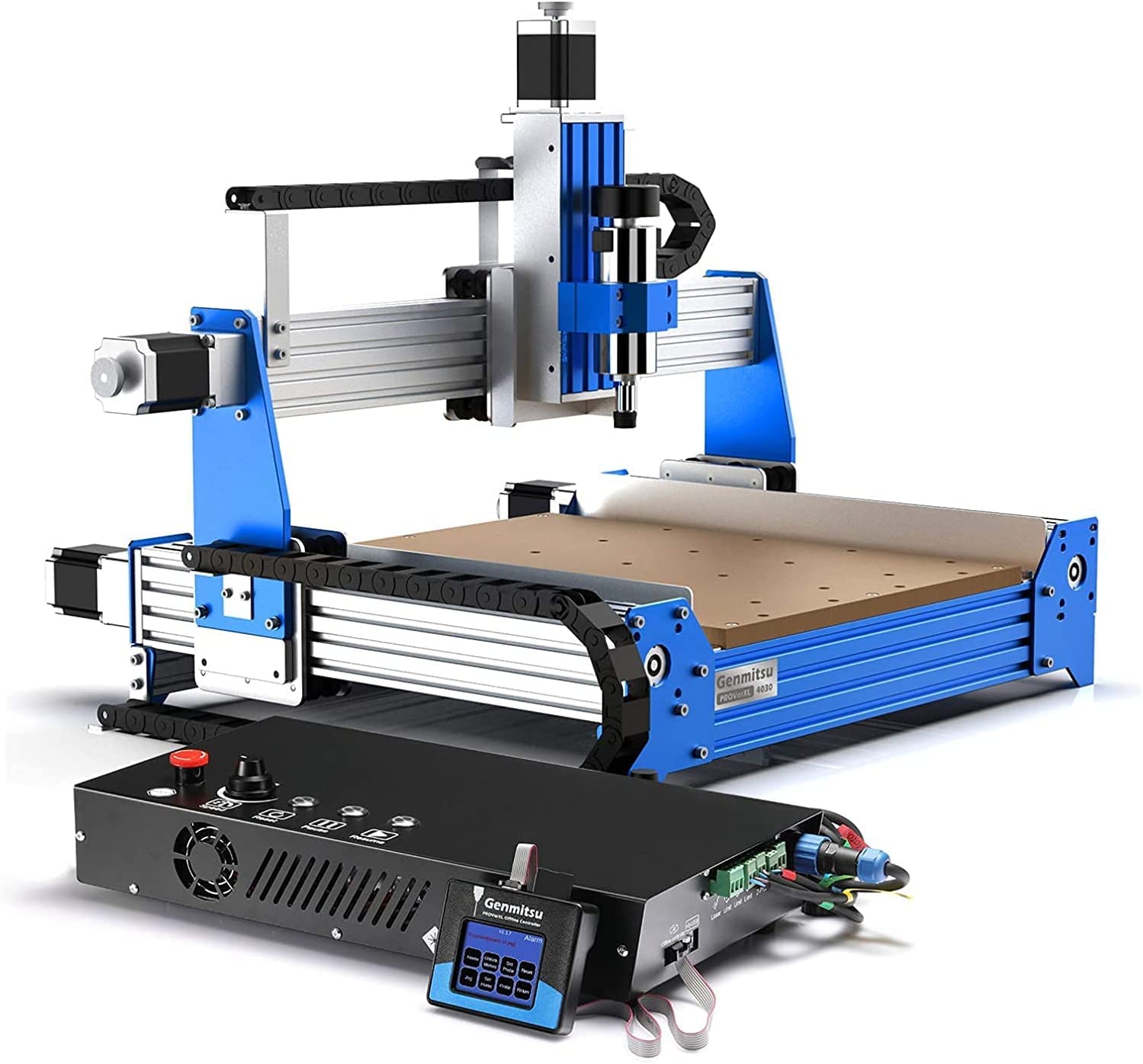

• Compatible with PROVerXL 4030: This offline module is only compatible with Genmitsu CNC Router PROVerXL series controllers.

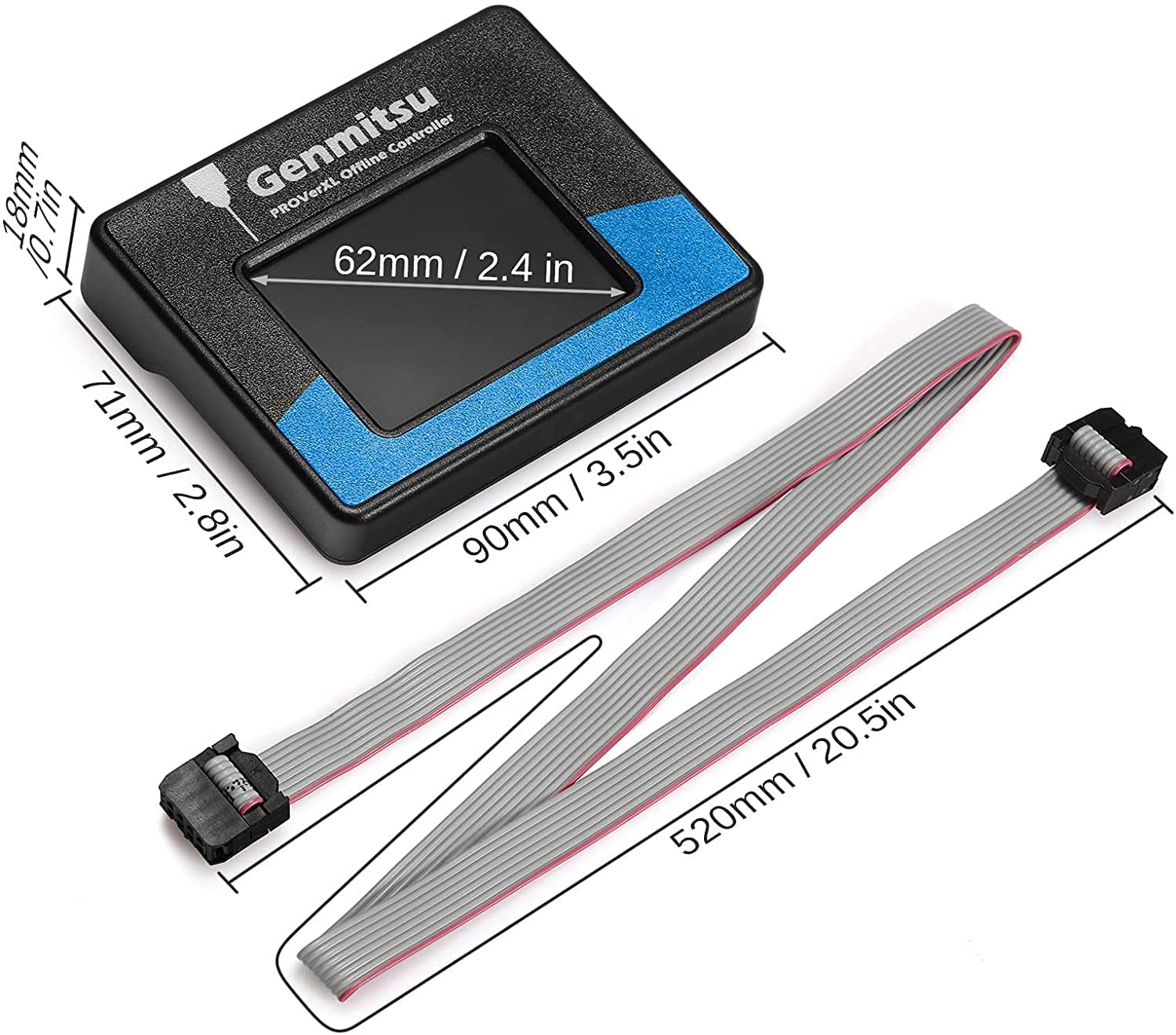

• Easy to Use: This offline controller features an easy to read 2.4” Touchscreen display.

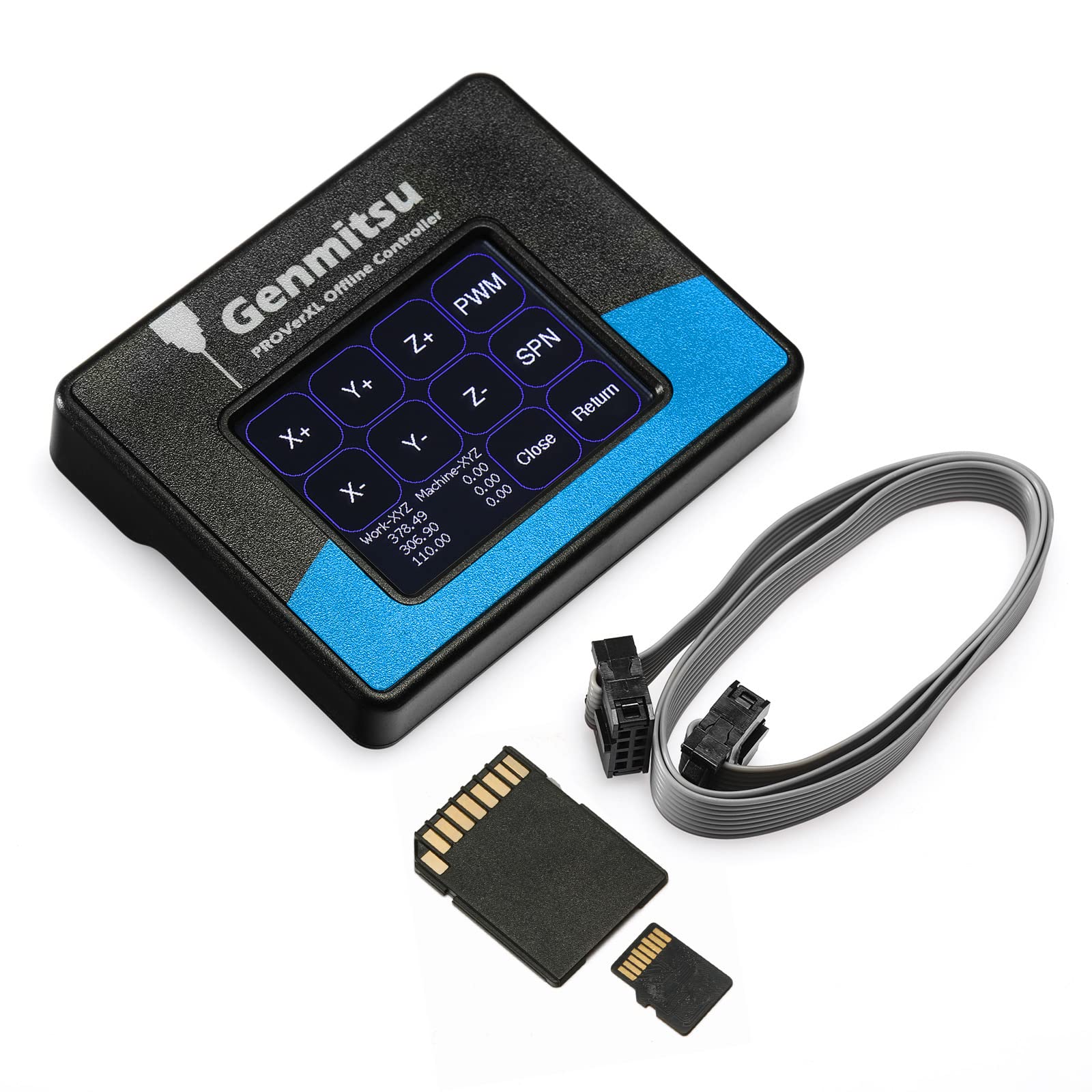

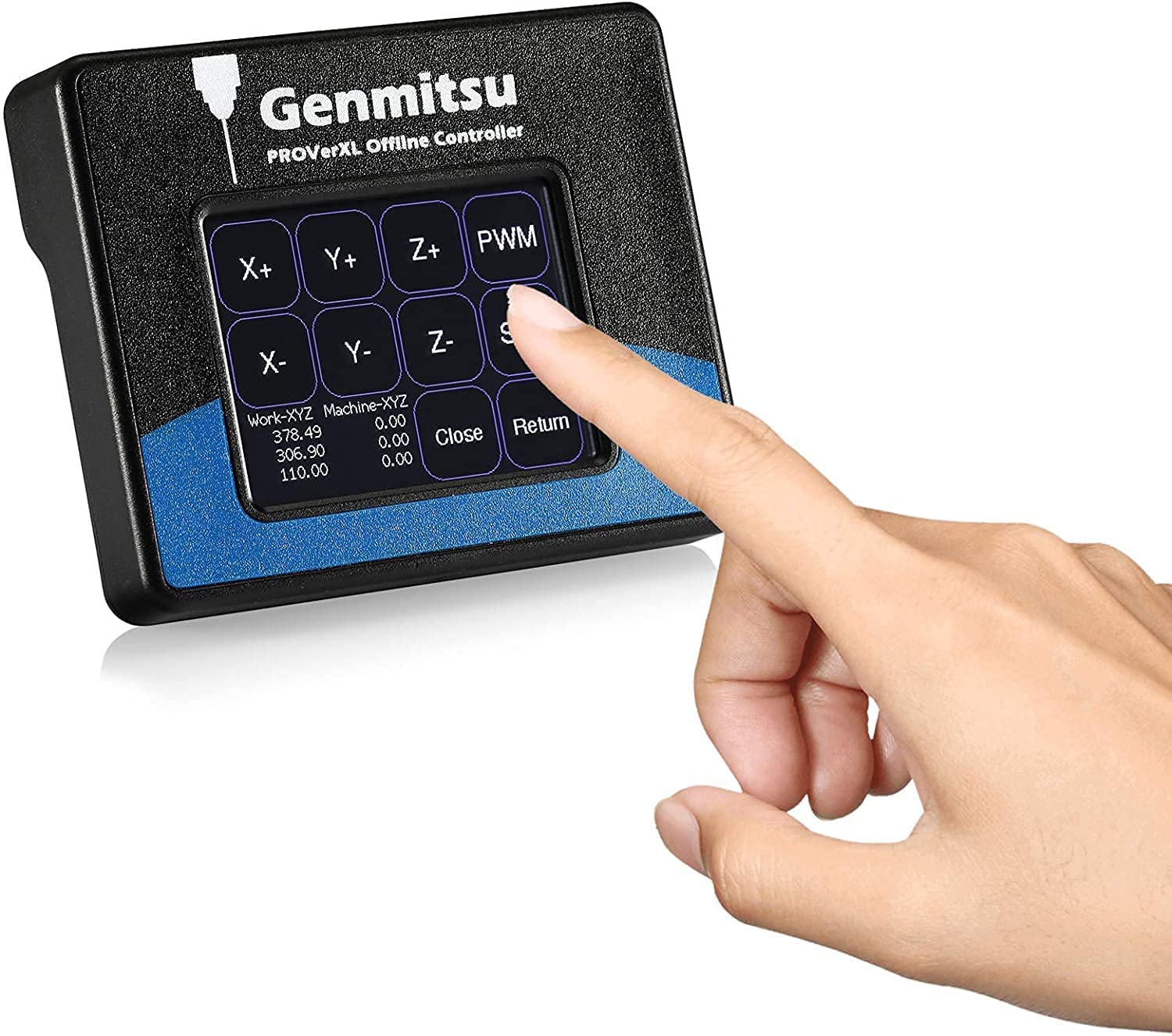

• Manual Control: Take control of your PROVerXL with a controller. It’s easier to manually jog your machine on the fly and toggle your spindle on/off.

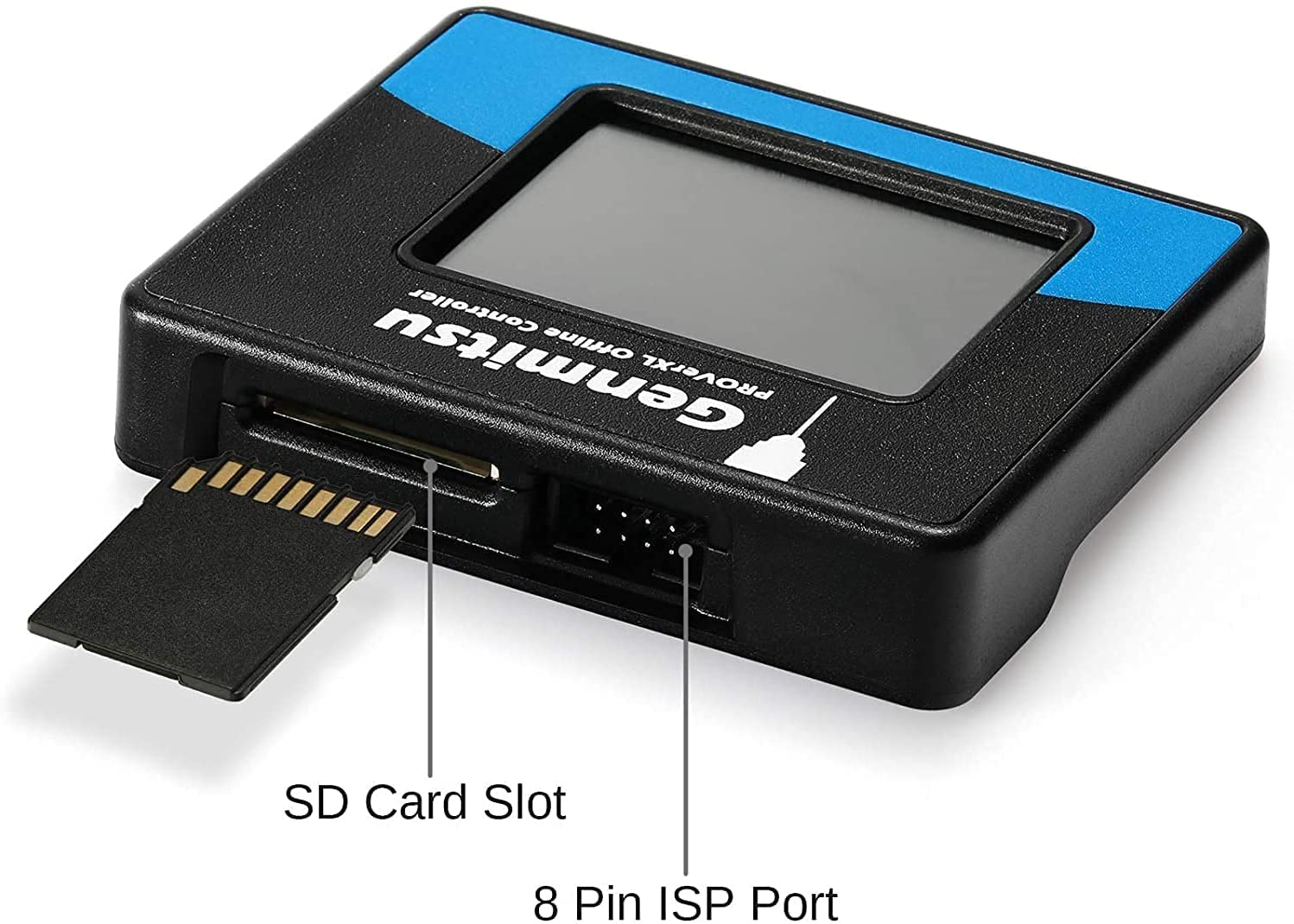

• Easy File Access and Transferring: Your generated G CODE projects will be recognized simply by adding them to the SD Card. You can also connect the offline module to your computer and transfer it to the module via Micro USB.
• No PC Offline Control: With the Genmitsu offline controller module, you can control the CNC router without connecting to a computer. Easily load your projects onto the included SD card and have them ready to go without the need of a dedicated laptop or computer.

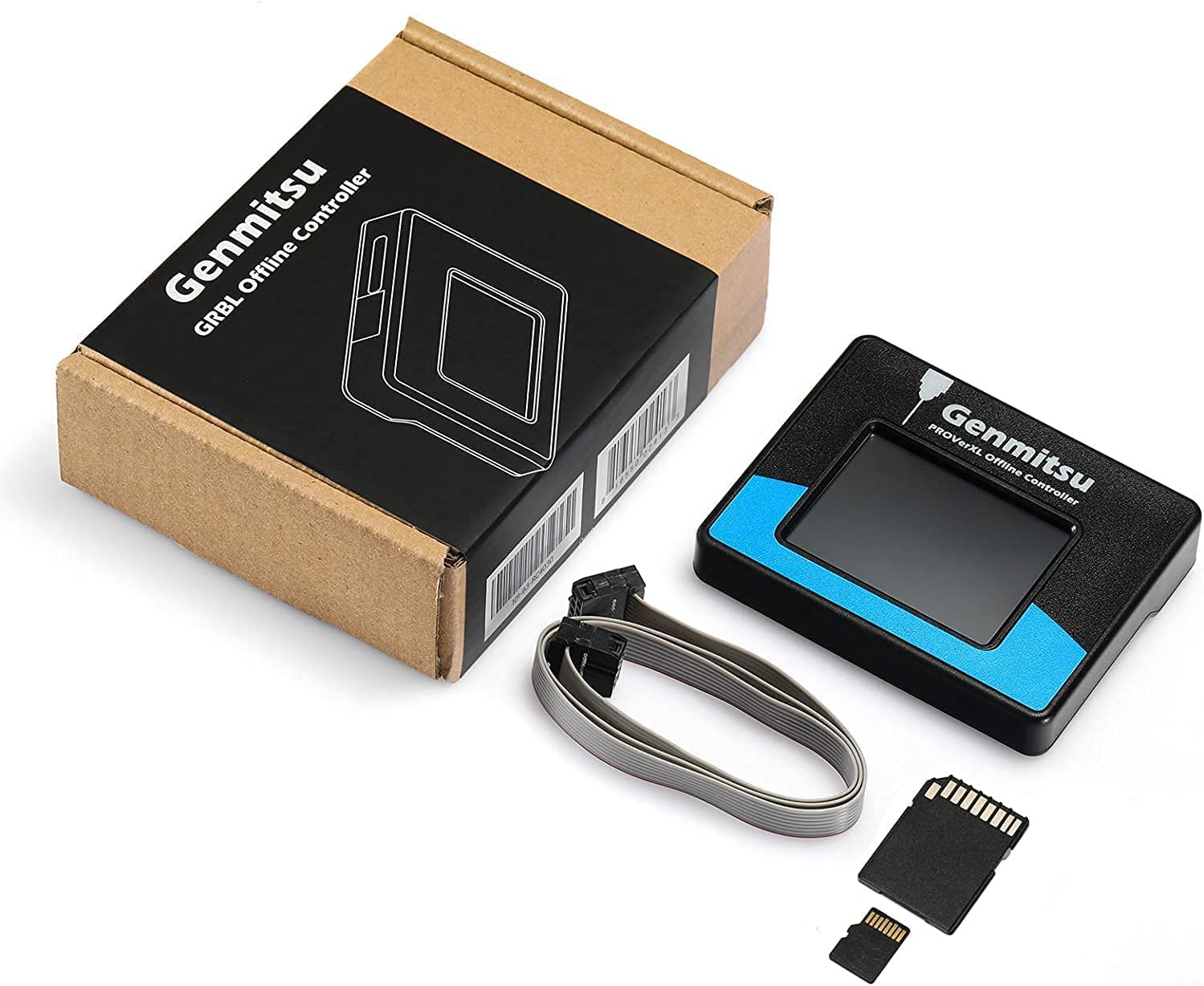

SPECIFICATION Connection: USB (USB-CH340) Software: GRBL controller, Universal G-code Sender Input voltage: 12-36V Spindle drive chip: MOSFET (recommendation 12~36V, current: within 10A) Spindle PWM speed: Support Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57) Laser engraving: Support Functions Control X, Y, Z-axis moving Control spindle/laser on/off Zero X, Y, and Z-axis Adjust the PWM Reset and resume the machine, unlock emergency stop switch Packing List: 1 x Offline Controller 1 x 10P Cable 1 x SD Card 1 x Card Reader
