FTEYJEUIOTY Electric Bike Controller Electric Scooter 36V 1000W Brush Controller, Throttle Grip Set for Electric Miniscooter

• Motor: dark white (negative pole of the motor) / dark blue (positive pole of the motor)
• Indicator light: thin red (indicator power output) / thin black (indicator negative)

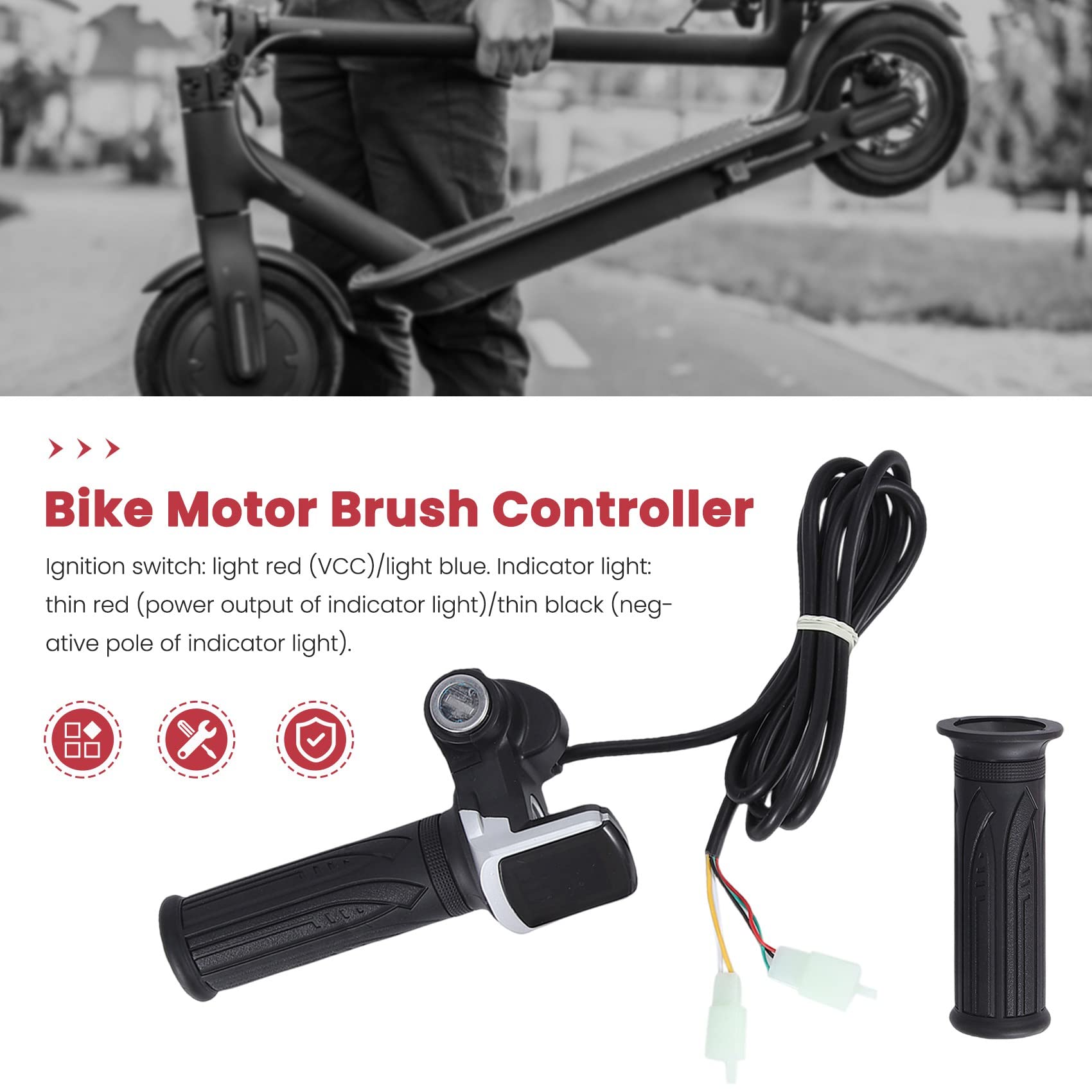

• Ignition switch: thin red (VCC) / thin blue

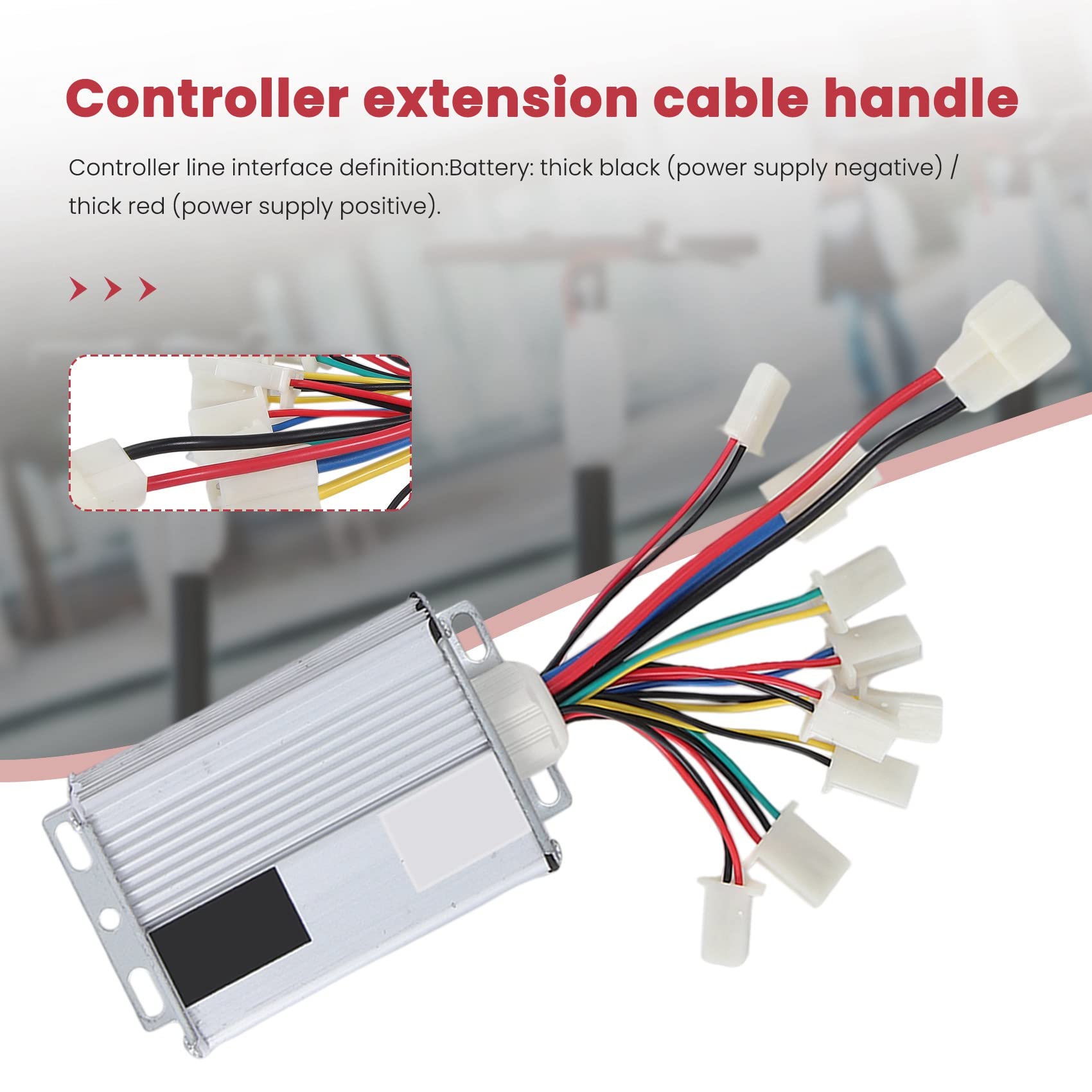

• Controller line interface definition:Battery: thick black (power supply negative) / thick red (power supply positive)
• Brake: thin yellow (brake signal) / thin black (negative power supply)

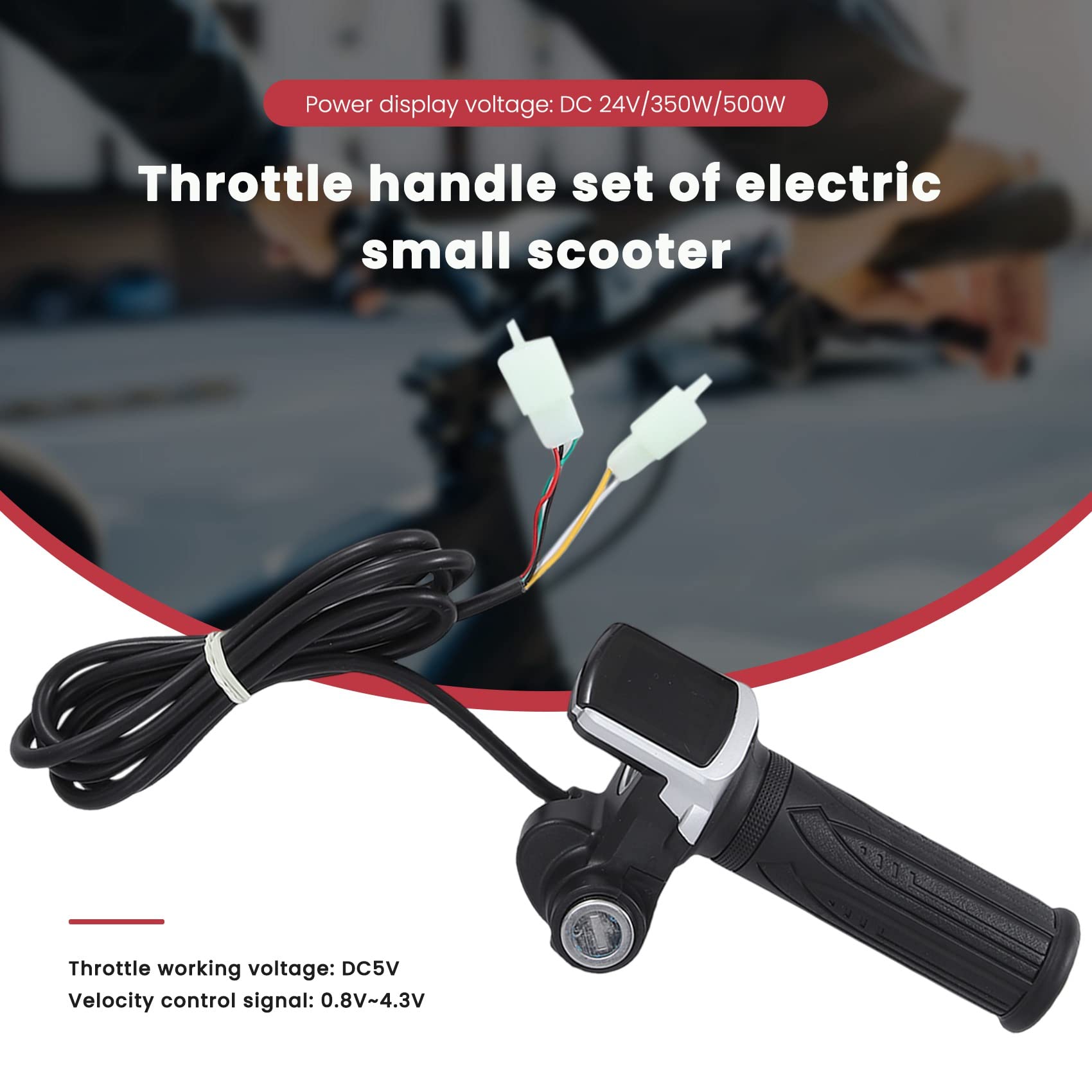

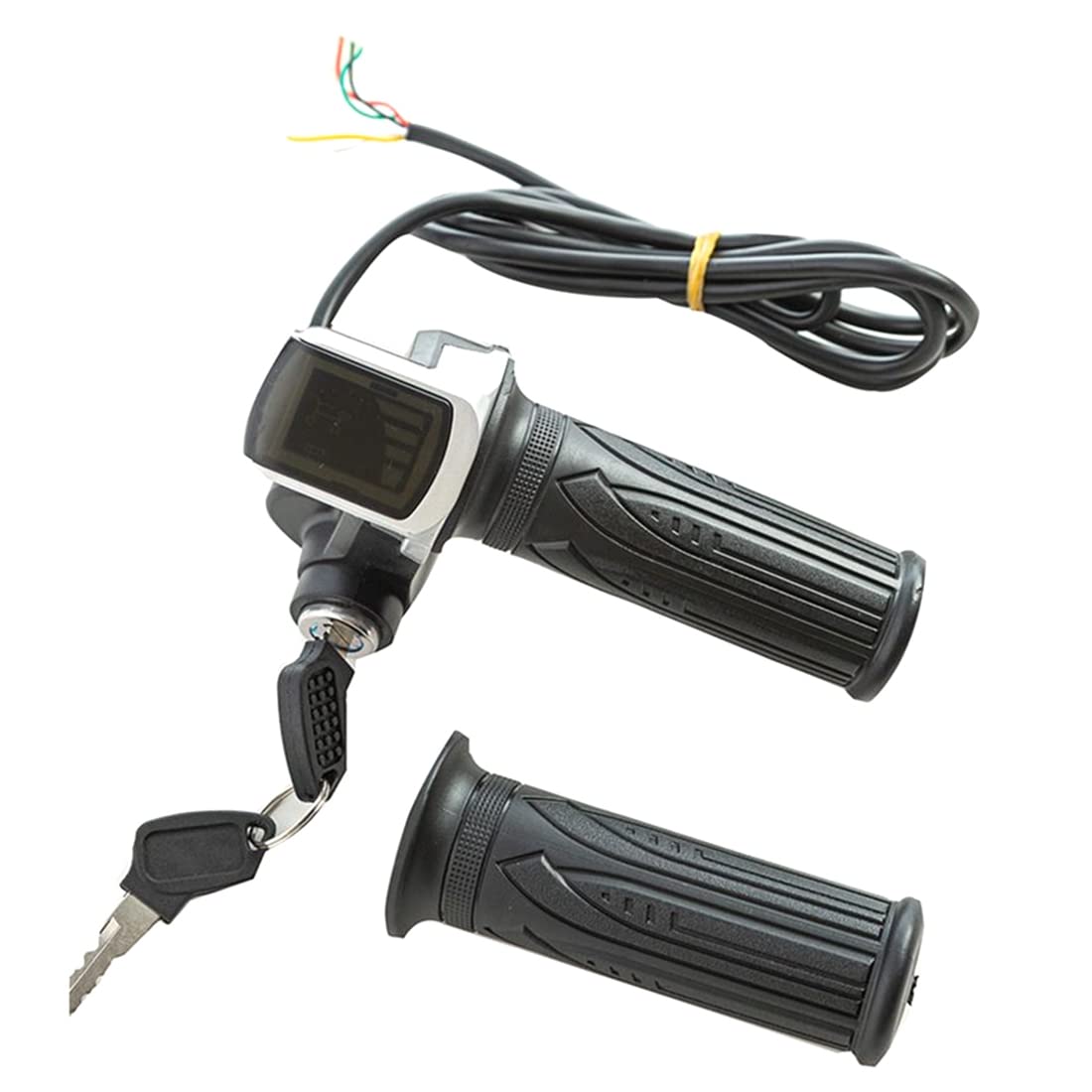

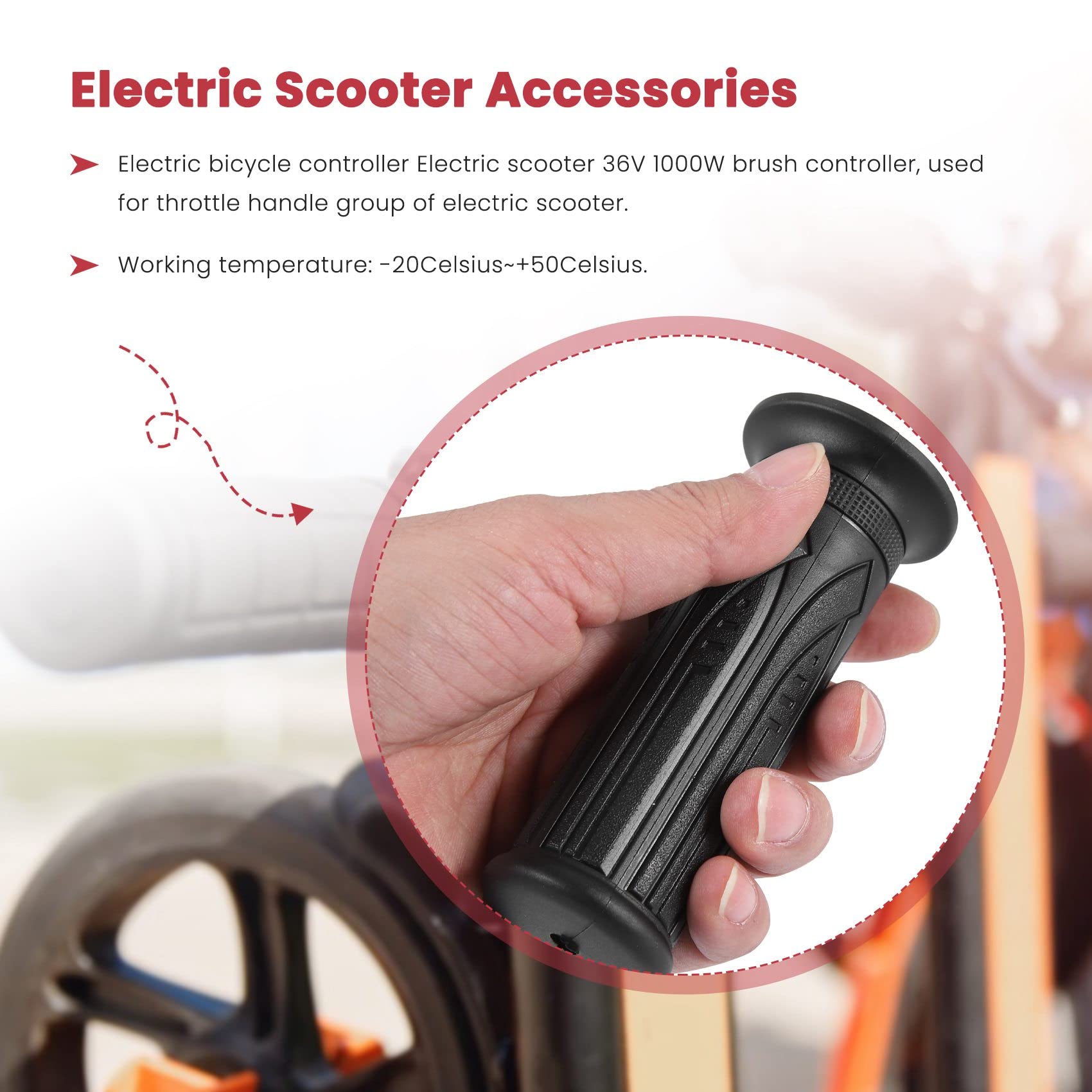

FTEYJEUIOTY Charging port: thin red (charge input power supply positive) / thin black (power supply negative) Brake light: thin red (power supply positive) / thin black (power supply negative) Governor: thin blue (handlebar signal input) / thin black (negative power) / thin Red (5V positive power supply) Item name: Controller and Throttle Screw Grip Rated voltage: DC 36V Rated power: 1000W Matching motor: DC brush motor Throttle: Throttle working voltage: DC5V Velocity control signal: 0.8V~4.3V Power display voltage: DC 24V/350W/500W Power display: Normal: above 23V, 3 LED green lights, Half: 23V ~ 20V, LED yellow, Empty: 20V or lower, LED red Rotation angle: 0degree ~70degree Working temperature: -20Celsius~+50Celsius Fits standard 7/8 inch (22.2 mm) handles Cable length is approximately 59 inches (1.5 m) Quantity: 2 (1 Screw throttle handle and 1 normal handle (matching thumb handle)) Electric bicycle scooter screw accelerator with power display, 5 LED battery indicator. Colour:As shown Material:composite material Package Contents: 1 x Brush Controller 1 x Throttle Knob 1 x Normal Handle 2 x Key NOTE: Sticker: Random,don't accept the specified Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
