Annadue FRM01 Relay Module, Programmable Multifunction Time Delay Relay, Infinite & Finite Loop Timing, Self-lock Cycle Timer, 2NO 2NC, Gray, Automatic, Electronic Relay

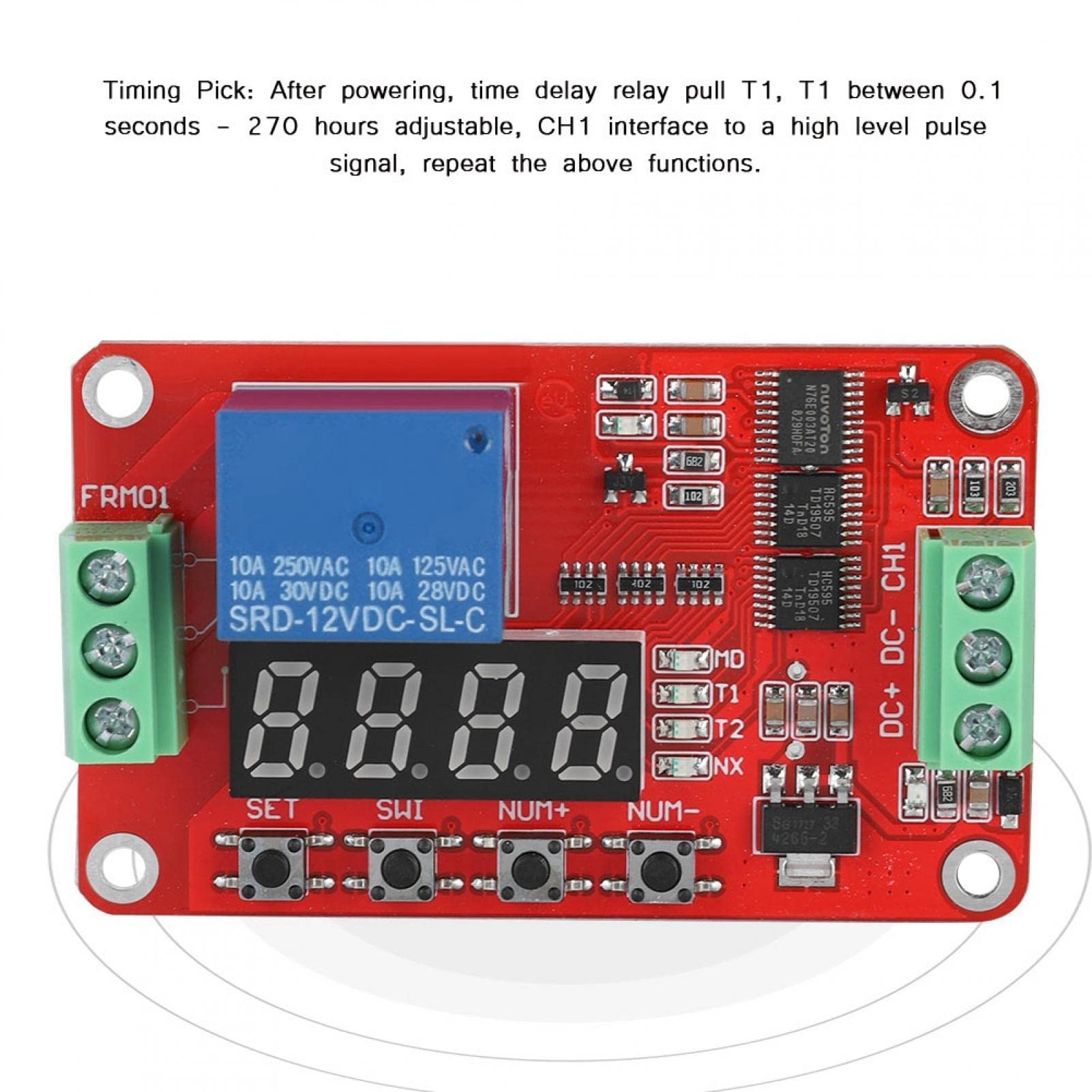

• Timing Pick: After powering, time delay relay pull T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse signal, repeat the above functions.

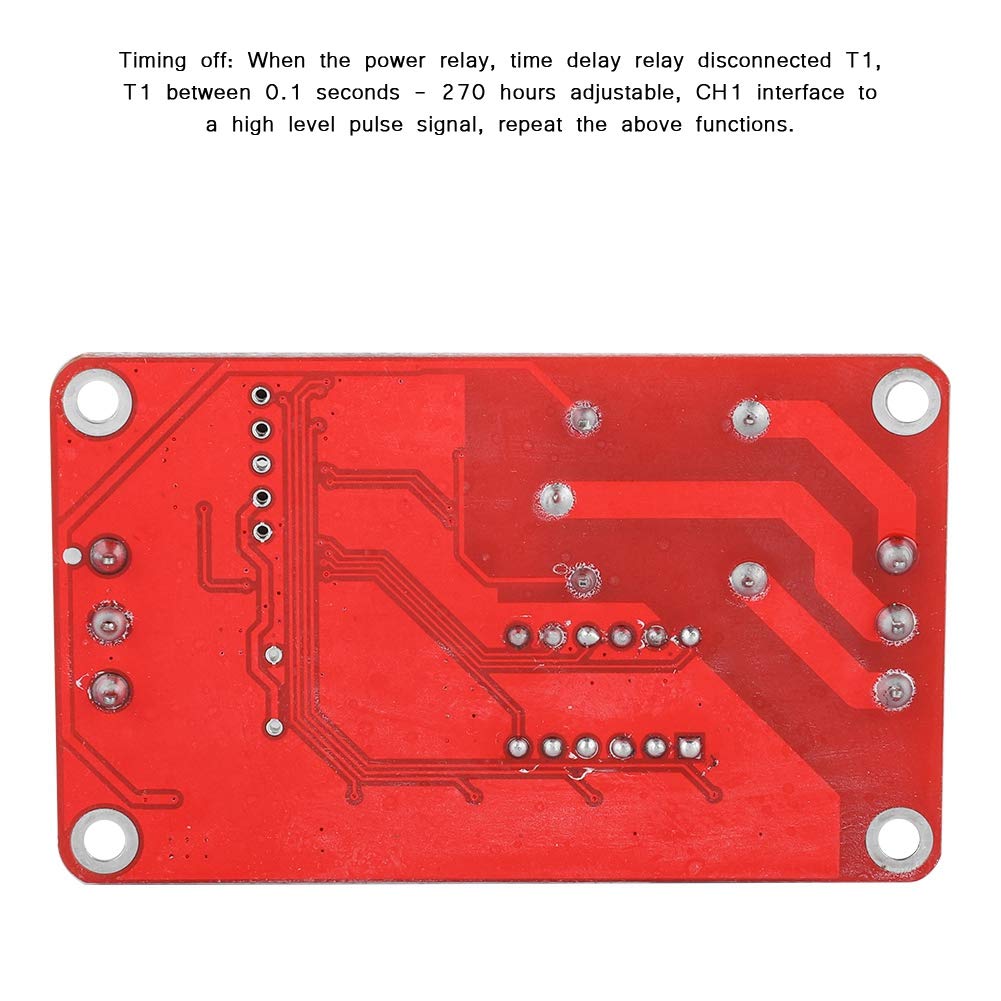

• Timing off: When the power relay, time delay relay disconnected T1, T1 between 0.1 seconds - 270 hours adjustable, CH1 interface to a high level pulse signal, repeat the above functions.

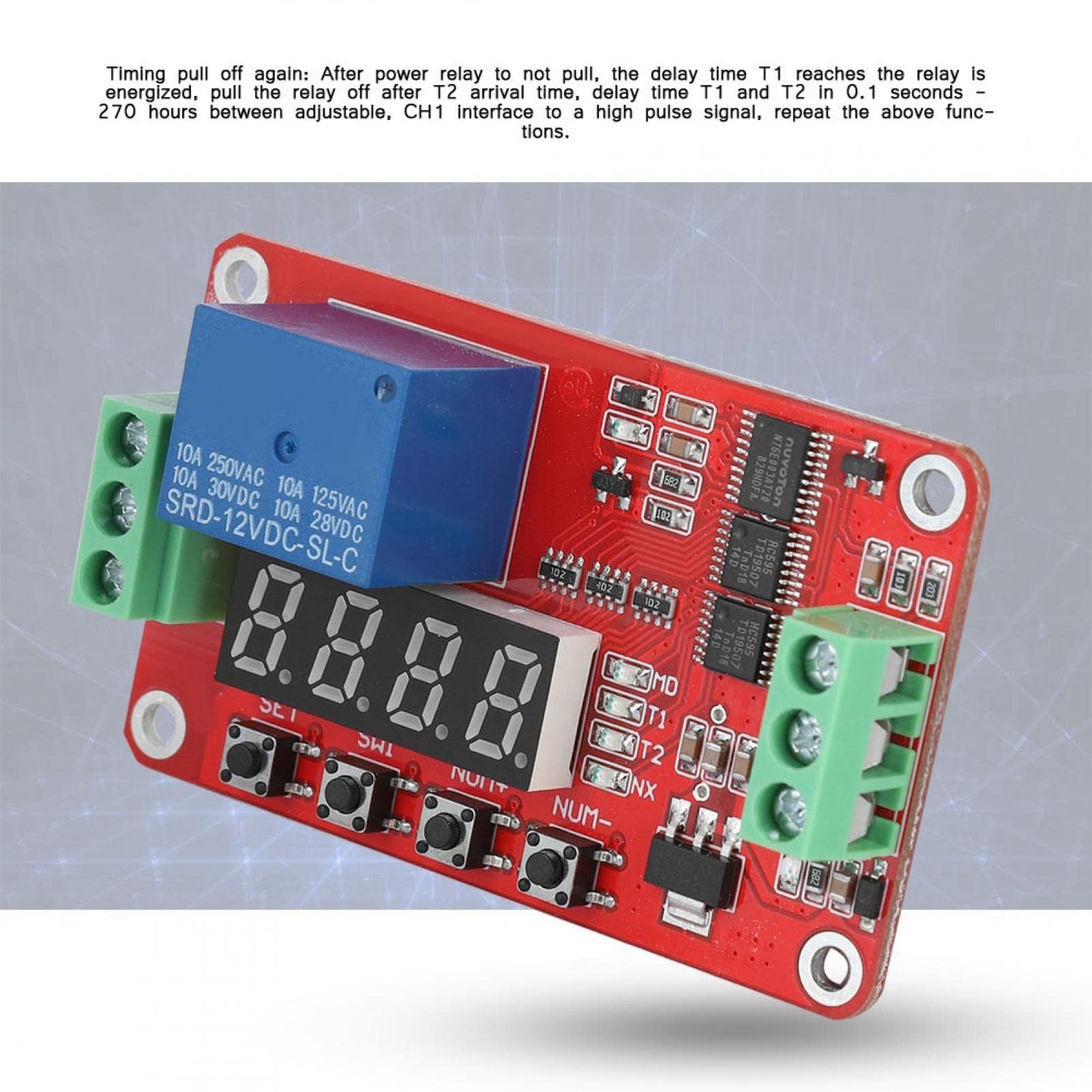

• Timing pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized, pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds - 270 hours between adjustable, CH1 interface to a high pulse signal, re

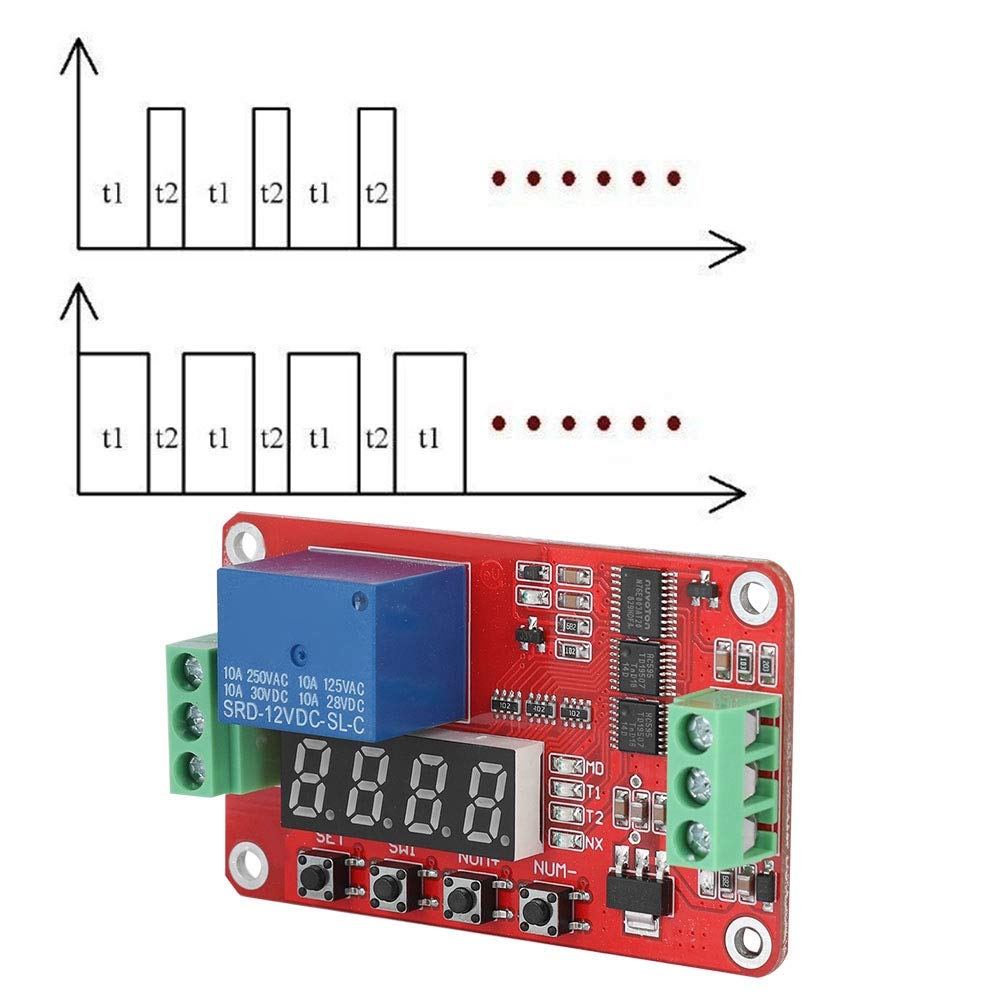

• Infinite loop timing mode 1: After power relay to not pull, after the delay time T1 reaches the relay is energized, pull the relay off after time T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 adjustable between second
• Finite loop timing mode 1: 5 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds - 9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, th

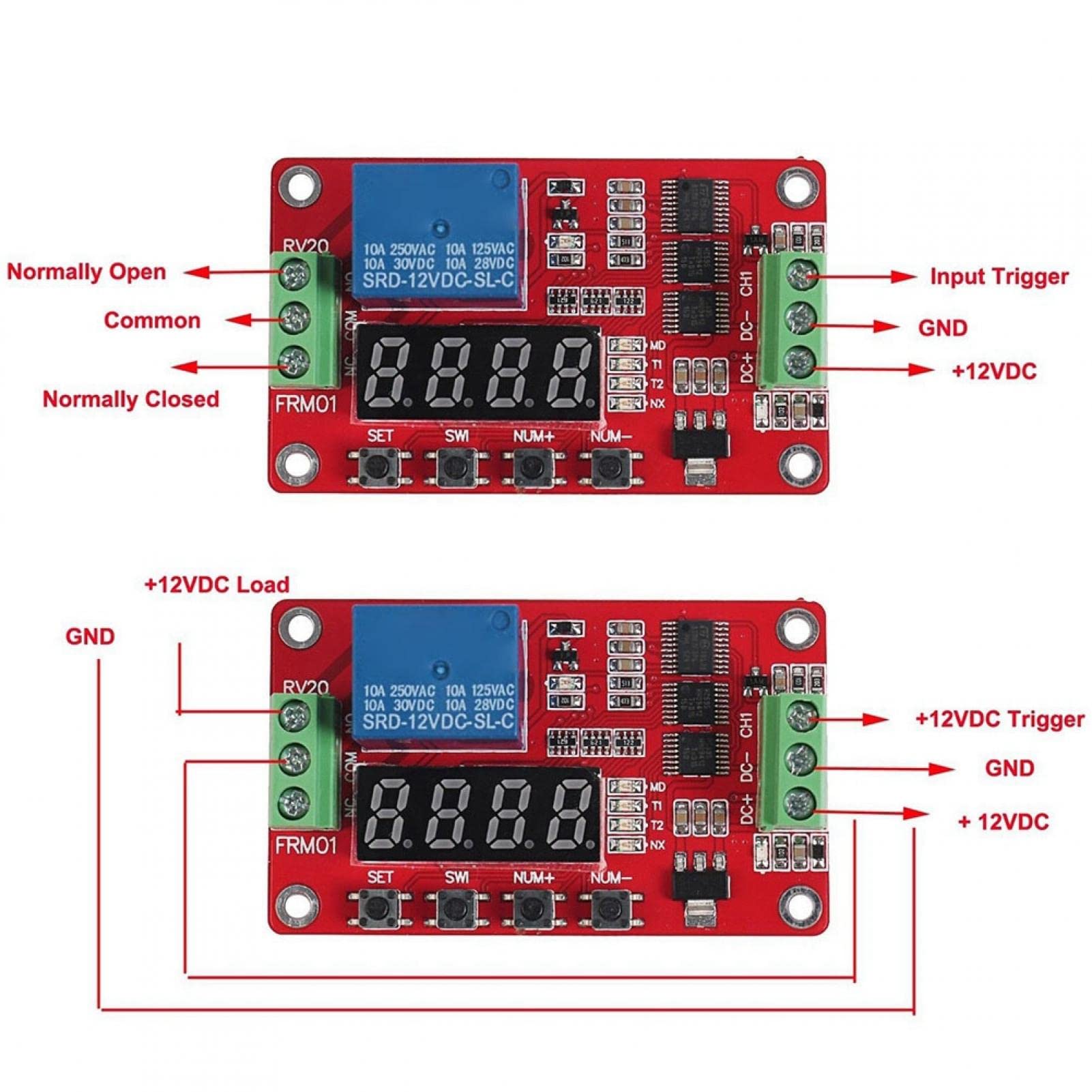

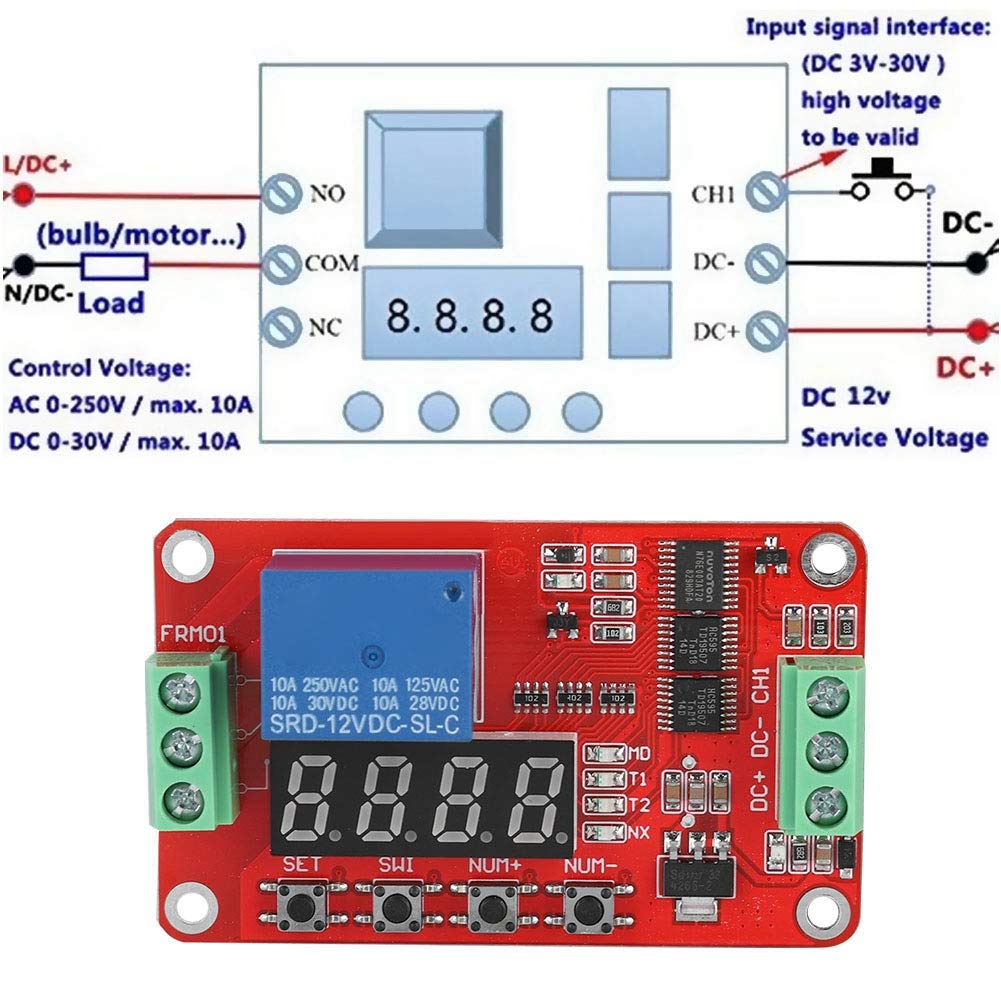

FRM01 multi-function relay control module is designed for users with different needs, it has 18 functions. Using PCB materials, the layout is comprehensive and stable, and it can be widely used in various power control applications. Specification: Module Interface : Module control terminal: There are 3-wire interfaces, all interfaces are terminal, user-friendly. 1. DC +: DC power positive (with 5V, 12V and 24V modules to choose from) 2. DC -: DC power supply negative 3. CH1: input detection interface, high effective Relay outputs: There are 3-wire interfaces, all interfaces are terminals. 1. NO: normally open relay interface and relay before the vacant after the pull short and COM1 2. COM: Common Interface Relays 3. NC: normally closed relay interface and relay COM1 shorted before and after the pull-vacant Load capacity: normally open port maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A NC port maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A Size: Approx. 6.8*4*2cm /2.7*1.6*0.8inch Weight: 24g/0.85oz Material: PCB Package List: 1*FRM01 Relay Module
