Freenove Control Board V4 Rev3 (Compatible with Arduino IDE) with USB Type-C Interface, Detailed Tutorial, Example Projects and Code

• New Version: Upgraded to USB Type-C interface, USB-Serial chip and black PCB board
• Compatibility: Fully compatible with the old blue Rev3 board including code, libraries, mounting holes and extensions

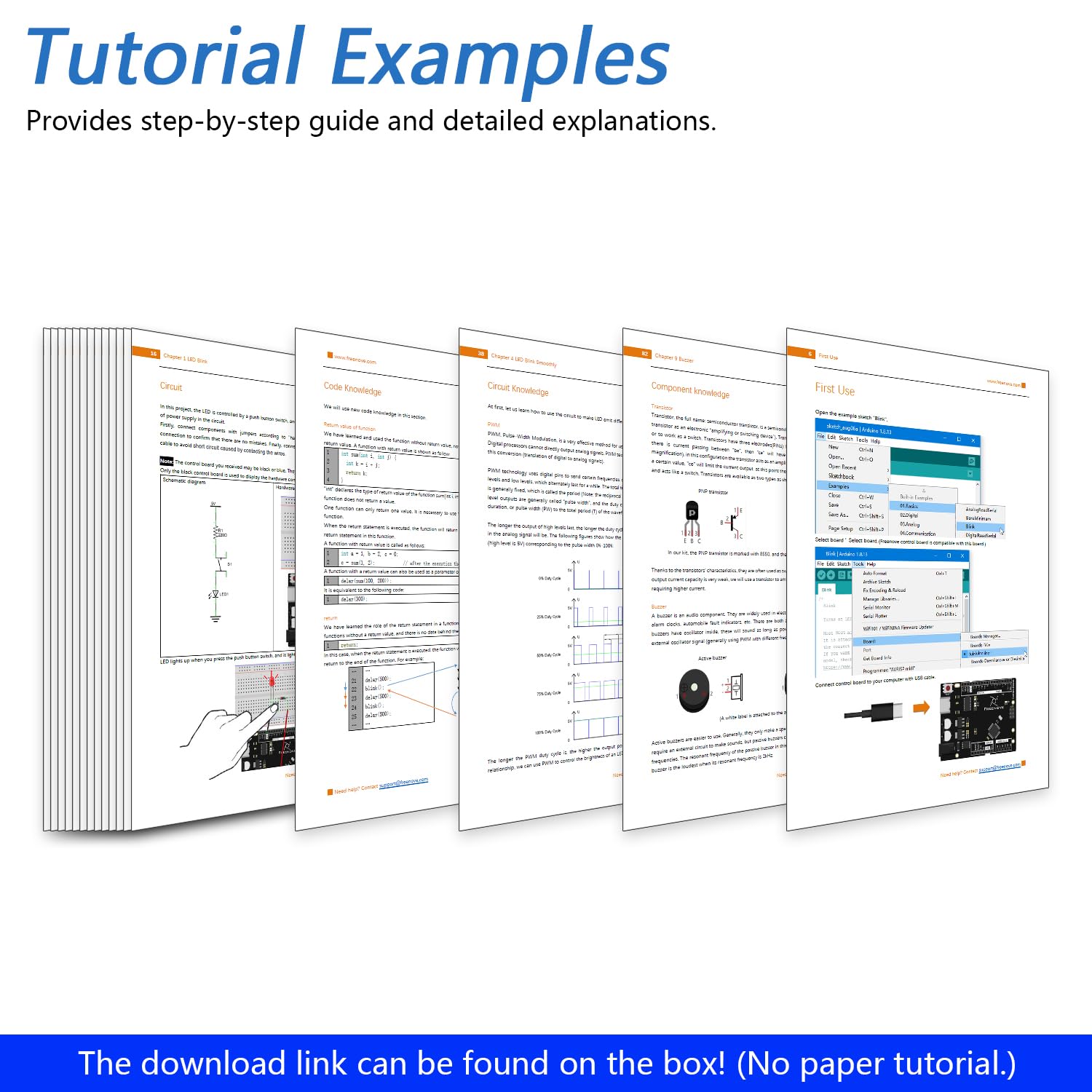

• Detailed Tutorial: Provides step-by-step guide and example projects with code and explanations (need extra items) (The download link can be found on the product box) (No paper tutorial)

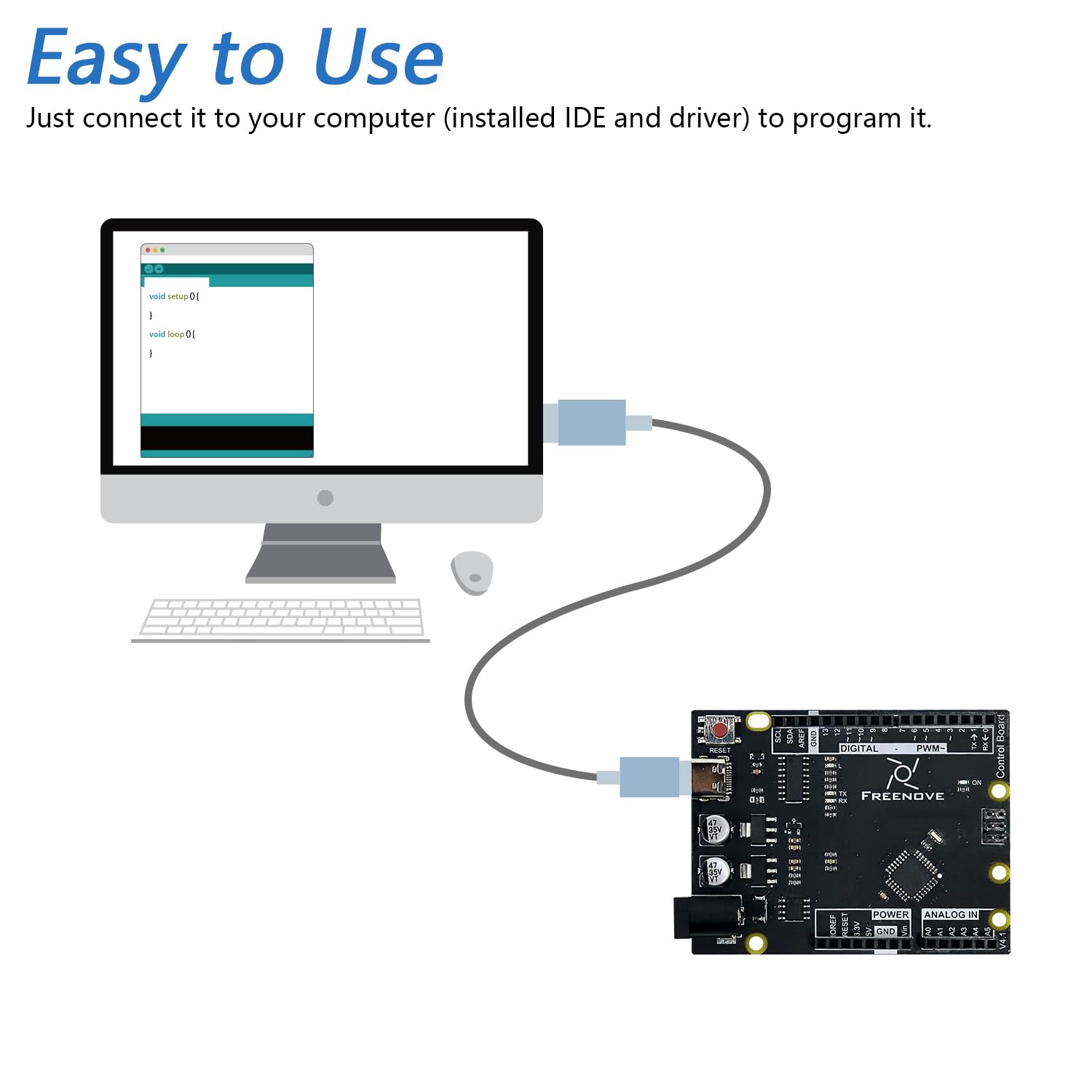

• Easy to Use: Just connect the board to your computer (installed IDE and driver) with the USB cable to program it
• Get Support: Our technical support team is always ready to answer your questions

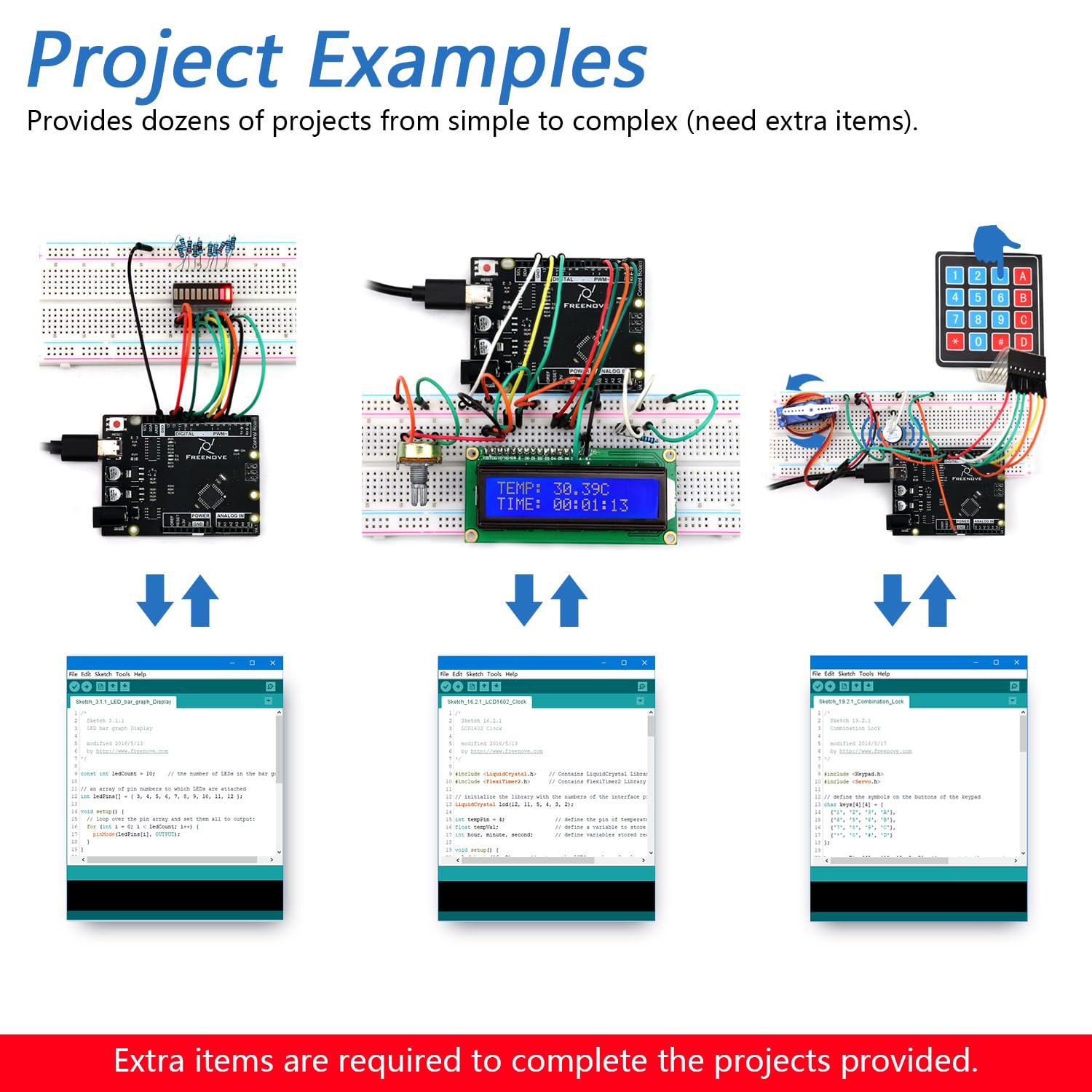

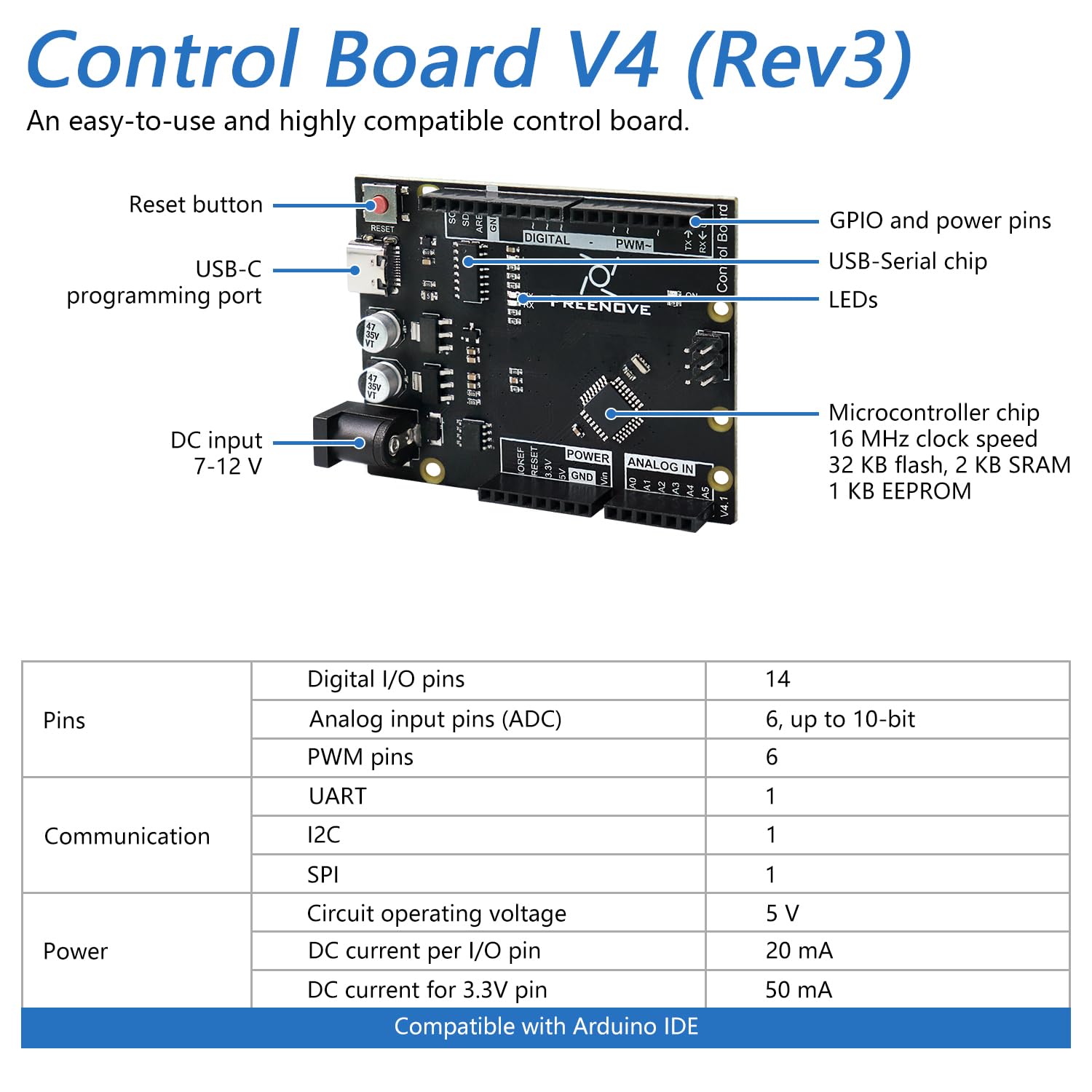

Overview: This is one of the best boards to get started with electronics and coding. Just connect it to your computer (installed IDE and driver) with the USB cable to program it. We provide free technical support to help you with any questions and problems. Tutorial and Code: Comes with detailed tutorial and complete code. (Download needed, no paper tutorial.) Including basic electronics and programming knowledge, and dozens of projects (need extra items). The download link can be found on the product box. Technical Specifications: Pins:     Digital I/O pins: 14     Analog input pins: 6     PWM pins: 6 Communication：     UART: 1     I2C: 1     SPI: 1 Power:     Circuit operating voltage: 5 V     Input voltage (VIN): 7-12 V     DC current per I/O pin: 20 mA     DC current for 3.3V pin: 50 mA Clock speed:     Main core: 16 MHz Memory:     Flash: 32 KB (of which 0.5 KB used by bootloader)     SRAM: 2 KB     EEPROM: 1 KB Dimensions:     Width: 69 mm     Length: 54 mm Package Includes: 1 x Freenove control board V4 1 x USB A to C cable
