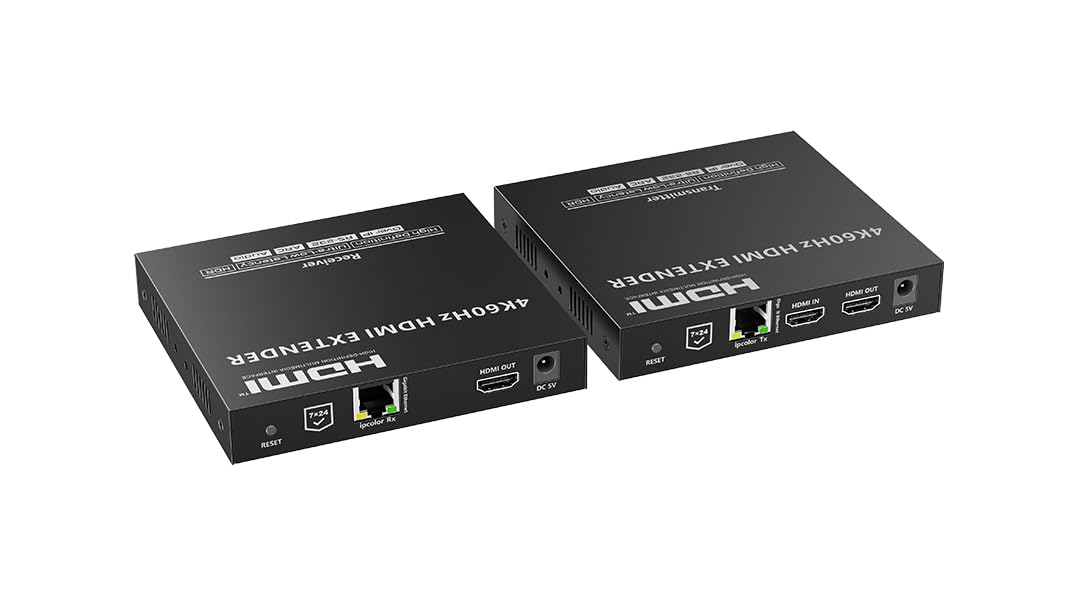

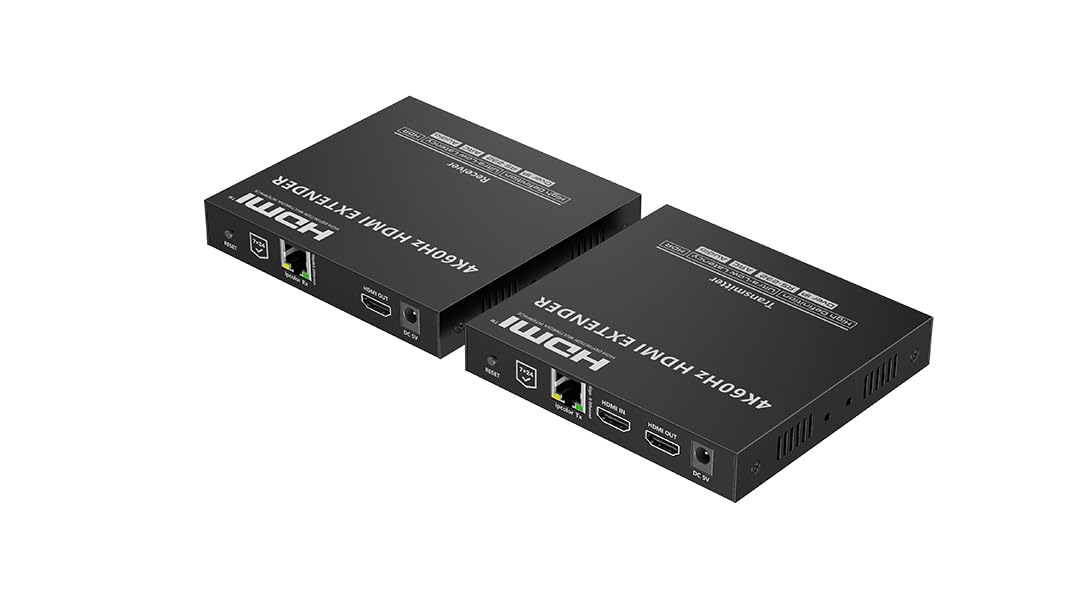

FOURKAY 4K60Hz HDMI over TCP/IP Extender with ARC. Supports one TX to Multiple RX on a single network. Compatible with SkyQ but not SkyHD (1080i not supported). 120m Distribution Range.

• Distribute 4K or 1080p HDMI signals up to 120m over an IP network. This system works either on a direct connection or with RX and TX networked through gigabit switches. They do not require a point to point CAT6 connection.
• Can be used as a single pair of one transmitter (TX) and one receiver (RX) or to distribute the signal from one TX to multiple RX via a gigabit switch.
• Supports Audio return Channel (ARC). TV audio is transmitted back to the TX and made available for connection to audio systems via the optical audio output port.
• These systems are very high bandwidth and are not designed for use with routers. TX and RX should be connected via gigabit switches only. If your network includes a router then it is likely that this system will fail.
• Compatible with SkyQ. Does not support 1080i so not compatible with SkyHD systems.

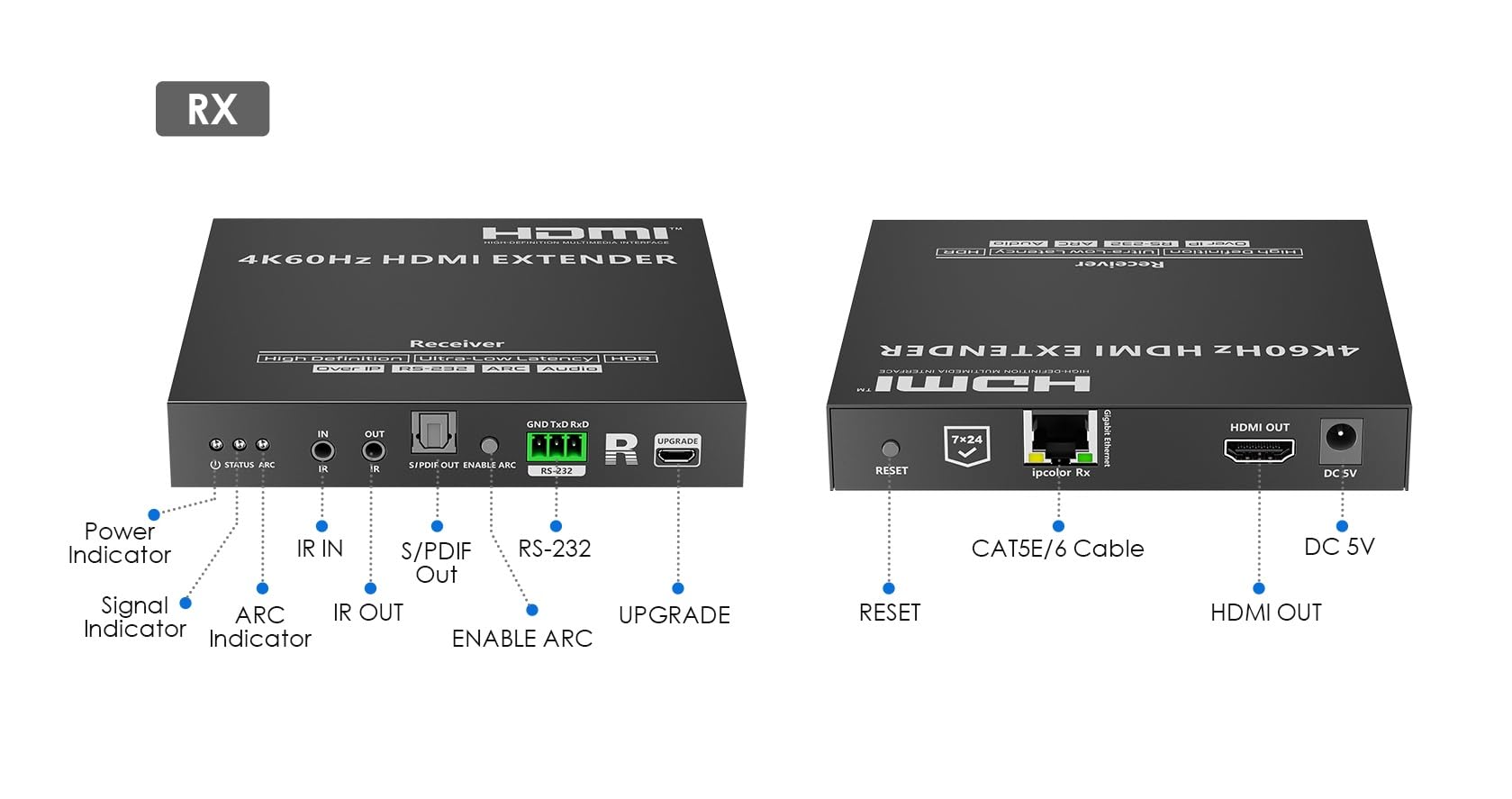

This HDMI over IP Extender distributes ultra high definition signals over a data network. The system can be configured as one TX to one RX or as one TX to multiple RX (as many as you have available addresses on your IP subnet). Bi-Directional Infra Red passback is supported to allow control of the HDMI source from any of the remote displays - or control the displays from the TX end with IR. The system also offers RS232 pass through. ARC is supported with TV audio made available on the TX via the S/PDIF Optical audio port. Where multiple RX are installed, ARC will be taken from the RX where ARC was last enabed. Each receiver also has an S/PDIF port for extracting ARC audio. NOTE - THIS SYSTEM DOES NOT SUPPORT 1080i RESOLUTION. That means that it can NOT work with older SkyHD systems. SkyQ can be set to 1080p or 4K and is therefore compatible. NOTE - THIS IS A HIGH BANDWIDTH SYSTEM. It is designed to work with TX and RX connected on gigabit switches but NOT through routers.
