Folceretsc S830 24V 36V 48V Lcd Display Screen for Electric Bicycle Ebike Meter Panel Universal with USB Cycling Parts,Waterproof

• Made of high quality material, and practical to use.
• and high quality.
• Suitable forElectric bicycle.

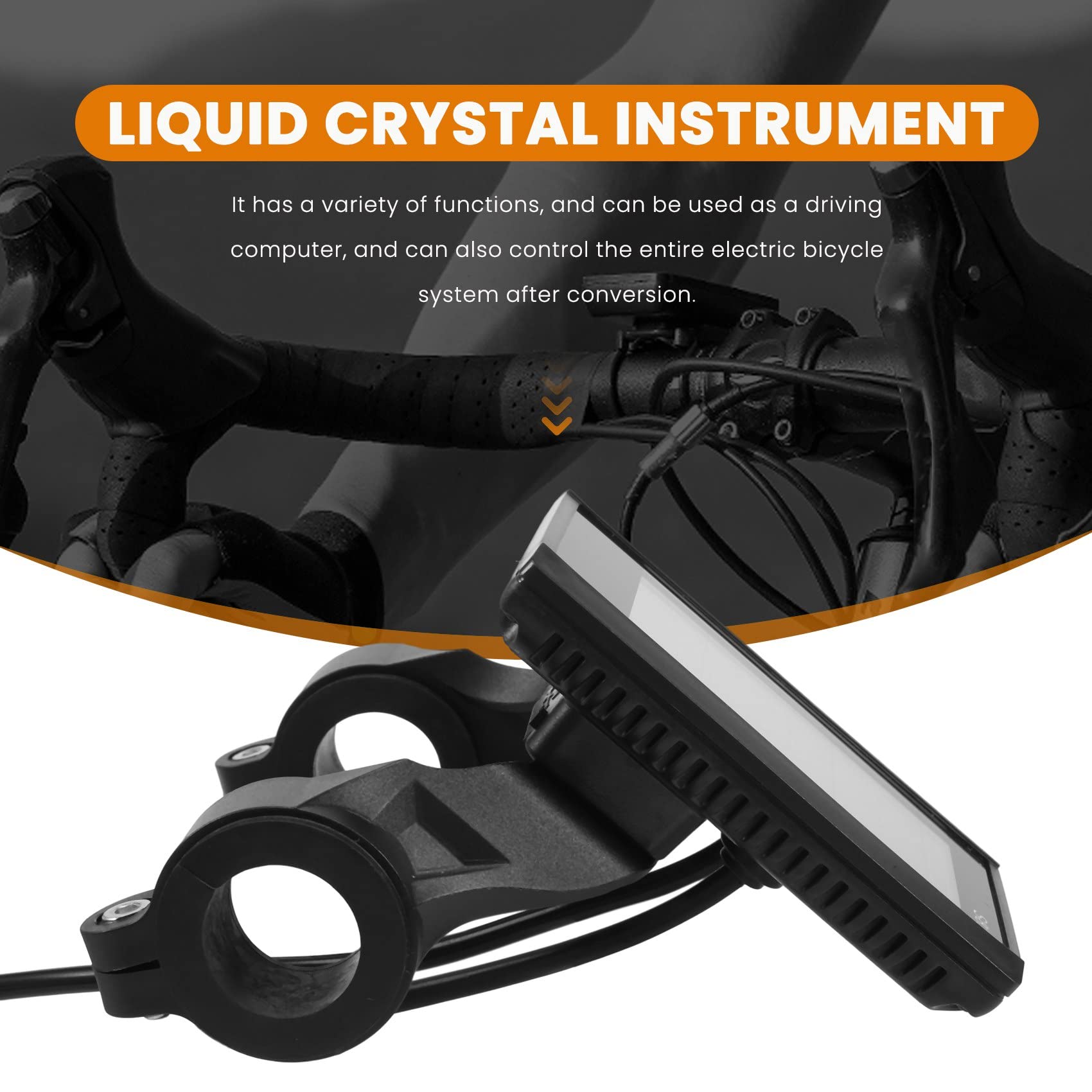

• The S830 LCD has a of functions, which can be used as a driving computer or control the entire eBike system after conversion.

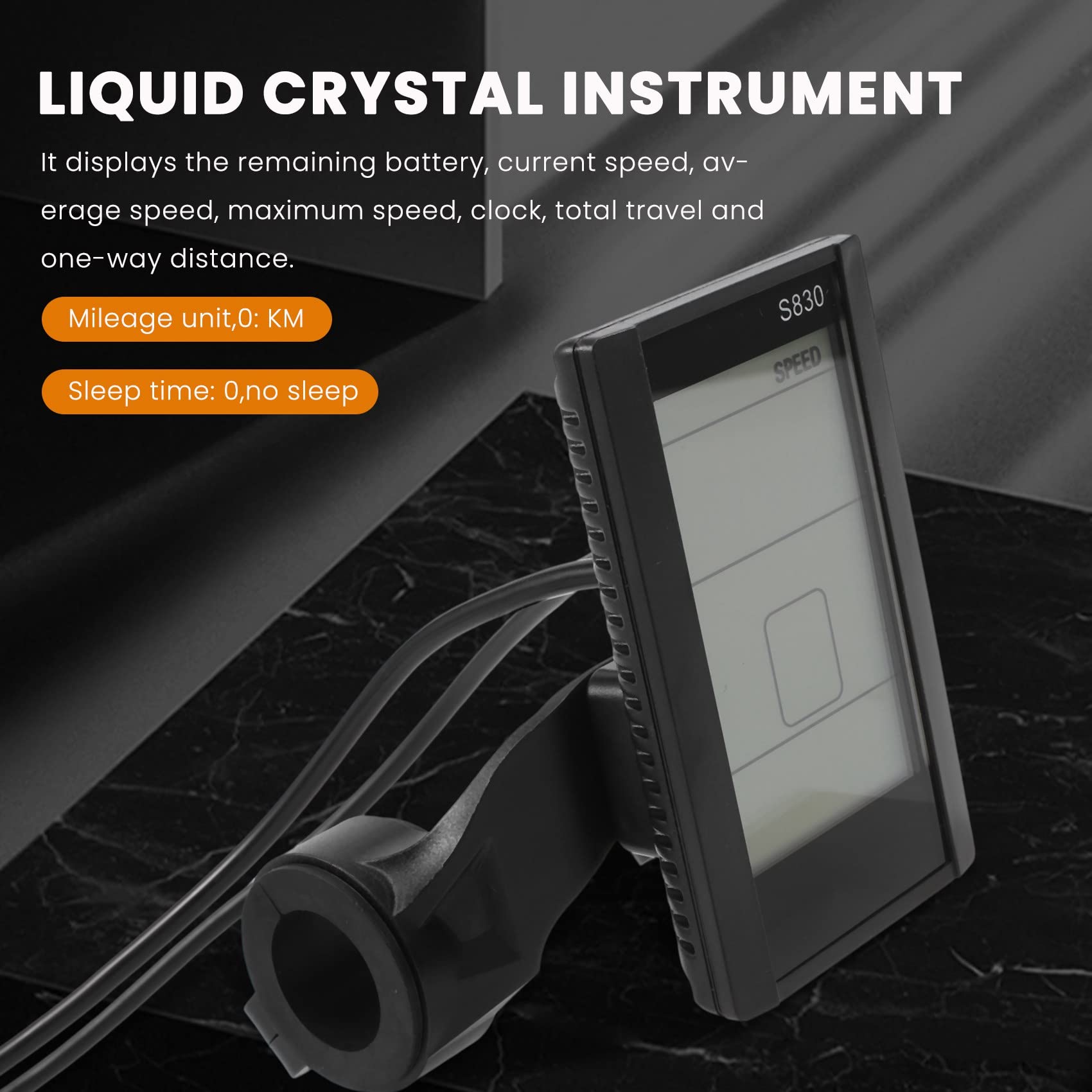

• If PAS is installed, the LCD can let the driver choose the required auxiliary level. It displays the remaining battery, current speed, average speed, maximum speed, clock, total travel -way distance.

Folceretsc Operation : Long the up and down buttons of the instrument to enter the instrument settings. P01:Backlight brightness,level 1 is the darkest,level 3 is the brightest. P02:Mileage unit,0: KM;1: MILE. P03:Voltage level: 24V,36V,48V. P04:: 0,no sleep;other numbers are ,range: 1-60;unit minutes. P05:Assist gear 1-9 P06:Wheel diameter: unit,inch;: 0.1. P07:Number of speed magnets: range: 1-100. P08:Speed limit: speed percentage range 0-100%,100 means speed 100%. P09:Zero ,non-zero setting,0: zero ;1: non-zero . P10:Drive mode setting 0: Power-assisted drive (the handle is invalid).1:Electric drive (drive through the handlebar,at this time the assist gear is invalid).2:Power-assisted drive and electric drive coexist at the same time. P11:Assist sensitivity setting range: 1-24. P12:Power-assisted intensity setting range: 0-5. P13:Power-assisted magnet type setting There are three types of 5,8,and 12 magnets,of which 5 and 8 are single-Hall power-assisted sensors. Setting 12 is used for dual Hall assist sensors. P14:No such function temporarily. P15:No such function temporarily. P16:ODO reset setting and hold the up button for 5 seconds ODO reset type: waterproof plug colour: black Material: plastic Package Contents: 1 x LCD display (only for lithium battery protocol No. 2) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
