Flush-mounted radar HF motion detector, recessed wall mounting, LED suitable

• Flush-mounted HF motion sensor with twilight sensor - suitable for LED

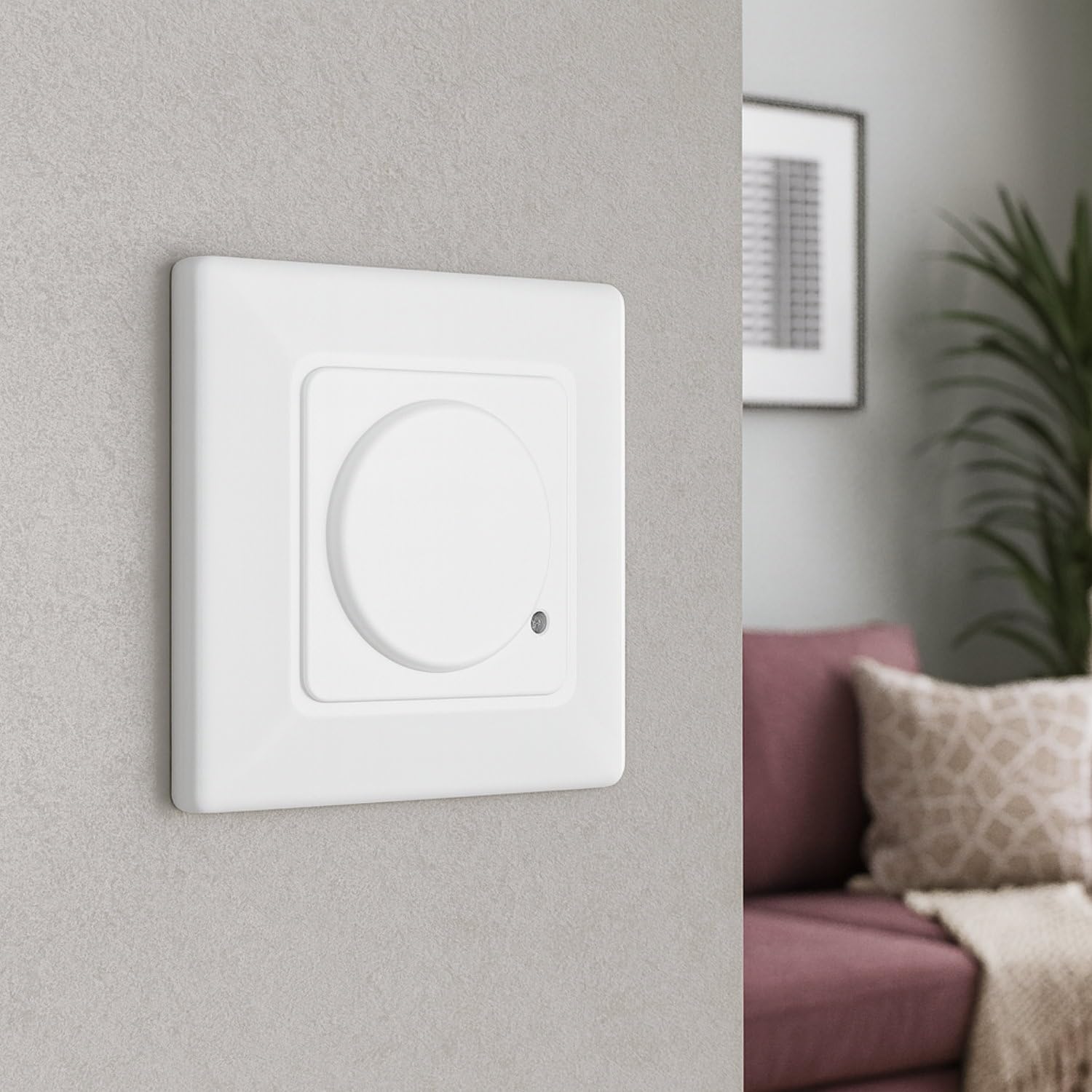

• Ideal - as a wall motion detector in flush-mounted boxes
• Suitable for LED – from 1 watt to max. 300 watts
• Switch box – fits in switch boxes 60 mm or 68 mm

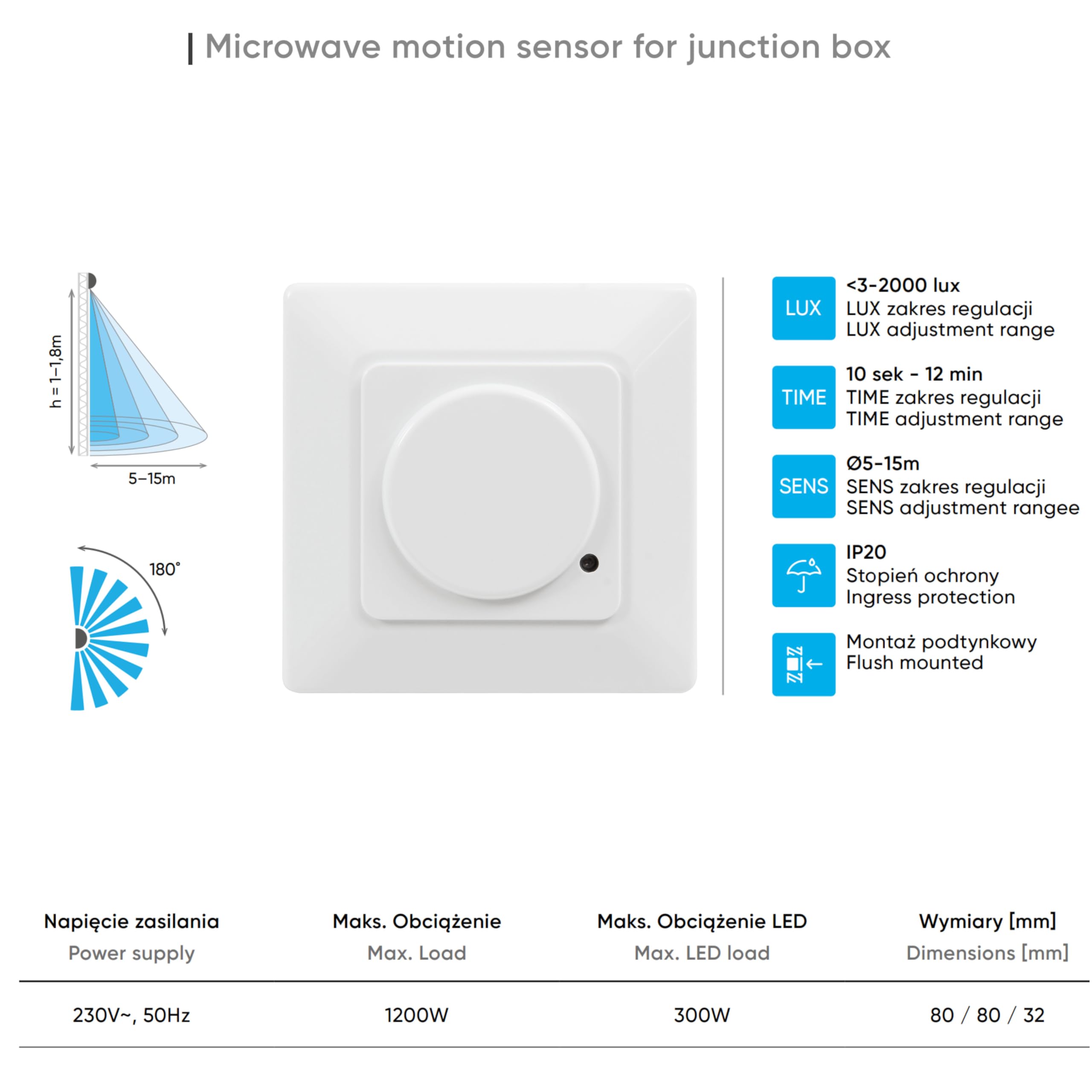

• Motion detector - RF sensor technology, range 1-15 m, detection angle 160°, switching time adjustable 10s to 12min
• Insulation sensor – light detection 3-2000 lux adjustable
• Dimensions: decorative panel 80 x 80 mm, installation dimensions 52 x 50 x 33 mm (W x H x D)

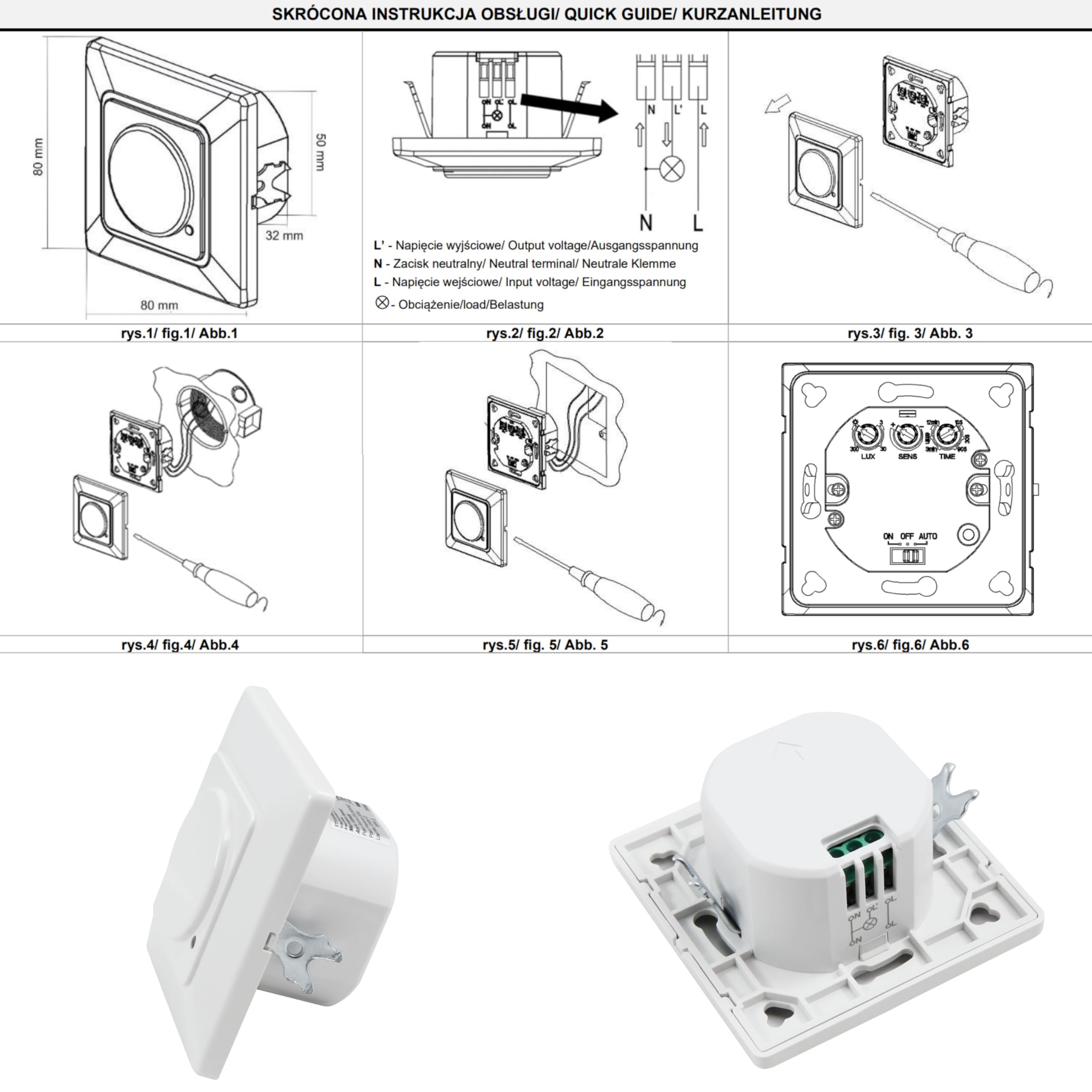

Flush-mounted HF motion detector 50 x 50 LED suitable flush-mounted RF motion sensor 160°, suitable for flush-mounted sockets with a diameter of 60 mm and hollow wall sockets with a diameter of 68 mm. RF sensor technology also penetrates glass, wood and lightweight walls and responds to any movement, regardless of heat. Starts from 1 watt - also ideal for all LED lights. Installation: flush-mounted (wall), easy installation thanks to 3-pin connection, suitable for flush-mounted sockets diameter 60 mm and hollow wall sockets diameter 68 mm. Power: power range 1-1200 W for resistive loads such as incandescent lamps, 1-300 W for inductive loads such as LED lamps or fluorescent tubes. Dimensions: decorative panel 80 x 80 mm, installation dimensions 52 x 50 x 33 mm. Sensor technology - RF sensor technology 5.8Hz, active with electromagnetic waves. Also penetrates glass, wood and lightweight walls and reacts to any movement, regardless of heat. Sensor data: range 1-15 m, detection angle 160°, light detection adjustable 3-2000 lux, switching time adjustable 10s to 12 minutes, installation height 80-180 cm. Energy data: 220-240 V, 50-60 Hz AC, protection class IP20, self-consumption standby 0.1 W, in operation 0.9 W. Note: the low minimum load of only 1 watt allows you to connect almost any LED bulb.
