Flamingo+ AM (Flamingo AM v2) - High Attenuation Broadcast AM Bandstop (Notch) Filter for Software Defined Radio (RTL-SDR) Applications. Blocks 300kHz to 1900kHz on Connected Device

• A high-quality, high-performance broadcast AM bandstop (notch) filter designed for software-defined radio (SDR) applications. Includes free male SMA-male SMA barrel connector!

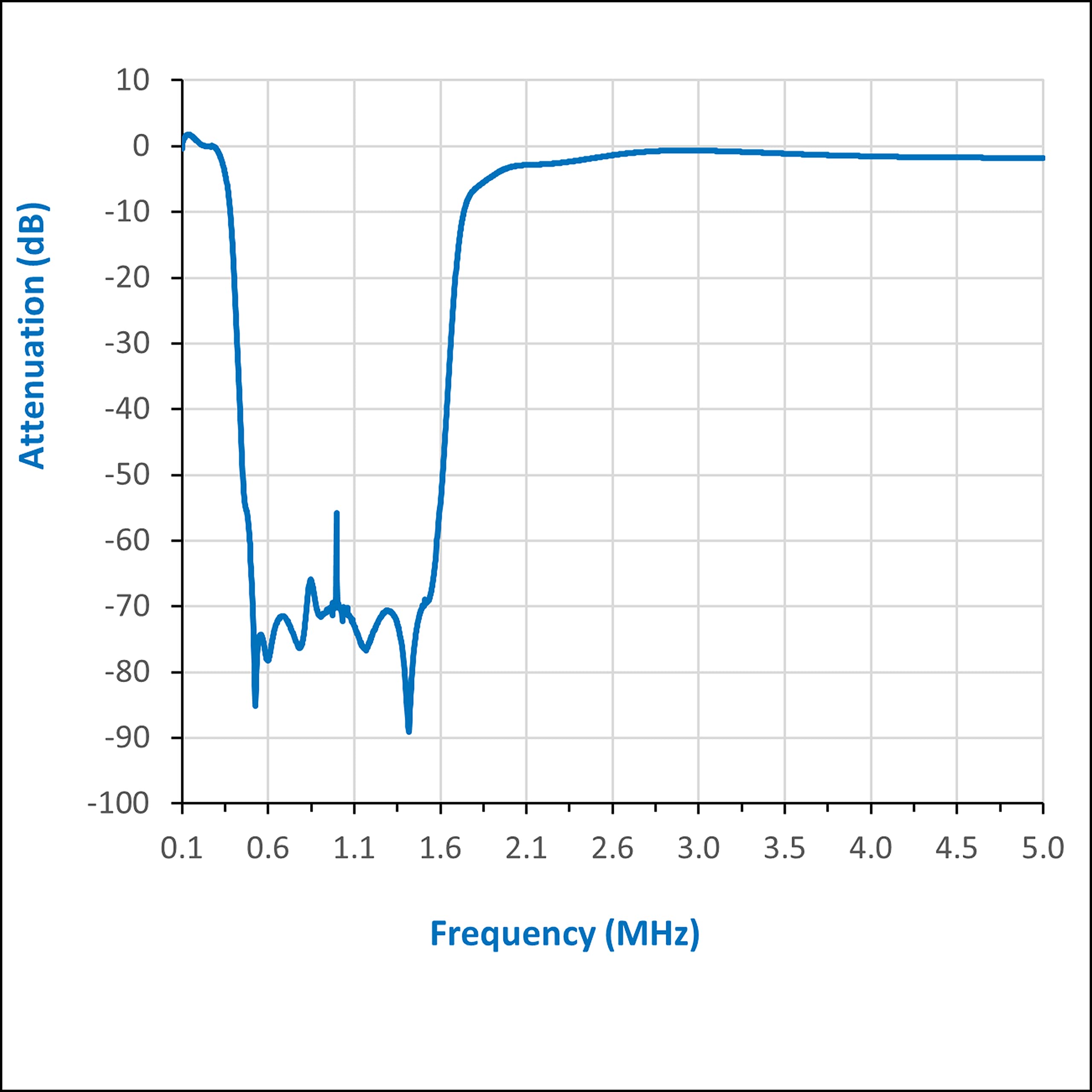

• Flamingo+ AM was designed to provide approximately 70dB attenuation for broadcast AM frequencies while ensuring that adjacent bands are minimally affected. The -3dB rolloff of the filter is 300kHz and 1900kHz. The minuscule out-of-band insertion losses mean that the filter can stay in place for most any application -- though we do recommend removing Flamingo+ AM from the signal chain when not receiving HF frequencies
• Flamingo+ AM can pass-through DC (bias-tee) power when required. DC current handling is 200mA (max)
• Flamingo+ AM makes a great companion to our Ham It Up series of HF upconverters (available separately on Amazon)

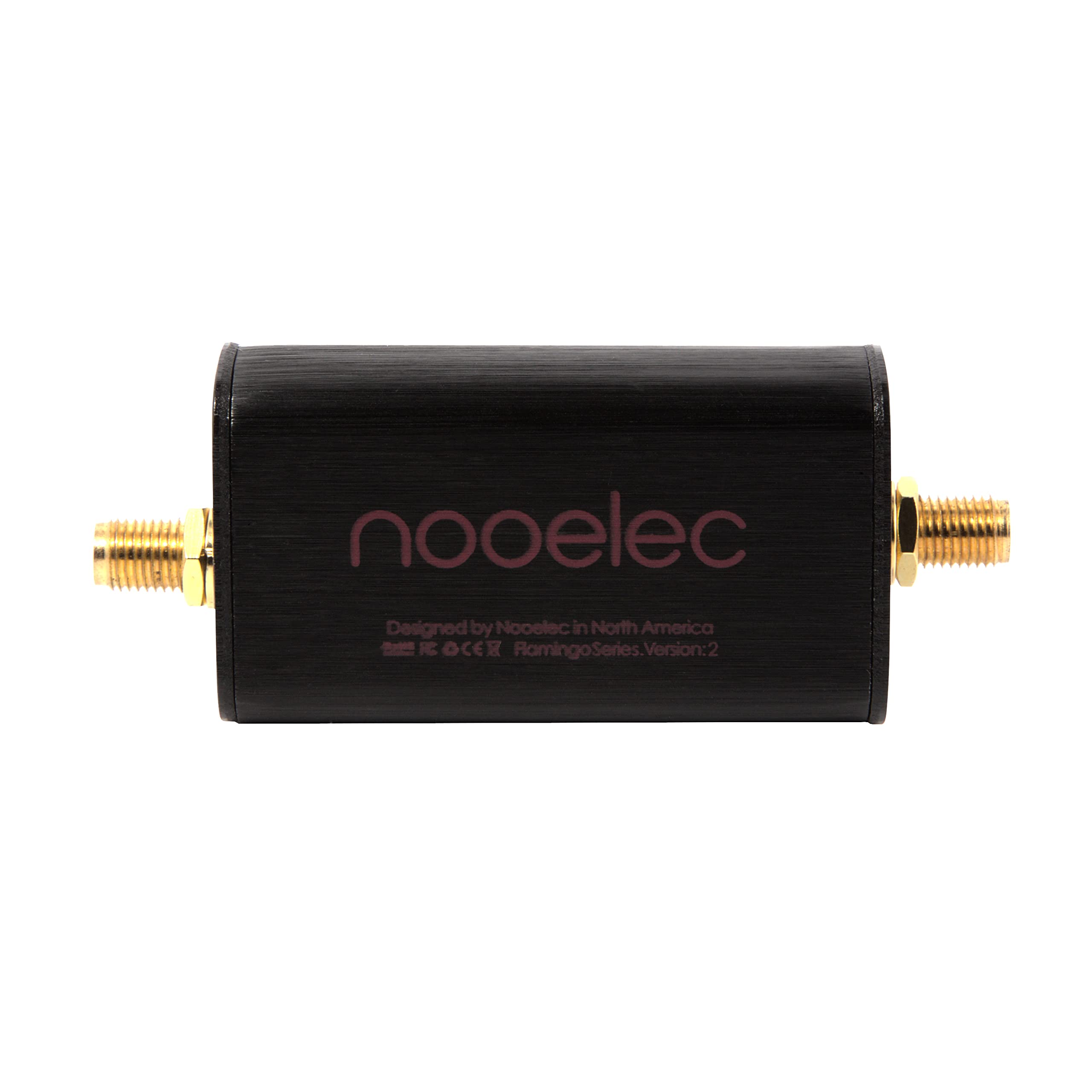

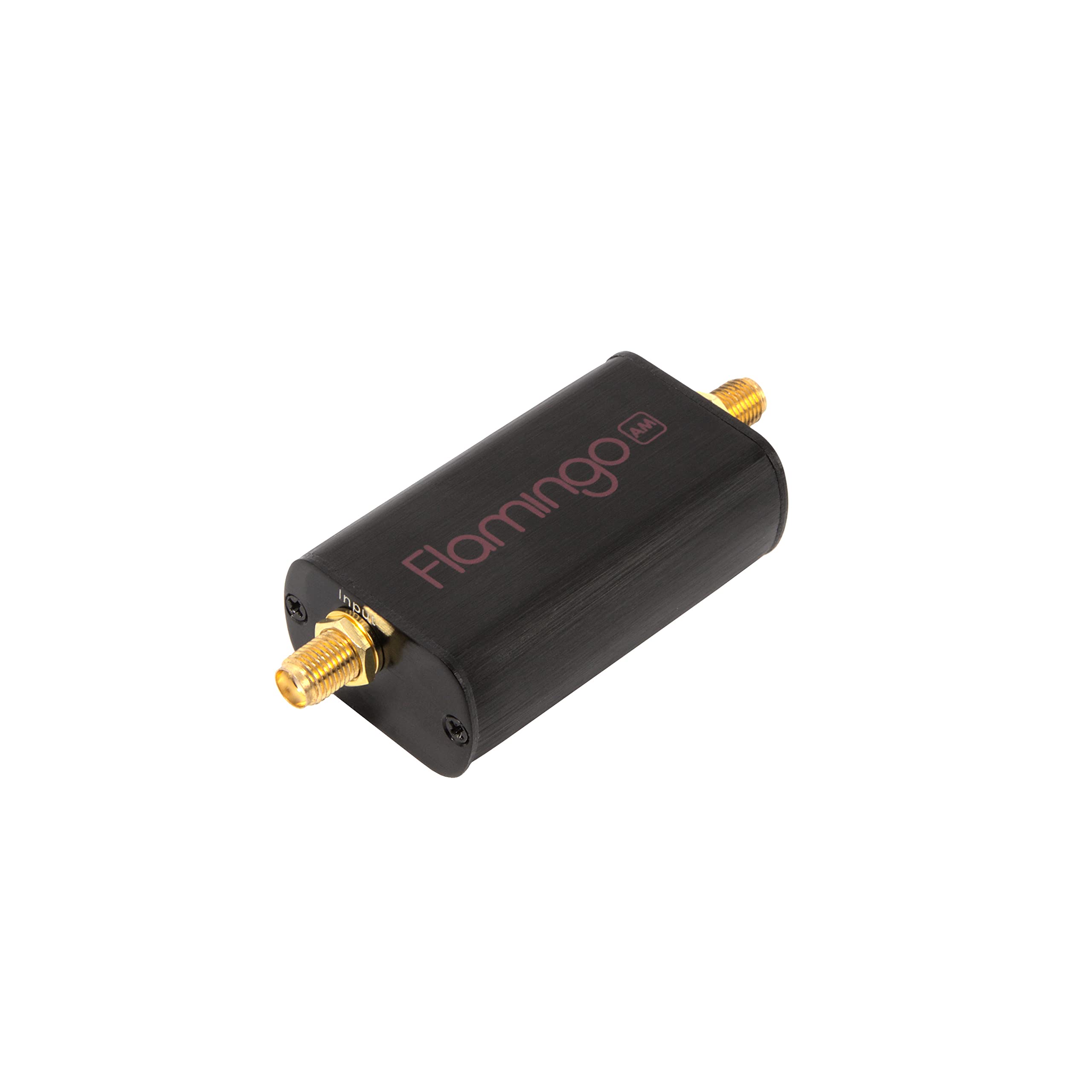

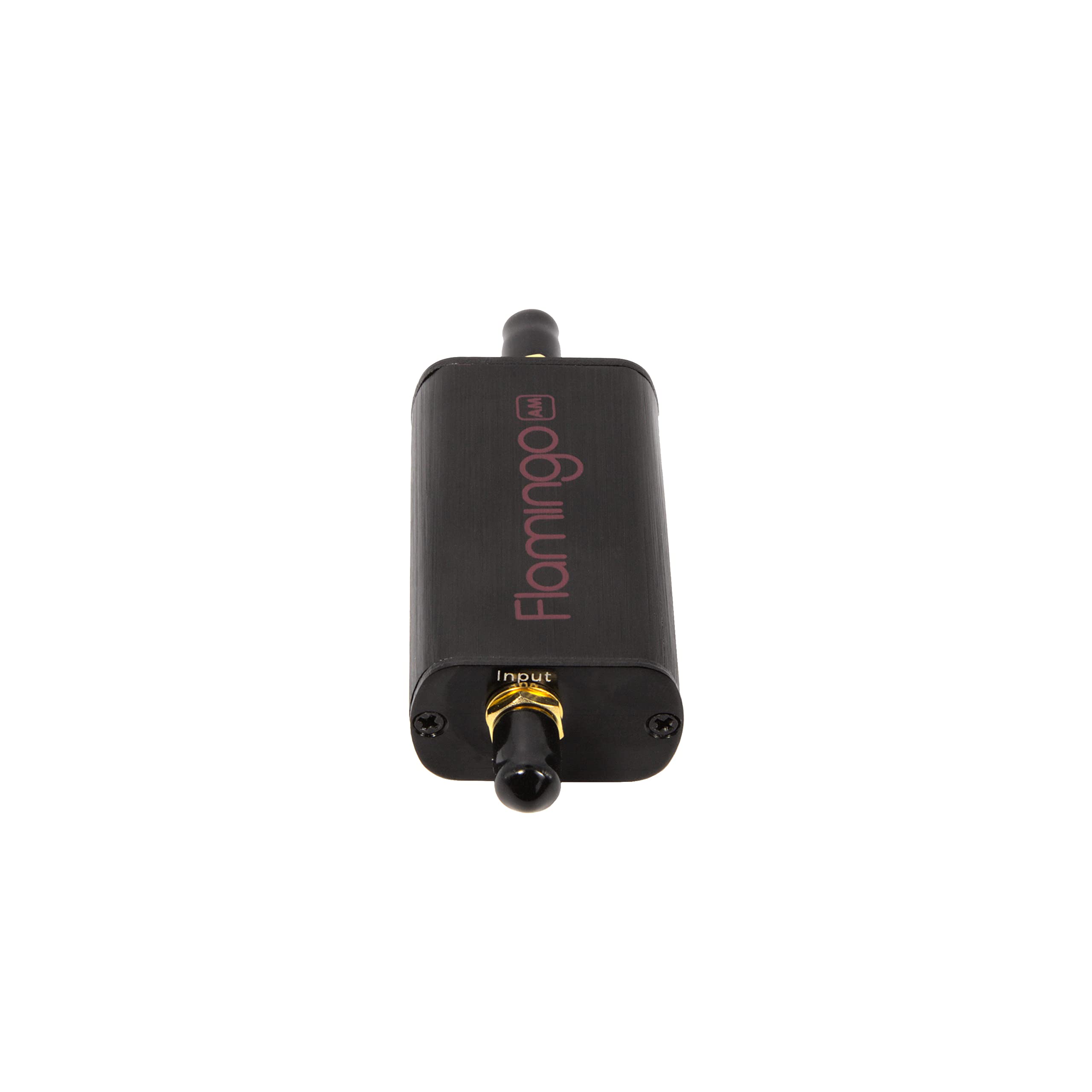

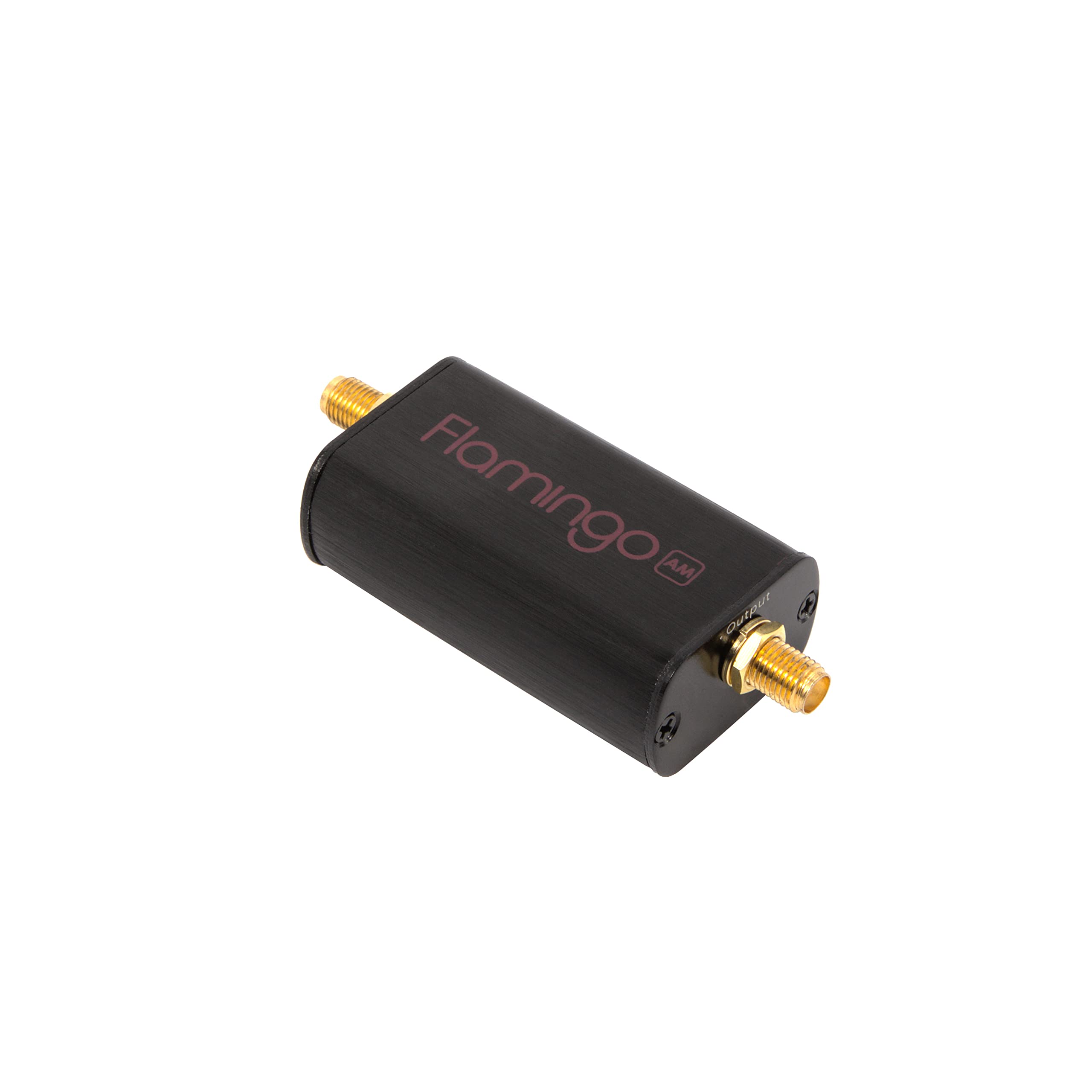

• The notch filter is fully EMI shielded and installed in a custom anodized aluminum enclosure for further protection and isolation. The front end is protected by an RF-rated ESD diode, which provides protection not just for your filter, but also for the radio or SDR behind it

For more information, please visit the product page at nooelec.com! A high-quality, high-performance bandstop filter designed for software-defined radio (SDR) applications. Designed and manufactured by Nooelec in North America, with a full 2-year product warranty. Broadcast AM can be particularly problematic due to the high-powered transmitters used for broadcasting in some areas. These signals can overload the front end of an SDR, causing imaging and a number of other issues. As such, Flamingo+ AM makes a great companion to our Ham It Up series of HF upconverters. We designed Flamingo+ AM to provide sufficient attenuation for broadcast AM frequencies (>70dB typical) while ensuring adjacent bands, such as 160m, are minimally affected. The -3dB rolloff of the filter is 300kHz and 1900kHz. Minimal out-of-band insertion loss means the filter can stay in place for almost any application, though we do recommend removing Distill AM from your setup when not listening to HF frequencies. As a true bandstop filter, you are able to pass-through DC (bias power) when it is required. DC current handling is 200mA (max). Typical performance characteristics can be found on the downloads tab of the product page on our website. Flamingo+ AM has its filter circuitry fully shielded with an EMI frame and has its front end protected by an ESD diode meant for RF applications. 2 mounting holes are available on the PCB for various mounting options, and the SMA hardware (washer and nut) is included.
