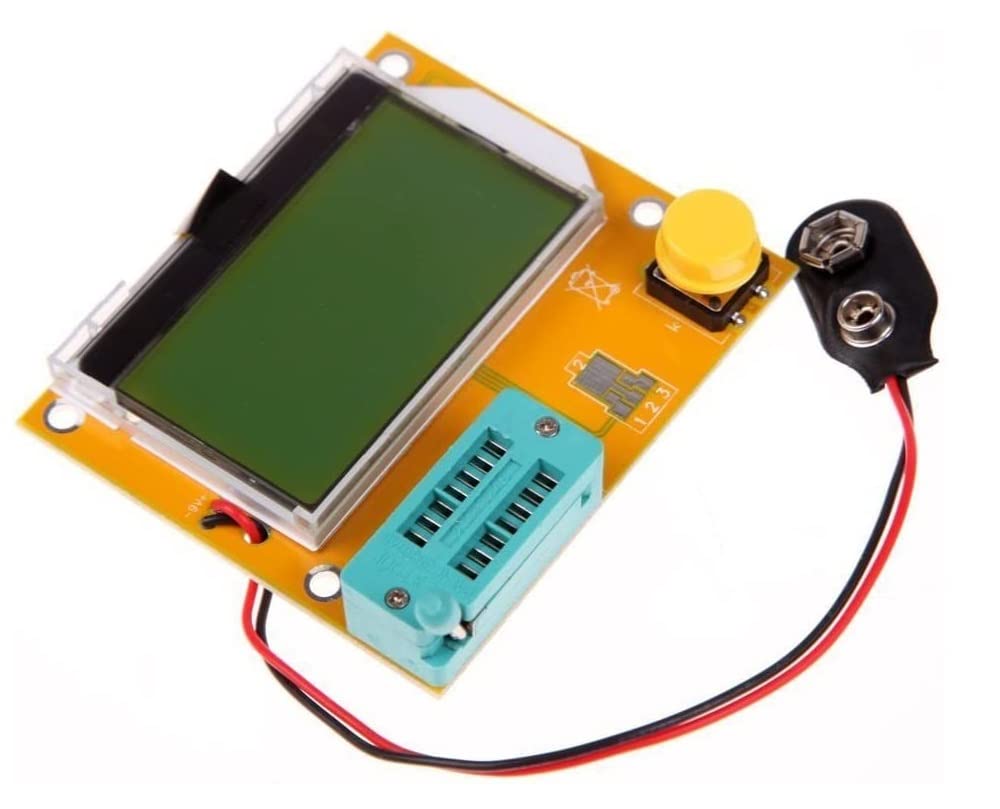

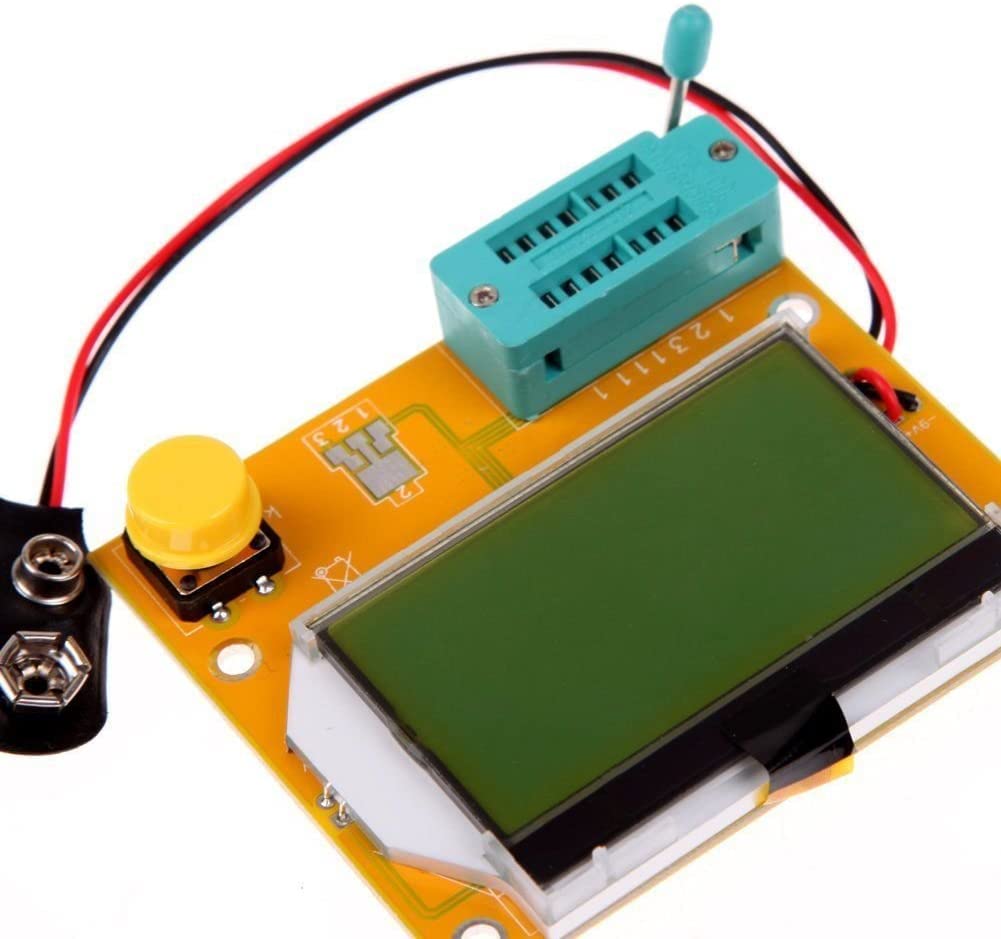

Fasizi LCR-T4 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance

• Automatically test a component's pin and display it on the 128*64 LCD backlight.
• Measuring bipolar transistor current amplification factor and base-emitter threshold voltage.
• Powered by 9V strata-built-in battery, can use 2 Li-ion batteries to form a 8.4V battery pack for long-term power.
• Test speed: 2 seconds (1 minute is normal for a large capacitor)
• Displayed value: 25pf-100mF (resolution 1pF)

Features: Powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power. Measure the gate and gate capacitance of the MOSFET threshold voltage. One -button operation, automatic shutdown, only 20nA shutdown current. Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified. 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors. Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4. Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage. Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components. Specifications: Testing Speed: 2 seconds (1 minute is normal for large capacitor) Shutdown Current: 20nA Displayed Value: 25pf-100mF (resolution 1pF) Inductance: 0.01mH-20H Resistance: ?ü2100|? Power Volatge: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack Resolution of Resistance Measurement: 0.1 ohms The Highest Measured Value: 50M ohms Package List: 1x Fasizi ESR Meter Transistor Tester Note:Light shooting and differnent displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is 1-3cm.
