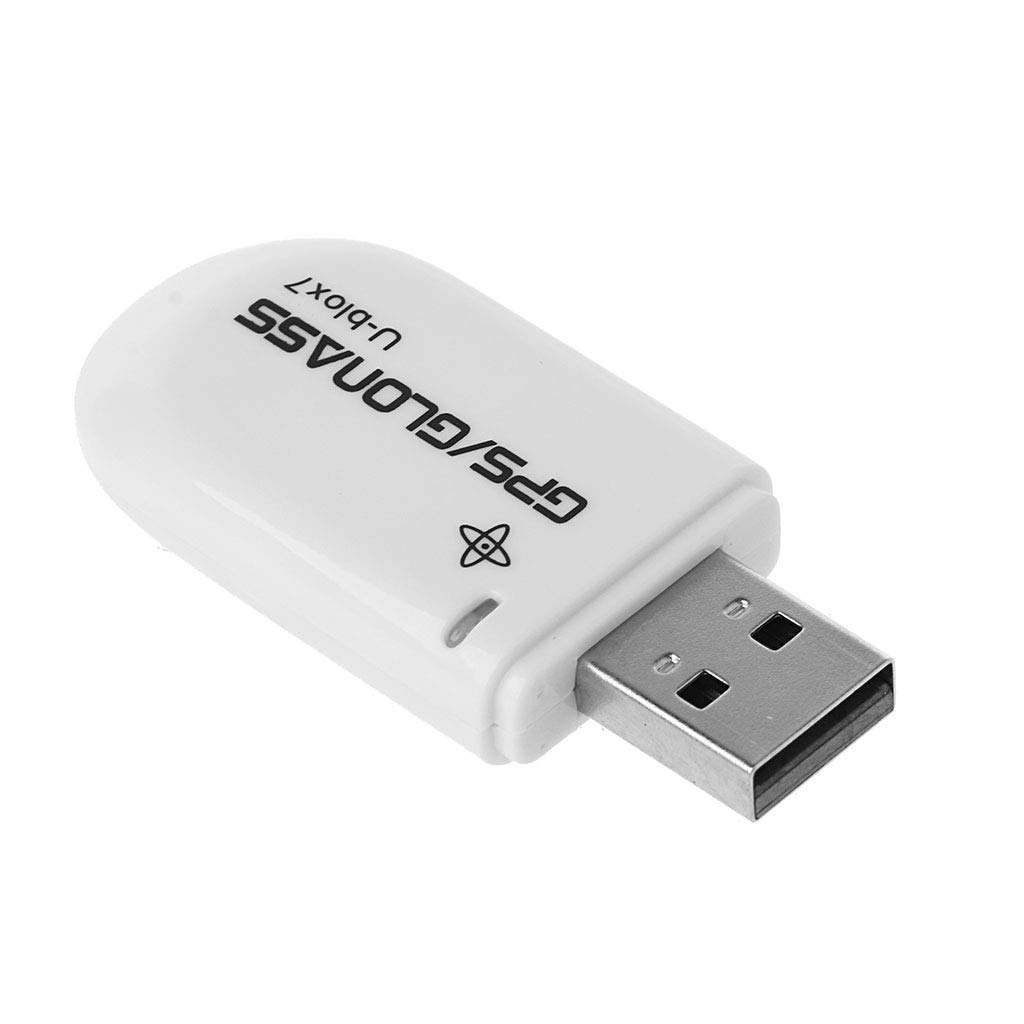

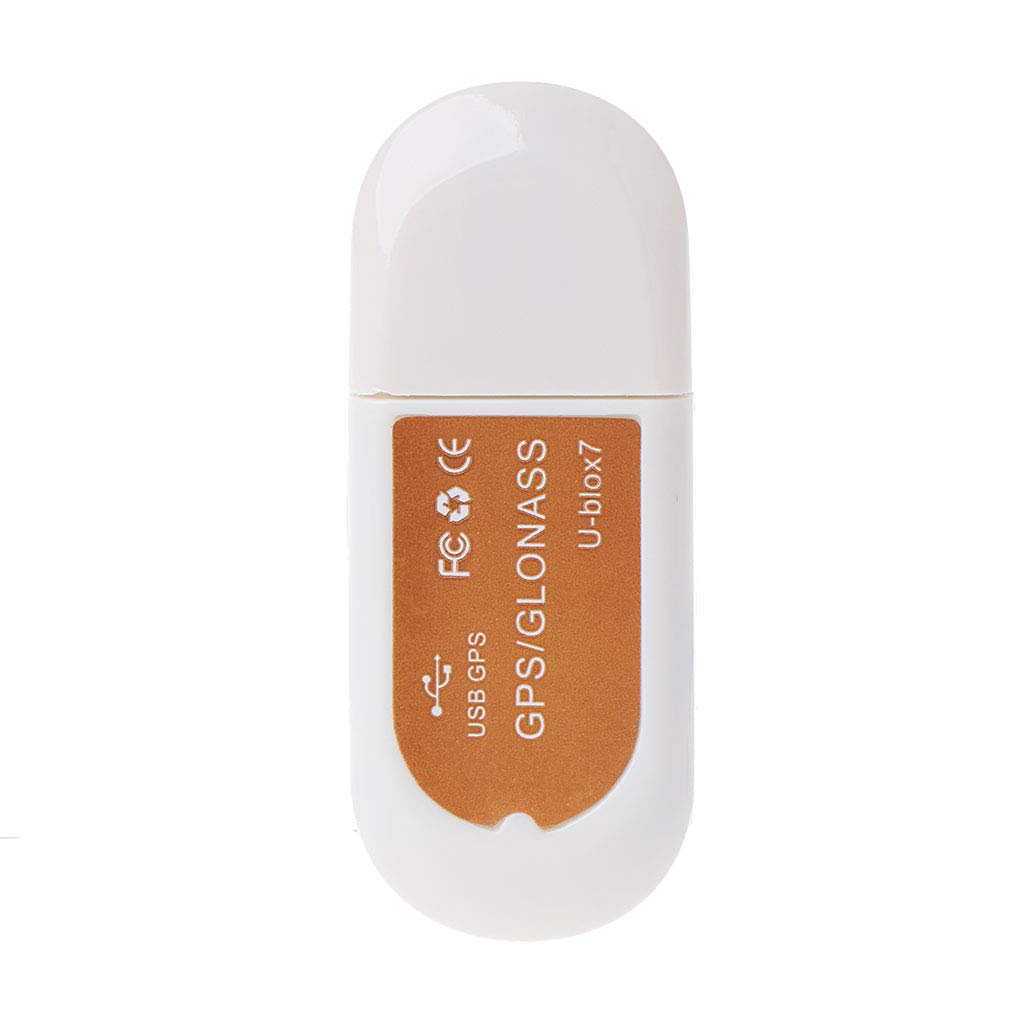

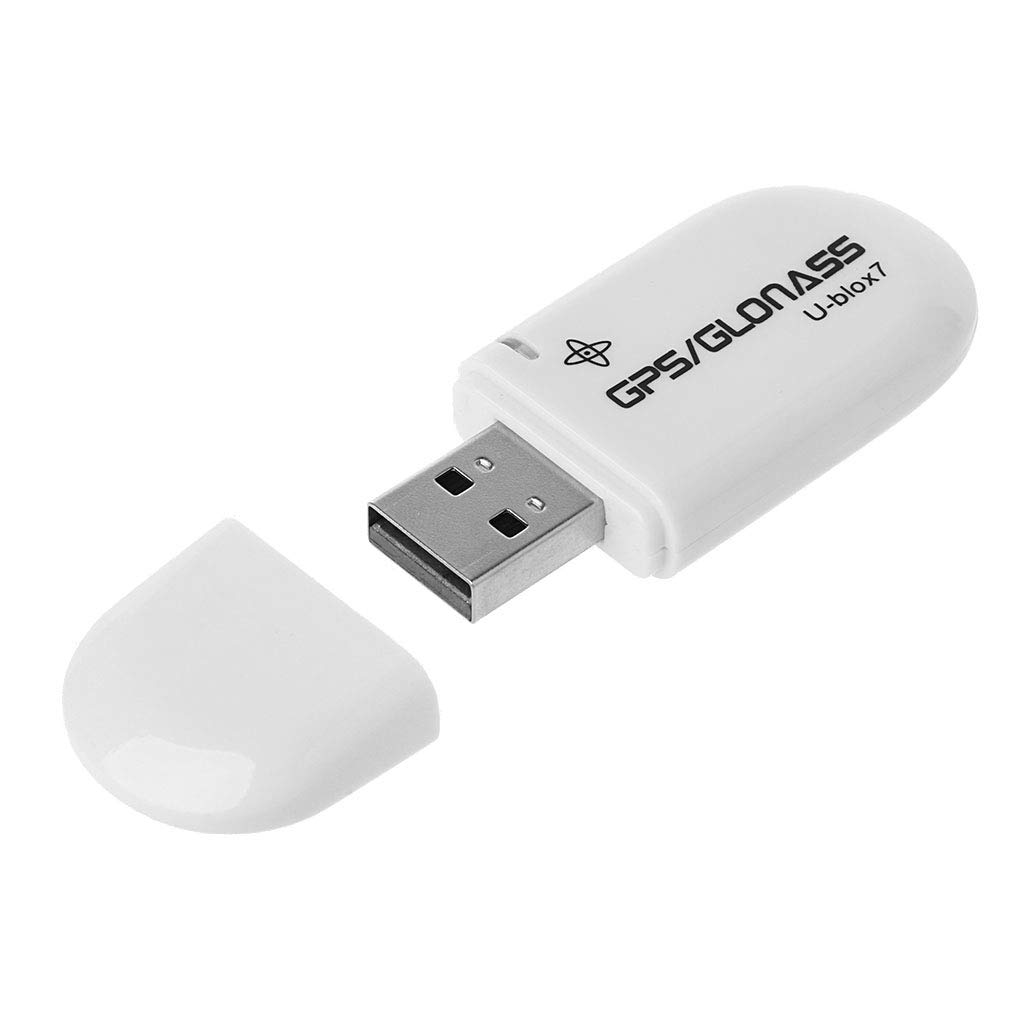

Fasizi GPS Smart Antenna VK-172 NEW USB GPS Receiver Ublox7 for PC laptop Windows AU

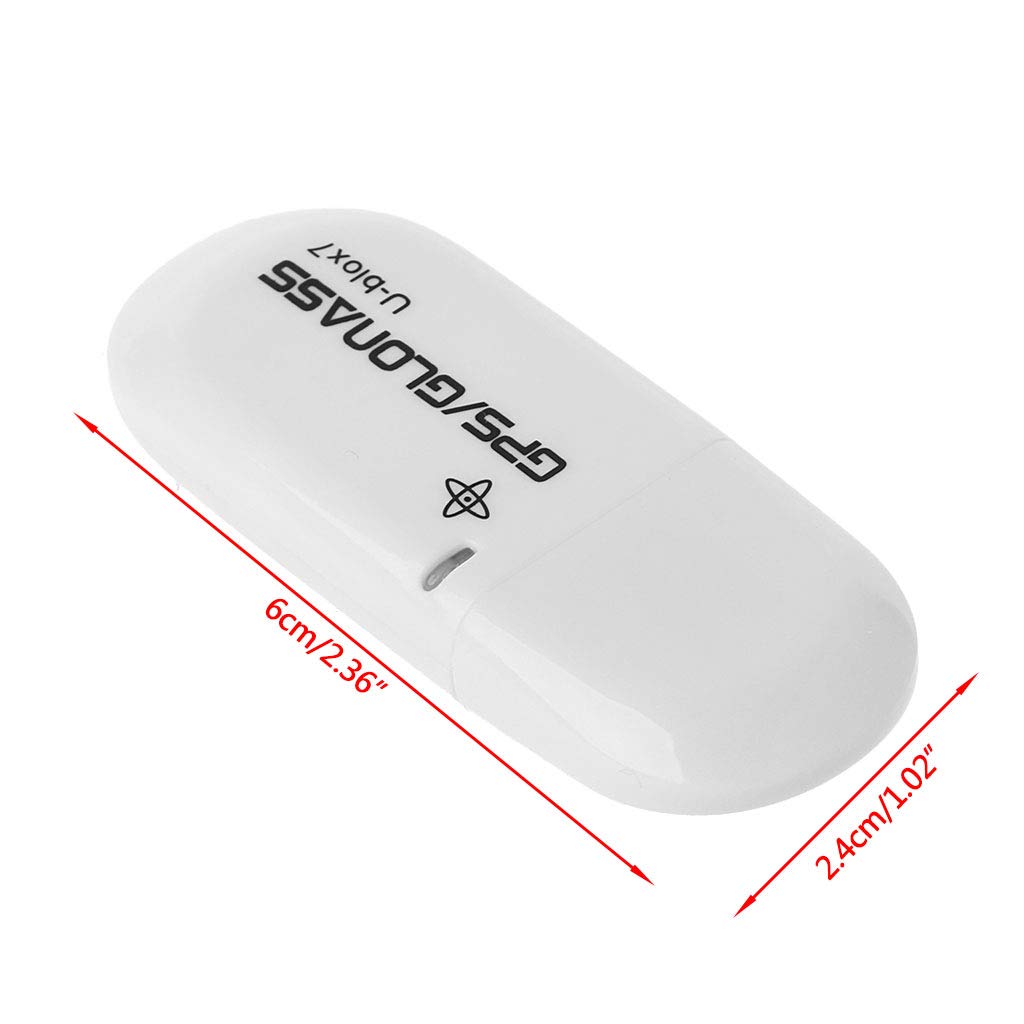

• Colour: white; Material: ABS; Dimension: 28mm×28m×8.4mm
• Built-in 18*18*2(mm) patch antenna for smaller module demension demand. Adopts KDS 0.5PPM precision TCXO. Built-RTC crystal and picofarads capacitance faster hot start
• 1-10Hz update rate positioning. Support AssistNow Online and AssisNow offline A-GPS services. GPS, GALILEO,SBAS (WAAS,EGNOS,MSAS,GAGAN) hybrid engine GPS Smart USB (VK-172) is a highly sensitive GPS receiver with low power consumption
• It is built with Ublox7 architecture and USB interface, and non-slip rubber-pad with a magnetic mounting. It is easy to place on top of a vehicle to fix positioning
• All products are tested for stability, consistency and reliability.

Fasizi GPS Smart Antenna VK-172 NEW USB GPS Receiver Ublox7 for PC laptop Windows AU Description: GPS Smart Antenna VK-172 NEW USB GPS Receiver Ublox7 for PC laptop Windows AU Support NMEA 0183 and ublox binary protocol Support Windows XP / Vista / 7 / 8 / CE Chip:U-Blox (G-7020) C / A code, 1.023 yards stream Receive frequency: L1 [1575.42MHz] Receive Channel: 56CH Support DGPS [WAAS,EGNOS & MSAS] Positioning performance Less than 2.5m [Autonomous][50%] Rate : Less than 0.02m/s Direction: Less than 0.5 Degrees Timing accuracy:1us Reference coordinate system:WGS-84 Max Altitude:18000 m Max Speed :500 m/s Acceleration: Less than 4g Electrical properties Other parameters Tracking sensitivity: -162 dBm Standard clock pulse : 0.25Hz ~1 KHz Acquisition Sensitivity: -160dBm Positioning update rate :1Hz ~ 5Hz (Default 1Hz) Acquisition time (average) USB port interface Cold Start: 29seconds Data Rate: 9600bps Warm Start: 28seconds Operating temperature : -30 Celsius ~ +85 Celsius Hot Start: 1 seconds AGPS :3 seconds Usage: Download the driver ,Connect the VK16U6 to your equipment Put VK16U6 in a appropriate place to receive the best GPS satellite signal. Open the navigation software,set the COM port and baud rate for the receiver; VK16U6 will start to provide you GPS satellite positioning function. Package Included: 1x USB GPS Receiver
