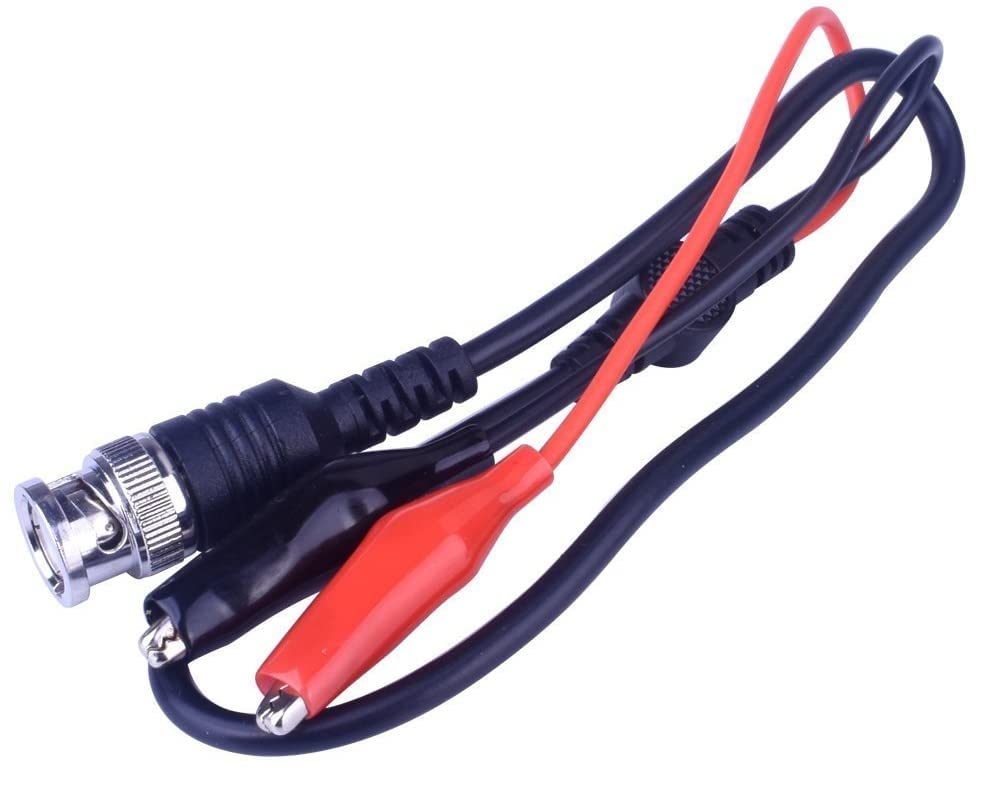

Fasizi DIY KIT Open Source 2.4" TFT 1Msps Digital Oscilloscope Kit with DIY parts + Probe 13803K（SMD pre-soldered）

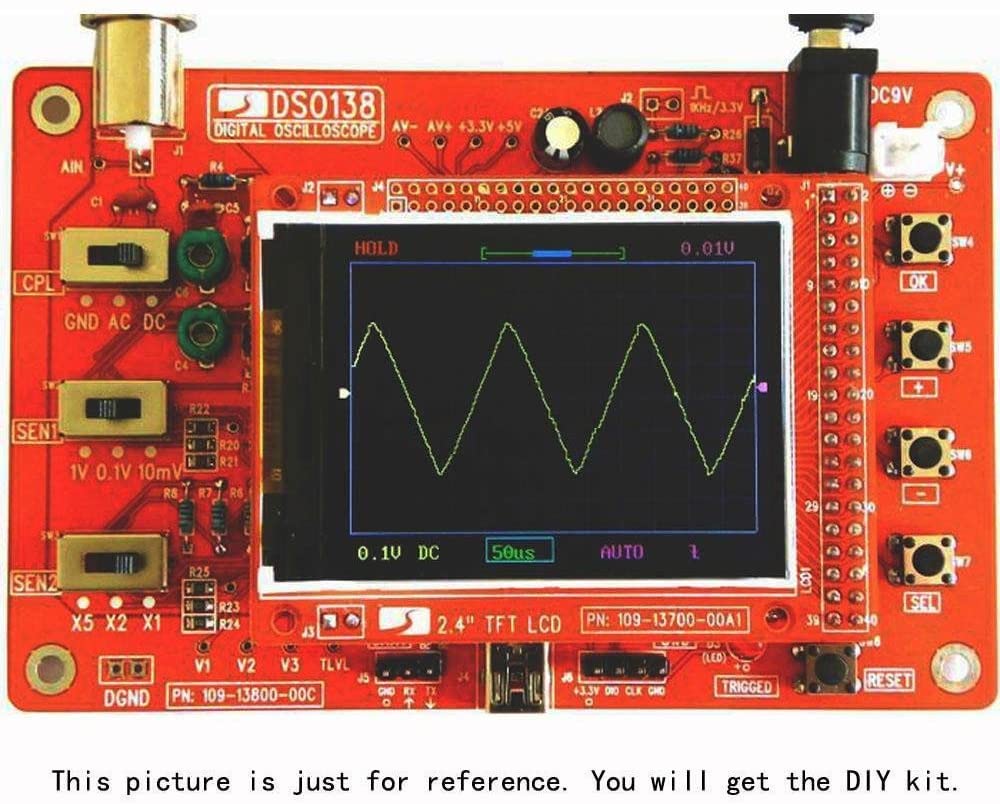

• DSO138 2.4" TFT 1Msps Digital oscilloscope kit for DIYIt's easy to solder.
• Oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly

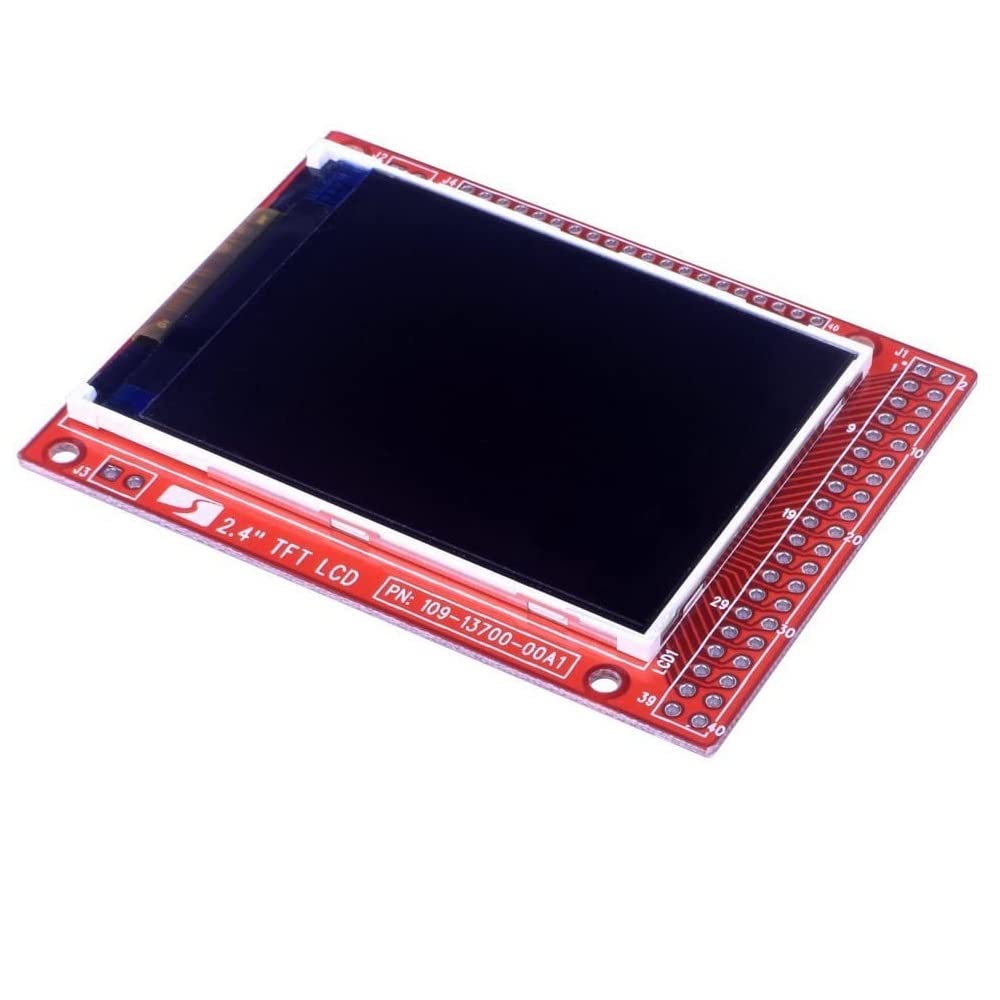

• It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice
• Detailed assembly instructions are provided in combination with troubleshooting guide and schematc.
• Analog bandwidth: 0 - 200KHz. Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points

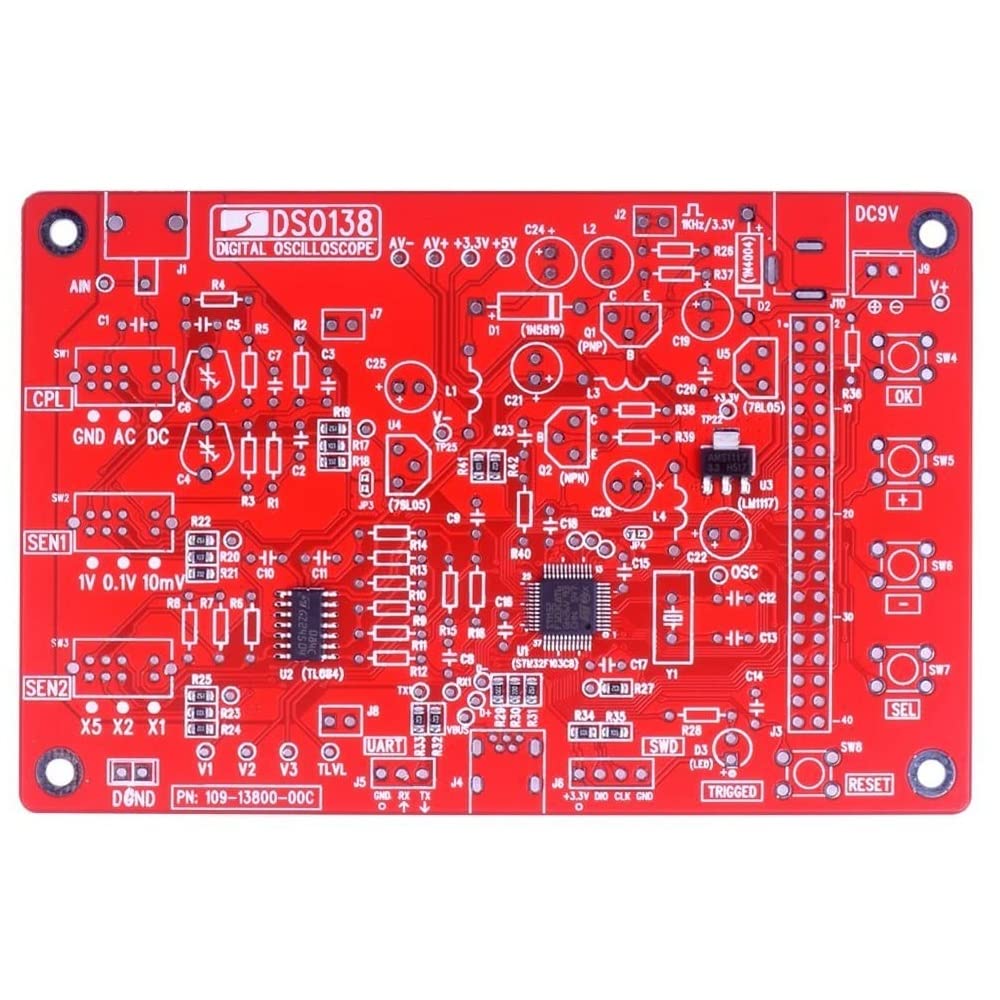

Fasizi DSO138 is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware. This DSO138 kits has all the SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required. DSO138 oscilloscope DIY kit Major features : Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Sensitivity error: <5% Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points Built-in 1KHz/3.3V test signal Waveform frozen (HOLD) function available 9V DC (8 - 12V acceptable) Supply Current: 120mA NOTE: 9V DC power supply required. Not included. Dimension: 117mm X 76mm X 15mm Weight: 70 gram (not including cables) Package included : 1x Fasizi DSO138 Digital Oscilloscope Kit POWER SUPPLY NOT INCLUDED
