Fasizi 868MHz - 915MHz Lora SX1276 Development Board 0.96 OLED Display ESP32 WIFI HTIT Bluetooth Board Development IOT Module For Arduino

• This product is based on the WIFI Kit 32 added SX1276 chip, LoRa remote modem.
• WIFI HTIT series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS
• Chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
• Applicable frequency:868MHz and 915MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

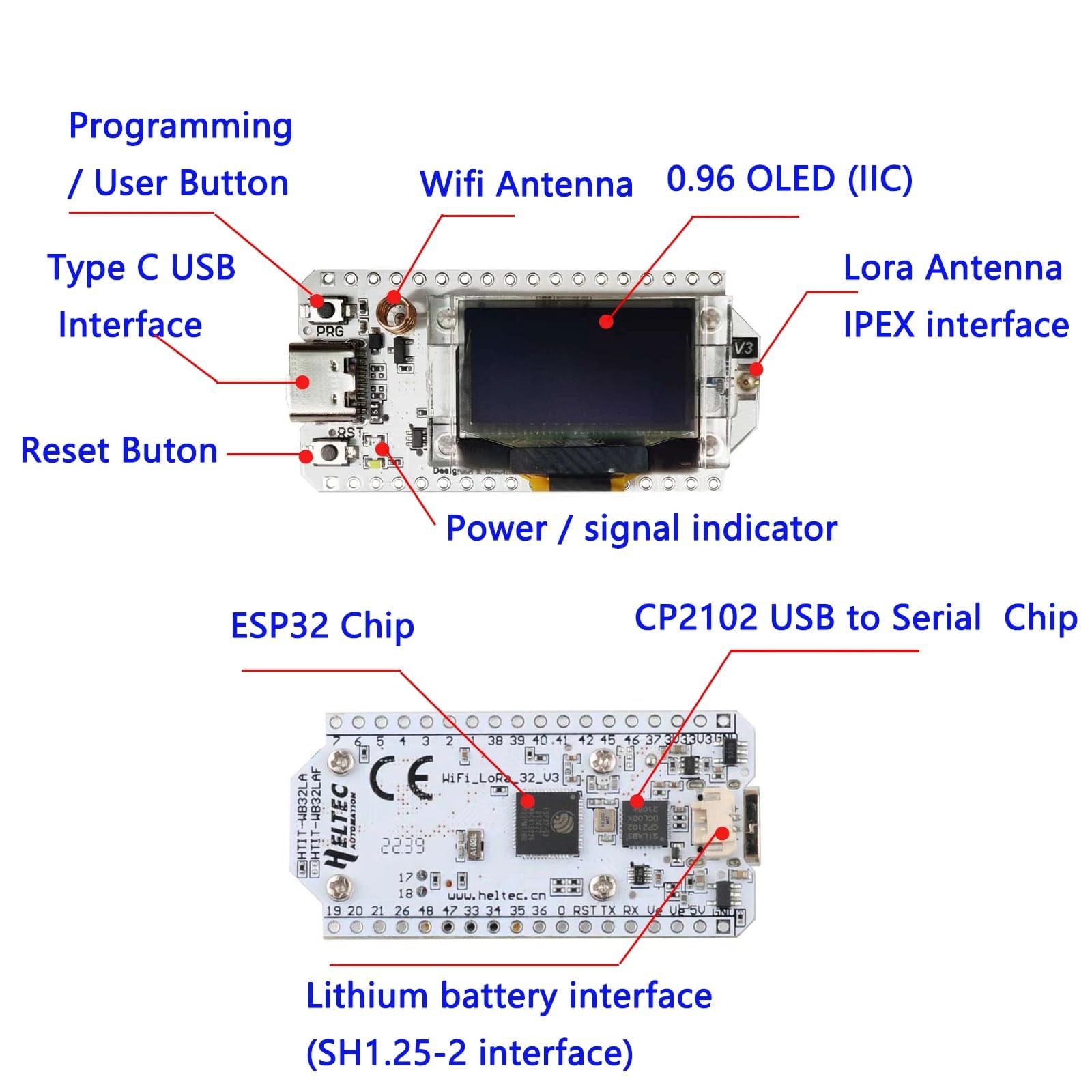

• Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface.

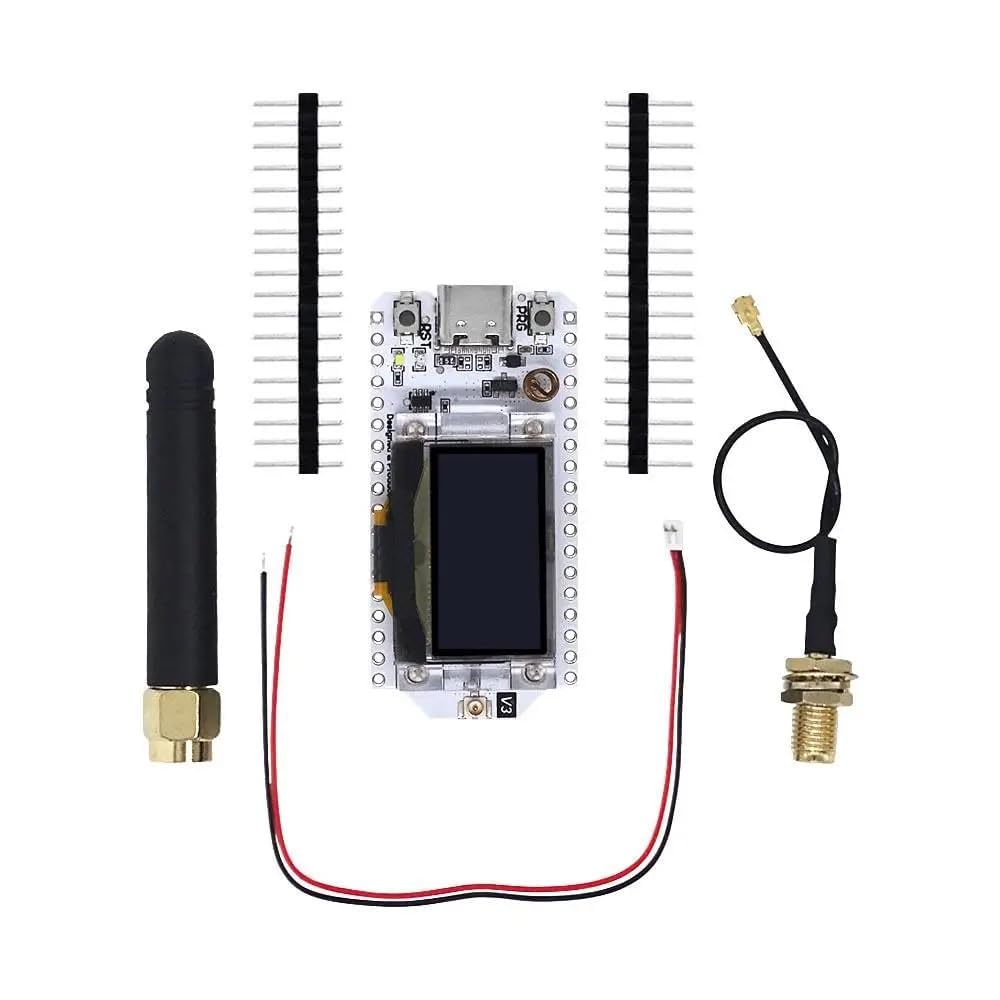

Description: WIFI Kit 32 series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Specification: Dominant Frequency: 240MHZ Flash: 32M-Bits Processor: for Tensilica LX6 Dual Core Master chip: ESP32 LoRa chip: SX1276 Support frequency band: 868-915MHZ Open communication distance: 2.8KM Computing capacity: up to 600DMIPS Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth Development environment: perfect support for Arduino Operating voltage: 3.3-7V Operating temperature range: -40-90 ℃ Receiver sensitivity: -139dBm (SF12, 125KHZ) UDP continuous throughput: 135Mbps Support mode: Sniffer, Station, softAP and Wi-Fi Direct Package included: 1 x SX1276 ESP32 Lora OLED development board Module 1 X 868-915MHZ Antenna
