Fasizi 7-70V 30A PWM DC Motor Speed Controller Switch Control 12V-48V with 30 Amp Fuse

• Wide voltage input 7-70V, maximum output current 30A (Please refer to the recommended power range for actual use current. It is recommended that 12V within 250W, 24V within 350W, 48V within 450W, and 60V within 500W. )
• The knob has a switch function, which can control the motor speed from 0% to 100%. Adjustable potentiometer flexible cable can be separated, the cable length is 15CM.

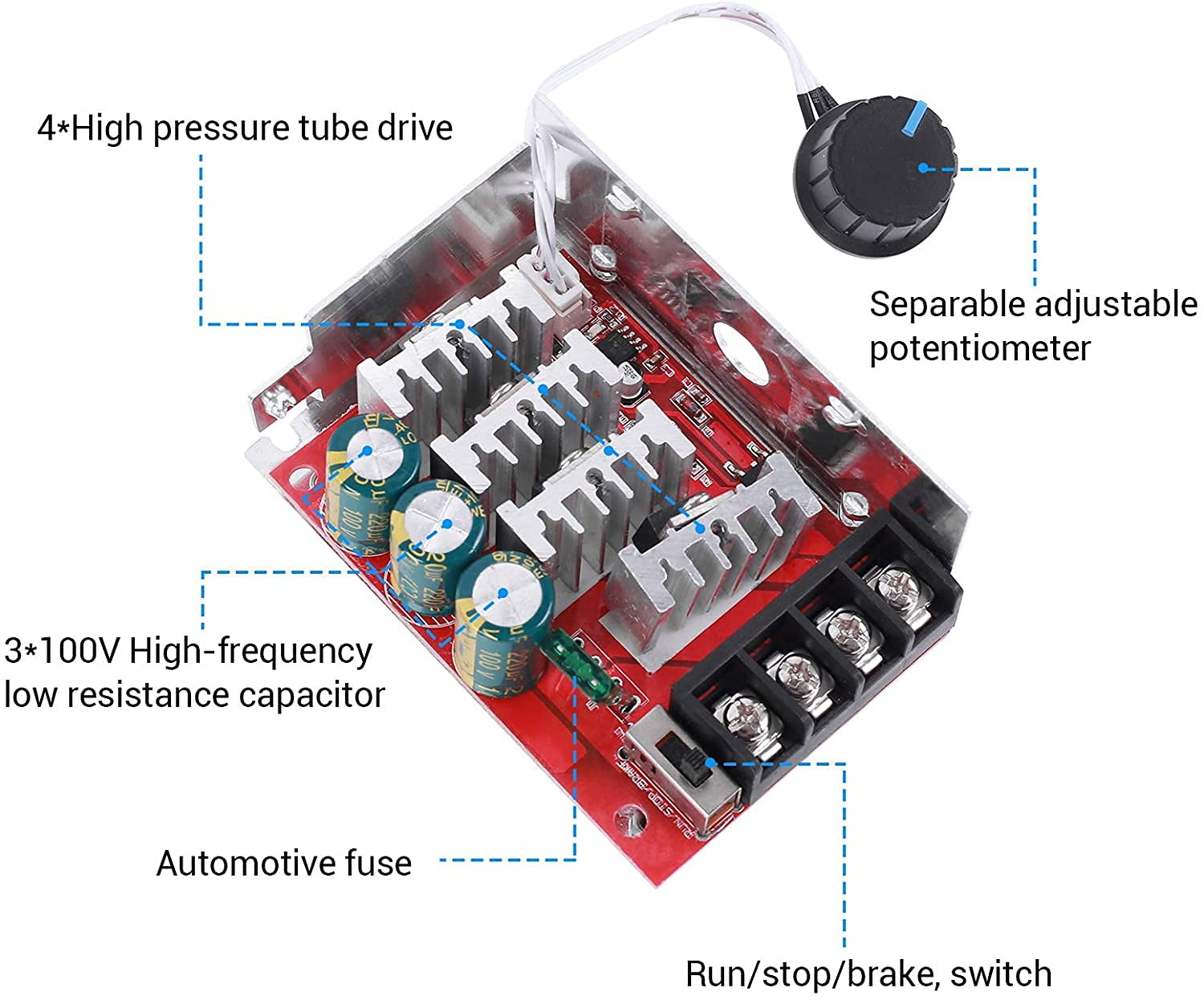

• It adopts imported high-voltage MOS tube, three 100V high-frequency low-resistance capacitors, car fuses, and the parameters are not easy to heat and can be replaced. The standard aluminum casing protects internal circuits and components for long-term durability.
• The power of the input power supply must be greater than 1.5 times the rated power of the motor to make the motor work (note: the input voltage and the rated voltage of the motor must be consistent).
• Optimized circuit design Wide adjustment range of duty cycle, smooth adjustment of the motor without bath noise, no vibration, with power indicator, stable circuit design, suitable for long-term work.

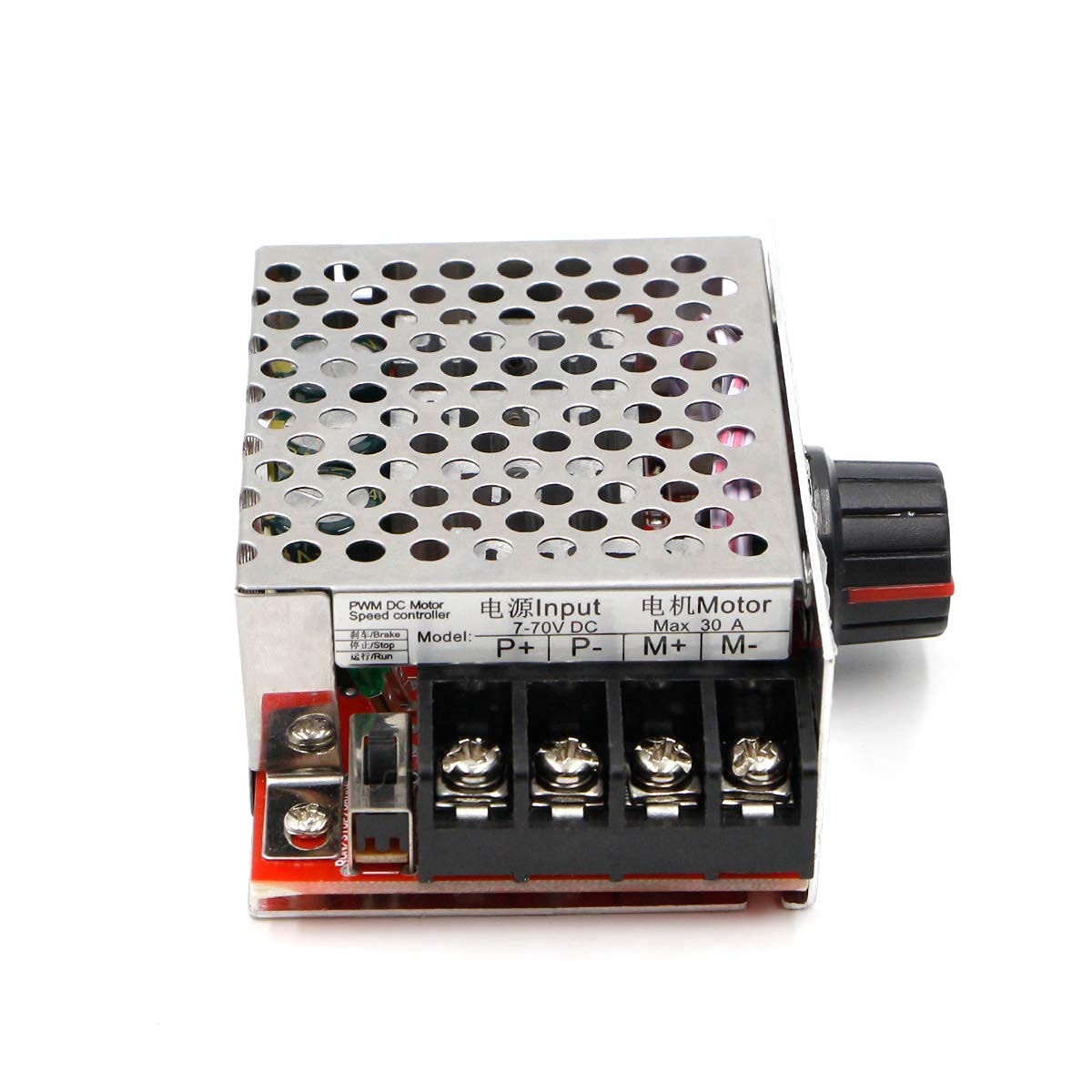

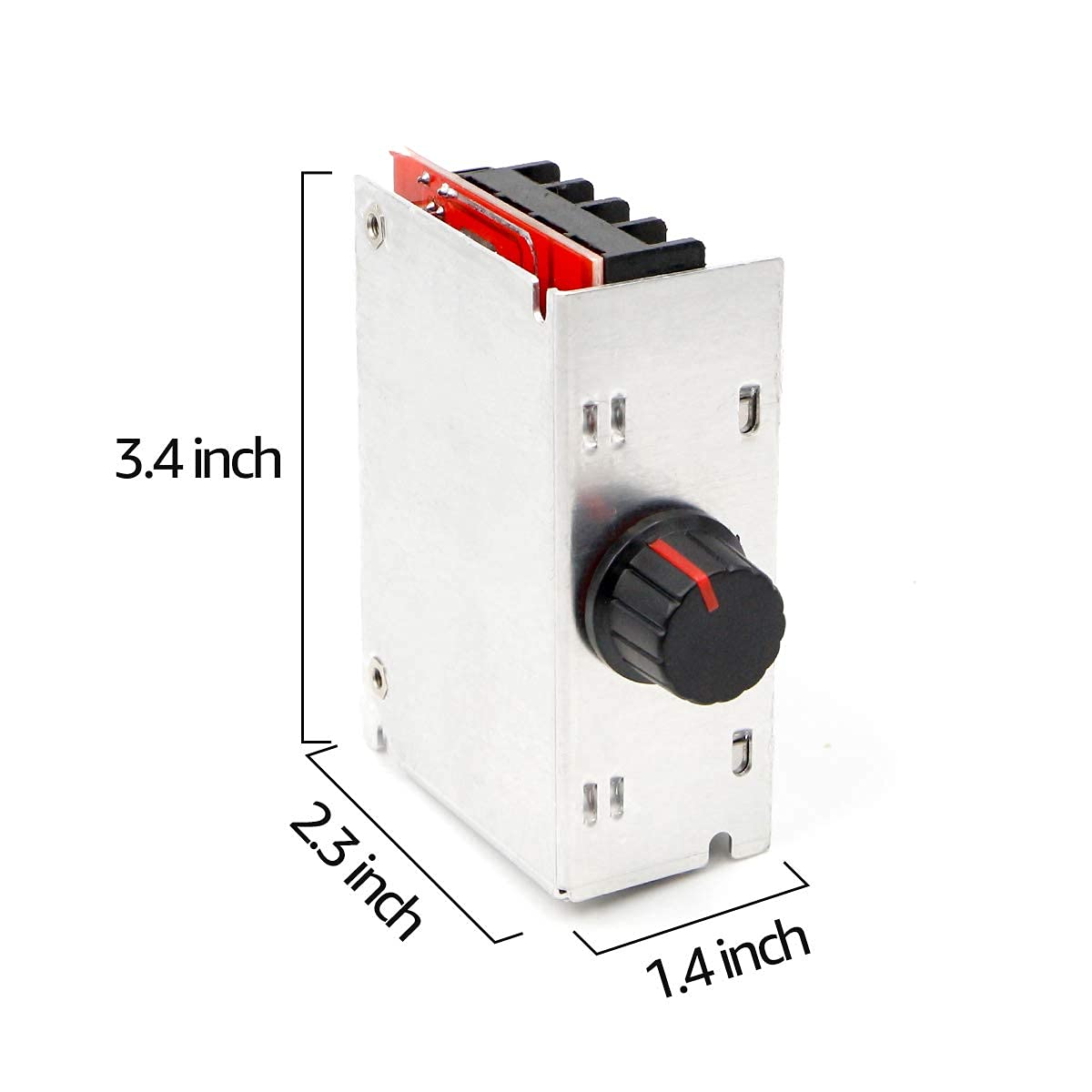

Specification: DC Motor Speed Controller Applicable voltage range: DC 7-70V Drive current: max. 30A (Please refer to the following "Control power (recommended)" for actual use current) Control power (recommended): -- 12V: within 250W -- 24V: within 350W -- 48V: within 450W -- 60V: within 500W Duty cycle adjustable range: about 1% -100% PWM frequency: 12KHz Shell size: 85mm * 58mm * 32mm Note: 1. This product is a DC brushed motor speed controller. It needs to be equipped with a DC power supply to power the governor. It cannot be connected to AC power and cannot drive the brushless motor. 2. Before powering on the wiring, please read the wiring label, and the input is direct current. The positive and negative poles should not be mistaken! The output connection to the motor (motor) does not need to be divided into positive and negative. If the direction of rotation is wrong, please change the two wires of the motor. Product List: 1 x DC Motor Speed Controller
