Fasizi 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Adjustable Knob Switch Plus Control Driver with Digital Display

• Input supply voltage: DC 10V-55V; maximum current: 60A; continuous current: 40A; speed range: 0-100%.
• Potentiometer with switch function, high speed speed control which is much more adaptable
• DC10V-55V PWM Brushed DC Engine Speed Regulator Adjustable Driver CW CCW Reversible Switch with Dial Display
• Outer casing: It is designed to protect the controller board from damage and dissipate heat
• The input voltage must distinguish between "+", "-". The input voltage should be the rated voltage of the motor within 10-55 V, otherwise it will be burned.

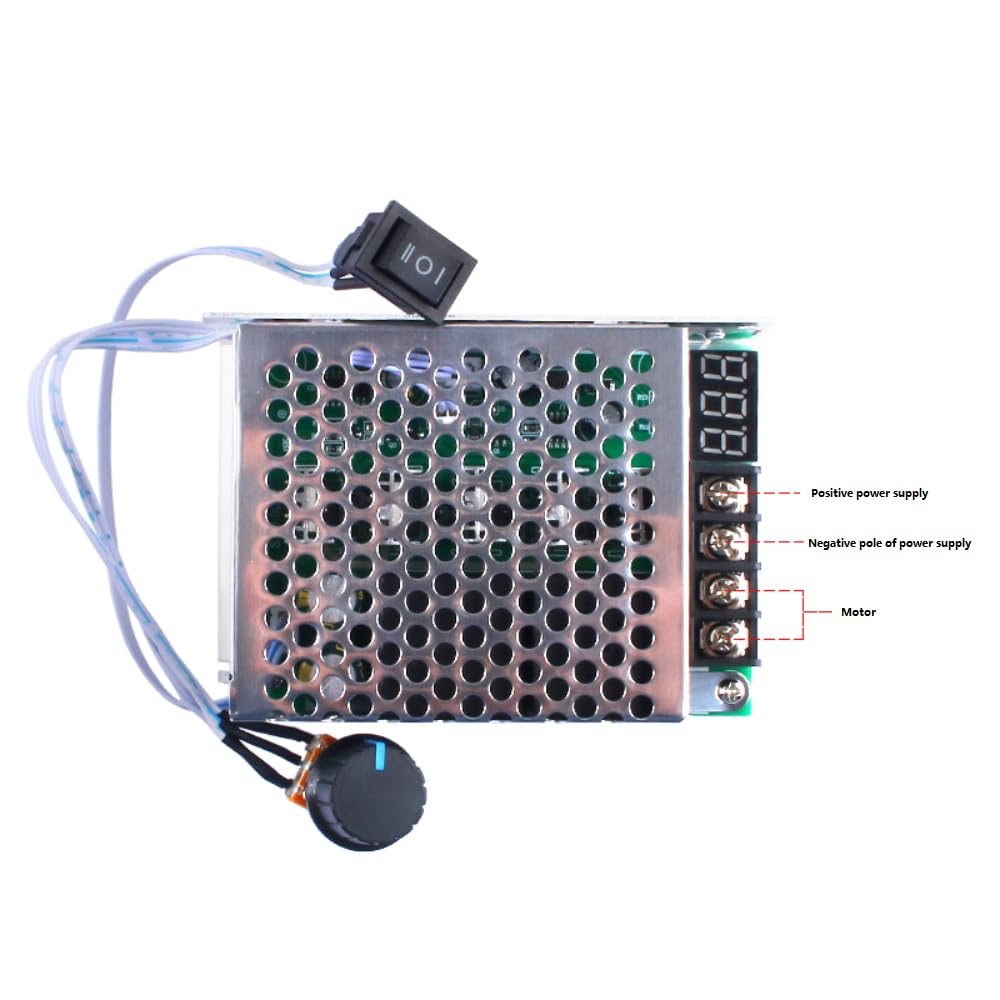

Description: 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Backward Adjustable Button Switch plus Control Driver with Digital Display Specifications: Motherboard size: 100 x 76 x 28 mm; shell size: 110 x 78 x 38 mm. High quality. Forwards and backwards: support. Control method: potentiometer with switch. PWM Frequency: 15kHz Wiring type: connection button. Rotary knob: 100K (with switch). Suitable for: brushed DC motor Bi-directional rotation: the rotation direction is optional. This means that the direction of rotation of the motor is reversed. Note: The digital display is the percentage engine speed 0-100 outside the engine. Contents: 1 x 10 V-55 V 12 V 24 V 36 V 40 A DC motor speed regulator forward reverse adjustable button switch plus control driver with digital display.
