fasient1 FG‑100 DDS Function Generator Counter Source Module, Sine 1Hz~500kHz, other Waveforms 1Hz-20kHz

• 【DDS Technology】Due to the high Accuracy and stable frequency of the DDS, it is also very suitable for the oscilloscope's scan time calibration factor.
• 【Output Waveforms】Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave.
• 【Frequency Range】Sine 1Hz~500kHz (Magnitude is flat up to 200kHz, 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range.
• 【Multi Purpose】The rectangular output is also suitable for oscilloscope attenuation links and probe pulse adjustment.Working with an oscilloscope, it can be used to troubleshoot the electronic circuit, characterize the audio amplifier frequency response or measure the impulse response.
• 【Wave Filter】Have a filter (can be turn on/off ) to suit the output of sine and pulse wave.

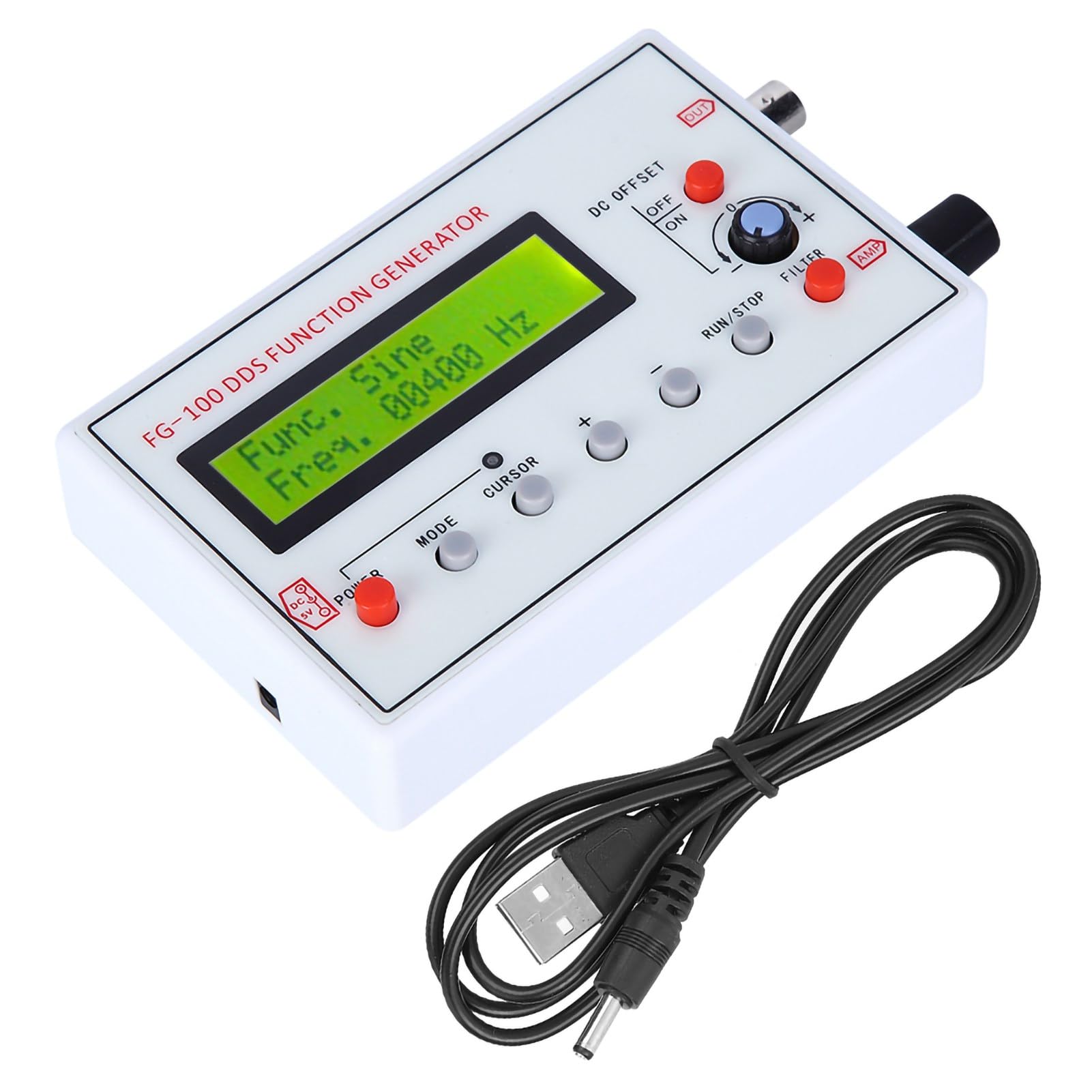

Specification: Condition: Brand New Item Type: Function Generator Material: ABS Color: As shown in the picture Frequency Range: Sine 1Hz~500kHz (Magnitude is flat up to 200kHz, 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you dont care the phase noise and distortion, it can output full frequency range. Resolution: 1Hz Output Waveforms: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave. Sinewave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz) Output Amplitude: Maximum ±10V(P-P). Output Impedance: 50 ohm DC Offset: Maximum ±10V, can be disabled Internal Filter: For sinewave or pulse, can be turn on/off Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended. Weight: Approx.172g/6.1oz Package List: 1 x Function Generator 1 x USB Cable 1 x Instruction Manual Note: 1. Please allow 12cm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
