Fashion Swallows 2x2 TV Wall Controller Bezel Adjustment 180° Flip 1x2 2x2 Loop Switch 1x3 3x1 1x4 4x1 Screen Stitching Processor Video Splicer

• * Support HDMI and DVI input;
• * Support four HDMI outputs;
• * Output supports RGB 4:4:4; supports RS232 control;

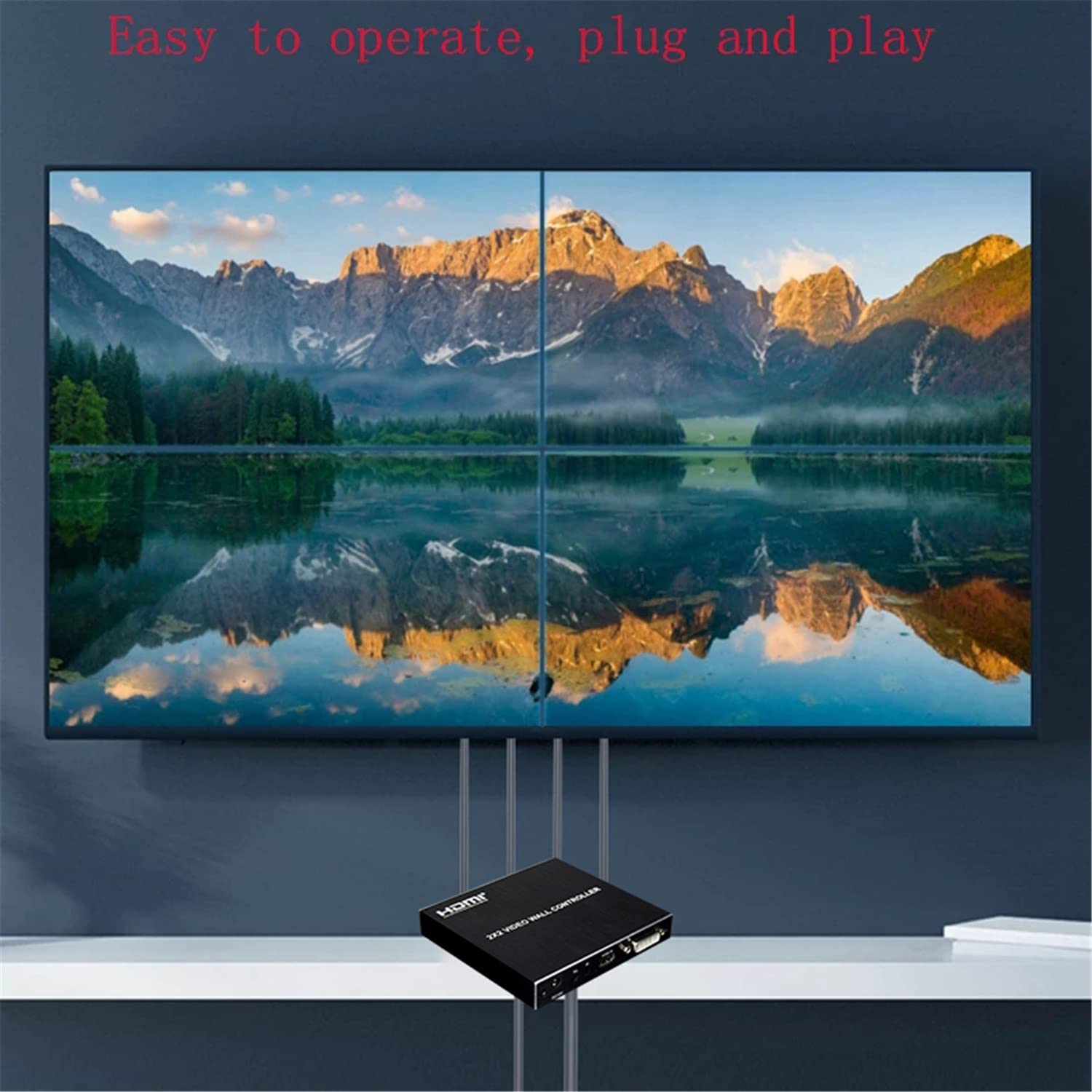

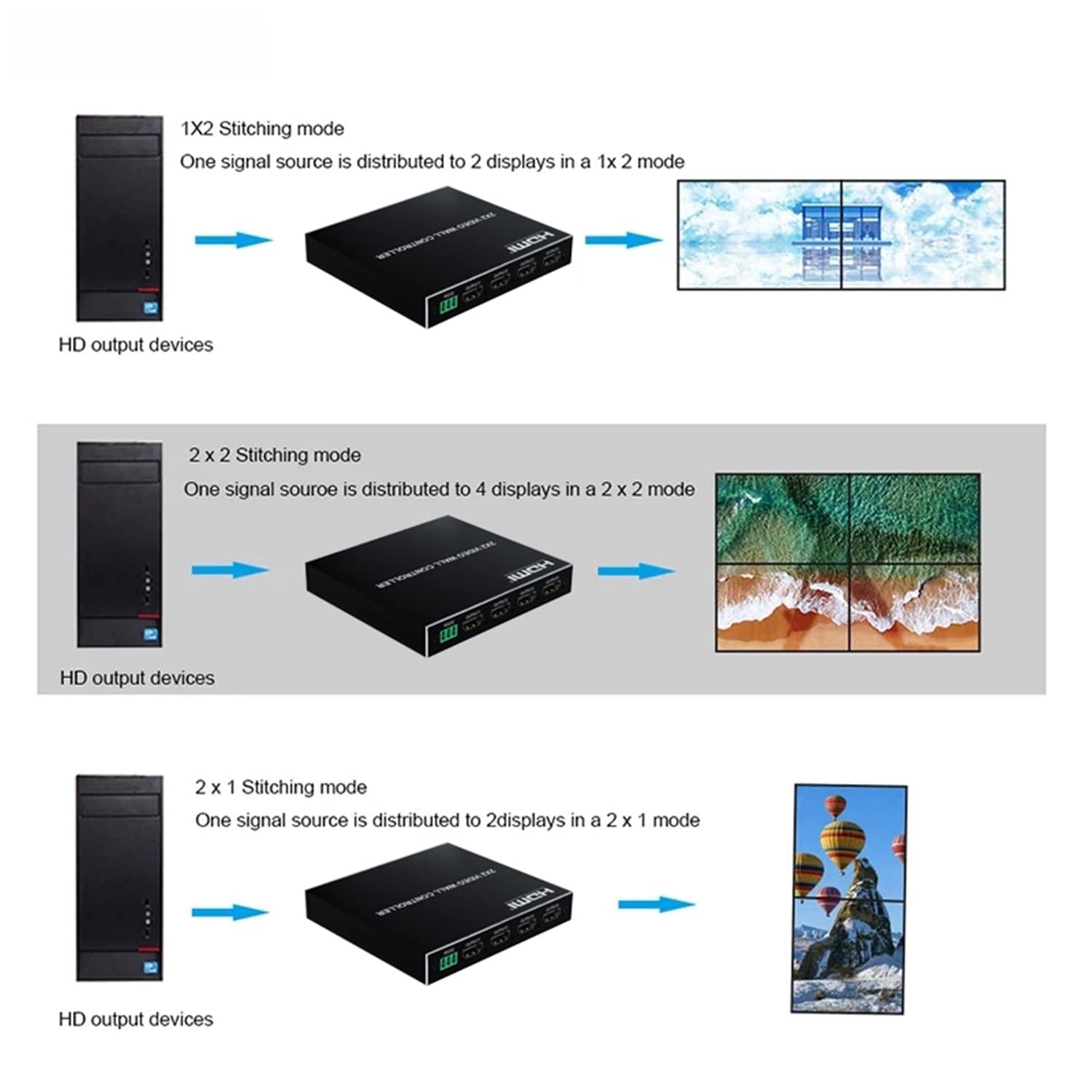

• * Support 2x2/1x2/2x1 splicing, easy to operate, plug and play;

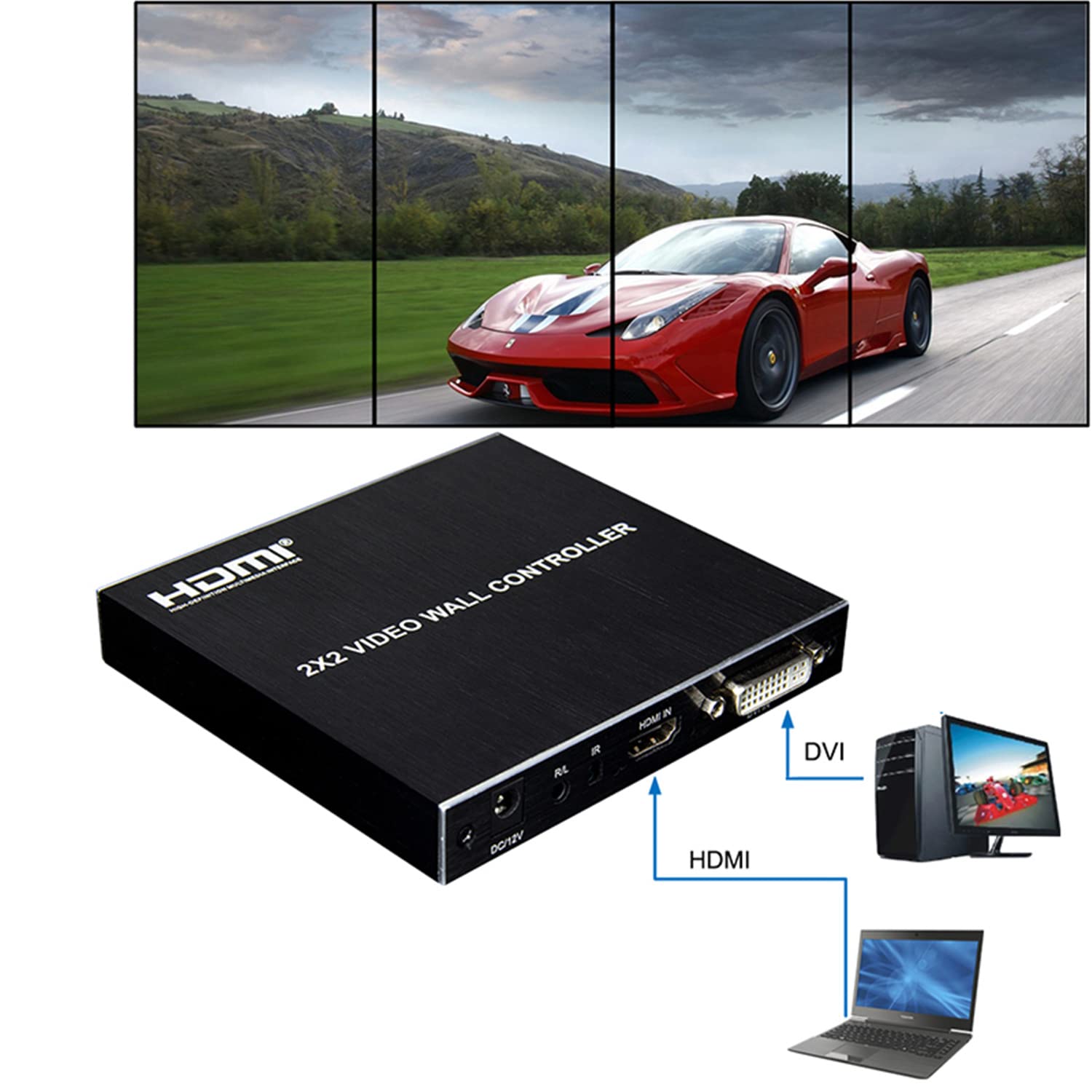

• * Support 2x2 automatic splicing function; DC12V/1A power supply; This 1080P 2X2 splicer supports 1 HDMI or DVI input, 4 HDMI output, the main function is to integrate a complete The HDMI and DVI high-definition image signals are divided into 4 blocks and then distributed to 4 video display units (such as rear projection units, LCD TVs, etc.), completing the use of 4 hdmi high-definition video display units to form a large dynamic image screen.

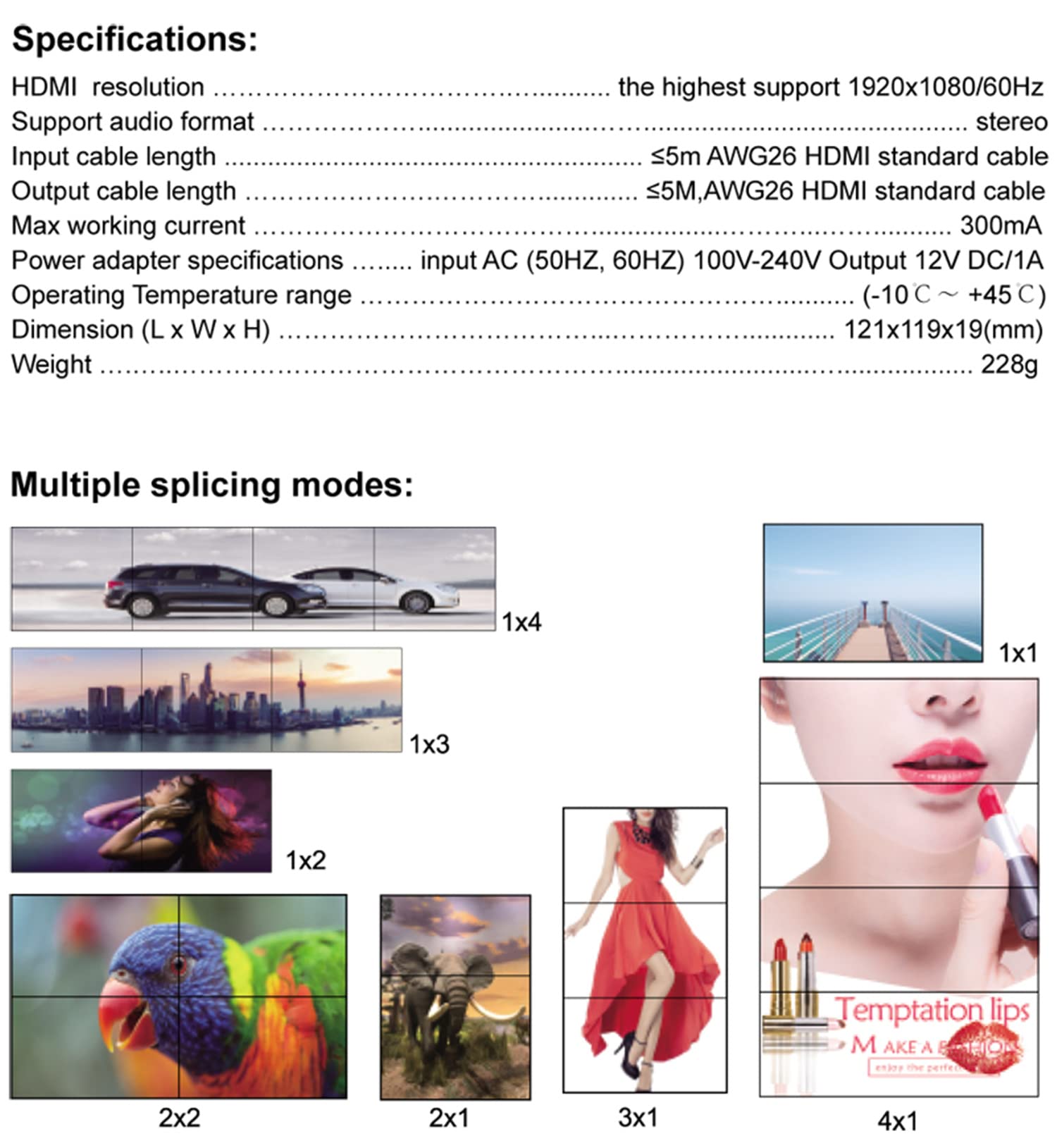

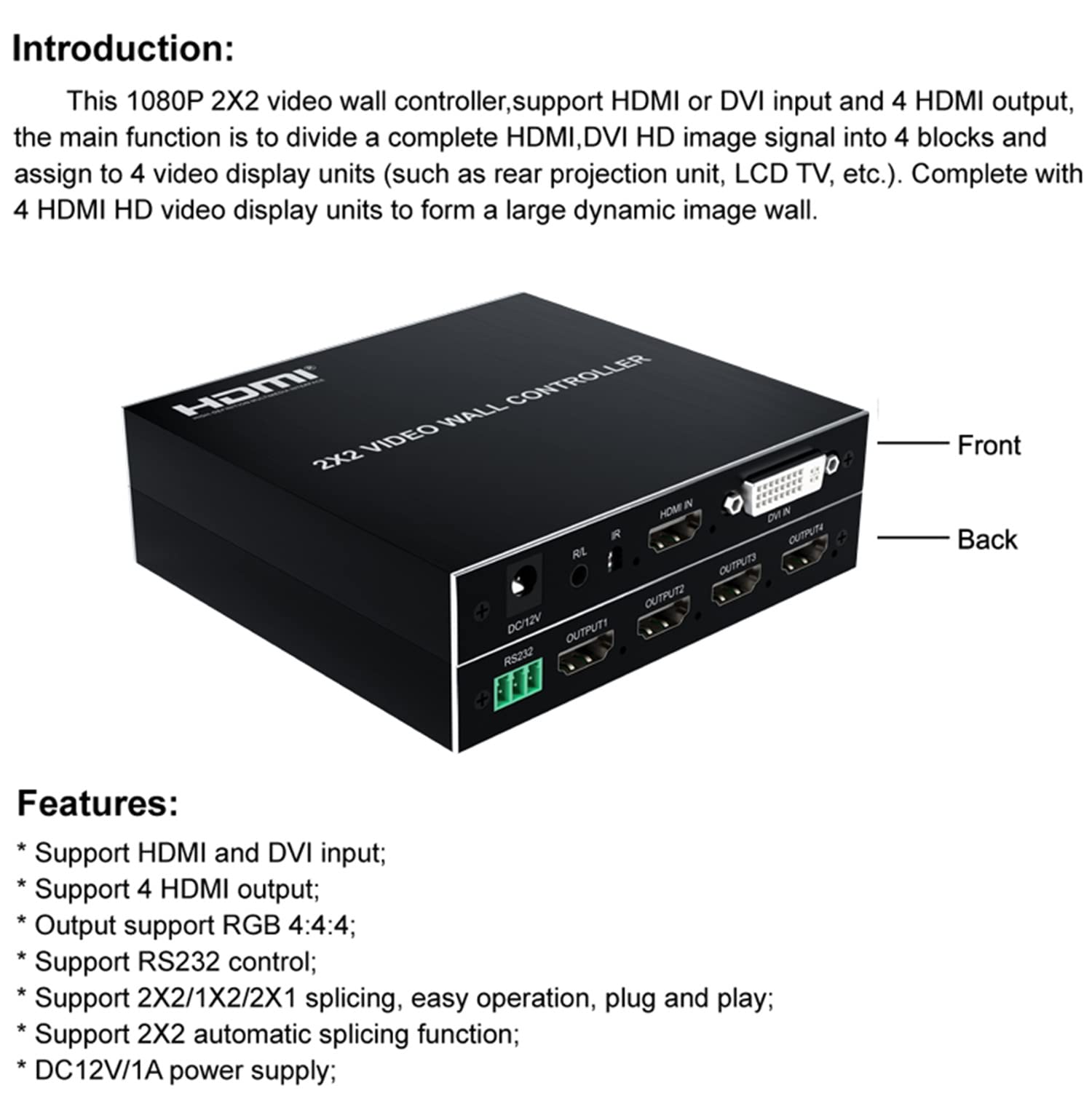

Introduction: This 1080P 2X2 video wall controller,support HDMI or DVI input and 4 HDMI output,the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall. Features: * Support HDMI and DVI input; * Support 4 HDMI output; * Output support RGB 4:4:4; * Support RS232 control; * Support 2X2/1X2/2X1 splicing, easy operation, plug and play; * Support 2X2 automatic splicing function; * DC12V/1A power supply; Specifications: HDMI resolution：the highest support 1920x1080/60Hz。 Support audio format：stereo。 Input cable length：≤5m AWG26 HDMI standard cable。 Output cable length：≤5M,AWG26 HDMI standard cable。 Max working current ：300mA Power adapter specifications ：input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A Operating Temperature range：(-10C~ +45C) Dimension (Lx Wx H) ：121x119x19(mm) Weight：228g
