EXSYS EX-60320 10/100Mbps 802.3at PoE+ Splitter

• Plug and play, no setup and installation
• Separates data and power from a PoE signal
• Ethernet 10/100Base-TX
• Reduces system wiring
• Compact shape as a cable adapter

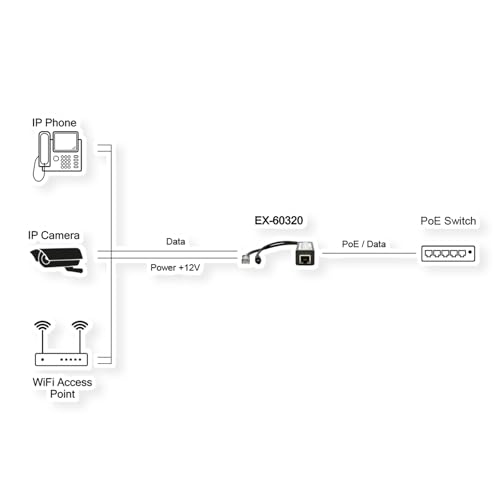

PoE+ splitter, 10/100Mbps, 12VDC/21W The EX-60320 PoE+ Ethernet splitter splits the signal from a PoE Power Provider (PSE) into data and power and outputs both signals separately. Thus, non-PoE Ethernet terminals (IP cameras, WLAN access points...) to a PoE switch or other PSE and use their power. It complies with the IEEE 802.3at PoE+ standard and provides a voltage of 12VDC on the DC connector with power 21W maximum to power the terminal. The compact design in the form of an adapter cable offers extremely flexible application possibilities. - Separates data and power from a PoE signal to power non-PoE Ethernet terminals - Reduces system wiring, improves system stability/security, and reduces maintenance costs - Voltage delivered to DC connector: 12VDC max. 21w - Fully IEEE 802. 3af/at Compliant Power Over Ethernet (PoE) - Ethernet 10/100Base-TX - Plug and play, no setup or installation required - LED status indicator for PoE power - Compact shape as a cable adapter - ABS plastic and flame retardant polycarbonate housing - 2KV isolation protection, short circuit, over-current and overheat protection
