Evemodel T0603R 20pcs Model lamps Pre-soldered micro litz wired RED 0603 SMD Led

• 100% Brand new and high quality. Perfect for small models and really tight places!
• Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler.This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage.
• For utmost miniaturization, magnet (copper) wire with only 0.1 mm in diameter (cross sectional area 0.008 mm2) is used, wafer-thin and ultra-flexible, but still covered with an electrical-isolating clear lacquer coating.The wire length is about 200 mm. For easy recognizable connecting, the Cathode is about 10 mm shorter than the Anode.

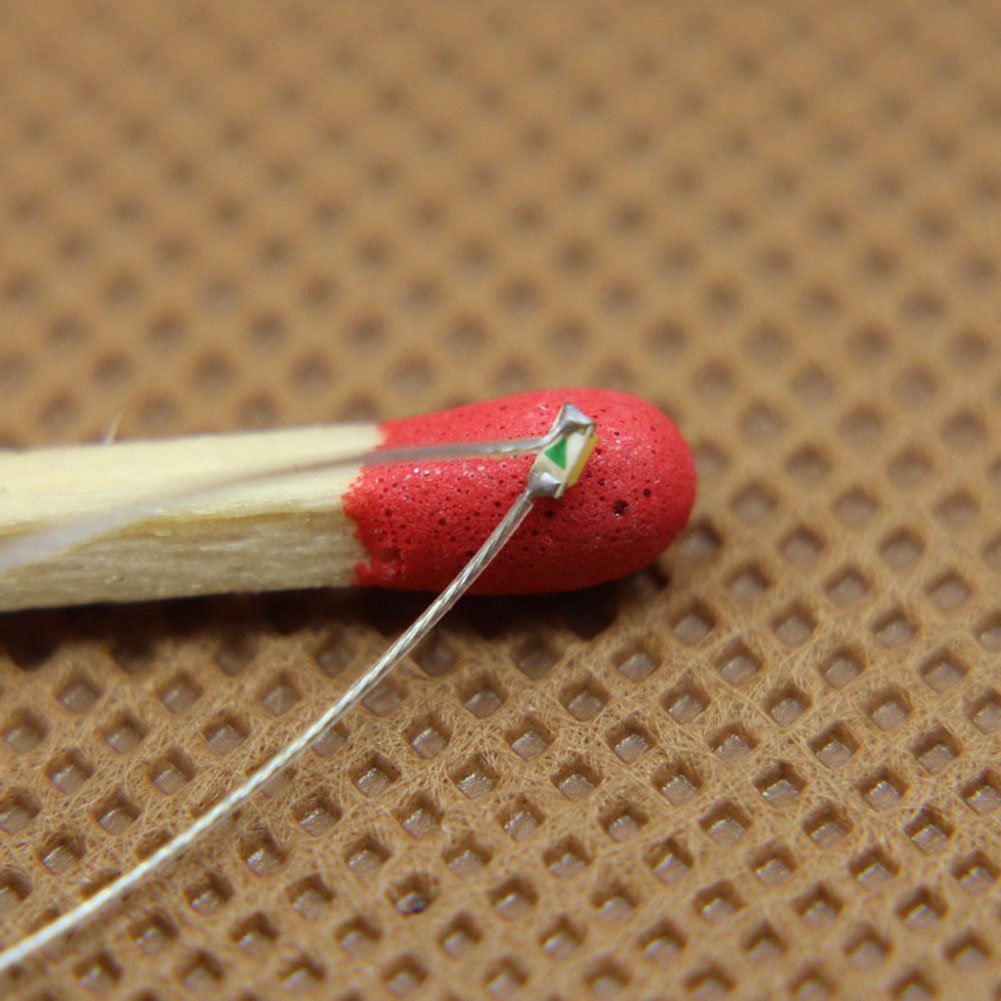

• Size: It's SMD Led 0603(1.60x0.80mm), The wire is about 20cm(L).

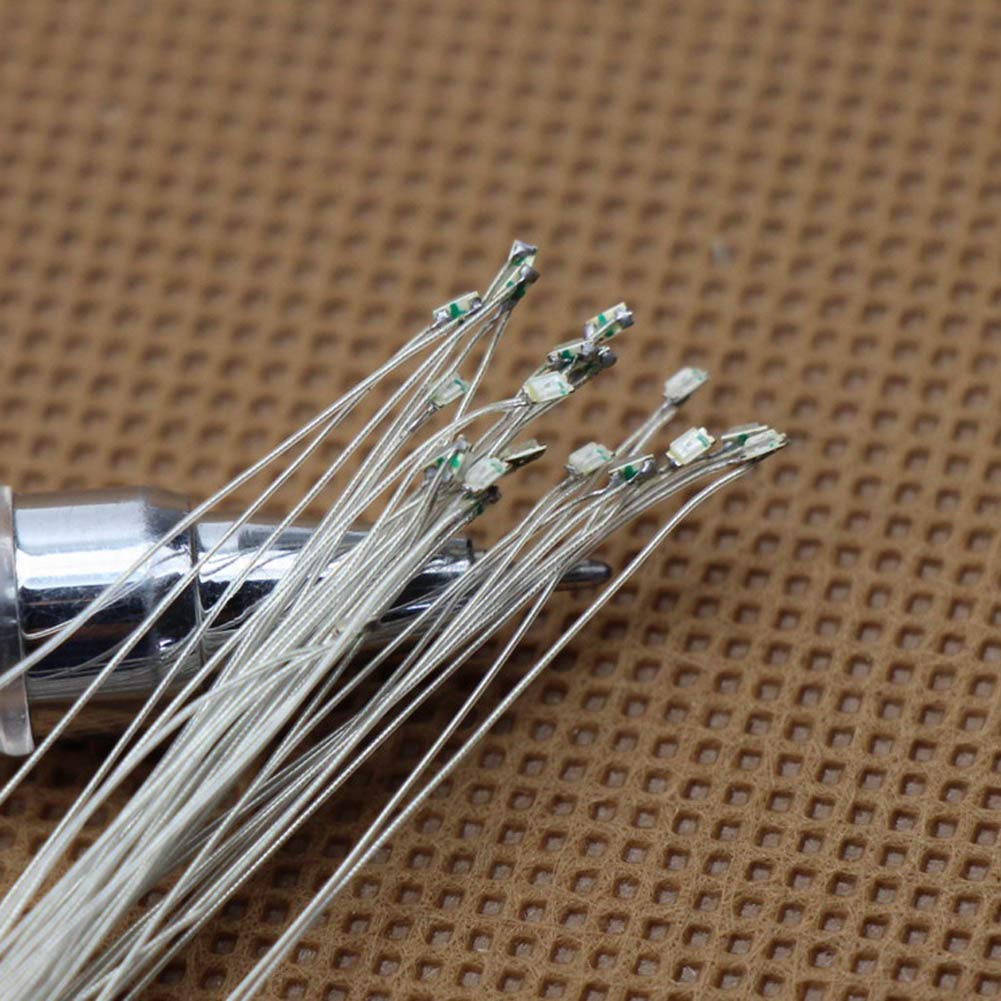

• Package included:20 Pre-soldered with micro litz wired SMD Led 0603.20 resistors (not pre-soldered) for 9~18V operation.

Features: Brand new. Perfect for small models and really tight places! Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler. This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage. For optimal insulation with minimal outside diameter and at the same time "water-like" softness, translucent grey stranded micro litz wire with only 0.28 mm in diameter is used. The insulation is made from a highly heat-resistant material with a high Teflon-fraction. That´s why during soldering there is almost no longitudinal shrinkage. The wire length is about 200 mm. For easy recognizable connecting, the Cathode is about 10 mm shorter than the Anode. Specifications: Brand: Evemodel. Size: It's SMD Led 0603(1.60x0.80mm), The wire is about 20cm(L). Forward voltage:1.8V~2.4V, AC or DC Compatible. Forward current (typ/max): 15mA/20mA. Viewing angle:120°. Emitting color: RED. Package included: 20 Pre-soldered with micro litz wired RED SMD Led 0603. 20 resistors (not pre-soldered) for 9~18V operation.
