XTVTX ESP-32 DevKitC ESP-32 Development Board NodeMCU-32 ESP-WROOM 32D CP2102 Chip Successor module of the ESP-32 DevKit compatible with IDE

• ESP-32-DevKitC ultra-low power consumption, works perfectly for Arduino IDE, makes programming easier.
• ESP-32-DevKitC board with latest ESP-WROOM-32D module, the chip ESP-32-D0WD is scalable and adaptable.
• Developers can either connect peripherals with jumper wires or mount ESP-32-DevKitC V4 on a breadboard.
• ESP-WROOM-32D is safe, reliable and scalable for a variety of applications, with 2.4GHz WiFi Bluetooth.
• Most I/O pins on the ESP-32-DevKitC are split between the headers on both sides for easy connectivity.

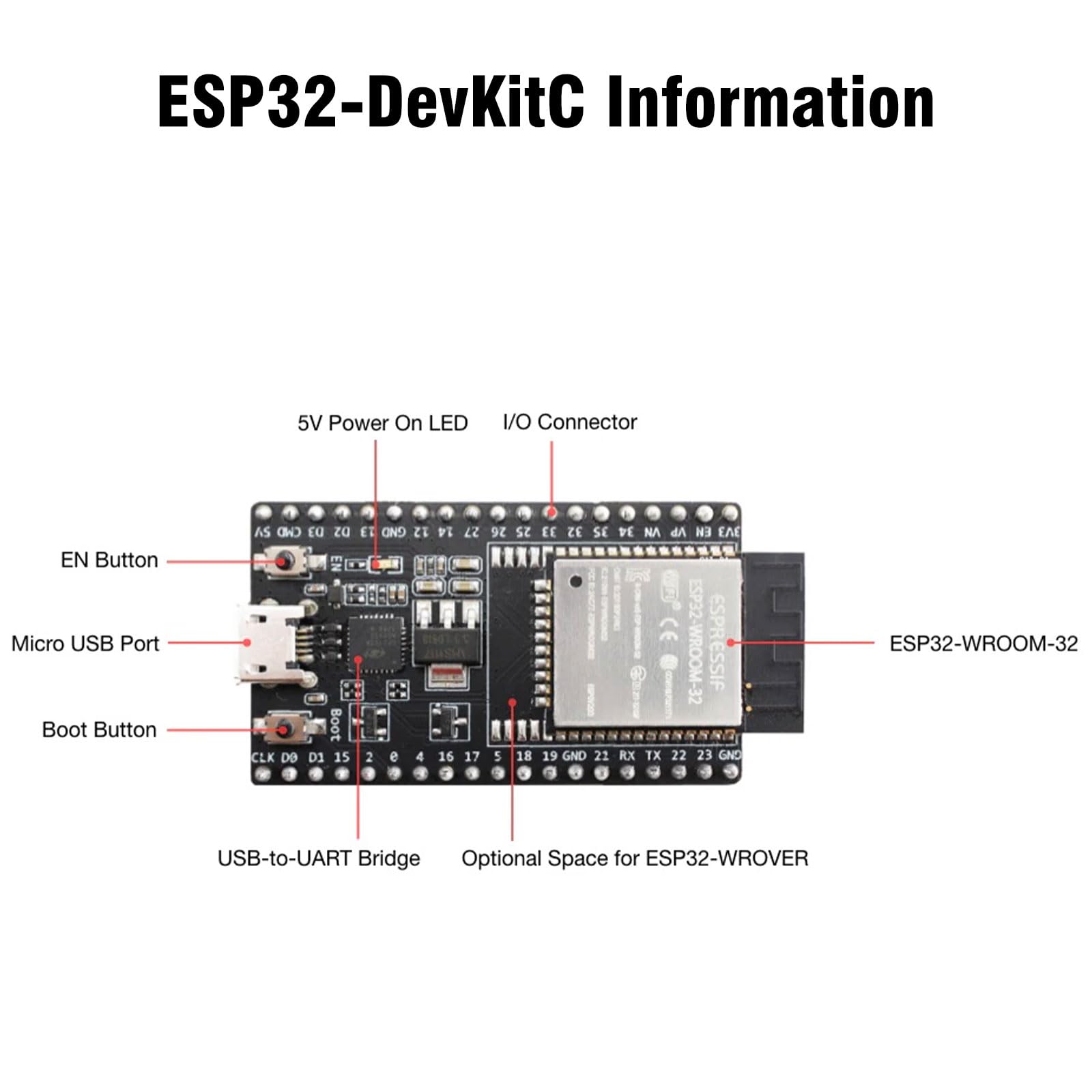

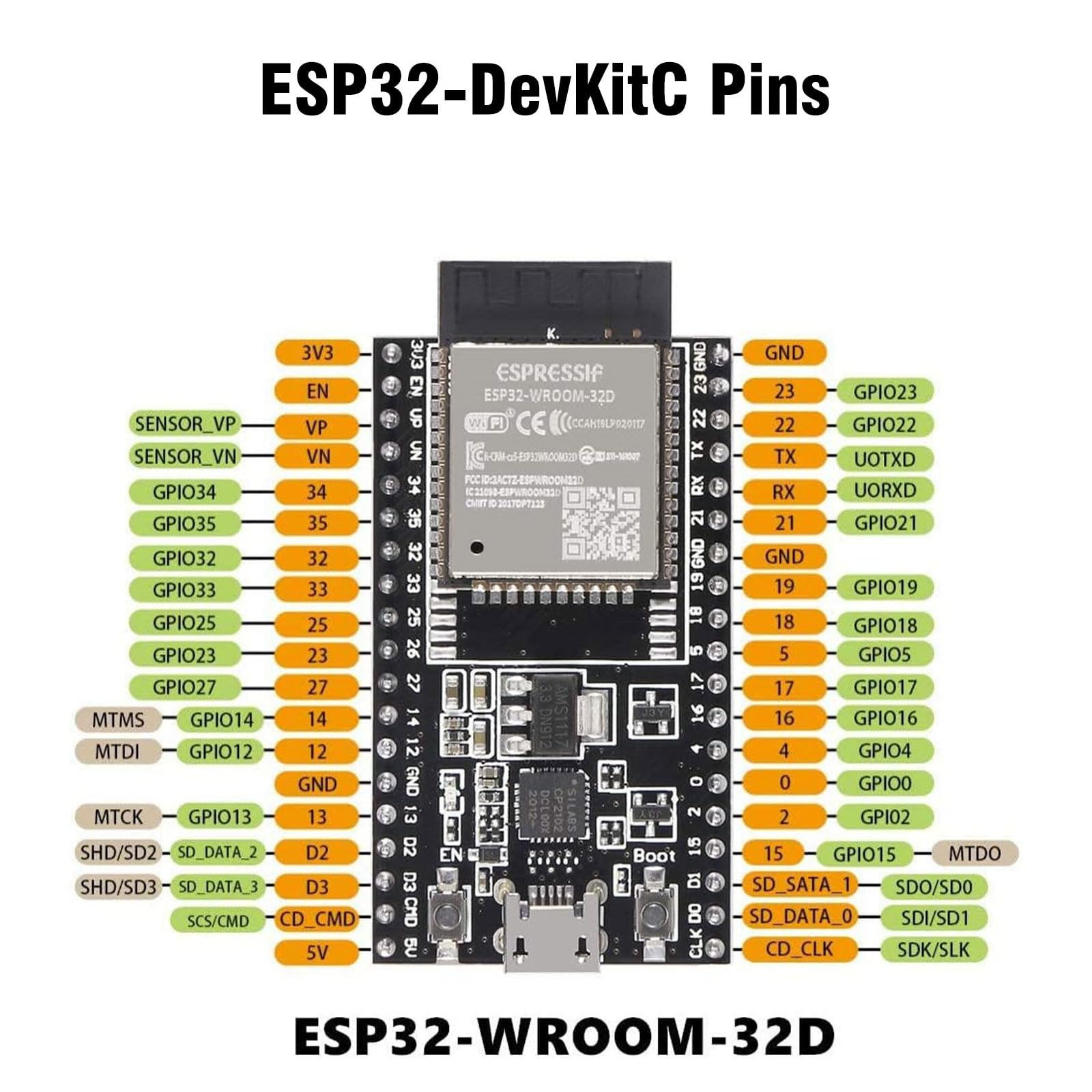

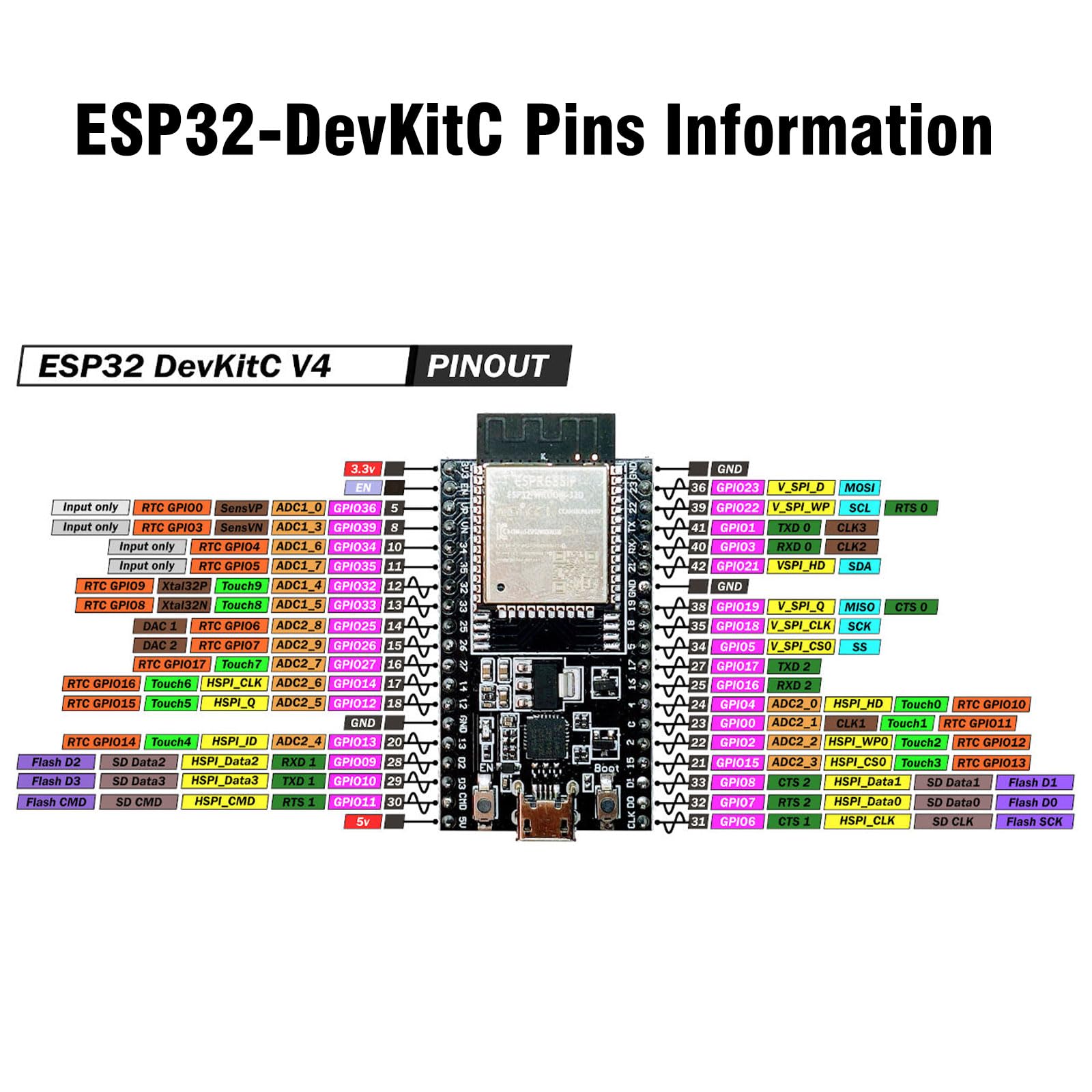

Description: XTVTX ESP-32-DevKitC is equipped with ESP-32-WROOM-32D module and CP2102 driver chip for Bluetooth and WiFi connectivity. ESP-32-DevKitC has rich hardware resources including Wi-Fi, Bluetooth, GPIO, UART and other interfaces suitable for developing IoT, embedded systems and other areas. The ESP-32-DevKitC is equipped with a USB interface, debugging interface, etc., which makes it easier for developers to burn and debug programs. For beginners, the ESP-32-DevKitC is a great development board for learning and practicing. ESP-32-DevKitC Parameters: Flash: 4 MB. Supply voltage: 5V/3V. Pin description: EN:Reset button BOOT: Download button Hold down the boot button and press the EN button at the same time (do not release the boot button at this time) to enter "Firmware Download" mode, and then enter "Firmware Download" mode via the serial port. Firmware download mode, via the serial port to download the firmware. USB: Can be used as a power supply for the board or as a communication interface between the PC and the ESP-32-WROOM-32 module. 1/O: Most pins of the module on the board are connected to the pins of the development board. Package includes: 1 x ESP-32-DevKitC development board
