ESP32-C6 Microcontroller WiFi 6 Development Board with Pre-soldered Header ESP32-C6-WROOM-1-N8 Module,RISC-V 32-bit Sngle-core Processor, WiFi 6+Bluetooth 5+IEEE 802.15.4 Wireless Communication

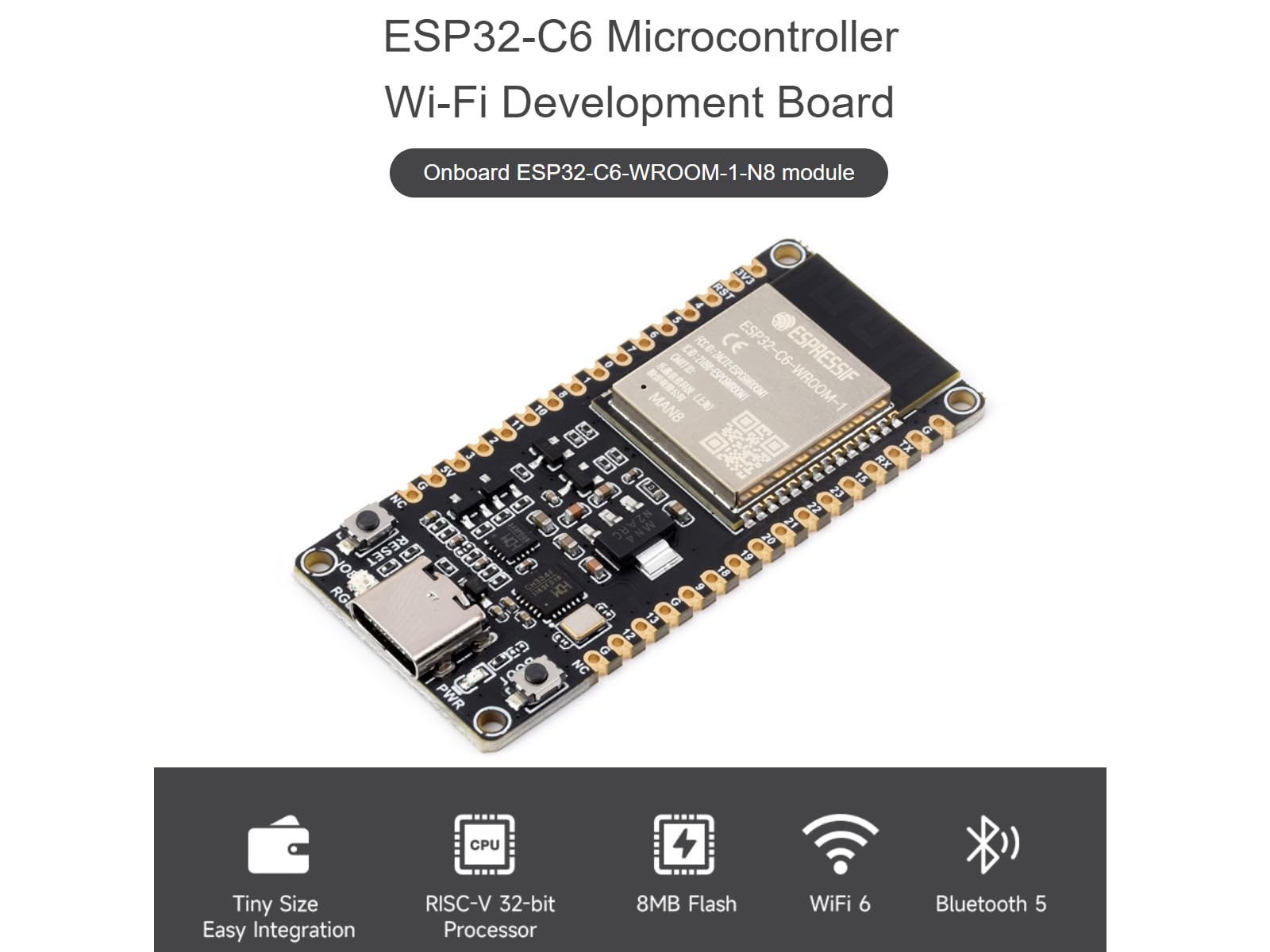

• Adopts ESP32-C6-WROOM-1-N8 module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash

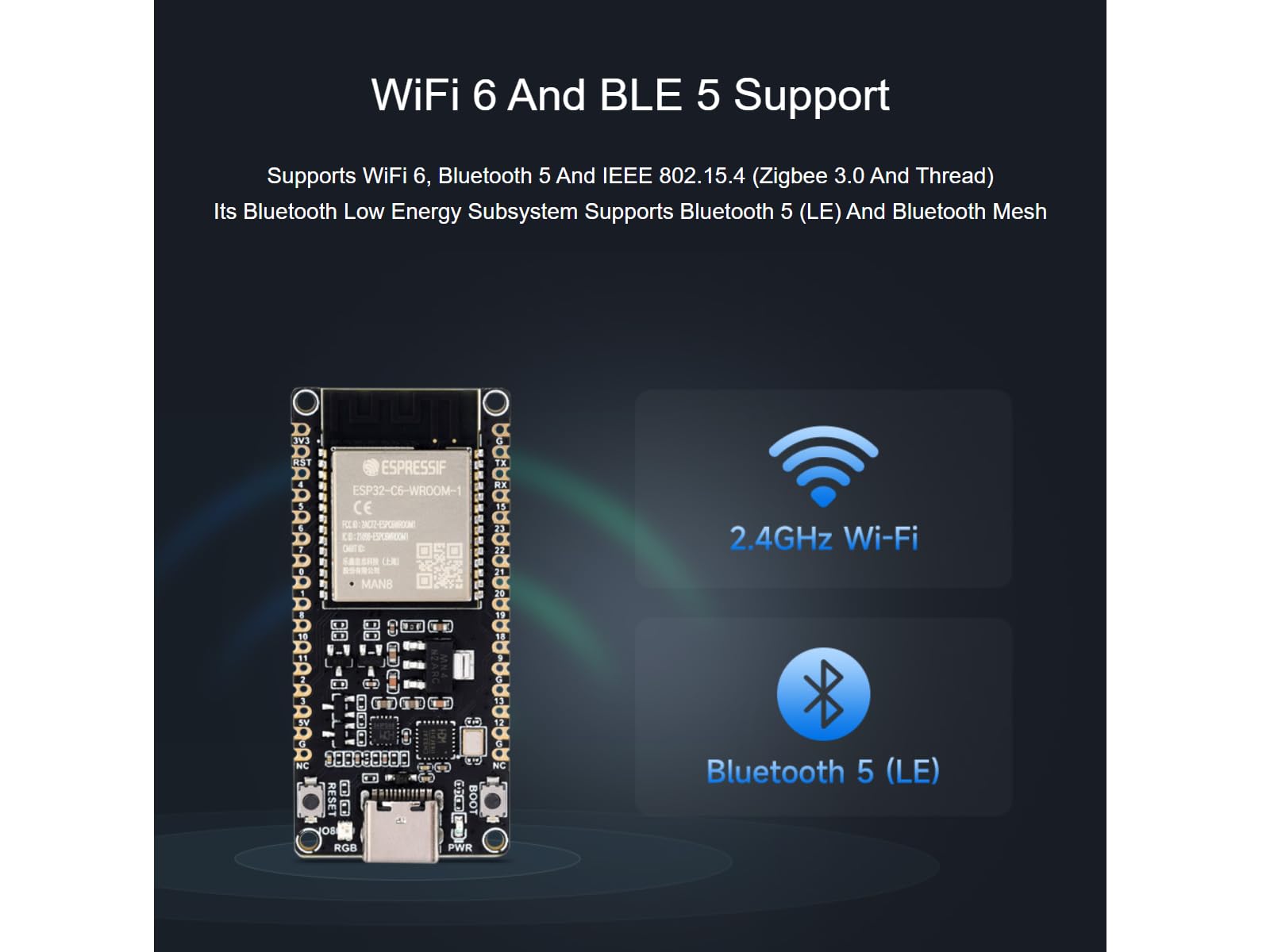

• Integrated WiFi 6, Bluetooth 5 and and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Type-C connector, easier to use
• Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

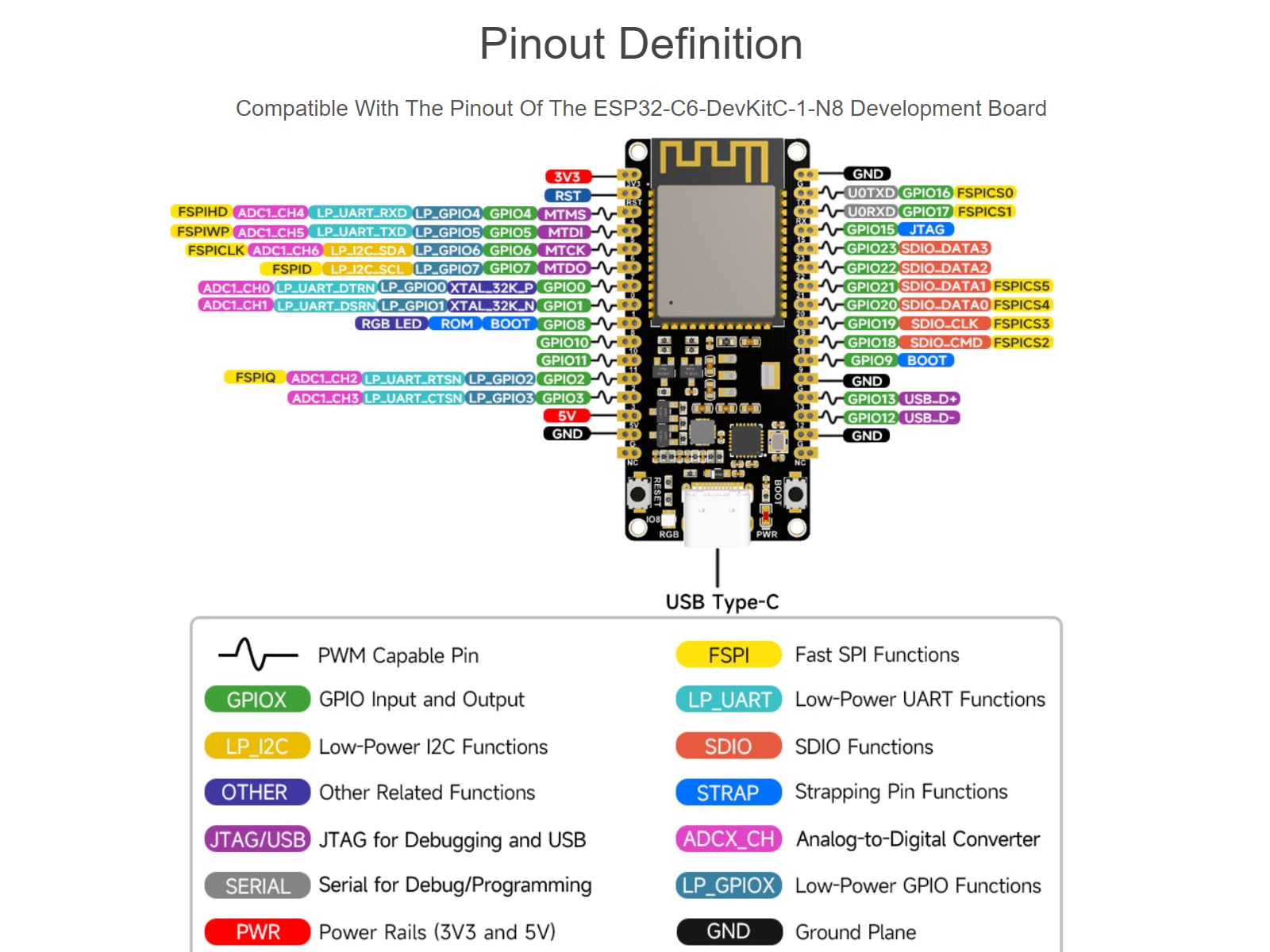

• Rich peripheral interfaces, compatible with the pinout of the ESP32-C6-DevKitC-1-N8 development board, offers strong compatibility and expandability.Castellated module allows soldering directly to carrier boards

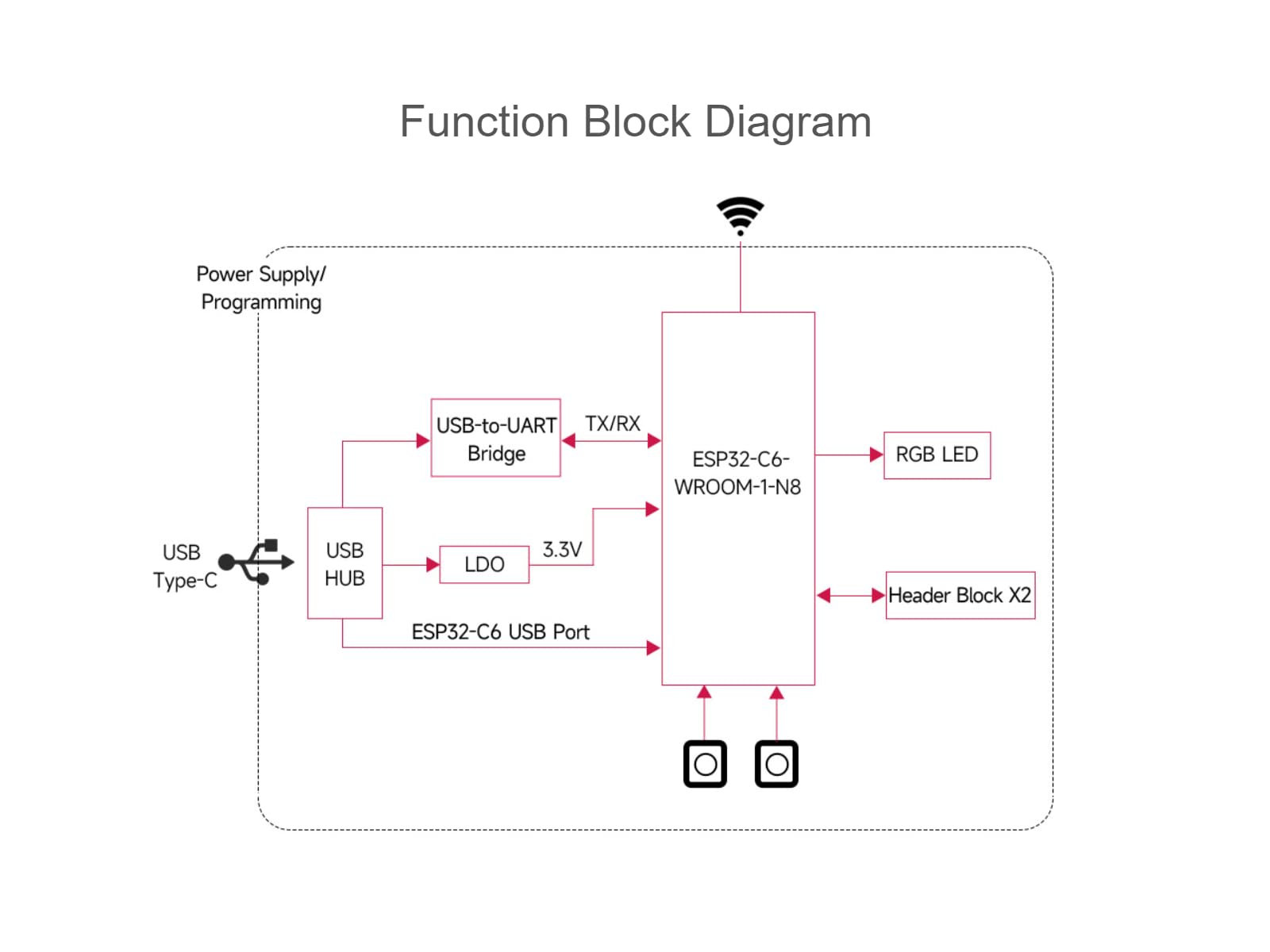

ESP32-C6 Microcontroller, WiFi 6 Development Board with pre-soldered header x1, 160MHz Single-Core Processor, ESP32-C6-WROOM-1-N8 Module, Supports USB And UART Development Overview The ESP32-C6-DEV-KIT-N8 is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications. Adopts ESP32-C6-WROOM-1-N8 module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-C6-DevKitC-1-N8 development board, more convenient to use and expand a variety of peripheral modules. Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product. Development Resources https://www.waveshare.com/wiki/ESP32-C6-DEV-KIT-N8?Amazon Package Content ESP32-C6-DEV-KIT-N8 with pre-soldered header x1
