Fuhuihe MT50 LCD Display Remote Meter, Suitable for Tracer-A/An/BN Series 10-100A MPPT Solar Charge Controller

• MT50 Automatic identify and display the type, model and relevant parameter data of controllers
• Real-time display the operational data and working status
• Remote Meter Suitable for Tracer-A/An/BN Series 10-100A Solar Charge Controller MPPT, NOT FIT for RENOGY & HQST MPPT
• Both data and power flowing on the same lead, no need external power supply
• Direct, convenient and rapid operation of six navigation function keys

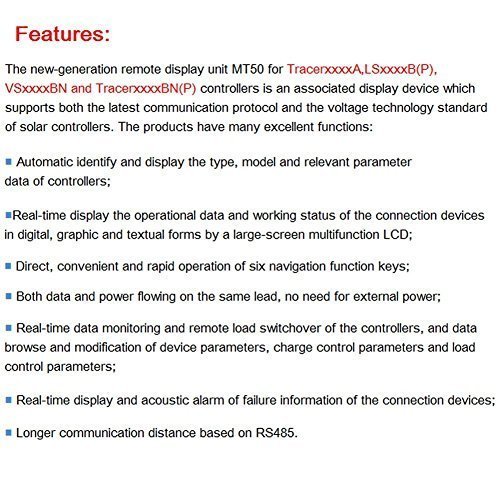

Features: - Automatic identify the controller, and display relevant parameter data. - Large-screen informative LCD displays all the operating data and system working status. - Simple and convenient operation. - Real-time alarm of failure information. - Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control. - Battery type selection: Gel, sealed, flooded and User(programmable). - Programmable parameters. - Energy statistics display function. Parameters: - Self-consumption: Backlight on<23mA, Backlight off <15mA. - Faceplate dimensions: 98 * 98 mm / 3.86 * 3.86 in. - Frame dimensions:114 * 114 mm / 4.49 * 4.49 in. - Connector type: RJ45. - Meter cable : 2m. - Net weight: 0.190 Kg.
