EPEVER MPPT Solar Charge Controller 30A 150V PV Solar Panel Controller Negative Ground

• Negative Grounding MPPT Solar Charge Controller Tracer3215BN, The Advanced MPPT Control Algorithm makes this 30 Amp MPPT Controller Tracking Efficiency higher than 99.5%

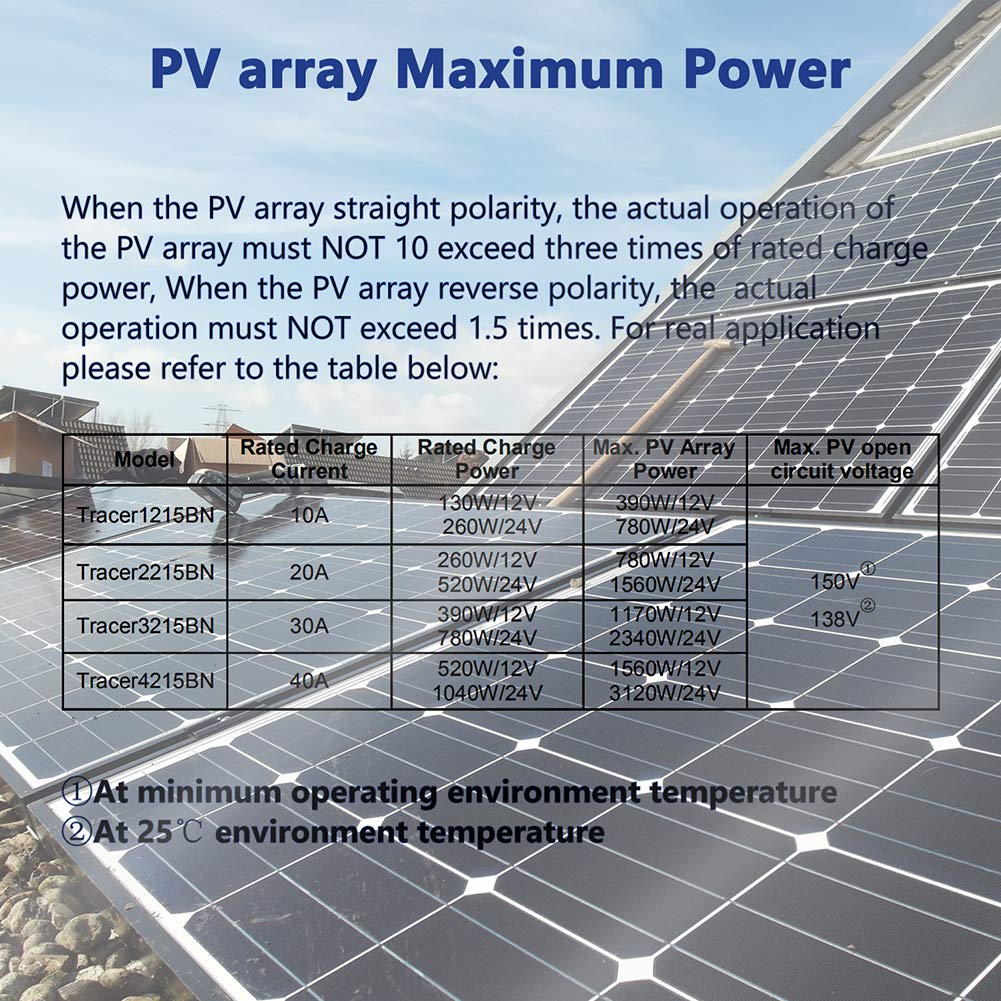

• EP 3215BN MPPT Solar Panel Charger works with 390W Solar Panel on 12V Battery System and 780W on 24V Battery.

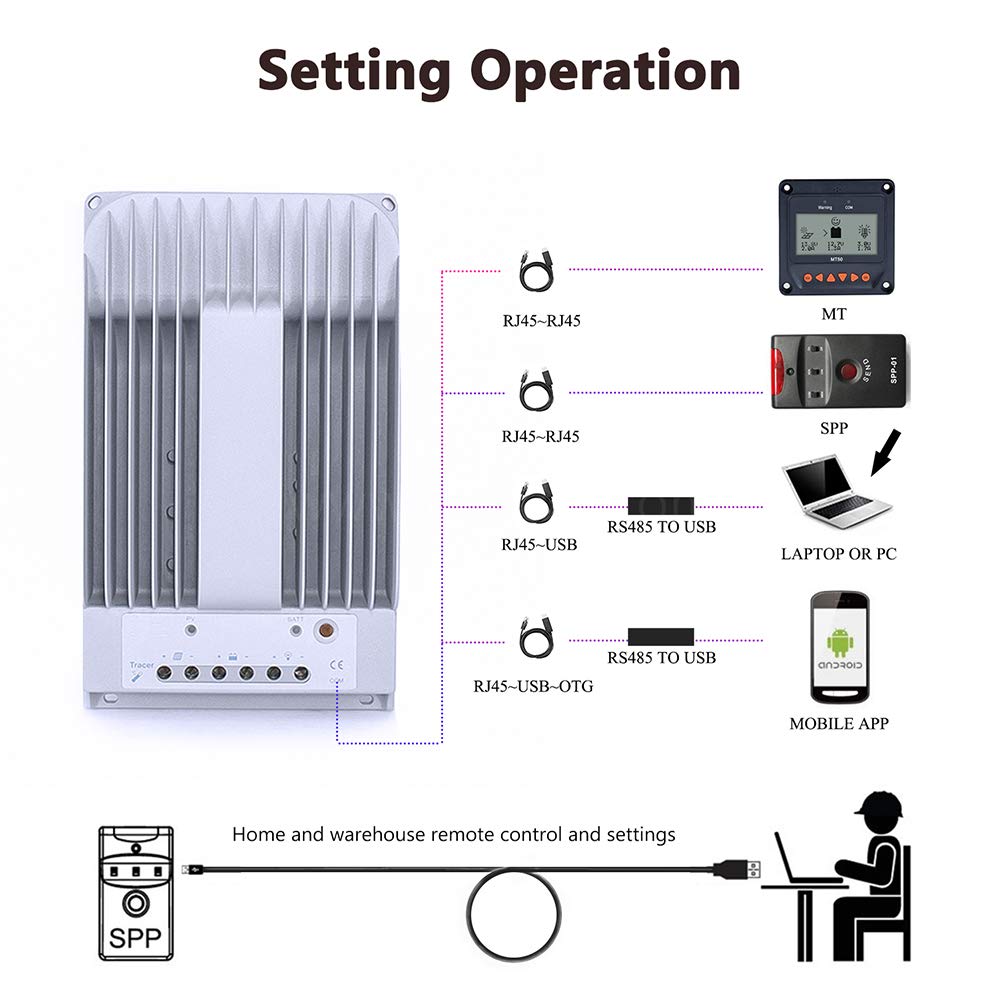

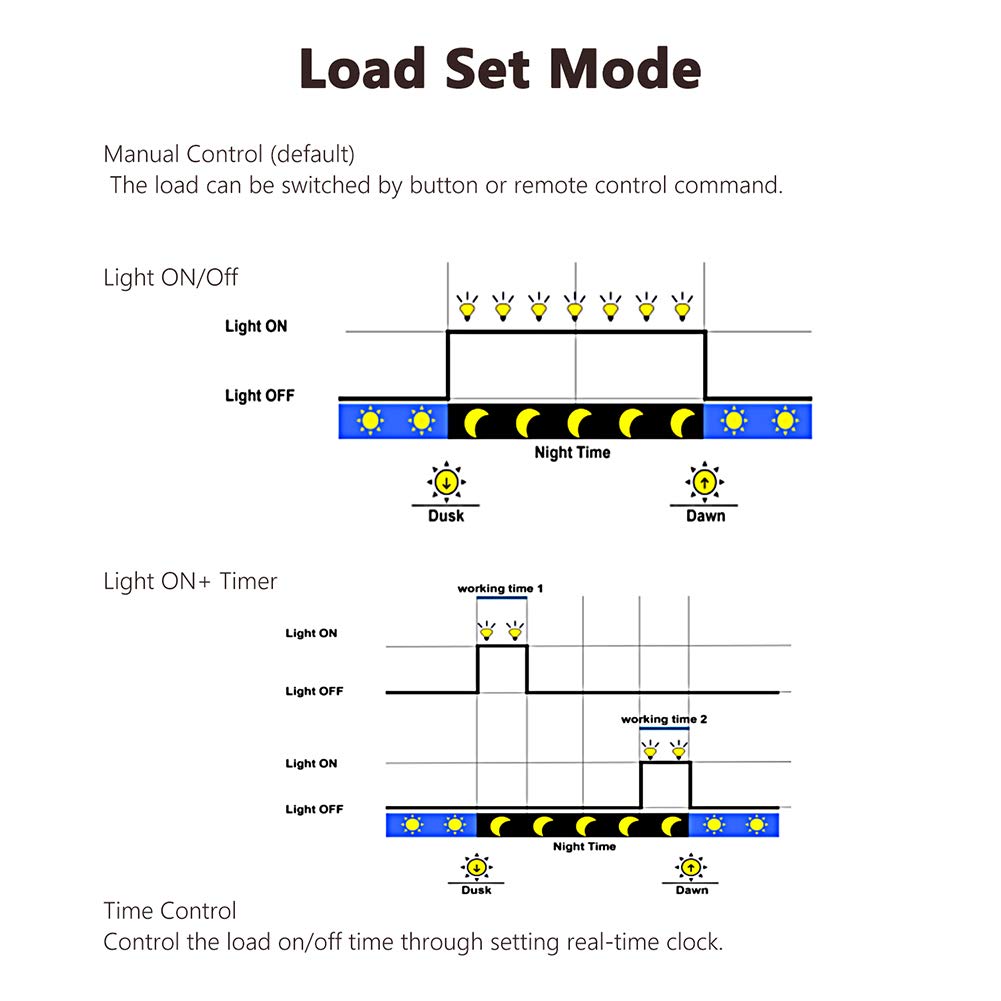

• Solar Controller MPPT support PC software,APP and MT-50. Auto identifying 12V/24V DCsystem voltage. Work with all Lead Acid Batteries: Sealed, Gel, Flooded AGM and Deep Cycle battery. Multiple load control method.
• 30A Negative Grounding MPPT Solar Charge Controller Advanced MPPT technology High tracking efficiency no less than 99.5% Peak conversion efficiency of 98%.
• 150V Max PV Input Allow this Charge Controller Handles More Solar Panels Wiring in Series to minimize PV current, 5 x 12V Solar Panel Connecting in Series will be applicable

Specifications: 30A MPPT Rated System Charge Controller Voltage: 12 V, 24 V Rated Charging current: 30ARated Charging current: 20AMax PV Open circuit voltage: 150V/138VMax PV Input power: 390W (12V battery) / 780W (24V battery) EPEVER Tracer3215BN 30 amp controller Solar charge characteristic: negative grounding, 150V/138V PV input dissipation metal housing allows natural heat support. 4 charging options: waterproof, frost, flooded and user 4 charging stage connection series (chain) of photovoltaic modules allows to minimize charging current as a means of saving advanced maximum power point tracking (MPPT) technology, with an efficiency to the minus 99. 5% ultra-fast tracking speed and tracking efficiency Standard Features Modbus interface with RS485 PortPackage List: 1 x Solar Charge Tracer 3215BN Regulator1 x User Manual
