Emergency Exit Light Emergency Light Emergency Light Emergency Lighting Exit Emergency Exit Escape Exit IL PF

• Power supply:200–240 V 50 Hz Alternating Current
• Batteries:3.6 V / 1000 mAh, emergency light duration:90 min
• Battery charging time:24 hours, lights only when Storm failure
• EN 60598-2-22:2002+A1:2004+A2:2008; EN 13032-2:2004+A1:2012; EN 1838:2013
• Mounting type: Wall

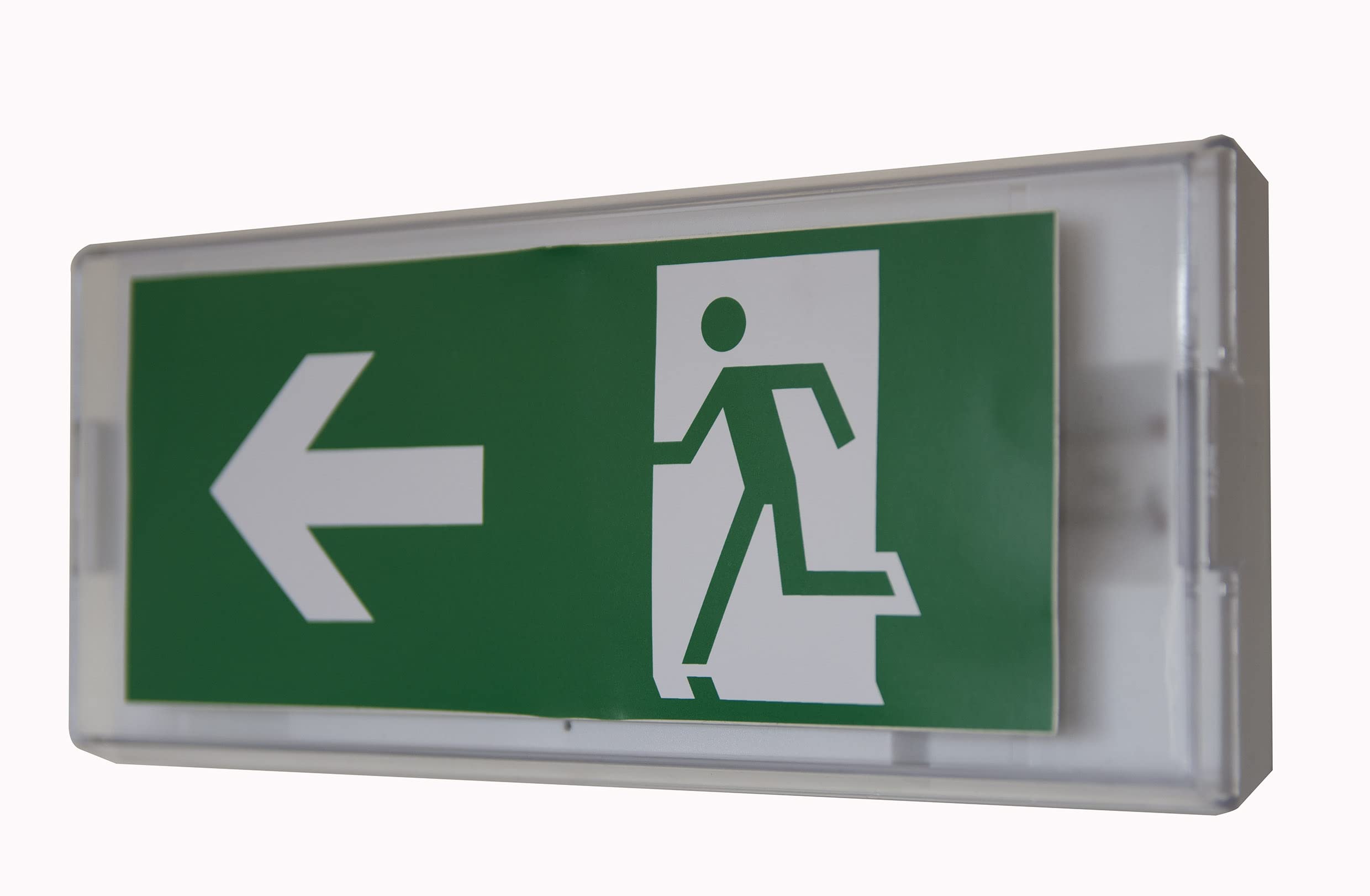

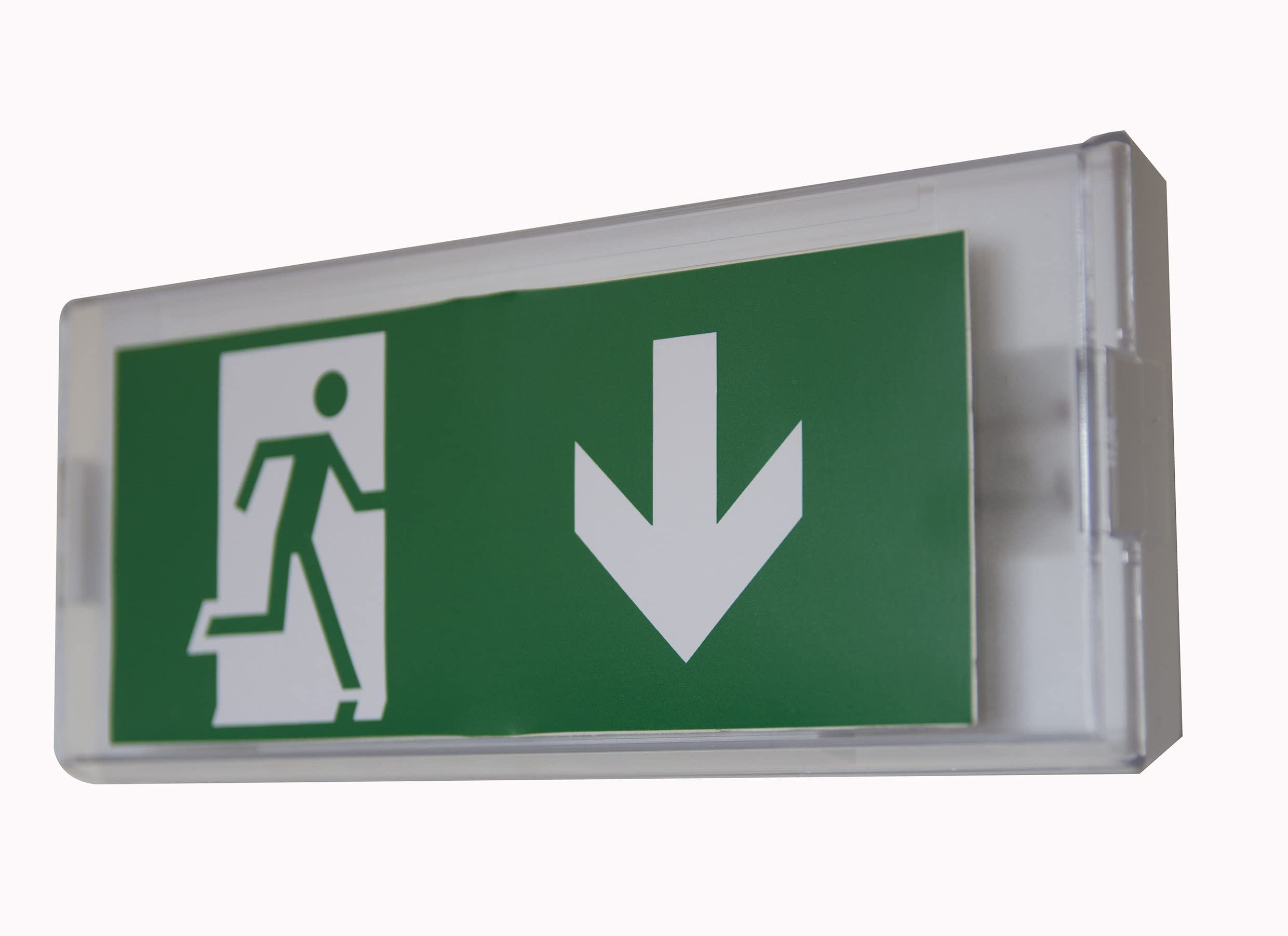

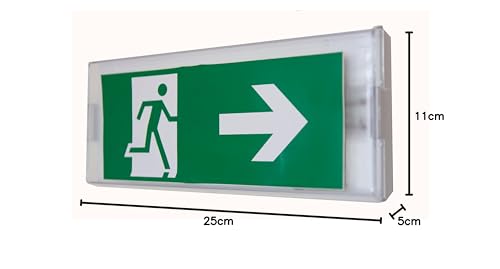

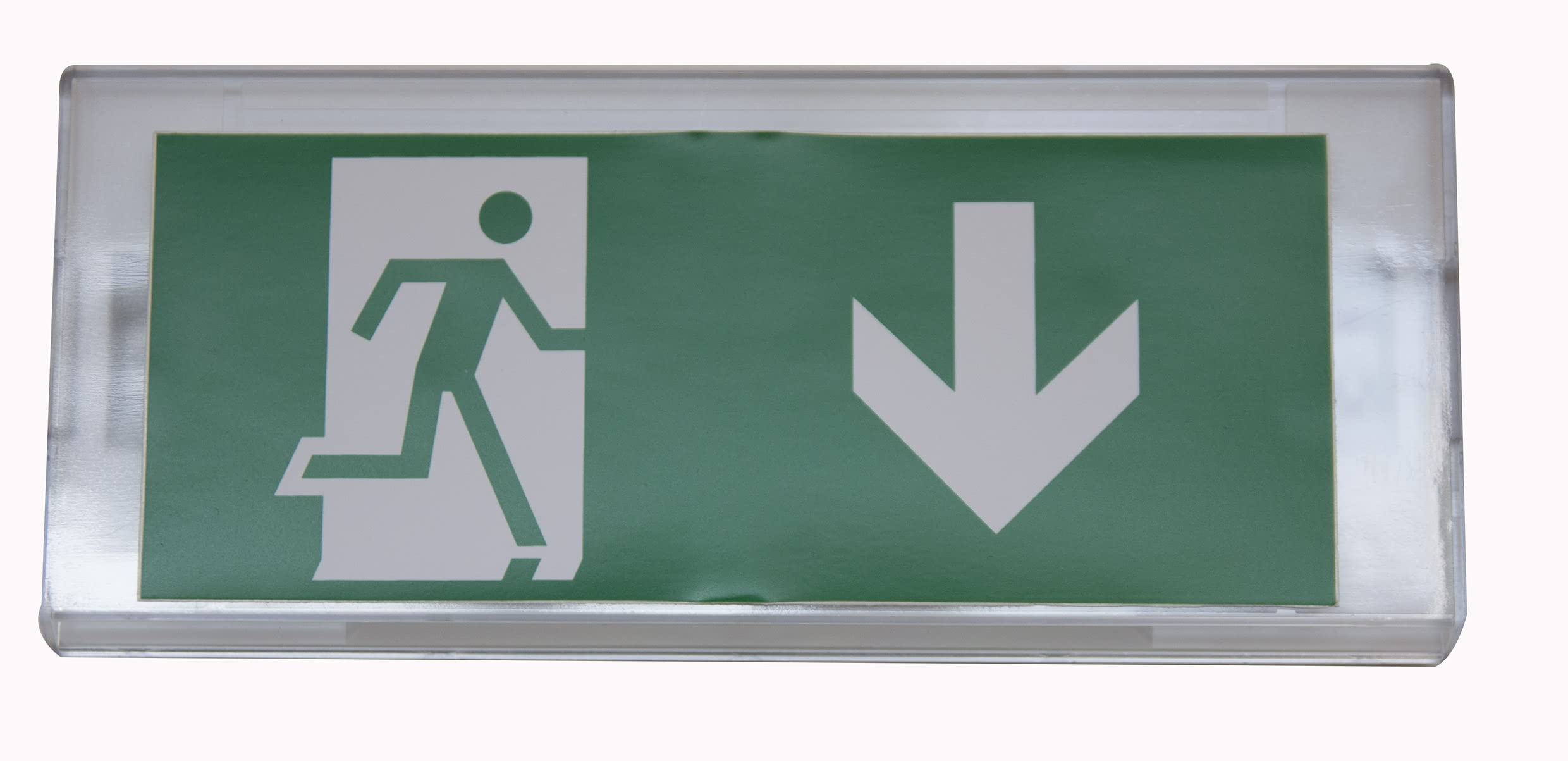

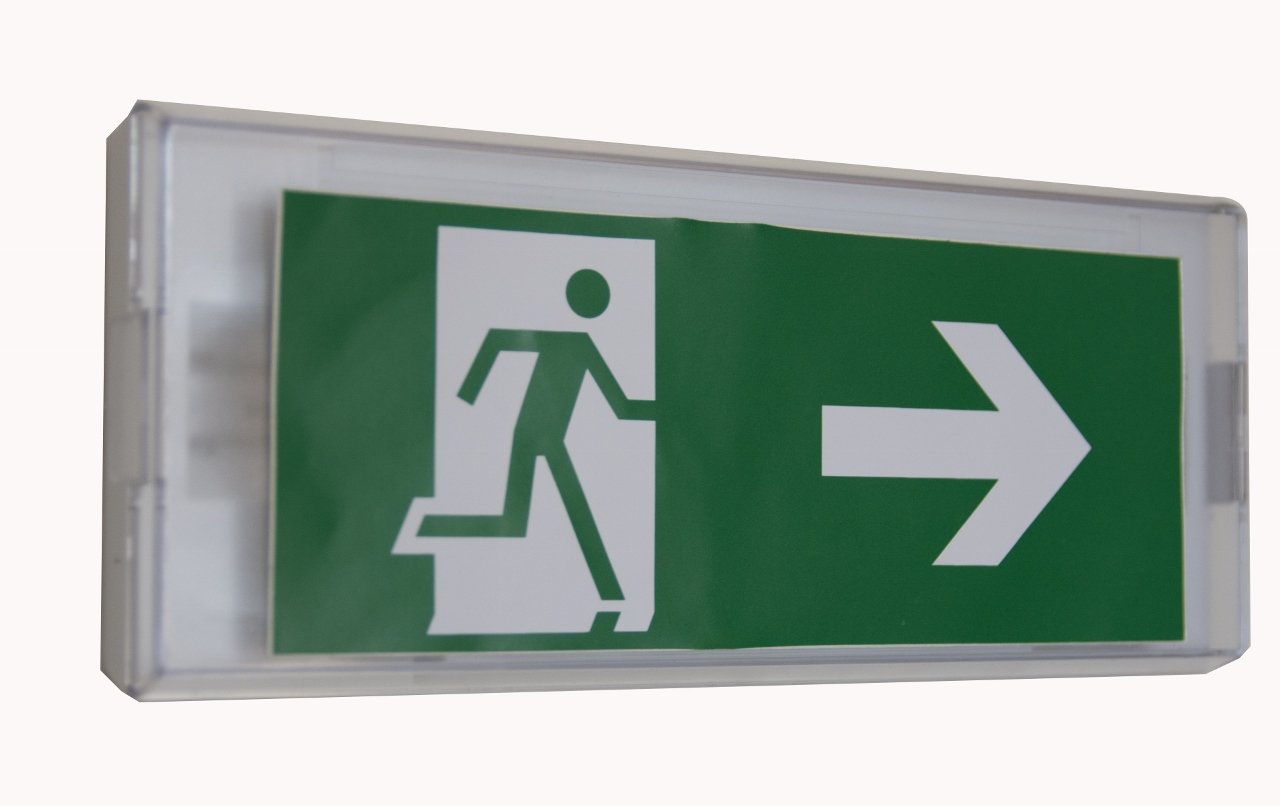

LED emergency light emergency lighting – Good workmanship – Easy mounting – Modern design – Left, right at the bottom and exit – Wall mounting – Technical data:Power supply 230 V AC / 50 Hz Power consumption 6 W Batteries 3.6 V / 1000 mAh Charging current 50 mA Battery charging time 24 hours, Emergency light duration 90 min Charge indicator Red LED Battery operation protection Recharging and discharging Fluorescent lamp 12 x 5050 LEDs Protection class IP 22 Certificate number 98-1628 Working temperature 0–60 °C Ambient humidity Up to 90% relative humidity Dimensions 250 x 110 x 50 mm, Weight 500 g Assembly instructions 1.The emergency lights are packed half-closed.2.Carefully open the lamp case.3.Lay the intermediate plate and the transparent cover to one side.4.Mount the base to the wall with 2 dowels.5.Take the intermediate plate and connect the supply cable to the connection terminal.6.The corresponding point of the connection terminal can be seen at the bottom of the circuit diagram.7.The red LED lights up, when power is applied.8.Place the intermediate plate on the lower part.9.Put the transparent cover back on and gently press it under the lower part until it closes securely and tightly.
