Taikuwu Electronic Thermostat Controller,DC 6-30V 24V LCD Digital Temperature Control Board 50~110℃ Temp Control Switch Module with Waterproof Sensor Prob

• 【Dual Power Supply】Operates on DC 6-30V or 5V Micro USB with 10A max load capacity, compatible with automotive systems and home electronics
• 【Wide Temperature Range】Accurate measurement from -50℃ to 110℃ (±1℃) using 0.5m waterproof NTC sensor probe

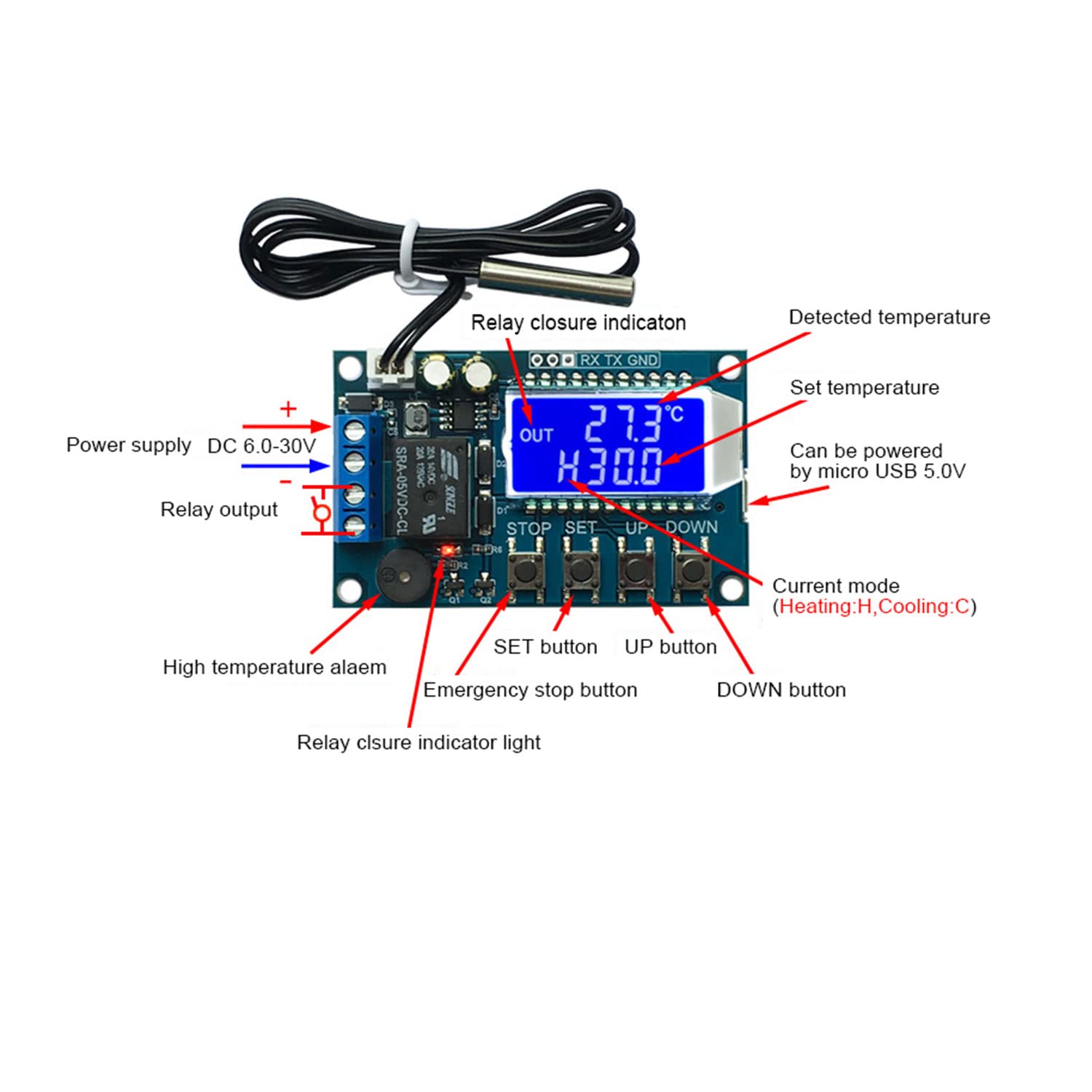

• 【Smart LCD Interface】180° visible display with real-time updates every 0.5s, featuring temperature calibration and emergency stop function
• 【Intelligent Cycle Control】Adjustable delay start (OPH) prevents frequent cycling, protects equipment from rapid on/off switching
• 【Multi-Application Design】Ideal for aquarium heaters, car cooling systems, home brewing, hydroponics and industrial control setups

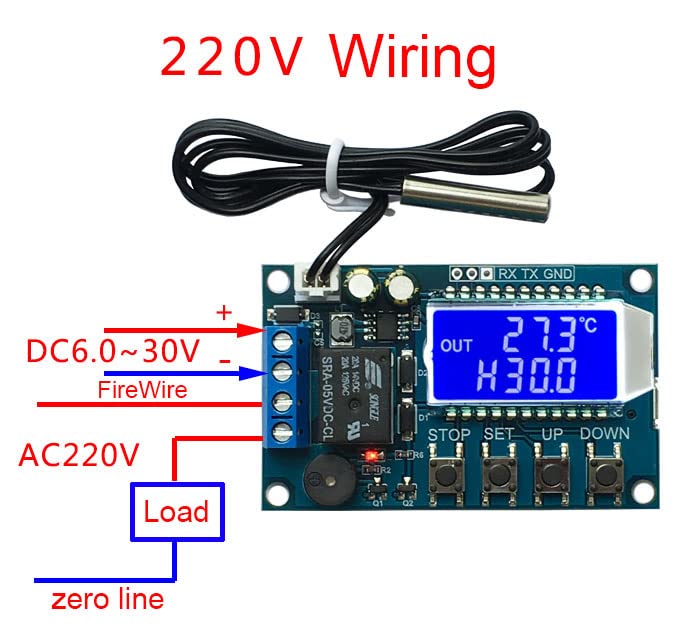

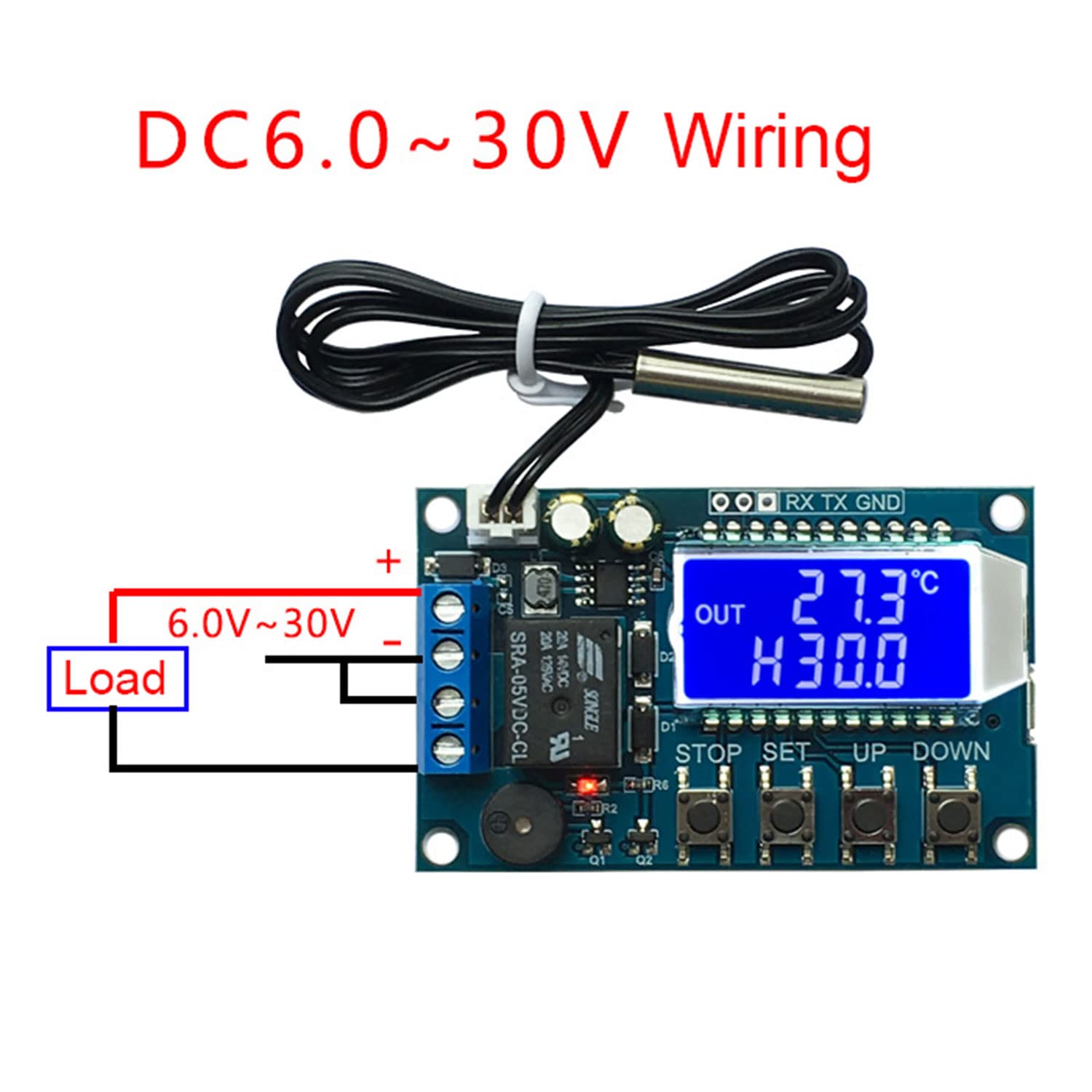

Technical Specifications: Input Voltage: DC 6-30V / 5V via Micro USB Control Range: -50℃ to 110℃ (±0.1℃ precision) Sensor Type: Waterproof NTC10K (50cm cable) Refresh Rate: 0.5-second real-time monitoring Max Load: 10A resistive load (NO relay contact) Protection: Overcurrent cutoff & emergency stop Smart Features: ① Dual Display Mode: Switch between Celsius/Fahrenheit ② Programmable Delay: 1-999 minutes start protection ③ High-Temp Alarm: Customizable alert threshold ④ Auto-Correction: ±9.9℃ calibration adjustment ⑤ Memory Function: Retains settings during power loss Installation Guide: Connect power source (DC or USB) Attach probe to monitored surface Set desired temperature via ▲/▼ buttons Configure advanced settings through intuitive menu Connect controlled device to relay terminals Application Scenarios: ✓ Maintain optimal fermentation temperature for wine/beer making ✓ Prevent vehicle engine overheating in summer ✓ Control hydroponic garden water temperature ✓ Regulate reptile terrarium heating mats ✓ Monitor freezer/refrigerator temperatures Package Contents: 1× XY-T01 Controller Unit 1× Waterproof Temperature Probe
