Eddwiin Motor Brushless Controller-24V-48V Waterproof LCD Display Panel Electric Bicycle Scooter Brushless Controller Kit,for 22.5mm handlebar(24V/36V 350W)

• 【Premium Material】This display adopts good quality materials, lightweight, rainproof, sturdy and durable
• 【Sensitive Control】The brushless motor controller can provide steady s-peed and sensitive control of braking and direction changes

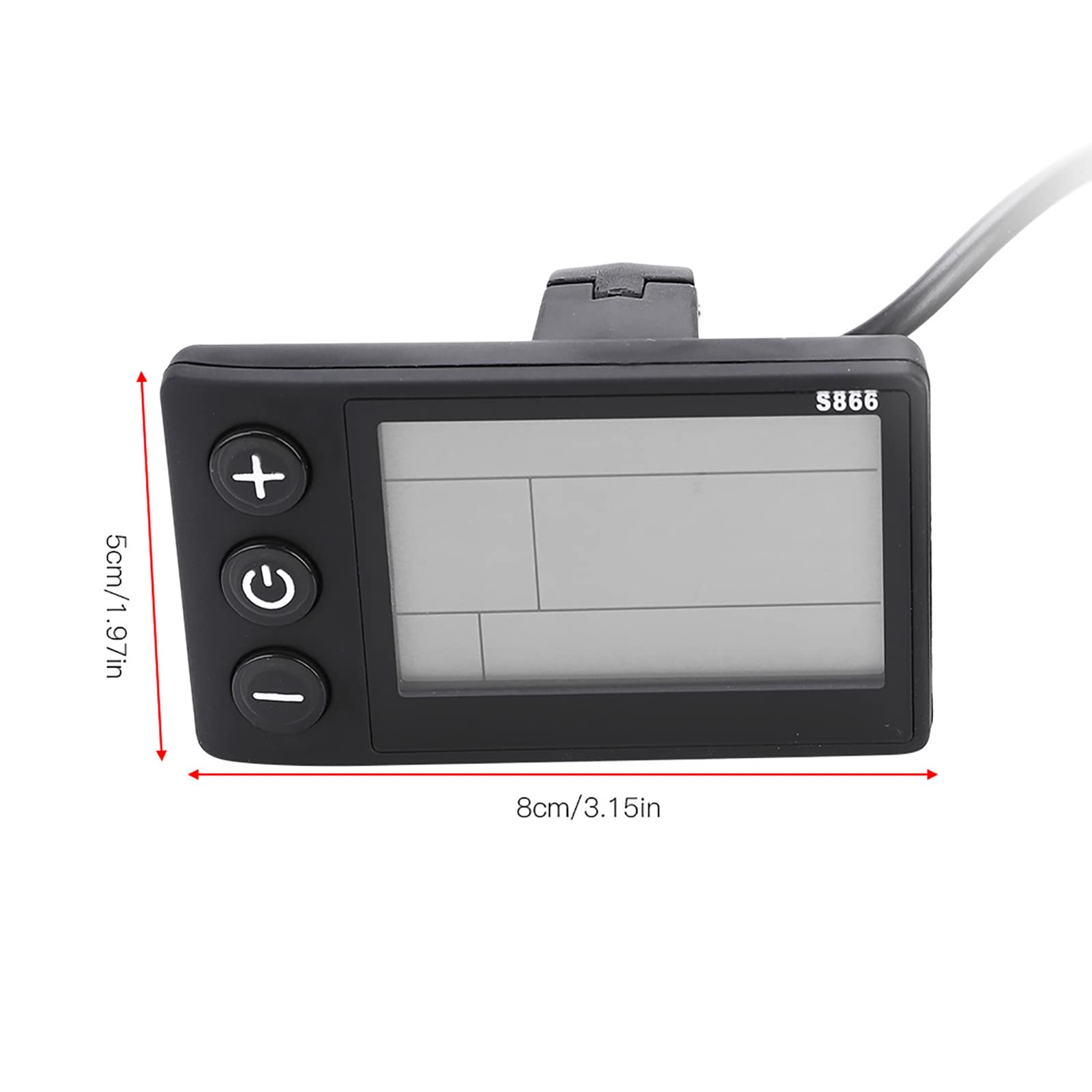

• 【LCD Display】LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use
• 【Heat Dissoption】The controller shell is made of high quality metal with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading
• 【Wide Application】This electric bicycle brushless motor controller is easy to install and use, comes with mount for LCD display and it is suitable for 22.5mm handlebar

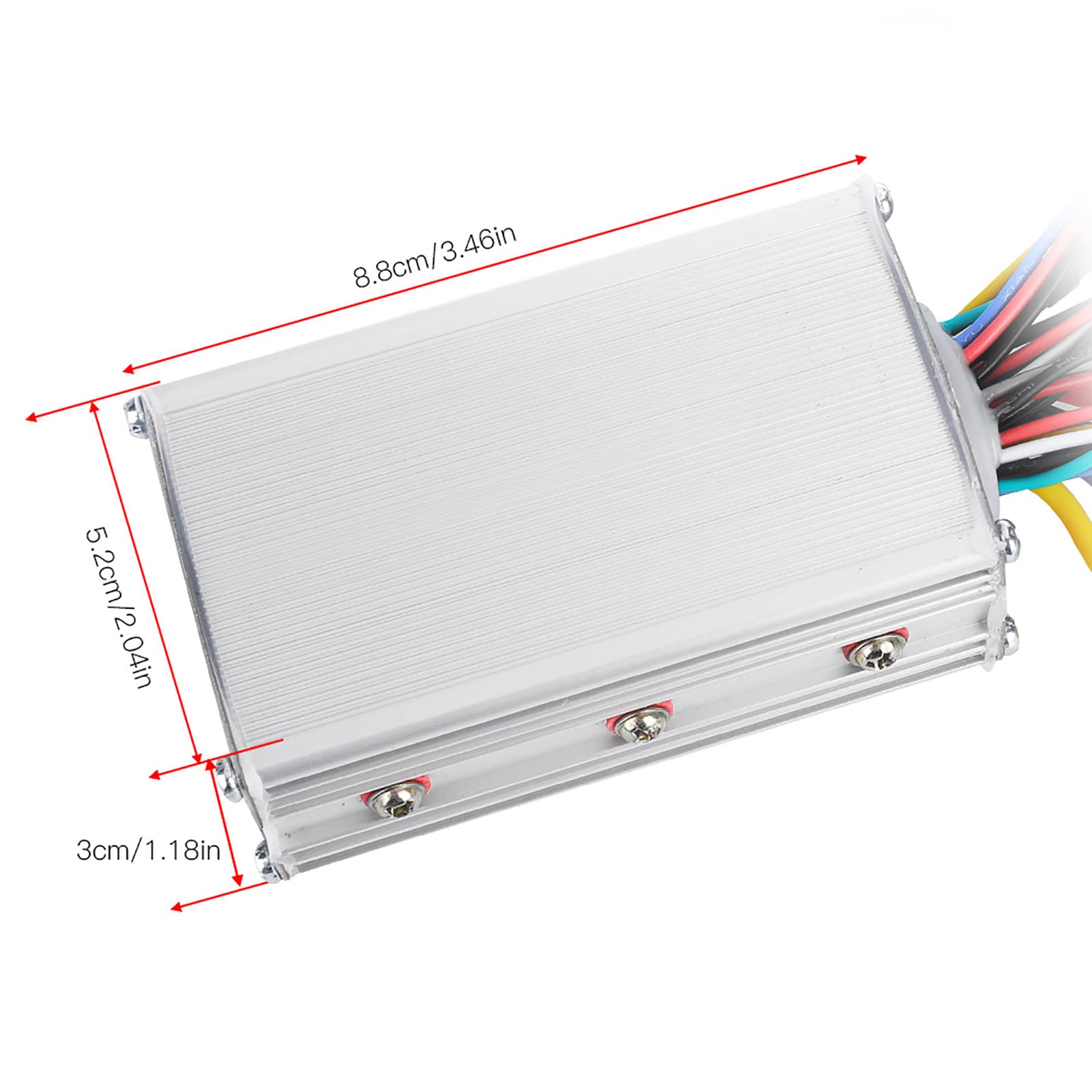

Specification: Material: Plastic + LCD + Metal Color: Shown as picture Options: 1#24V-36V; 2#36V-48V Power: 250W/350W Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V Waterproof: Rainproof Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch Weight: Approx. 332g Package List: 1 x LCD Display 1 x Controller Note: Each cable is labeled with color for different uses. Red: power positive electrode Black: power negative electrode Yellow: power output Brown: lamp positive electrode White: lamp negative electrode Blue: indicator signal Green: signal receive
