Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4 Lite/EMMC Series Module, Include ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces, Powerful Ethernet Capability

• 【Powerful Ethernet Capability】Dual Gigabit Ethernet Base Board designed for Raspberry Pi Compute Module 4, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

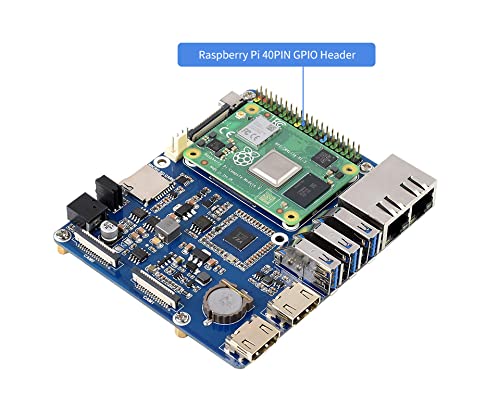

• 【Connecting with Compute Module 4】Standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header, suitable for Compute Module 4 Lite/EMMC series module

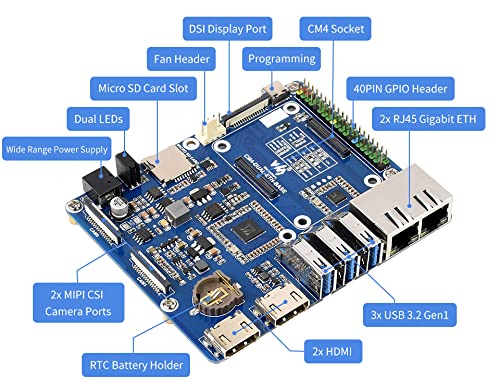

• 【Rich Interfaces】Providing interfaces including ETH/CSI/DSI/RTC/HDMI/Micro SD/USB
• 【FAN Header】5V/12V, allows speed adjustment and measurement
• 【SD Card Slot】MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• raspberry pi compute module 4 cm4 dual gigabit ethernet base board dual gigabit ethernet carrier board raspberry pi compute module 4 with wifi cluster io board lite emmc module board raspberry pi compute module 4 dual ethernet router board

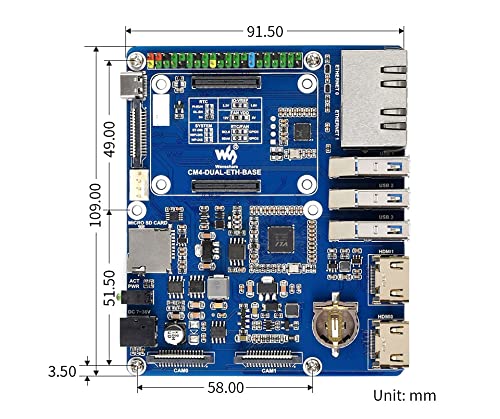

Overview Dual Gigabit Ethernet Base Board Designed For Raspberry Pi Compute Module 4, Powerful Ethernet Capability, Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products CM4-DUAL-ETH-BASE Specifications 1. CM4 SOCKET: suitable for all variants of Compute Module 4 2. ETHERNET: Dual Gigabit Ethernet RJ45 3. USB: USB 3.2 Gen1 × 3 4. PIN HEADER: 40PIN GPIO header × 1 5. HDMI: HDMI × 2, supports 4K 30fps output 6. DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0mm FPC connector 7. CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector 8. POWER INPUT: 7V-36V 9. FAN: 5V/12V, allows speed adjustment and measurement 10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4 11. SD CARD SLOT: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12. DIMENSIONS (MM): 109.0 × 91.5 Package content CM4-DUAL-ETH-BASE x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
